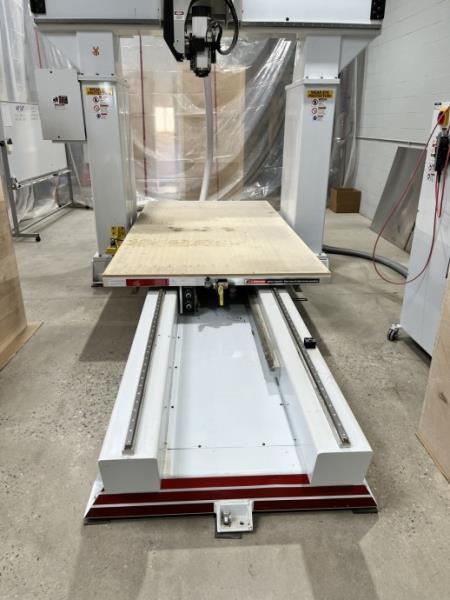

5' x 10' moving table design with 5-axis articulating wrist arm, aluminum tables with 1" thick tool and jig plate.
Head travel & rotation: X-Axis (table travel) is 120", Y-axis (gantry travel) is 62", Z-axis is 24" standard; Full 360° 5-Axis simultaneous rotational axis motion.
(1) 12 HP "HSD" Spindle with HSK F63 adaptor. (3,000 - 24,000 RPM).
(1) 10-position ATC tool stations & solid-state inverter. Lead screw compensation for correcting pitch tolerance, zero-backlash ball nuts.
"Siemens" Intelligent Servo drive system with feed speed up to 3,000 IPM, automatic lubrication system.

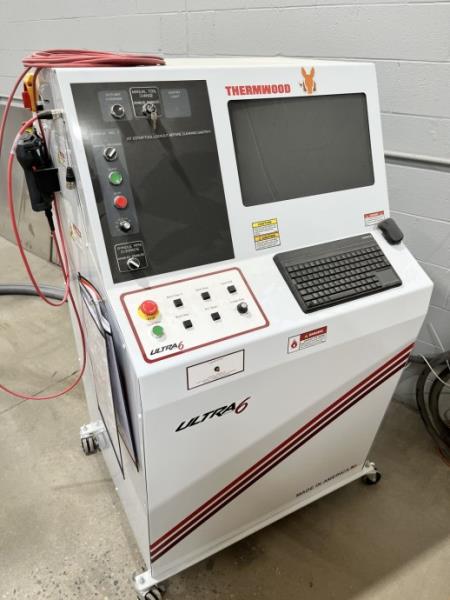

Operator Interface: THERMWOOD "QCore Super Control" Series controller, Mastercam software & Windows10 Pro operating system. 1-TB Hard Drive Storage
*** Please click the link for full description***

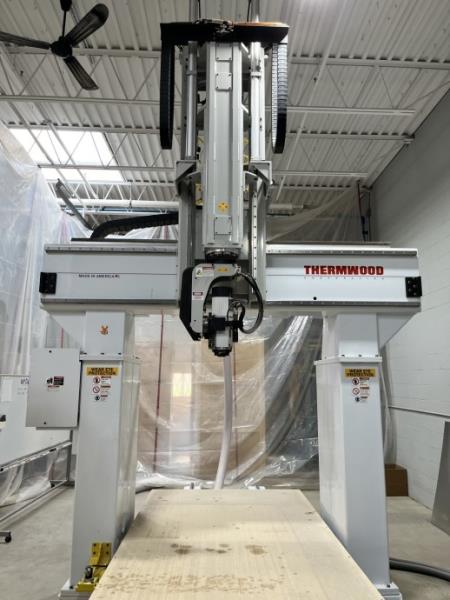

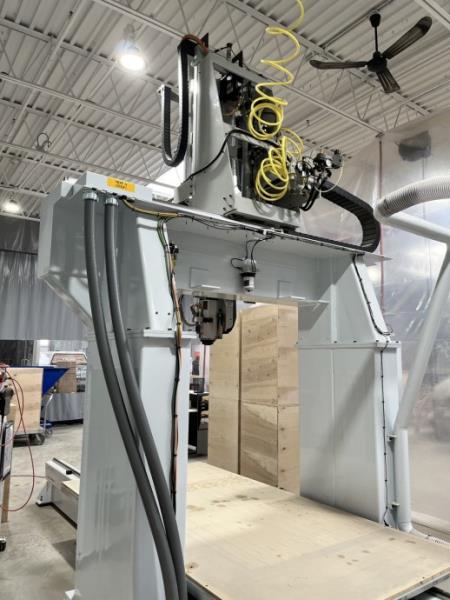

Thermwood M 90 5-Axis Cnc Router
