PART: AMX-10028 - DOBLE MITER SAW 45 DEGREE – 14” DIAMETER - PISTORIUS EMN-14
Used - Very good condition
2 Motors 2 HP, 208/230/460 Volts, 60 Hz, 3450 RPM
2 New On/Off Switches with magnetic starters WEG
2 Saw blades installed 14” diameter
Saw harbor 5/8"
Dust exits 2 of 4" diameter, requres aprox. 850 CFM
Air use 72 CFM at 65 PSI based in 15 cycles/min
Table height 36-1/8" (917 mm)
Guide Left: 37” largo
Gude Right: 22” largo
Pneumatic pedal
Each cut takes 4 to 6 seconds
Shipping dimensions: 48” length x 40" width x 65” height - Weight: 590 lb.

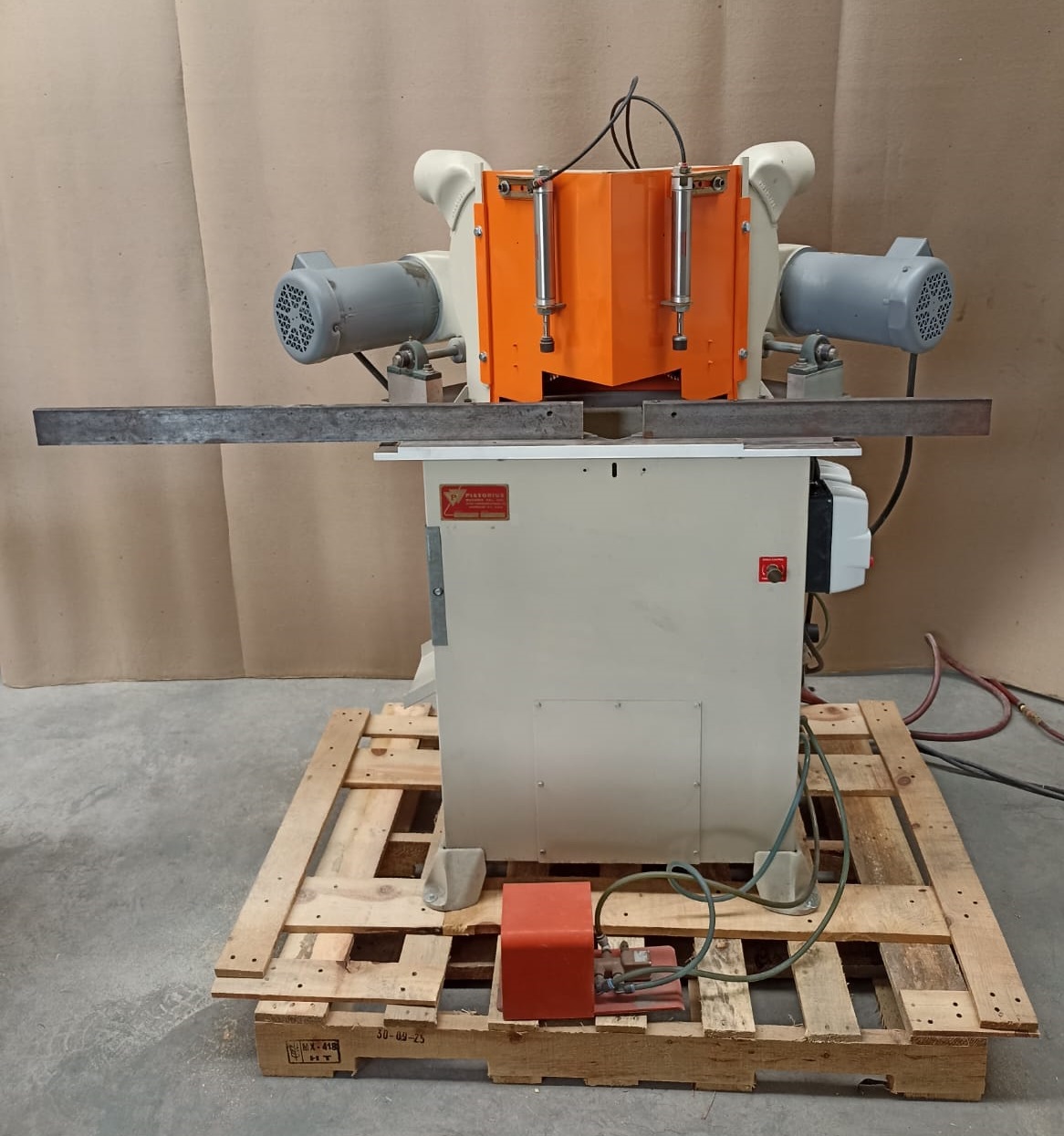

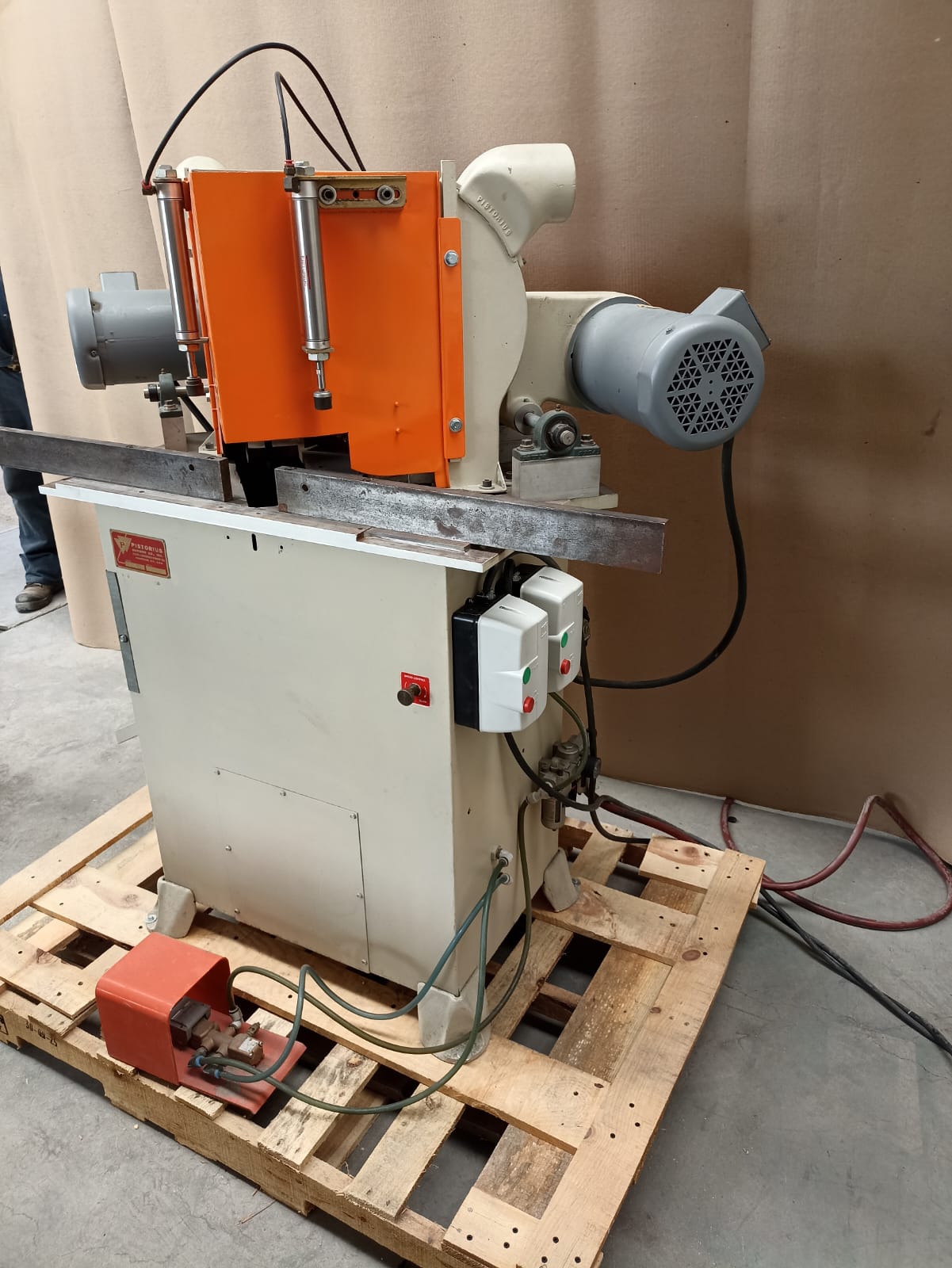

All Photos and Description:
