3-Head bottom with: Planer, drum and platen; 3-head top with: Planer, drum, and platen 920 mm (36") wide.
Capacity: 36" x 5" thickness.

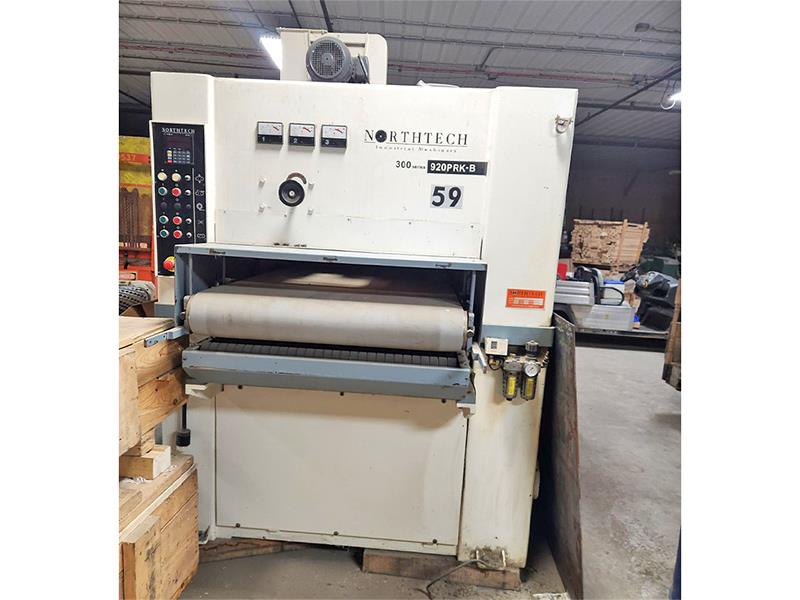

Bottom Machine Model: "NT-KL-920 PPR".
Infeed driven Conveyor: 37" x 72" Long.

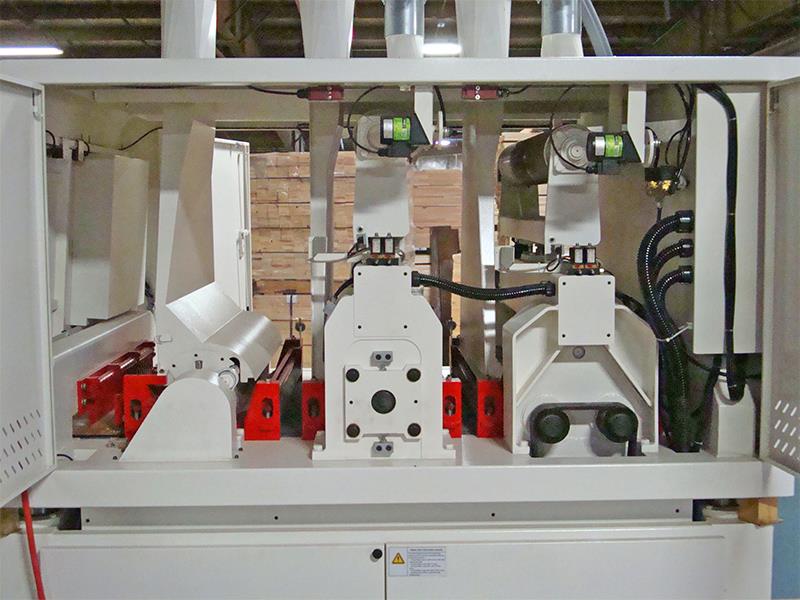

1st Head: Spiral cutterhead; (8) rows of 15 x 15 x 2.5 mm inserts carbide knives; (4) sides for rotation; low tool cost.
Cutterhead: 175 mm (7") Dia. and 50 HP motor.
Segmented chip breaker before the cutterhead.
2nd Head: Contact roller; (280 mm) 11" in dia.; 70 durometers, powered by a 40 HP motor; running at 3,600 FPM belt speed.
Sanding belt size: 85" x 37".
3rd Head: 3-1/4" Pneumatic Polishing Platen; engineered as a combination station, air-cushioned & adjustable in pressure to various grits and materials application. Powered by a 30 HP motor.
Lifting & lowering conveyor bed; 1-1/2 HP motor (includes auto. thickness setup device).
Variable speed: 7.5 HP; inverter duty motor integrated with an AC inverter (VFD); control providing variable feed rate from 15 - 70 FPM for heavy calibration; LED readout feed speed indicator....

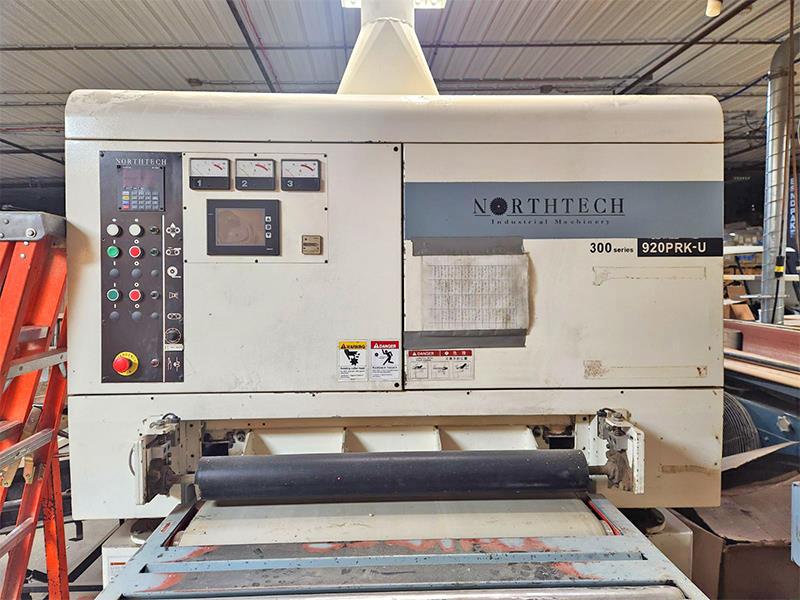

Top Machine Model: NT-KL-920 PRR-U
1st Head - Spiral Cutterhead: (8) Rows of 15 x 15 x 2.5 mm inserts carbide knives; (4) sides for rotation; low tool cost.
Cutterhead: 7" (175 mm) Dia.; 50 HP motor.
Segmented Chip Breaker: Before the cutterhead.
2nd Head - Contact Roller: 11" (280 mm) Dia.; 70 durometers; powered by 40 HP motor; running at 3,600 FPM belt speed.
Sanding belt size: 85" x 37".
3rd Head - 3-1/4" Pneumatic Polishing Platen: Engineered as combination station; air-cushioned & adjustable in pressure to various grits and materials application; powered by 30 HP motor.
*** Please click the link for full description***
Northtech Top & Bottom 3-Head Planer Sander
