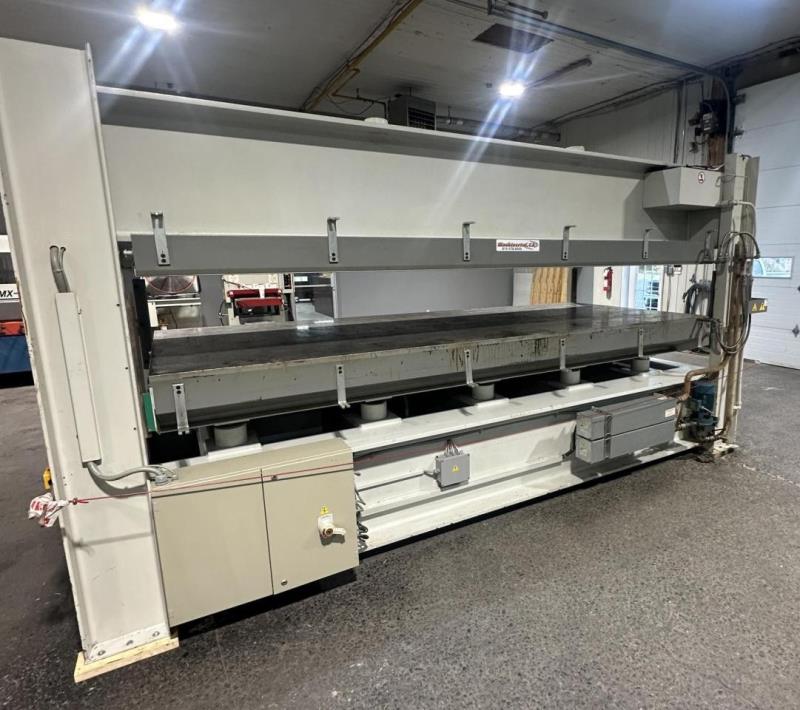

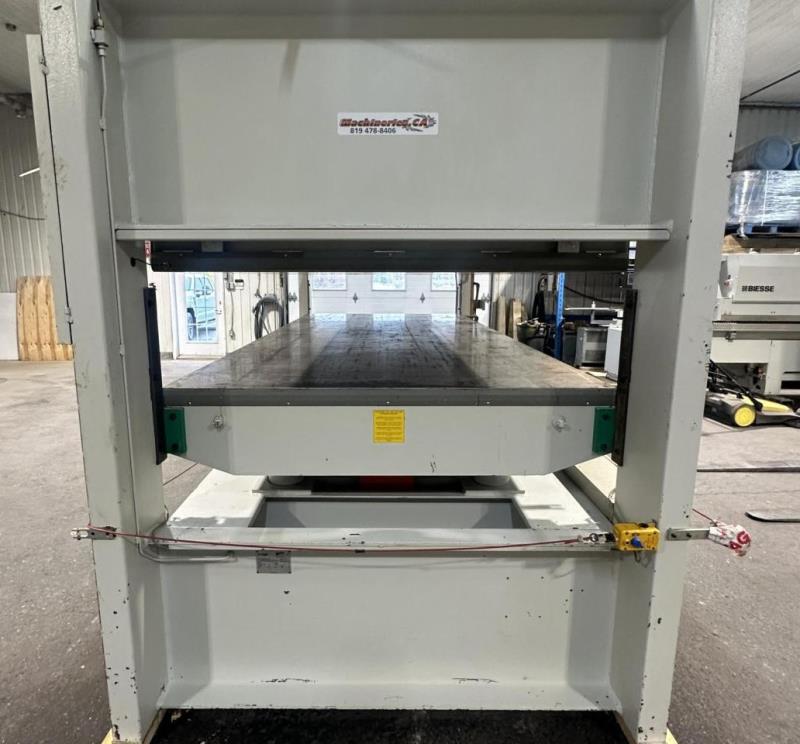

5' x 12' Hot Press with: 63" x 146" (1,600 mm x 3,733 mm) Platens
15-5/8" (396 mm) Max. daylight opening; (10) hydraulic upstroke cylinders (2 cylinders at each end can be deactivated from the control panel, allowing pressing of smaller work pieces and preventing damage); 190 metric tons of total pressure; 4 HP hydraulic pump motor.
Electrically heated oil platens; 36 kW (approx.) total with: Individual on/off switches; thermostatic controls & indicators; 120° C (248 F) max. platen temperature.
*** Please click the link for full description***

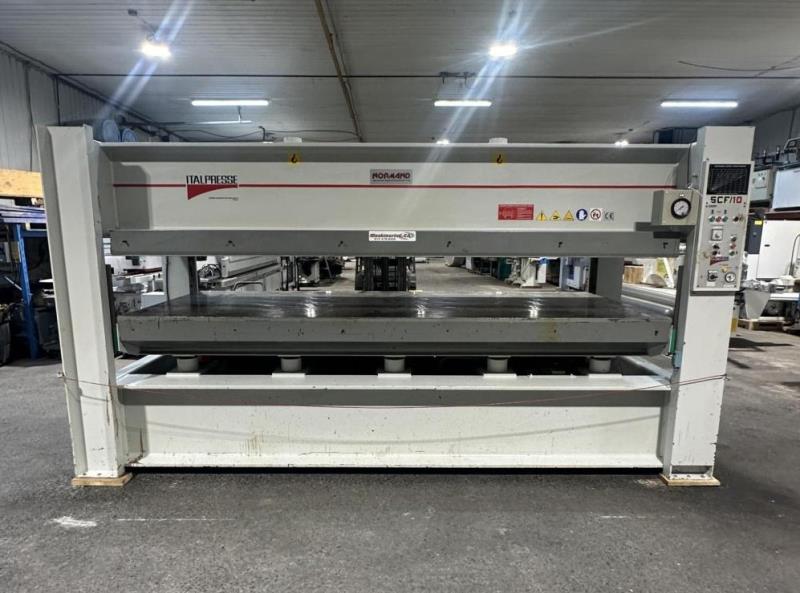

Italpresse SCF/10 Hot Press
