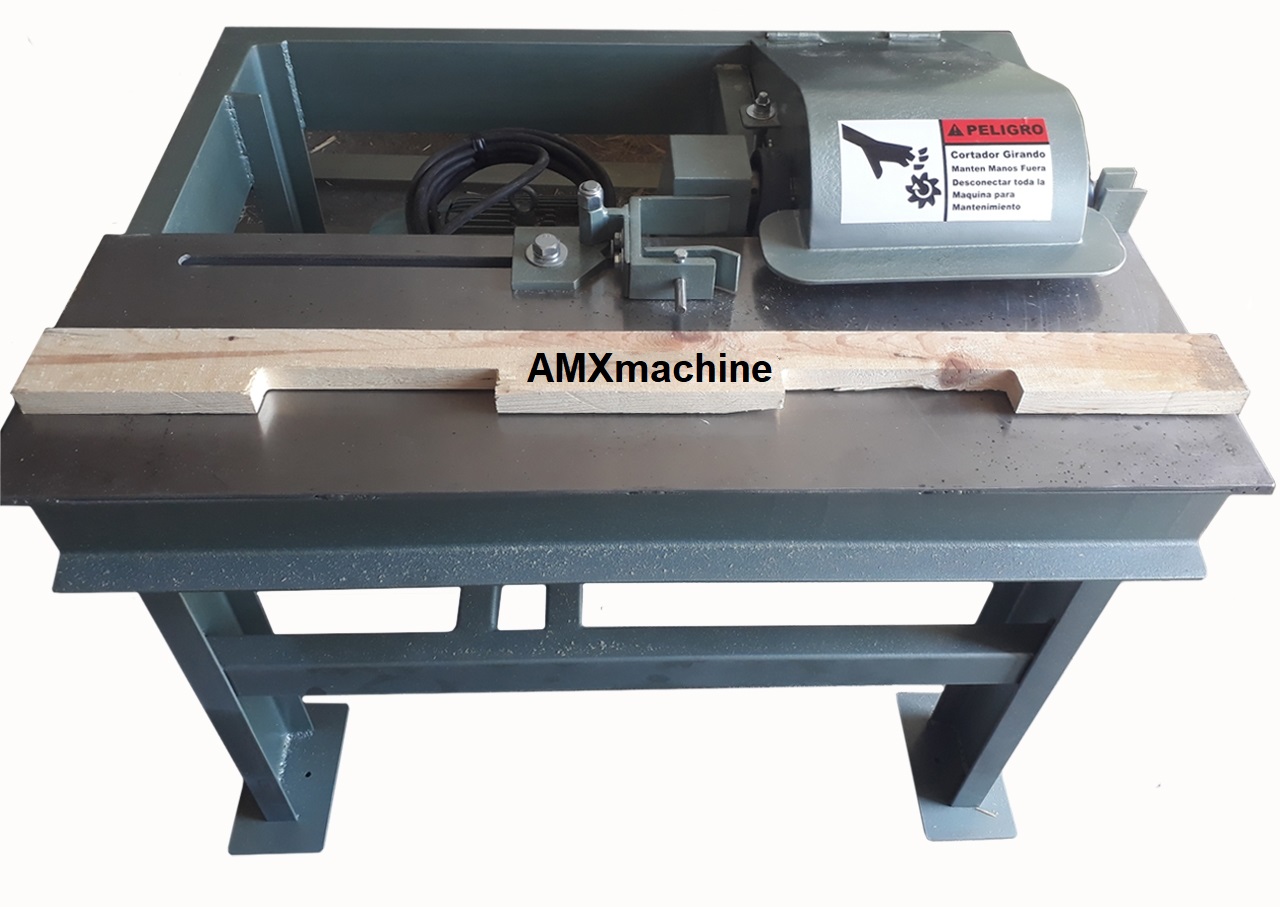

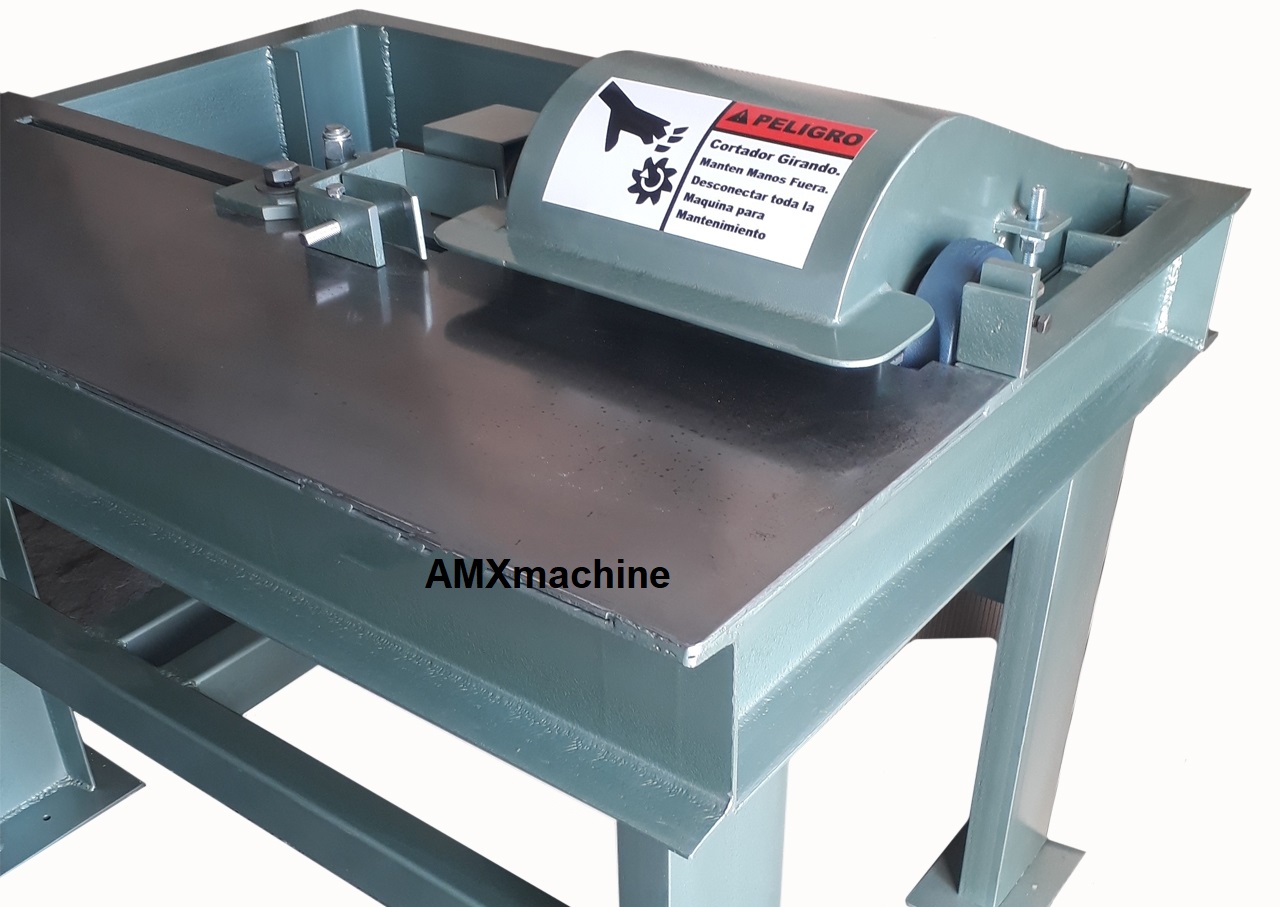

PART: 1AM-1180 – PALLET NOTCHER – 9” LENGHT – 40 INSERT KNIVE CUTTERHEAD - HEAVY DUTY
New with warranty – 6-month warranty on manufacturing defects on mechanical parts only
Motor 10 HP, 220/440V, 3 phase - connected to 220V
Maximum notcher size 9” length x 3” height x 3” depth
400 to 800 notchers/hr. approximate

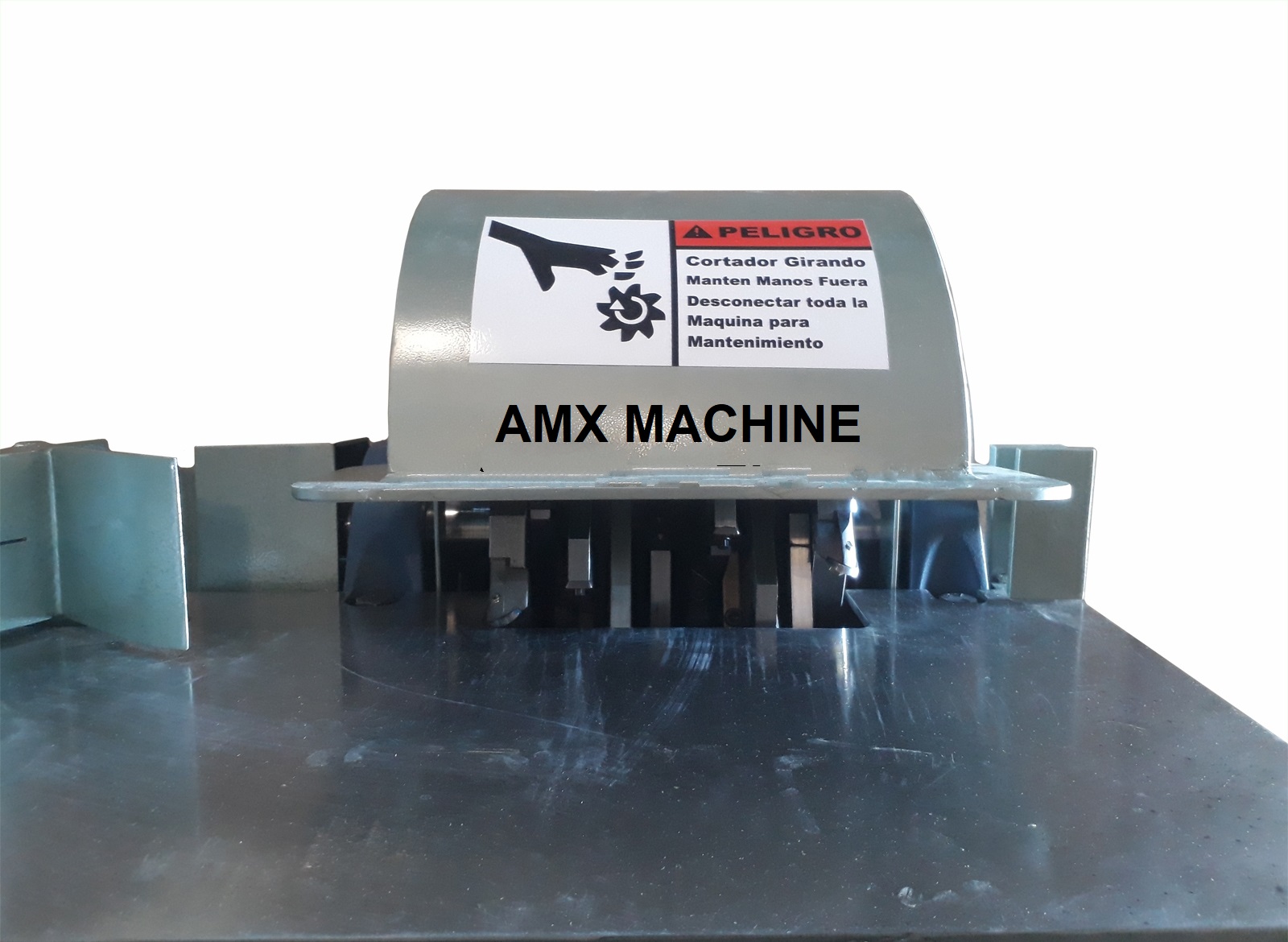

Cutterhead with 40 insert replaceable tip knives cutters for new and recycled wood installed
On/Off Switch with magnetic starter
Machine dimensions: 48” length x 36” width x 40” height - Weight: 720 lb.
Shipping dimensions: Machine palletized: 48” length x 40" width x 44” height - Weight: 772 lb. - Freight Class: 85

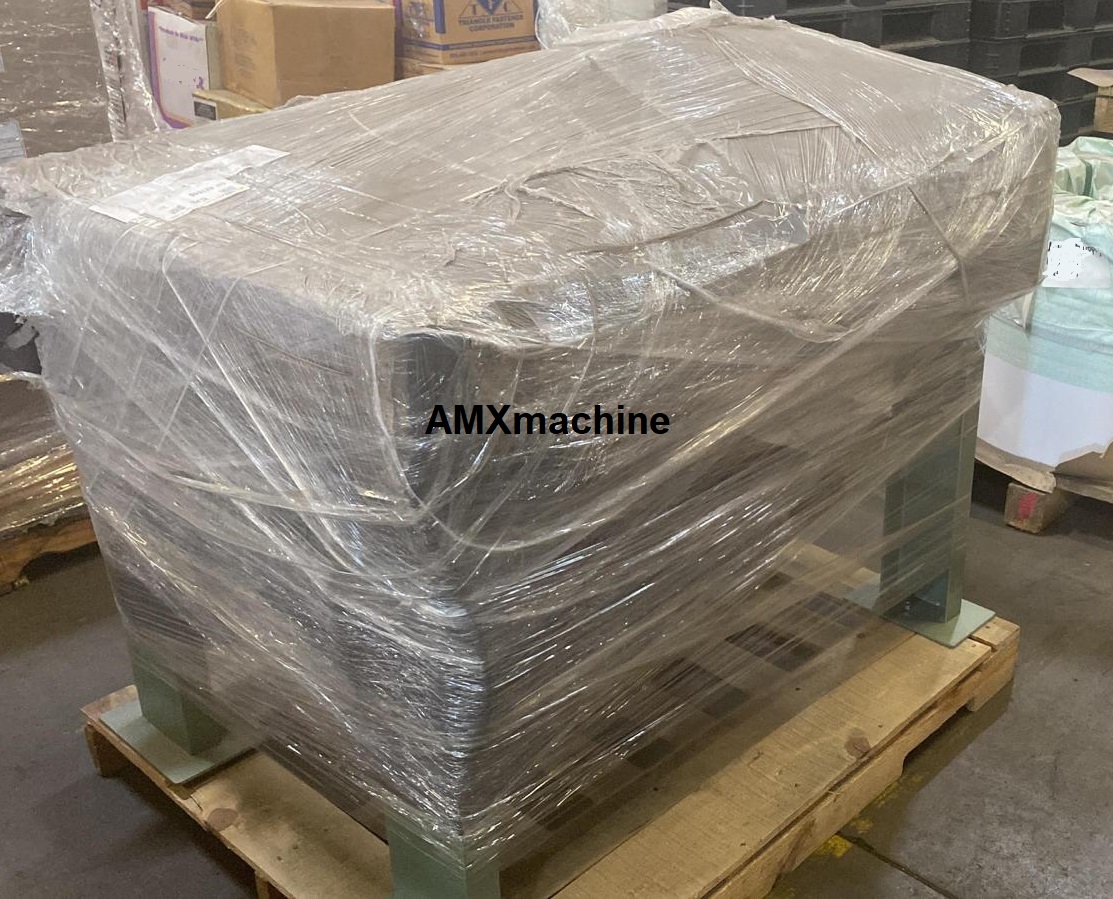

Machine palletized for pick up or shipping
Saw dust removal: 12.25” wide x 10.5” tall opening in the back side
Saw dust removal: 2,300 CFM recommended, equivalent to a 3 HP dust collector
Product specifications are subject to change without notice
