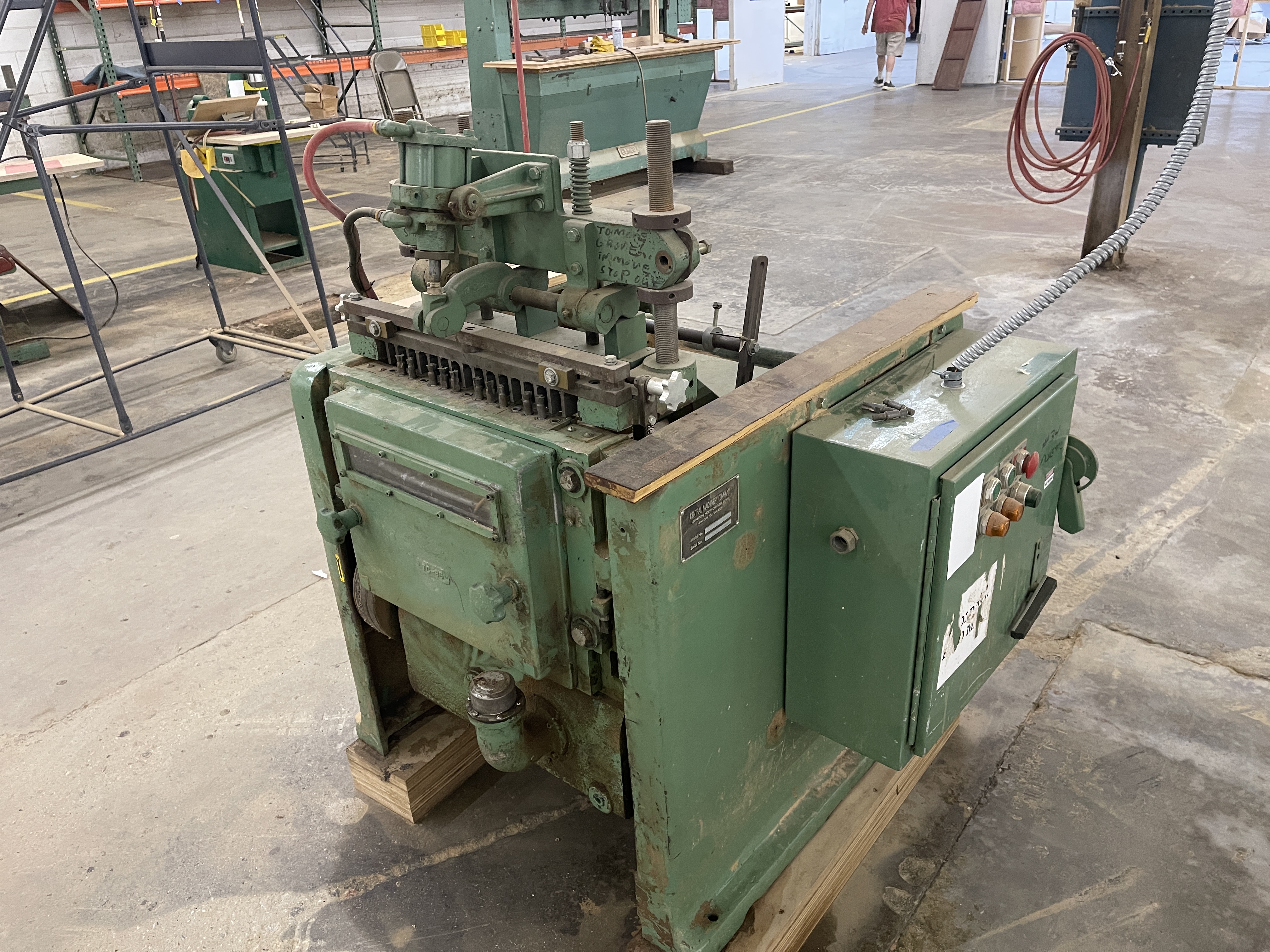

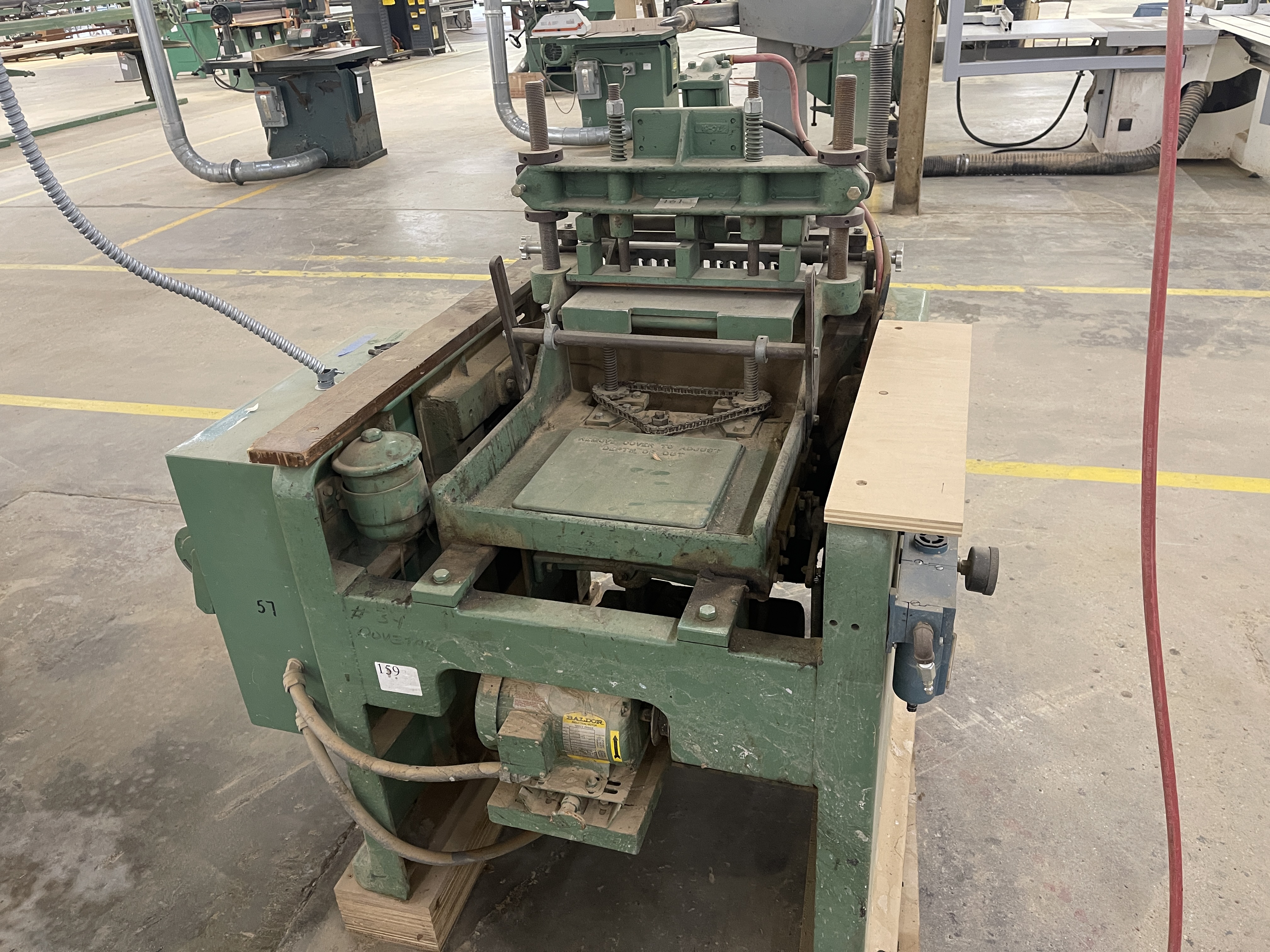

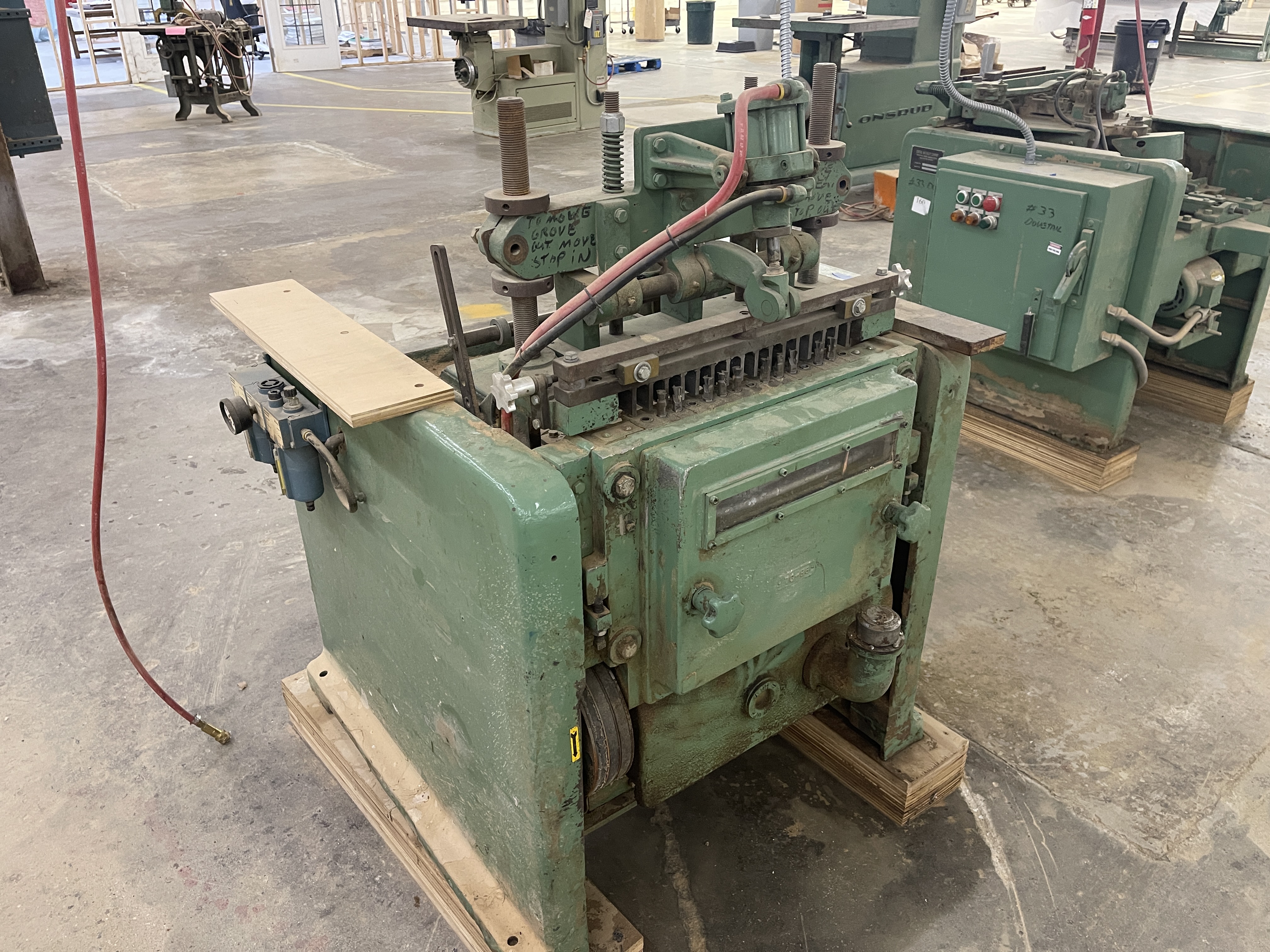

Wysong and Miles Model 600 & 601 Dovetailers
Serial #:DT1-302-90R / DT2-283-90R
Condition: As Is
These machines were rebuilt in the past by Central Machinery
Model 600: 15 Spindle Automatic Dovetailer for Drawer Sides
Main Motor: 5 HP, 3ph
Feed Motor: 1/4 HP, 3ph
Spindle Speed: 6,000 RPM
Maximum Material Width: 15 "
Foot Pedal Operation
Strokes Per Minute: 15 - 25
Serial No DT1-302-90R
Model 601: 15-Spindle Automatic Dovetailer for Drawer Fronts/Backs
Main Motor: 5 HP, 3ph
Feed Motor: 1/2 HP, 3ph
Maximum Material Width: 15"
Serial No. DT2-283-90R
NOTE OWNER ADVISES THAT THE SPINDLE OIL NEEDS TO BE CHANGED
These Machines are part of a total plant liquidation, Please call for details
- RT Stock Number: 2189
