WCT-L22.5x12.5 x 0.75 Linear sliding table pneumatic coping sled
Turn any Shaper, Tenoner or large scale table saw with 12'' or greater blade capacity into a safe accurate production coping / cutting machine for a fraction of the cost. For instance a saw with a 16'' blade capacity would have 2'' cut using the standard rails and a 3'' cut capacity with the optional one pc rail.
This is the newest addition to our industrial series of linear sliding table coping sleds and this introductory price will not last long! If you've struggled with regular inaccurate coping tables, t slot tables and fences or like me have a sliding table shaper that has horrible accuracy then this is going to be one of the best purchases you've ever made! Designed and made by a journeyman woodworker and engineer with over 30 years of experience in the historical millwork and cabinetry field. For comparison using one of our new tables is like going from a standard biscuit jointer to a Lamello zeta P2. There's no comparison between the two other than what they do.
This clamp has a capacity of 17'' in rail width x any length you can handle x 2.25'' clamping height and over 5'' with quick change of pressure bar. Unlimited length of door rails. 3/4'' thick solid 6061 Aluminum top. Solid aluminum and stainless steel linear rails. Standard length of 800mm rails 31.5'' available up to 2200 mm length and longer with special order. Many accessories will be available soon. New fences with solid and fixed stops. 0.75'' thick solid aluminum extension tables in different lengths for those long and extra long rails and part. V shaped fence for 45 degree parts for slotting, finger jointing and whatever you can think of. Fully adjustable variable angled fences in varying lengths. Optional clamp plates for different styles sizes of material. Quick change clamp brackets and many many more are soon to come and all will fit the standard machine that comes with the standard bored template for all future designs.
Larger one pc linear rail is available for purchase up to 84'' in length with a 2.25'' overall height off machine table.

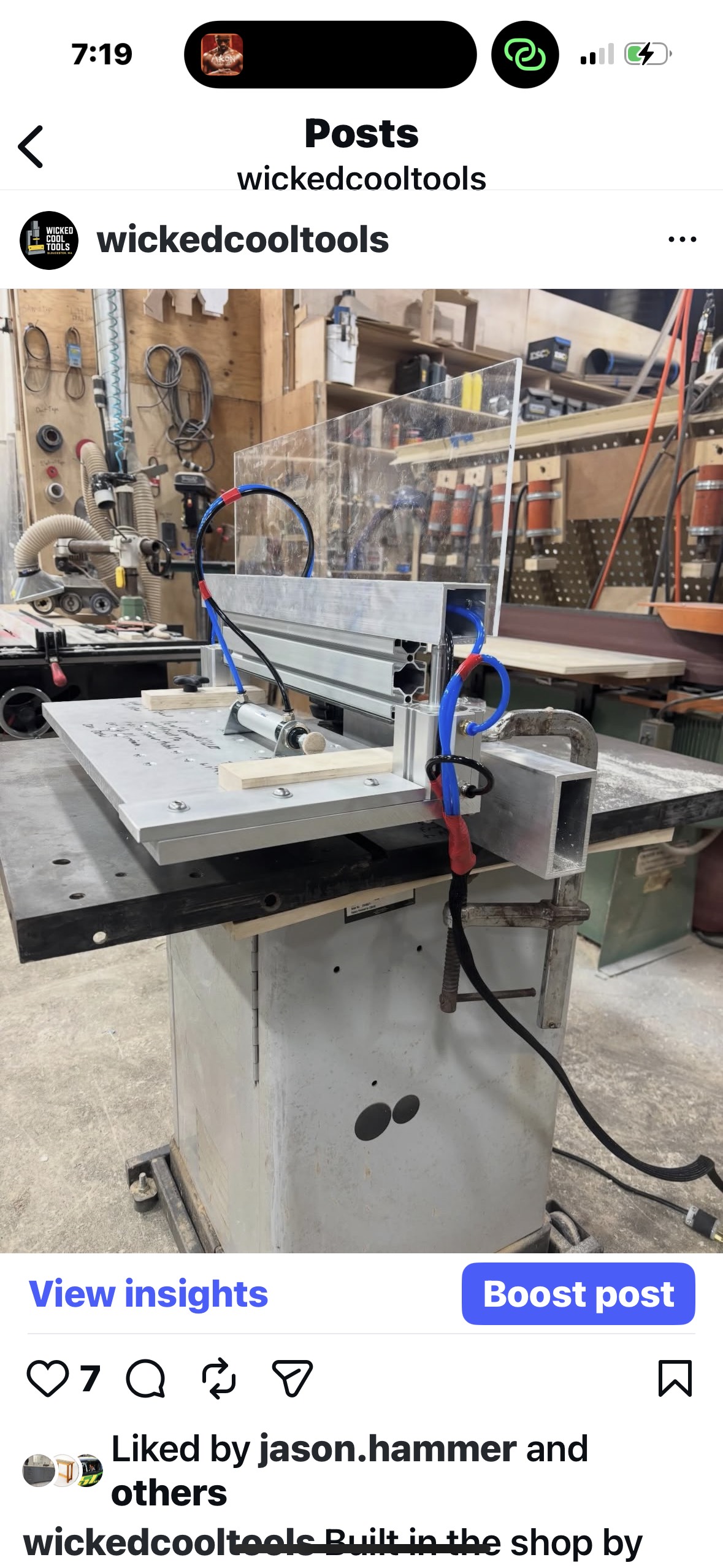

For instance Delta machine in pics shows is shown with standard rail which sits 3.125'' above the table.
This sled is perfect for the shop that does everything. You can cope 5 or more cabinet door rails safely and accurately at a time saving an amazing amount of time or do giant exterior bottom door rails of over 17'' knowing that the parts will come out perfect every time. Vertical clamps have well over 500lbs of clamping force on the combined double pressure bar. Pressure is easily adjusted for harder or softer woods via pressure control switch located at the operators finger tips. If you already have a sliding table shaper purchase the table only or purchase the entire setup for standard machines. If your existing table does not slide perfectly true then I would suggest purchasing the entire unit to get the benefits of the new linear rails.
SPECS:
-Table 12.5''x22.5'' x 3/4'' Table can vary slightly depending on how much material is removed to square edges +/- 0.25''. Standard table and tail sits 3.125'' above machine table. Standard linear guides are approximately 250lbs of vertical load per linear foot.
-Base model comes with 0.5'' x 2'' x 12'' long fence. One fixed hole two adjustable for squaring after fitting to machine and permanent fixing.
-Pressure bar with removable aluminum extrusion foot so jigs and fixtures can easily be attached for special applications. 2.25'' standard clamping capacity. Rubber pad on shoe to firmly hold parts. Shoe can easily be adjusted to allow for thicker material of over 5'' in under 5 minutes. Custom clamp heights and width at your request! We specialize in making new tables for old and new machines. Send us your specs or give us a call and we can build the ultimate sliding table just for you.
-Two vertical clamping cylinders for maximum clamping pressure and ease of use. No adjusting individual clamps.
-Horizontal cylinder clamp with 100+ lbs. of pressure to hold stock firmly to fence. Clamps are sequenced so horizontal clamp activates first pushing stock to fence then pressure shoe engages holding stock firmly to table.
Adjustable fence for squaring cope/tenon ends after initial setup. Larger fence extrusions can also be added as optional accessories or can be purchased at a later time that will bolt directly in place of original fence.
-Adjustable height acrylic shield for operator safety. Height of Acrylic guard can be changed in under one minute.
-Clamp can either be ordered with foot pedal clamp control or fence mounted controls. Specify at time of order.
-Table is coated with nonslip clear material that can easily be recoated at any time with a quick sand and spray. We do this on all of our tables so you can see the markings and etchings in the table for easy alignment and future jigs and fences.
- All fasteners and hardware are 100% aluminum and stainless. This will last several life times.
ACCESSORIES
-Larger one pc linear rail is available for purchase up to 84'' in length. With this one pc rail our 0.75'' table sits only 2.375'' in overall height with combined rail above machine table.
One pc linear rail is rated at 750 lbs. maximum compression load (vertical load)
550 lbs. maximum tension load (horizontal or side as pushing through tooling)
This rail is slightly easier to install and requires no extra support for longer lengths when centered on standard shaper table of 35'' or longer but we do suggest adding temporary supports under if possible. If it is being placed on a shorter machine you will need to purchase an optional extension kit for longer rails that easily bolts onto existing machinery.
Larger capacity one pc rail with integrated table adds $545.00

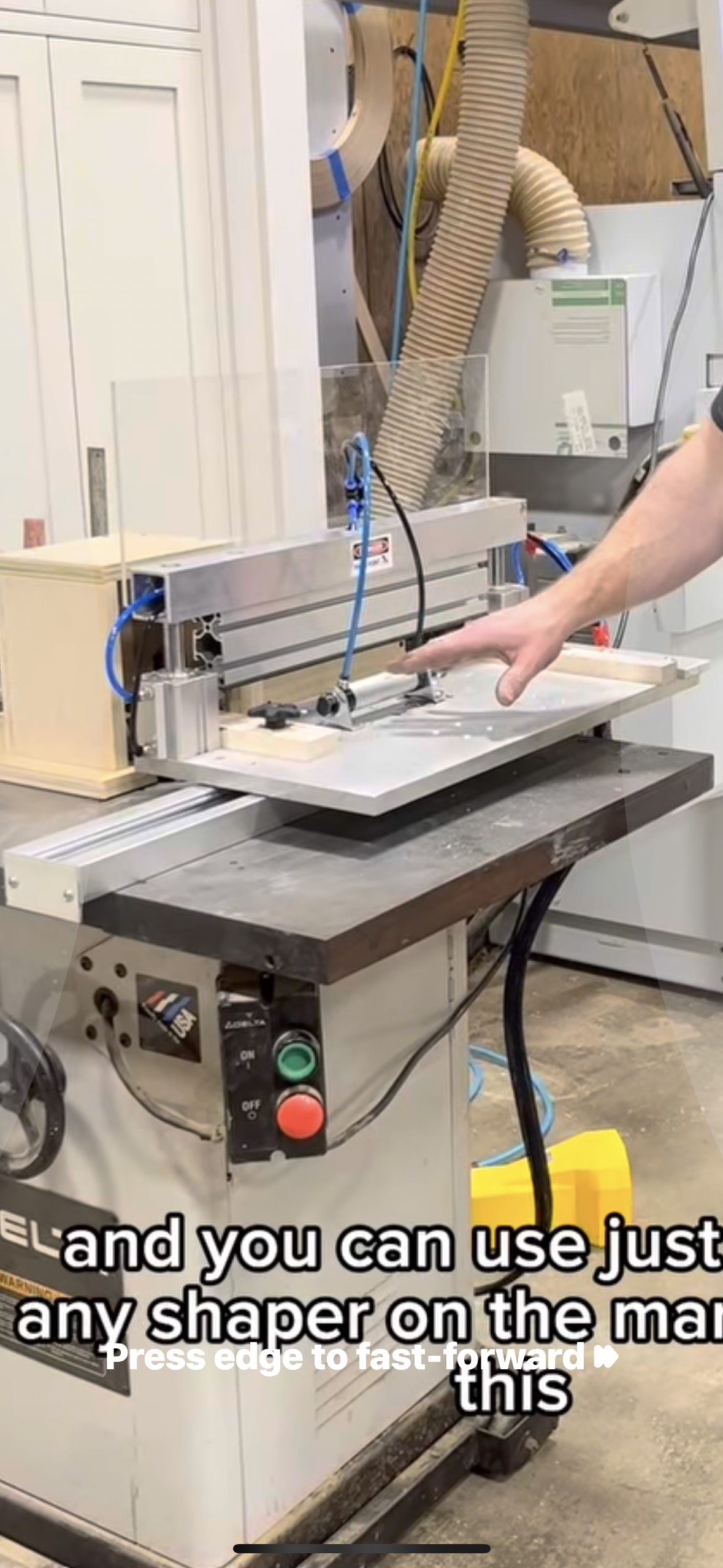

-Standard rails sit 3.125'' above machine table. The pictures and video show the standard Delta 431 shaper with a 1'' spindle with 4'' tool height capacity. Even with this small machine and the standard rail you still have 3'' of usable spindle under the nut and above the table. Most 1.25 spindle shapers will have 3-4'' useable space under the nut.
- Inboard and outboard shaper fences with mechanical readouts that are very accurate. They are perfect for sizing rails on the inboard side of the shaper or tenoner so you have a perfectly square and straight fence that you can put 5 or more cabinet door rails against to cope all your parts faster.
- We will also be offering this in a different format as an outboard shaper fence for outboard shaping and precise sizing of parts. If you like using an outboard fence to size parts perfectly and want a quick precise set up this is a great option and know just how time saving having this setup can be than this is for you. No more fighting clamps and boards on and under the table. I've done that along with fences with tapes and or indexing pins and many many more versions. This unit Simply bolts once to the machine via quick removable knobs. Easily set mechanical readout and go. Once readout is set in under two minutes you will be making precisely sized parts in any size. There's nothing better out there or even close to this. I have proved this design myself over several months and will be releasing it before the end of February along with many other cool tools for real woodworkers made by a real woodworker!
We offer several standard sizes as well as custom machinery built and tailored to your specific specs. This model is the most versatile linear sliding table in our lineup. It's for shops that do everything or just one thing because it does everything amazingly well. If you want a safe, accurate and repeatable set up for your growing business do not miss this!
