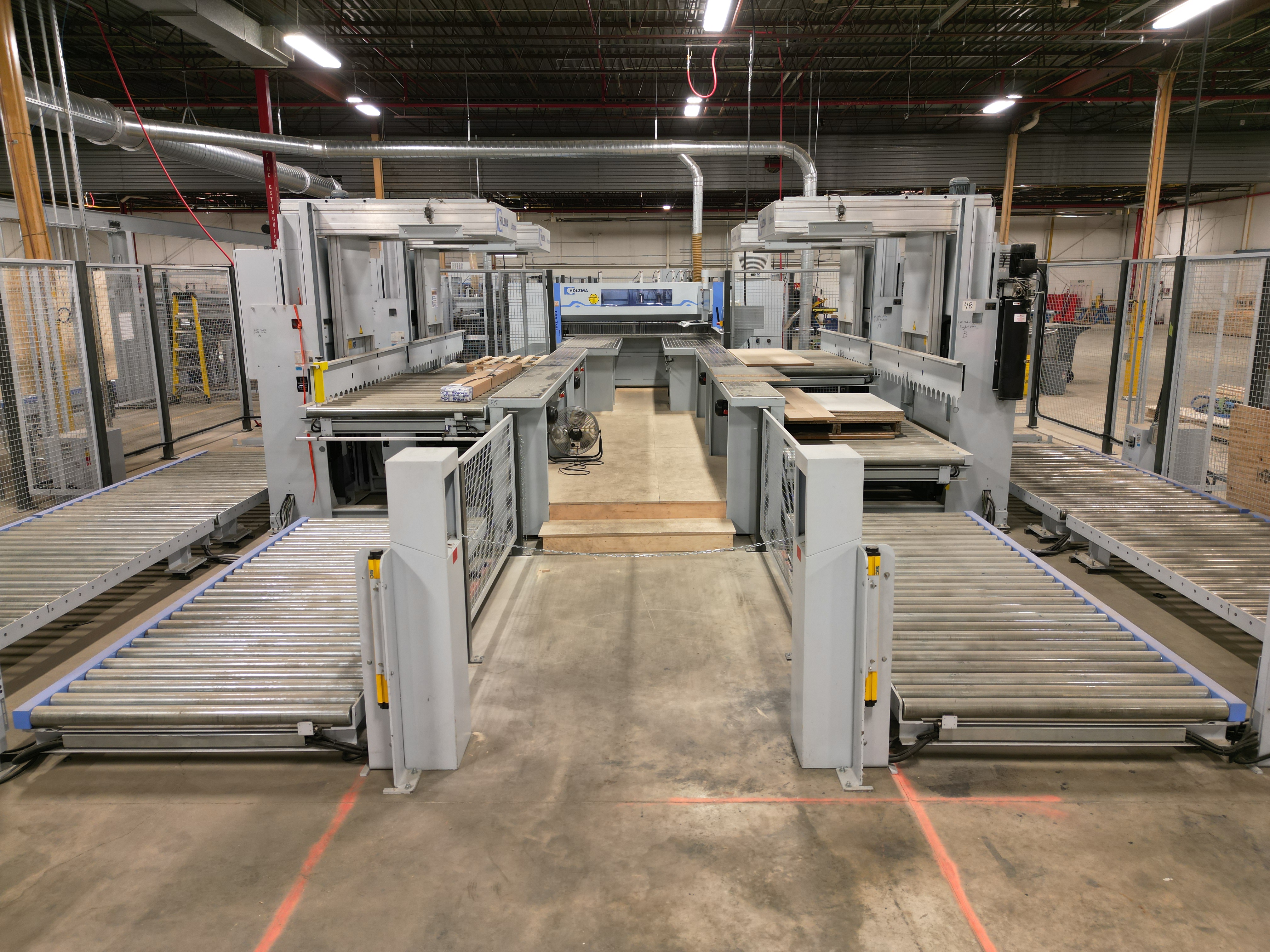

2015 Homag HKL 400/43/22/X Angular Panel Saw
Cutting capacity — Rip (longitudinal): 4,300 mm (169 inches); Crosscut: 2,200 mm (86.6 inches).
Saw blade projection: Typically 110 mm standard, up to 125 mm (about 4.9 inches) optional.
Main saw motor: Often 18 kW (24 HP) or higher options (e.g., 11–24 kW depending on config).
Scoring saw: Usually 2.2 kW.
Control system: CADmatic 4 Professional (or later versions in newer equivalents).

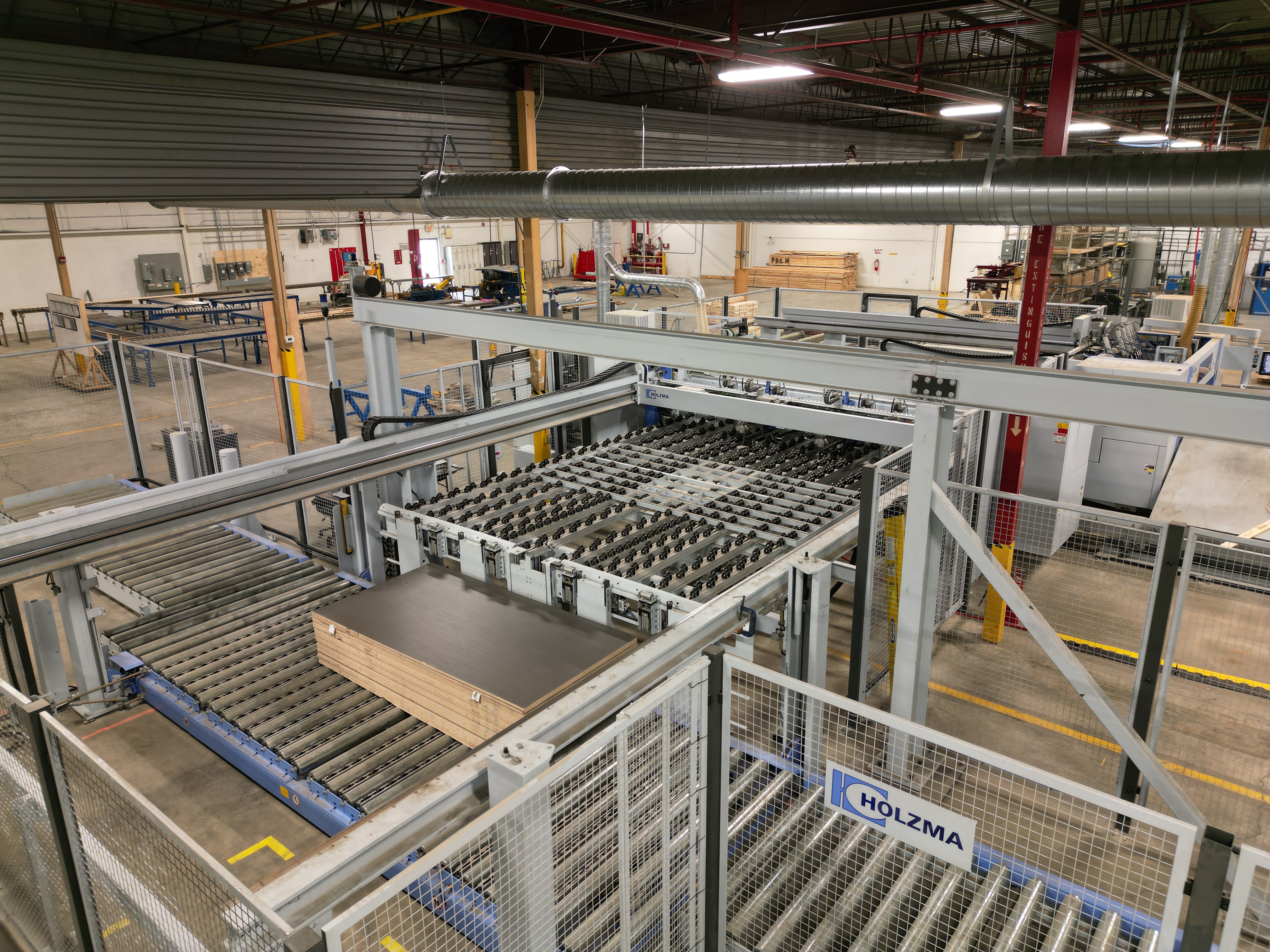

Features: Includes lifting table for panel stacks, roller pre-loading table, program fence for positioning, high feed speeds (saw carriage up to 150–170 m/min), and often integrated with automatic loading/unloading systems.
