BORING MACHINE 23

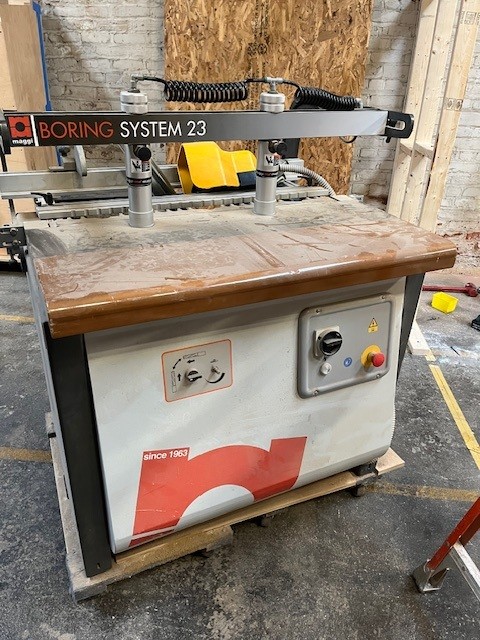

MAGGI BORING MACHINE – SYSTEM 23
PRODUCT FEATURES

Main features of the machine:
- Single-head drilling machine for drilling at an angle range of 0 - 90°
- Securing clamps allow quick panel positioning without adjustment
- Spindles adapted for quick couplings
- Fast and precise adjustments and drilling
- Italian-made 2016

Standard machine equipment:
- 2 aluminum rulers, 1.5 m long (right and left), each with four stops
- 5 quick couplings
- Wooden crate for safe transport of the machine
Fpebbh Ecox Rqk Isn Eoc

ADVANTAGES

- Drilling vertically/horizontally/at an angle
- Multiple spindles
- New machine
- CE certificate
- Robust
- Professional

TECHNICAL DATA

- Number of spindles: 23
- Distance between the first and last drill bit: 704 mm
- Distance between centers of adjacent spindles: 32 mm
- Max. size of workpiece: 950 x 3000 mm
- Max. workpiece thickness: 60 mm
- Max. drilling depth: 65 mm
- Number of pneumatic clamps: 2
- Working pressure: 6-7 bar
- Air consumption: 10 l/cycle
- Motor power: 1.5 kW
- Noise level: 76.1 dB
- Spindle speed: 2800 rpm
- Overall dimensions: 1235/950/1310 mm
- Weight: 310 kg
