Overall Footprint: - 19' x 23'.
Max cutting length & cutting width: 126". Max blade projection: 4.13"; max. cutting height: 3.63"; machine cutting tolerances: +/- 0.006"; main saw motor: 18 HP (variable to 3,800 RPM); main blade dia.: 15" (4,300 RPM); scoring saw motor: 2 HP (eliminates chipping on bottom sheet); scoring blade dia.: 8".

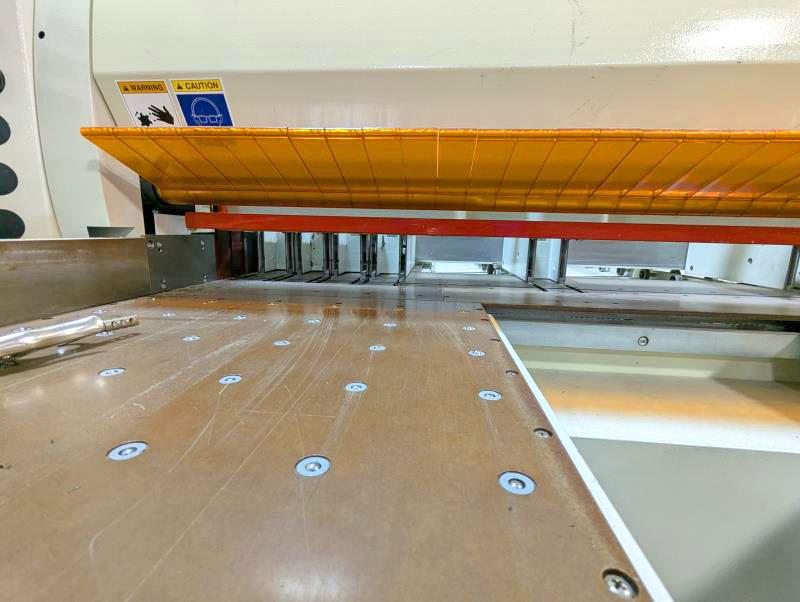

High Speed rack & pinion saw carriage; brushless A/C motor (saw carriage speeds: 0 - 446 FPM); pusher speeds: 0 - 330 FPM; automatic side aligner ensures tight cut tolerances: 2.8" - 48" aligning zone); variable: 0 - 3,900 RPM; 19-1/2" wide rear phenolic table for crosscutting narrow strips; (1) 2' x 8' fixed front load air table; (2) 2' x 5' movable front load air tables.
*** Please click the link for full description***

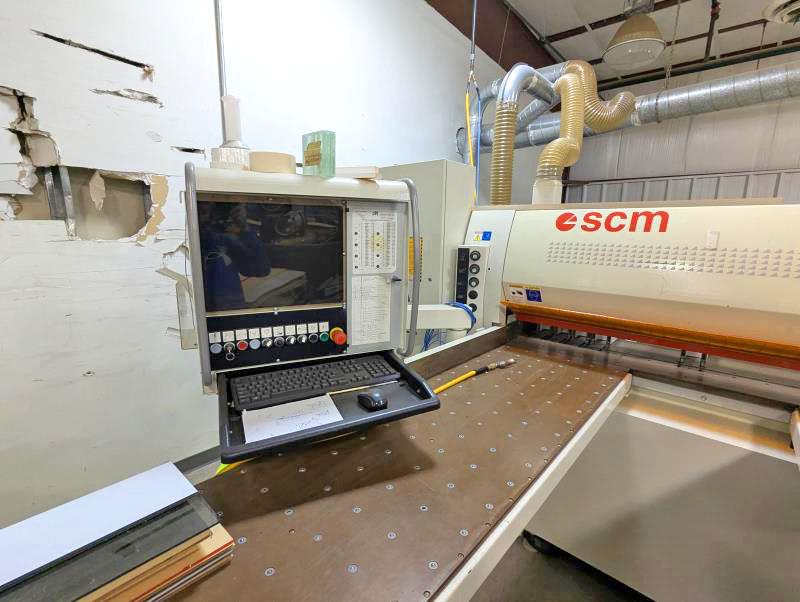

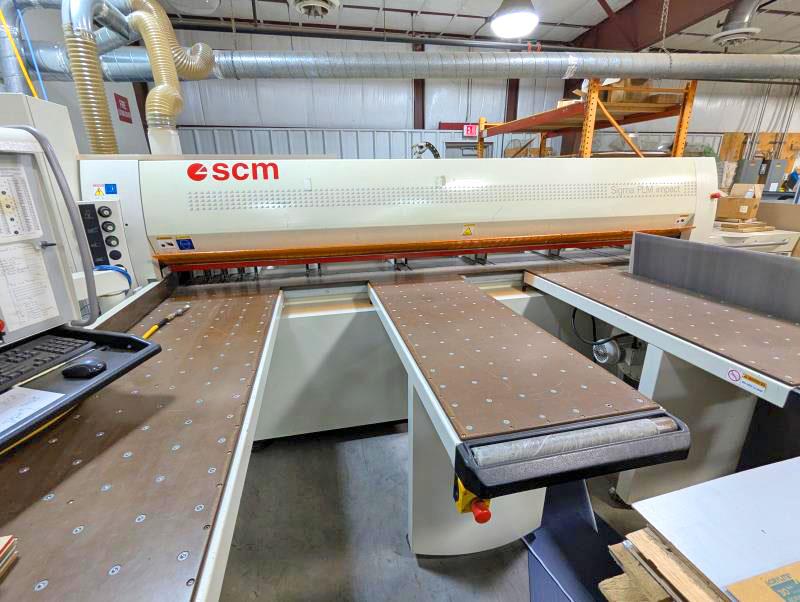

Scm SIGMA IMPACT Front Load Panel Saw
