Description
TT-261675 Linear sliding table pneumatic coping sled or sled
Table only without linear guides $2,350.00
Table with 800mm linear guide $2,800.00
Table with 1000mm linear guide $2,950.00

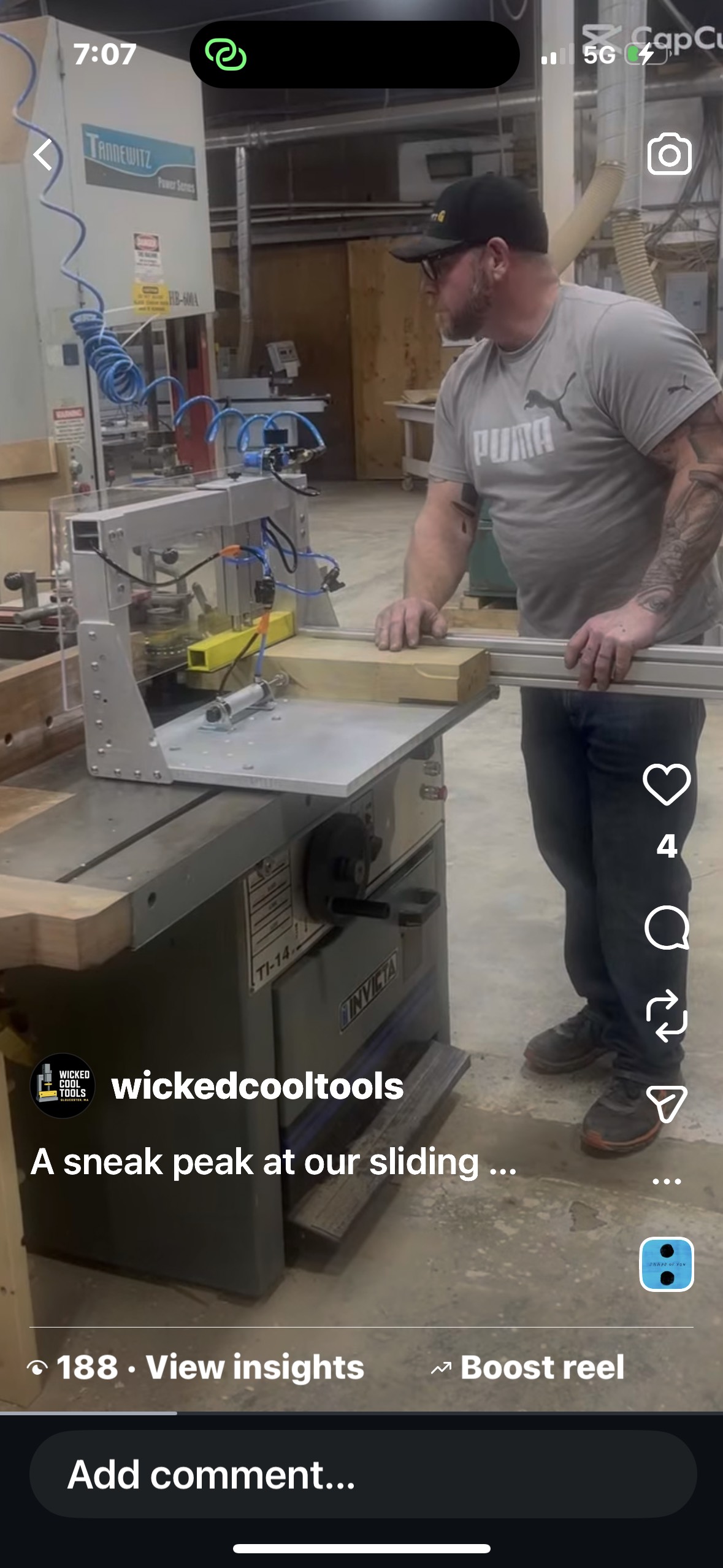

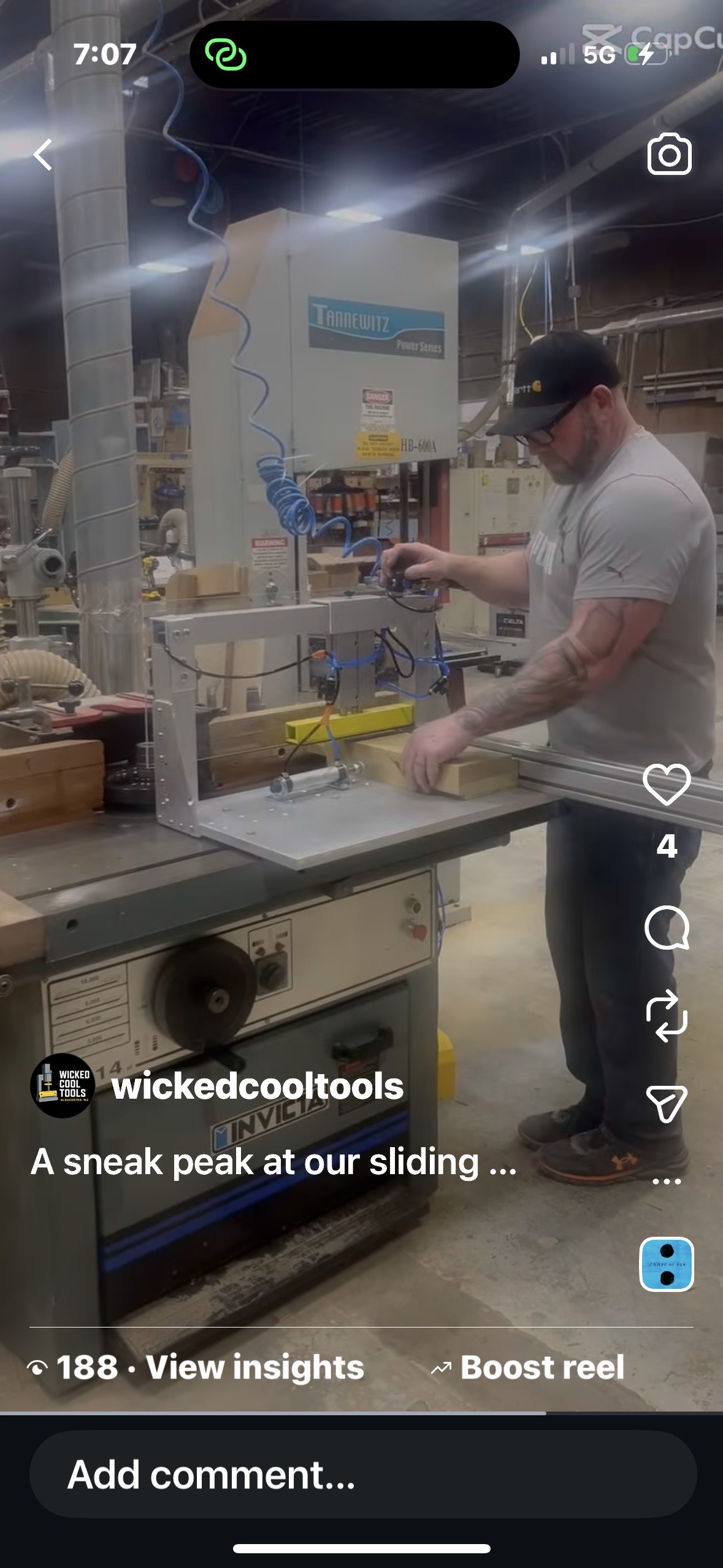

Turn any Shaper, Tenoner or large scale table saw with 12'' or greater blade capacity into a safe accurate production coping / cutting machine for a fraction of the cost.
This is the largest capacity coping/tenoning jig in our industrial series of linear sliding table coping sleds If you've struggled with regular inaccurate coping tables, t slot tables and fences or like me have a sliding table shaper that has horrible accuracy then this is going to be one of the best purchases you've ever made!
Specs:
-26'' overall length
-16'' overall width
-3/4'' thick aluminum top.
- 3/16'' structural aluminum tube for main structure.
-3'' standard thickness capacity that can easily be changed out to 5'' or greater.
-Standard fence is 20''x2'' x 0.5'' solid aluminum
-Table is coated with non slip clear material that can easily be recoated at any time with a quick sand and spray.
- All fasteners and hardware are 100% aluminum and stainless.
-1/4'' npt quick change air fittings on all parts and clamps
- One pc linear rail is available for purchase up to 84'' in length.
One pc linear rail is rated at 750 lbs. maximum compression load (vertical load)
550 lbs. maximum tension load (horizontal or side as pushing through tooling)
This rail is very easy to install and requires no extra support for longer lengths when centered on a standard shaper table of 35'' or longer but we do suggest adding temporary supports under if possible. If it is being placed on a shorter machine you will need to purchase an optional extension kit for longer rails that easily bolts onto existing machinery.
-Accessories
Extension table supports for longer material
Extruded Fence with flip stops
Second overhead clamp
Different styles of clamp platens for all kinds of materials
Shaper fences.
-We have cad files of all design so we can easily create custom accessories to go with your already purchased clamp for custom work. Simply let us know what you need to do and we will create a solution for it.
Single overhead clamp on bridge has over 300 lbs of pressure.
Horizontal clamp has 75 lbs of pressure to push stock tight to fence before overhead clamp engages which is sequenced in this fashion and is easily adjustable.
Standard 800mm rail with purchase of table and rail
Larger one pc linear rails are available up to 84'' in length with a 2.25'' overall height off the machine table when combined with our sleds.
This sled is perfect for the shop that does everything. It is heavily designed for the fabrication of interior and exterior doors with large rails and large thickness capacity in mind.
Vertical clamp have well over 300lbs of clamping force on the combined double pressure bar. A second overhead clamp and pressure bar can easily be added with our custom quick change clamp plate.
Pressure is easily adjusted for harder or softer woods via pressure control switch located at the operators finger tips.
If you already have a sliding table shaper purchase the table only or purchase the entire setup for standard machines. If your existing table does not slide perfectly true then I would suggest purchasing the entire unit to get the benefits of the new linear rails. Turn any shaper into a true coping machine!
Feel free to give us a call or send us an email with any questions or to order a machine.
351-231-9846
Check out our Instagram (@wickedcooltools) for videos. More info and products released daily on it!
Email: Wickedcooltools@gmail.com
