Sliding table shaper tenoning coping table

WCT-L225125075 Linear sliding table pneumatic coping sled


Table only without linear rail 1250.00
Standard unit with 800mm rail 1600.00
With 1000mm rail 1725.00
Rails up to 84'' in length

Turn any Shaper into a production coping machine.

This is the newest addition to our industrial series of linear sliding table coping sleds and this introductory price will not last long!   If you've struggled with regular inaccurate coping tables, t slot tables and fences or like me have a sliding table shaper that has horrible accuracy then this is going to be one of the best purchases you've ever made! Designed and made by a journeyman woodworker and engineer with over 30 years of experience in the historical millwork and cabinetry field. For comparison, using one of our new tables is like going from a standard biscuit jointer to a Lamello zeta P2. There's no comparison between the two other than what they do.

Large one pc linear rail is available up to 84'' in length with a 2.25'' overall height off the machine table.

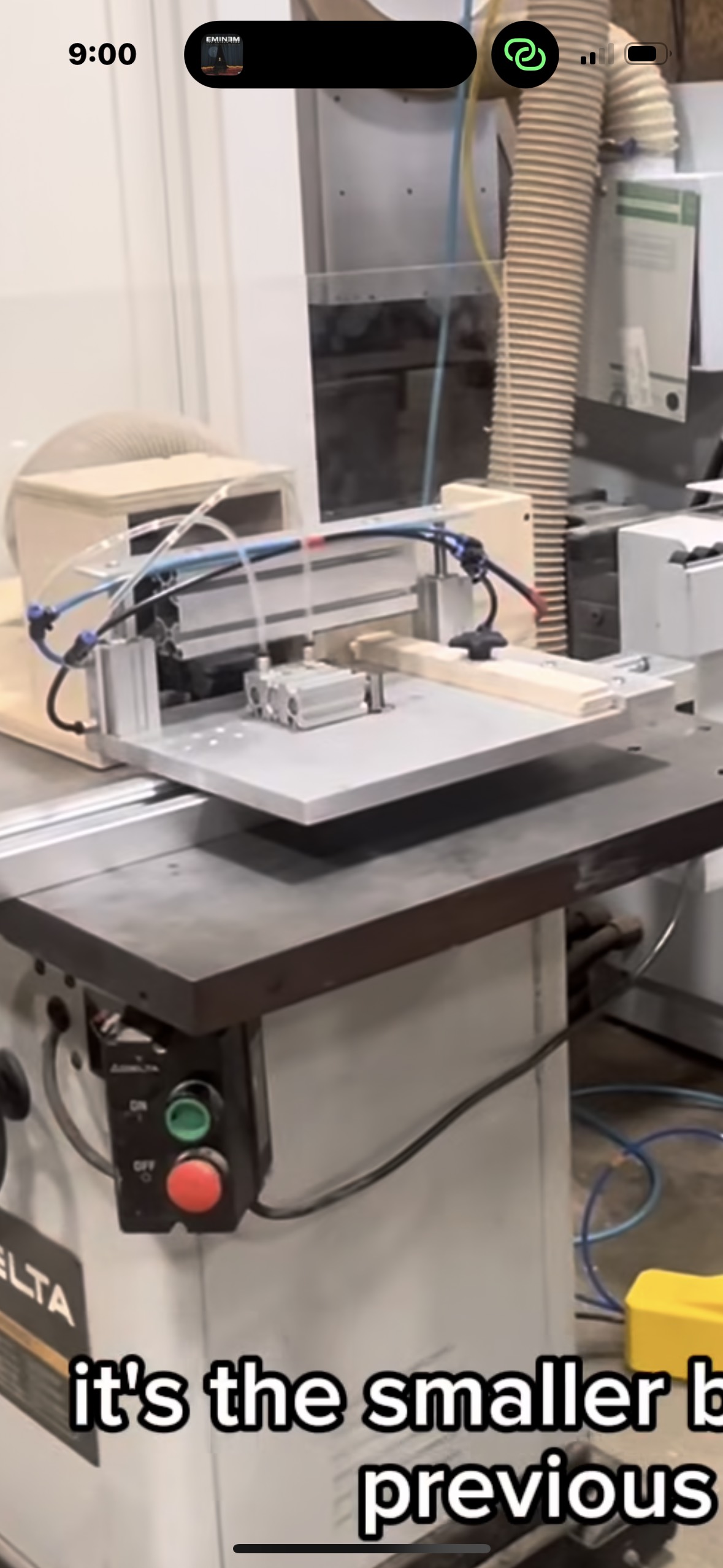

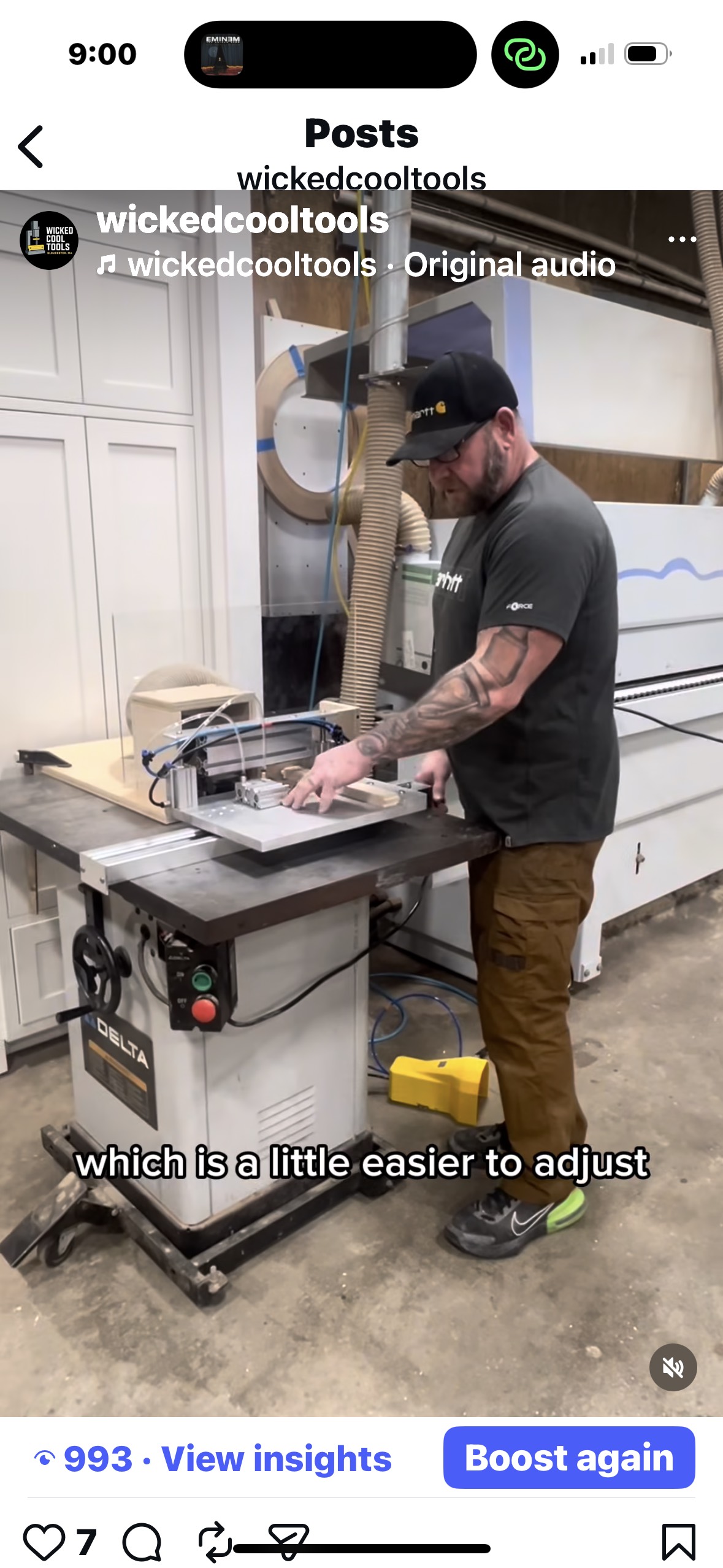

For instance the Delta machine in pictures has a standard 1'' spindle and still has over 3'' of usable spindle above our table. With regular 1.25" spindle machines there is well over 4'' capacity. Most larger shapers and tenoners lose no capacity at all as the spindle has more travel vertically allowing the entire spindle to move above the table.

This sled is perfect for the shop that does everything. You can cope 5 or more cabinet door rails safely and accurately at a time saving an amazing amount of time or do giant exterior bottom door rails of up to 12'' knowing that the parts will come out perfect every time.
SPECS:

-Table size 16''x 12''x 0.75'' thick Table can vary slightly depending on how much material is removed to square edges +/- 0.25''.
-Capacity 12'' x 2''. Additional clamp platen can be ordered to increase capacity to over 4''. This takes less than a minute to swap out. If you need larger capacity check out our other models.
-Base model comes with 0.5'' x 2'' x 12'' long fence. One fixed hole two adjustable for squaring after fitting to machine and semi permanent fixing.

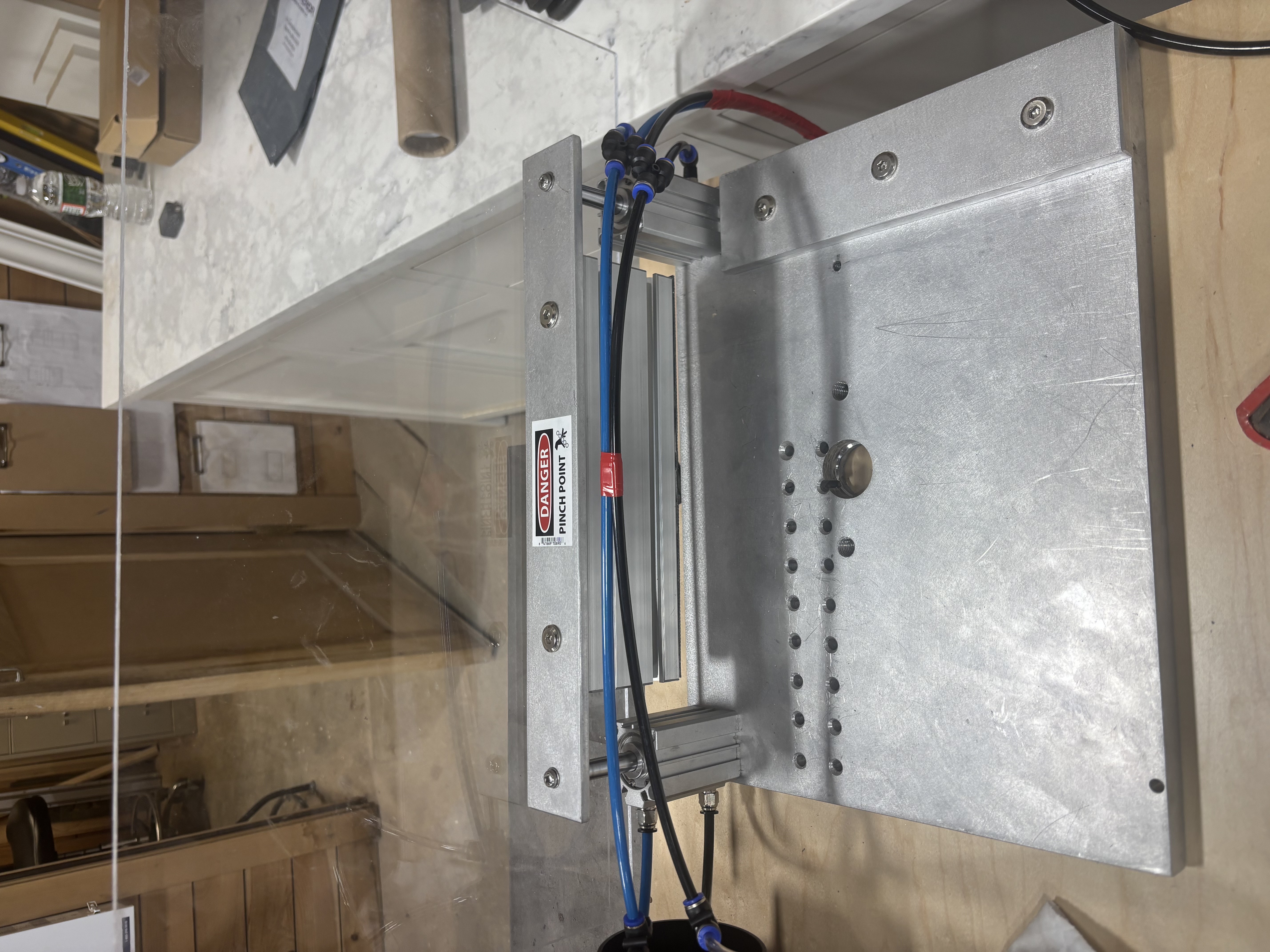

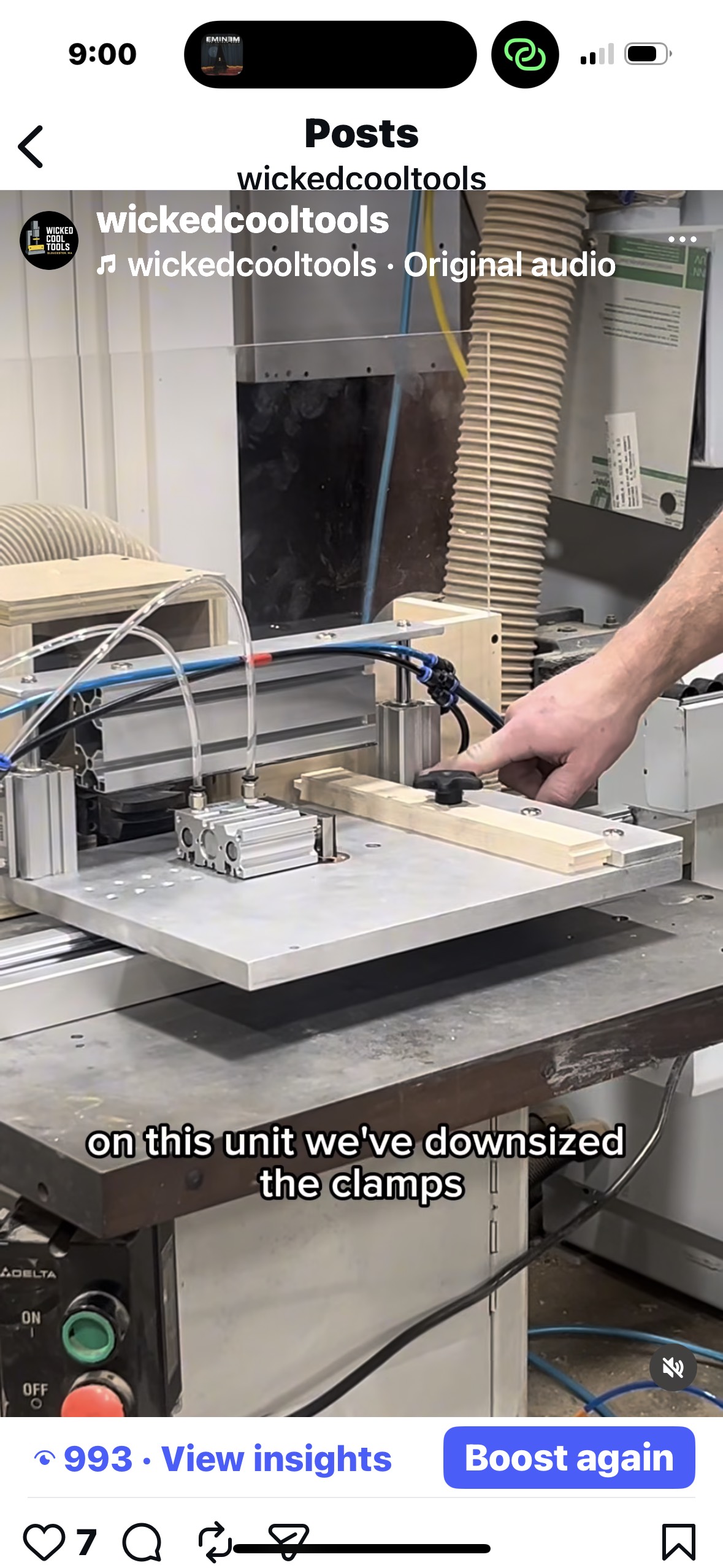

-Two vertical clamping cylinders with a maximum 260 lbs clamping pressure.
-Horizontal cylinder clamp with 75+ lbs. of pressure to hold stock firmly to fence. Clamps are sequenced so horizontal clamp activates first pushing stock to fence then pressure shoe engages holding stock firmly to table.
-Adjustable fence for squaring cope/tenon ends after initial setup.
-Acrylic shield for operator safety. Height of Acrylic guard can be changed in under one minute.
-Clamp can either be ordered with foot pedal clamp control or fence mounted controls. Specify at time of order.
-Table is coated with non slip clear material that can easily be recoated at any time with a quick sand and spray.
- All fasteners and hardware are 100% aluminum and stainless.
-1/4'' npt quick connect air fittings.



ACCESSORIES

- One pc linear rail is available for purchase up to 84'' in length.
One pc linear rail is rated at 750 lbs. maximum compression load (vertical load)
550 lbs. maximum tension load (horizontal or side as pushing through tooling)
This rail is very easy to install and requires no extra support for longer lengths when centered on a standard shaper table of 35'' or longer but we do suggest adding temporary supports under if possible. If it is being placed on a shorter machine you will need to purchase an optional extension kit for longer rails that easily bolts onto existing machinery.

-Additional clamping platens for thicker materials.

We offer several standard sizes as well as custom machinery built and tailored to your specific specs. This model is the most versatile linear sliding table in our lineup. It's for shops that do everything or just one thing because it does everything amazingly well. If you want a safe, accurate and repeatable set up for your growing business do not miss this!

Give us a call or send us an email with any questions or to order a machine.
Check out our Instagram (@wickedcooltools) for videos. More info and products released daily on it!
Email:    Wickedcooltools@gmail.com
