12" Arbor cap., ≈≈ 14" max. dia. tooling, 3-1/2" max. thickness, ≈≈ 30" min. length for glue joint accuracy & 22" min. for busting only; ≈≈ 6" throat.
50 HP - 3,600 RPM TEFC Direct drive motor,

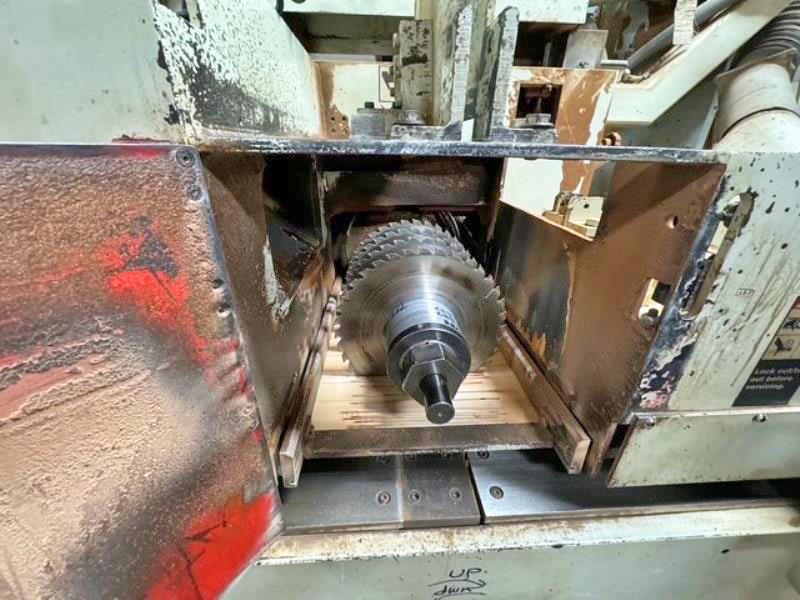

Arbor with disc brake & load meter, arbor lockout on access door.
Feed & chain: 3 HP Variable feed speed from 30 - 150 FPM with adjustable jam protection,
M-J "Posi-Feed" dip bed carried on 5" pitch hardened double-V chain, "Quad Life" hardened dip cams.
*** Please click the link for full description***

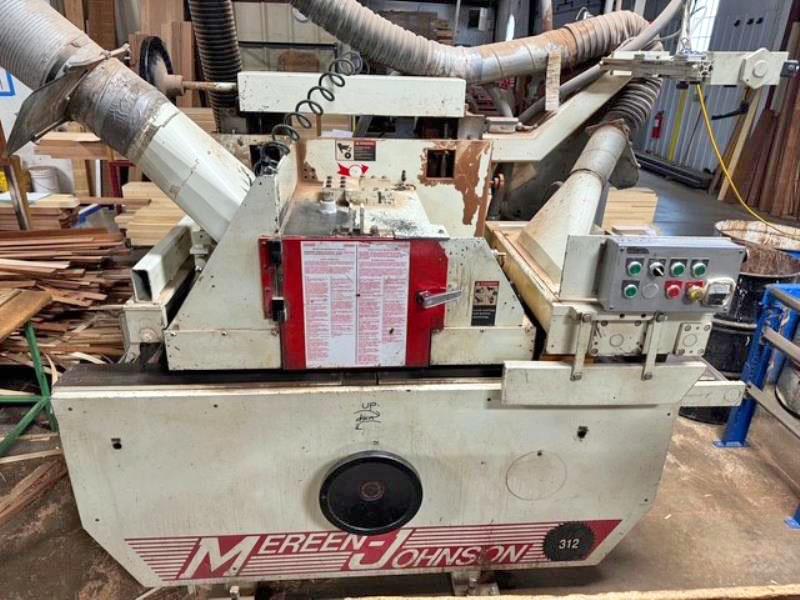

Mereen Johnson 312-DC-OPH1 Dip Chain Gang Rip Saw
