Working Capacity "X" Axis is 127.9" (3,250 mm), "Y" axis is 41.3" (1,050 mm) for boring & 44" (1,120 mm) for routing, "Z" axis stroke is 7.2" (185 mm), max. material thickness 3.9" (100 mm).
Positioning Speed: "X" Axis travel speed of 360 FPM (110 m/min) "Y" axis travel speed of 360 FPM (110 m/min), "Z" axis travel speed of 66 FPM (20 MPM);
Worktable: (6) Movable K-Table support rails with (4) side mounted raise-and-lower panel feeding rails, (14) adjustable vacuum pods; (6) Pneumatic backstops, (2) pneumatic side stops create (2) working zones. Laser setup assistance for precise rail & vacuum pod positioning.
Boring Unit: 2HP (1.5 kW) Motor, variable speed from 1,500 - 7,500 RPM; (18) vertical "QUICK CHANGE" drill spindles, (9) spindles in "X" axis & (9) in "Y" axis.
(6) Horizontal spindles with (2+2) in "X" axis & (1+1) in "Y" axis; (1) NC controlled 0° - 90° "X" / "Y" grooving saw for max. 125 mm dia. saw blade.
Machining:(1) 10 HP (7.5 kW) Electro-spindle router with HSK F63 adaptor, w/programmable 1,250 - 18,000 RPM, constant torque from 9,000 - 18,000 RPM, RH or LH rotation; powered by a frequency inverter. ≈ (1) 6-Position ATC tool changer magazine.
Operator Interface: WEEKE IPC "PC 85T Power Control" + Windows "XP" + WoodWOP 5.0 operating system; "Beckoff" PLC for (3) axes with linear, circular & helical interpolation
*** Please click the link for full description***

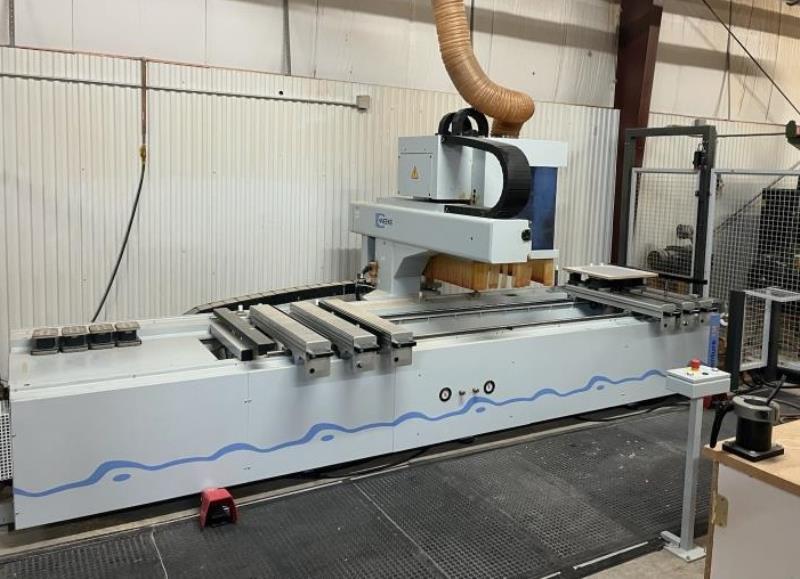

Weeke Venture 1 Cnc Machining Center
