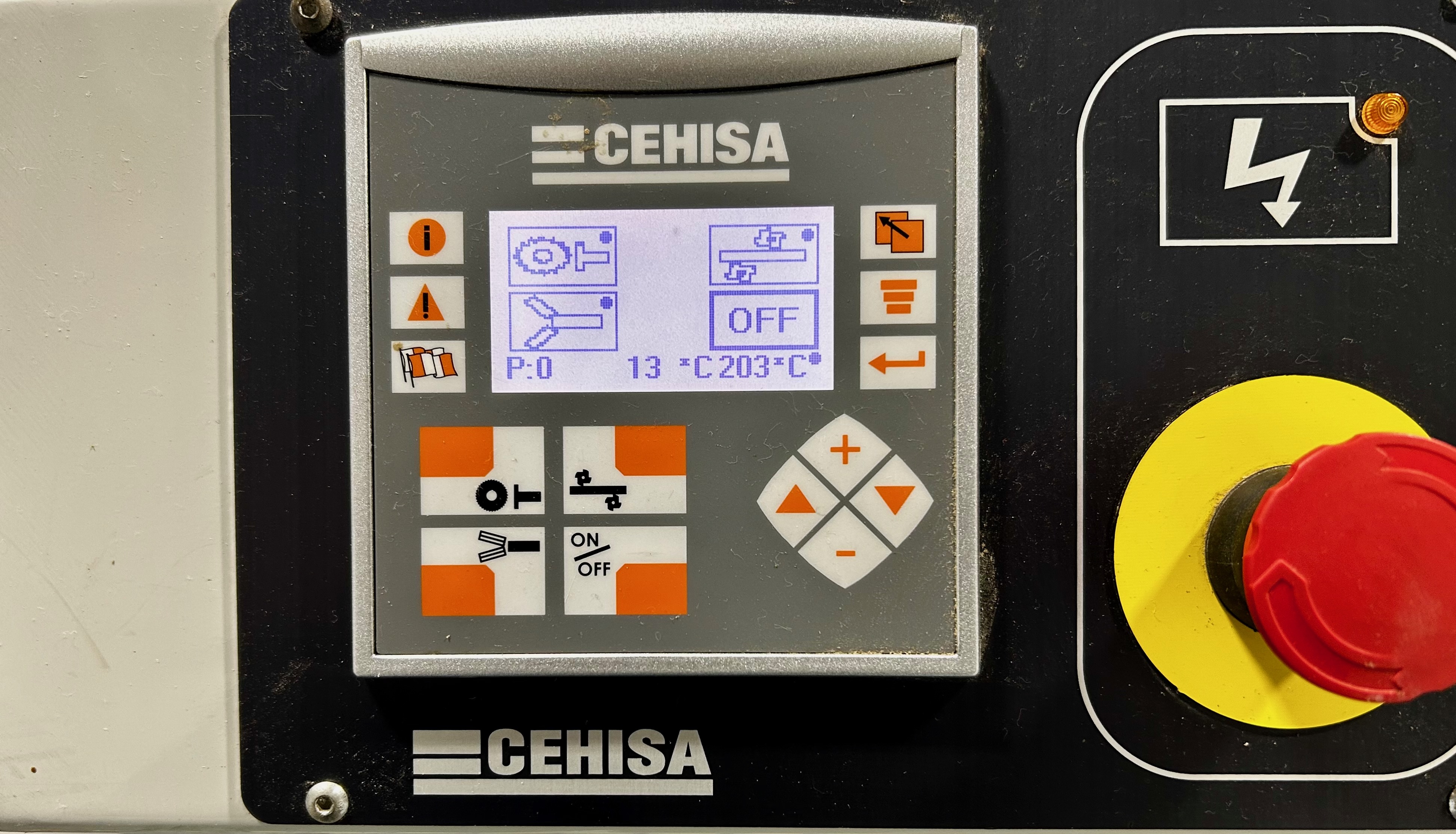

3.5” touch screen controller
Automatic coil-strip feed magazine
Hot melt gluing unit
Front and rear end trim station
Top and bottom trim station
Glue scraper unit
Top and Bottom buffing station
Automatic strip - coil magazine
3mm capable reinforced guillotine
PLC controller
Minimum and maximum length of panel: 120 mm – Unlimited
Minimum and maximum width of panel: 75 mm - Unlimited
Minimum and maximum thickness of panel: 8mm - 60mm
Minimum and maximum thickness of edging: 0.4 mm - 5mm
Feed speed: 9 m/min
Power requirement: 415 V - 3 Phase – 20 amp isolator
Compressed air: 6 - 7 Bar – 6 CFM
Overall Machine Length: 2900 mm=114.173 in
Recently serviced, with new tooling

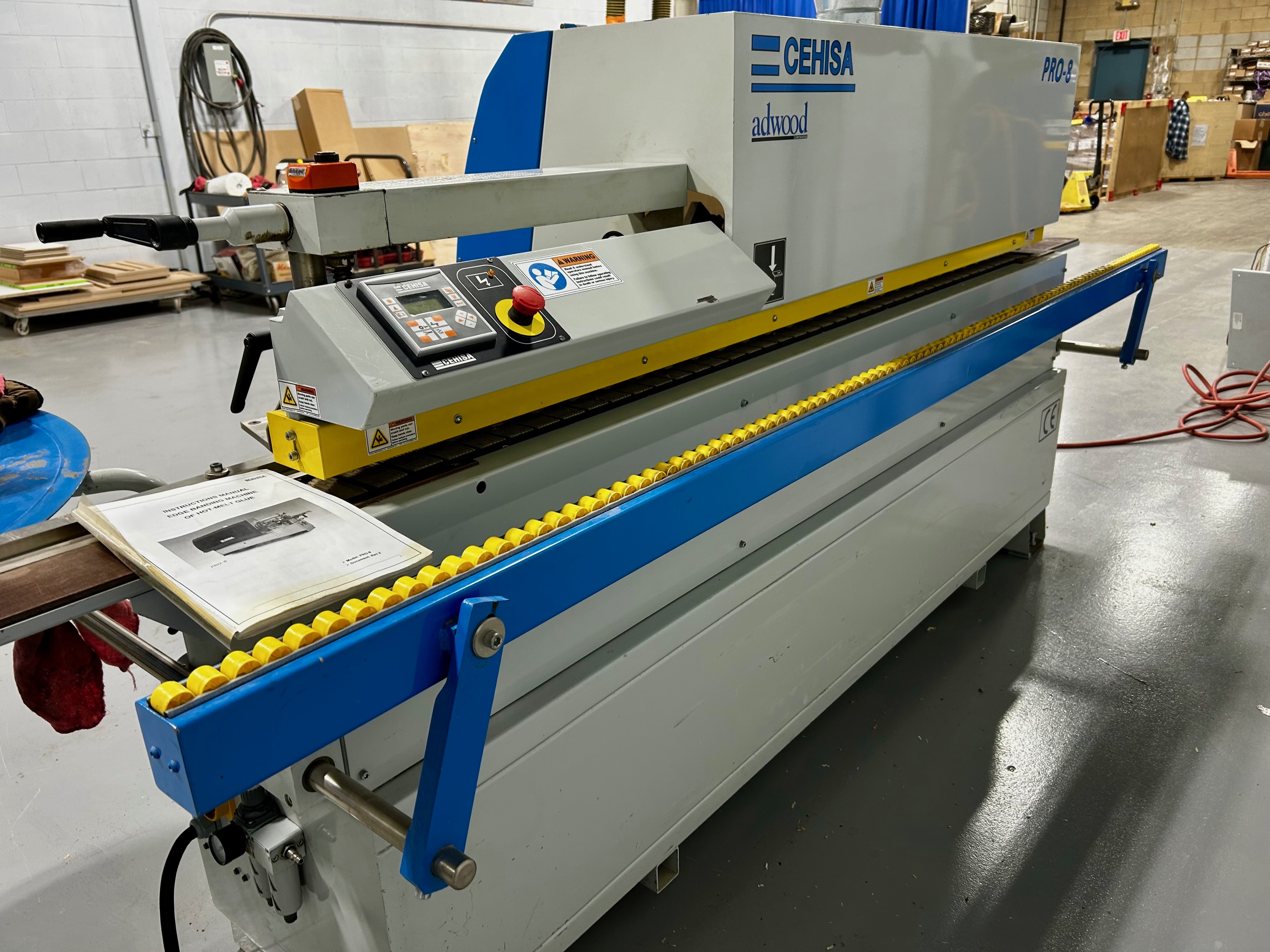

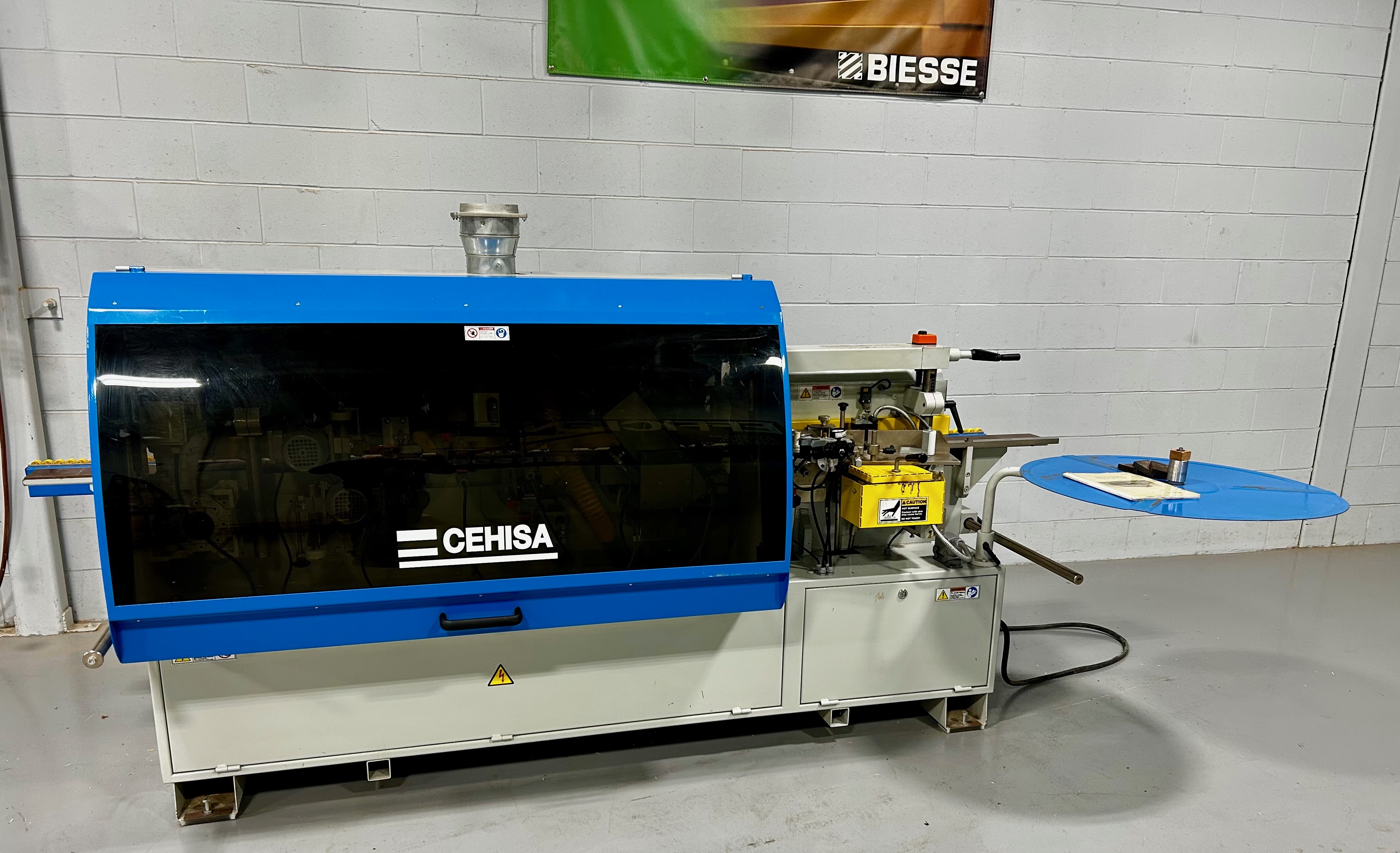

PRO 8 Edgebander
