Price : 26,940 CDN$
DOUCET - X 60: Finger Jointer Line for Medium Production
Capacity: 3/4" - 2" Max. thickness; 1-1/2" - 8" max. width with: Lugs on 11" centers; 5" min. - 48" max. material length.

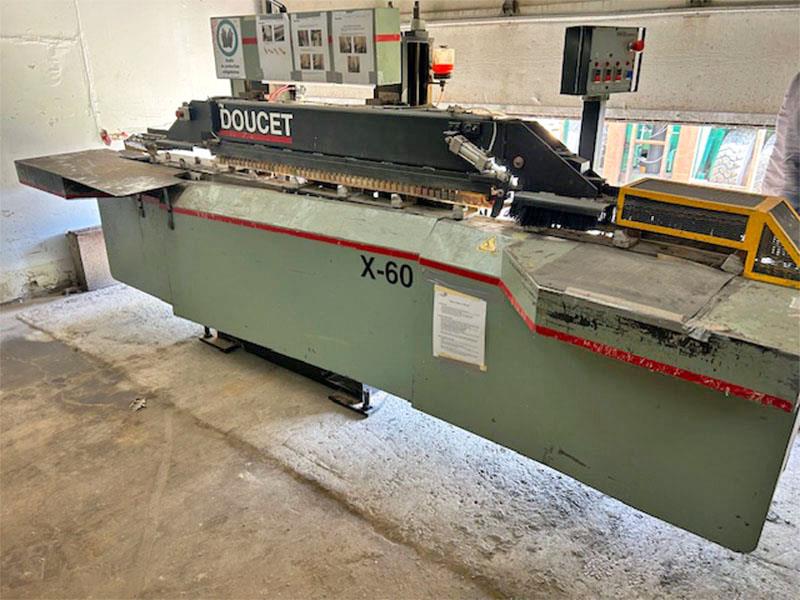

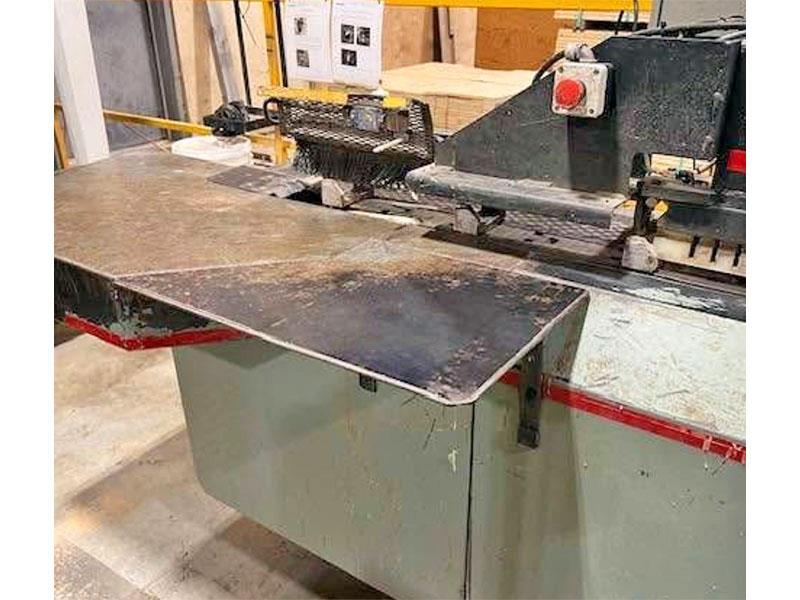

"X60" Right Hand Shaper Sections; equipped with:
- 5 HP Trim Saw; 3 HP scoring; 15 HP Shaper motor.

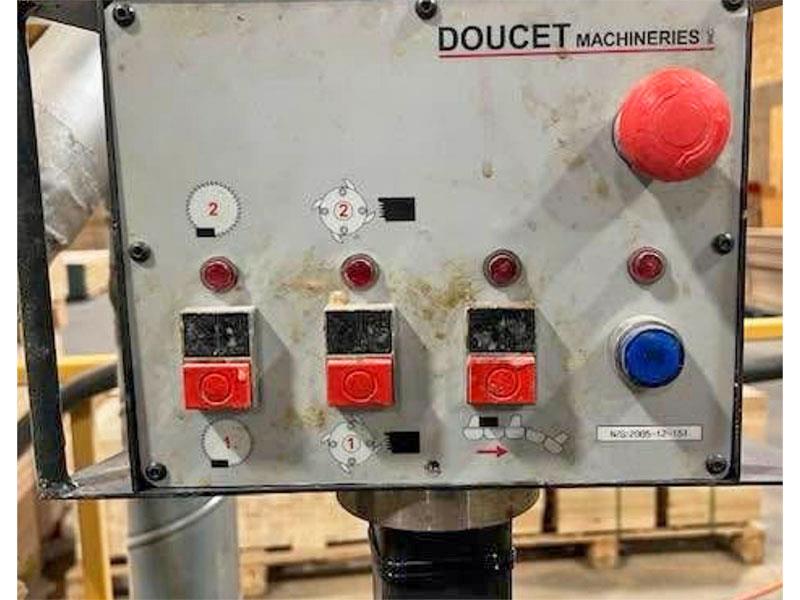

- PLC Controls on Shaper section.
- Dual feed chain with: Lugs on 11" centers; 10 - 75 FPM variable feed speed; 5 HP feed drive.
- Max. width: 8"; thickness from 3/4" to 3 1/2".
- PLC Controlled extrusion type Glue Applicator with: 12-Gal. tank; sound enclosure, & cabinet type base. - Transfer to the Assembly Press.

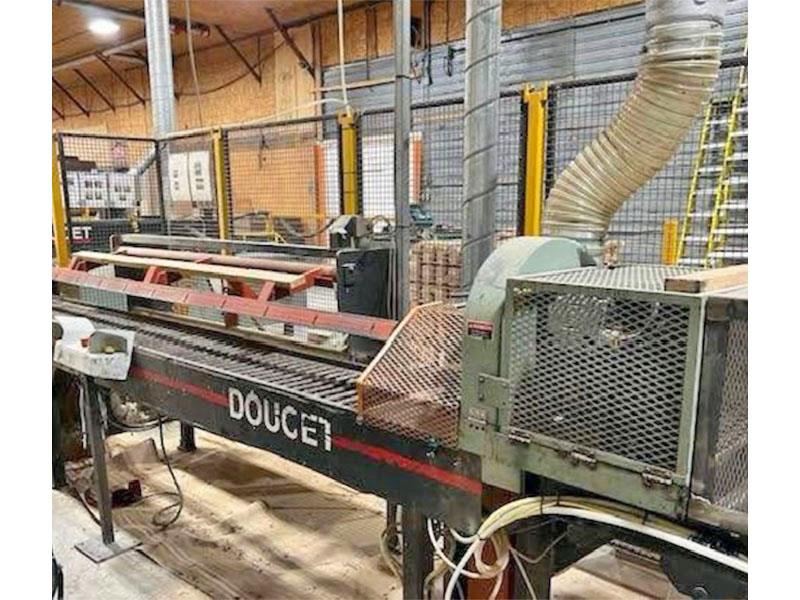

Model "MP-32" Assembly Press:
- 7' - 10' Max. in automatic mode & up to 20' in manual mode cutoff cap.; automatic cycling; 90 FPM powered infeed flat top chain with: Side alignment rolls to the preassembly tunnel.
- Pieces are fed through with: Bottom & side chain through the Cutoff Saw to a movable limit switch and cut to length; 5 HP upcutting Cutoff Saw for continuous assembly; 2" x 9" cap. with: 14" Blade; finished lengths are pushed out by the next piece onto material outfeed arms.
- PLC Controlled Press section; 10 HP Hydraulic unit; 10,000 Lbs max. pressure.
- Gluing system with pump.
*** Please click the link for full description***
Doucet X 60 & MP 32 Finger Jointing System
