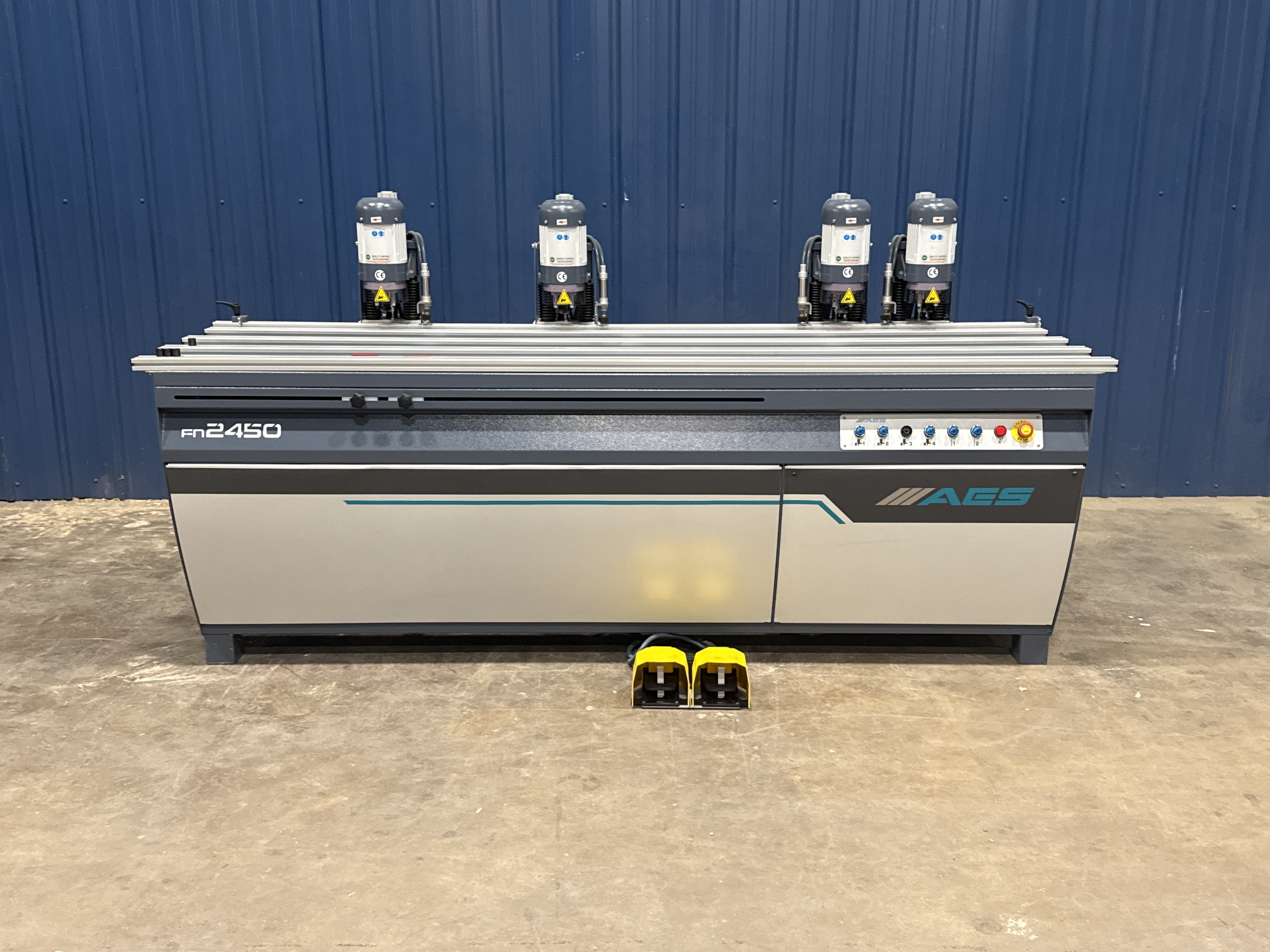

AES Model FN 2450 Multi-Head Hinge Boring Machine
Serial #:240001
The FN 2450 is a 4 head hinge and handle slot drilling machine used for drilling 4 hinge holes, reference holes, and handle slots simultaneously on wooden materials with precise pneumatic motion.

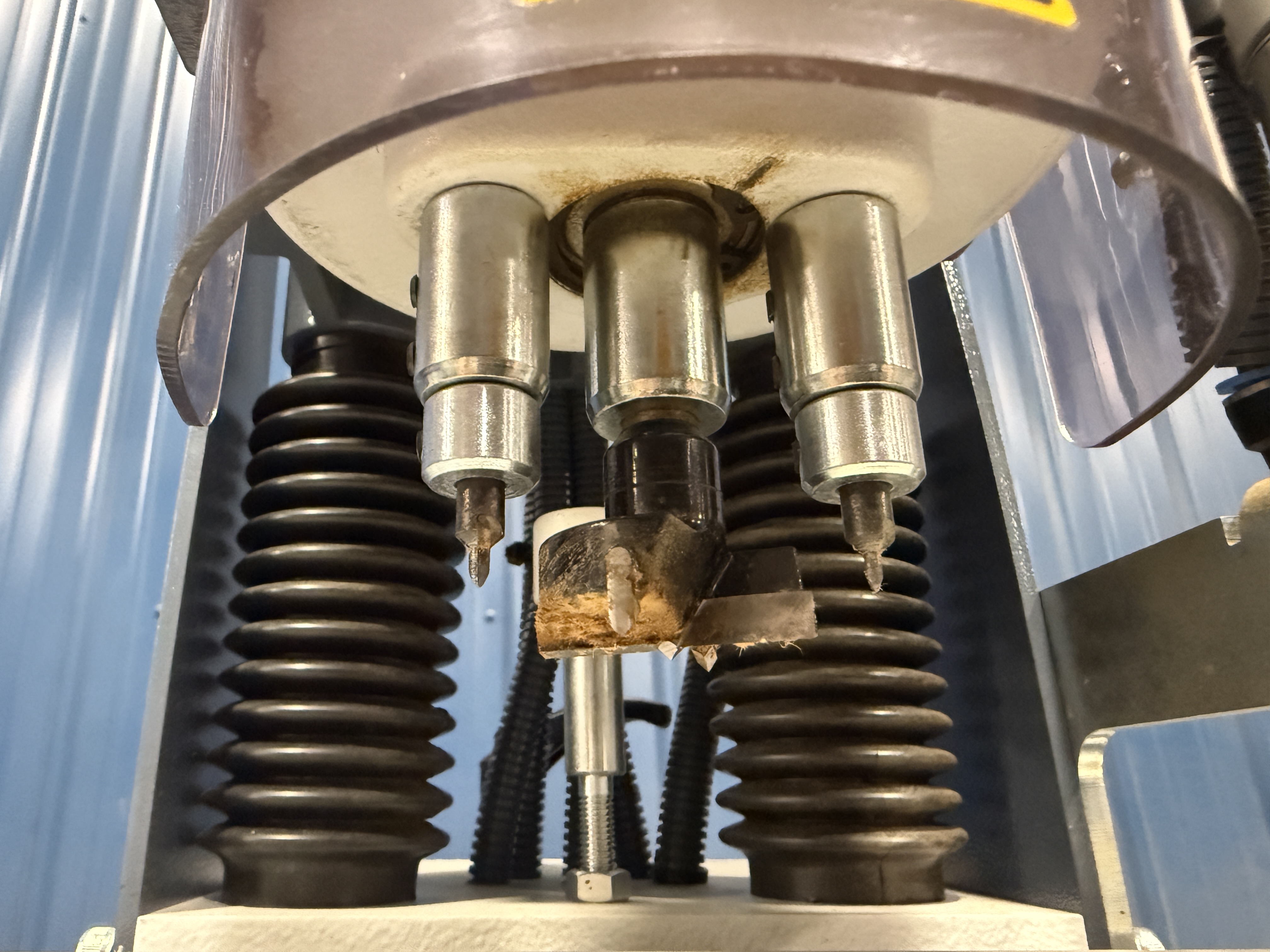

4 cup bits, 35mm
8 screw reference bits, 2mm
2 bits for handle slots

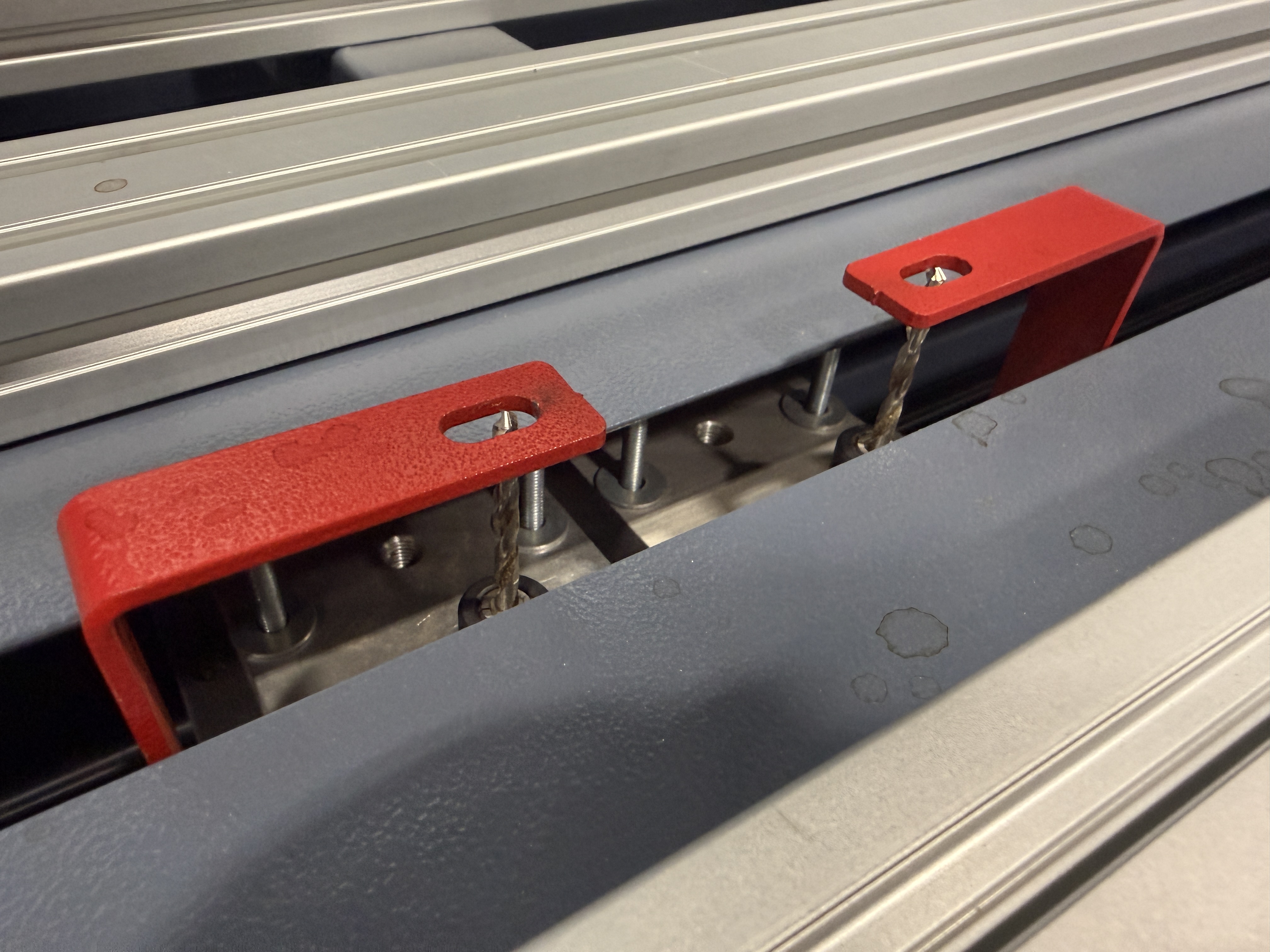

4 pneumatic vertical clamps
Airgun
Electrical: 220V, 60Hz, 20A
Motors 1,2,3,4: 1.5 HP (1.1 kW)
Motor 5: 650 W
Table Size: 2450 x 410 mm
Air Requirement: 6/8 Bar
Weight: 320 kg
NOTE: Specifications from manufacturer literature.
- RT Stock Number: 2138
Condition: New, Never Used in Production, Showroom Demo
AES Model FN 2450 Multi-Head Hinge Boring Machine
