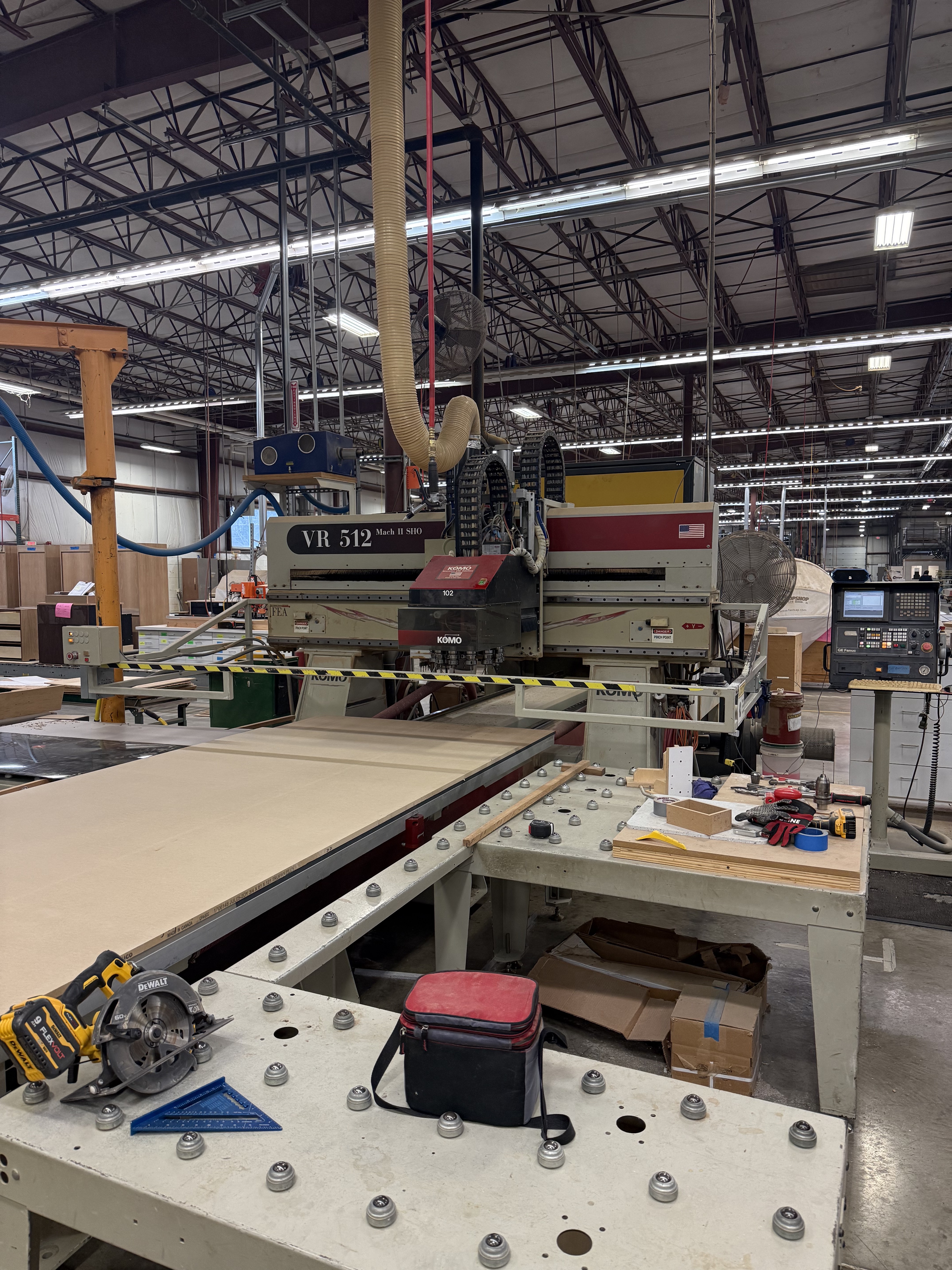

Komo Model VR512 MACH ll SHO, CNC Router
Serial #:52877-07-01-05
Standard Features
- 11” (279mm) Programmable Z Axis
- 12 Pocket Automatic Toolchanger with Aggregate Capability
- Automatic Tool Length Measurement
- Universal Grid Fixture Table
- Komo-GE Fanuc Panel i Control with HVI Servo System and Integrated PC
- Closed-loop Counterbalance System (minimizes air consumption) Construction
- Trapezoidal, Finite Element Analysis -designed columns for superior rigidity in cut
- Heavy-duty contour linear rail system with matched bearing trucks
- Non-rotating ballscrew system for maximum acceleration and deceleration at high cutting feedrates
Technical Data
Following information taken from product literature
Tables
- Number of Tables: 1
- Table Dimensions: 144” x 60” (3658mm x 1524mm)
- Material: cast precision machined aluminum vacuum plenum with four 1” part locating pins
Axis Travels
- X Axis: 159” (4038mm)
- Y Axis: 84” (2133mm)
- Z Axis: 11” (279mm)
Feedrate/Traverse
- X & Y Axes: up to 3150 IPM (80,000 mm/min.) with standard HSHP
- Z Axis: 600 IPM (15,240 mm/min)
Positioning
- ± 0.0004” (0.01mm) unidirectional repeatability
- ± 0.0008” (0.02mm) unidirectional accuracy
Spindle
- Quantity: 1
- Type: 20 HP peak, 16 HP continuous duty, 4-pole
- RPM: up to 24,000, fully programmable
- Taper: HSK 63F

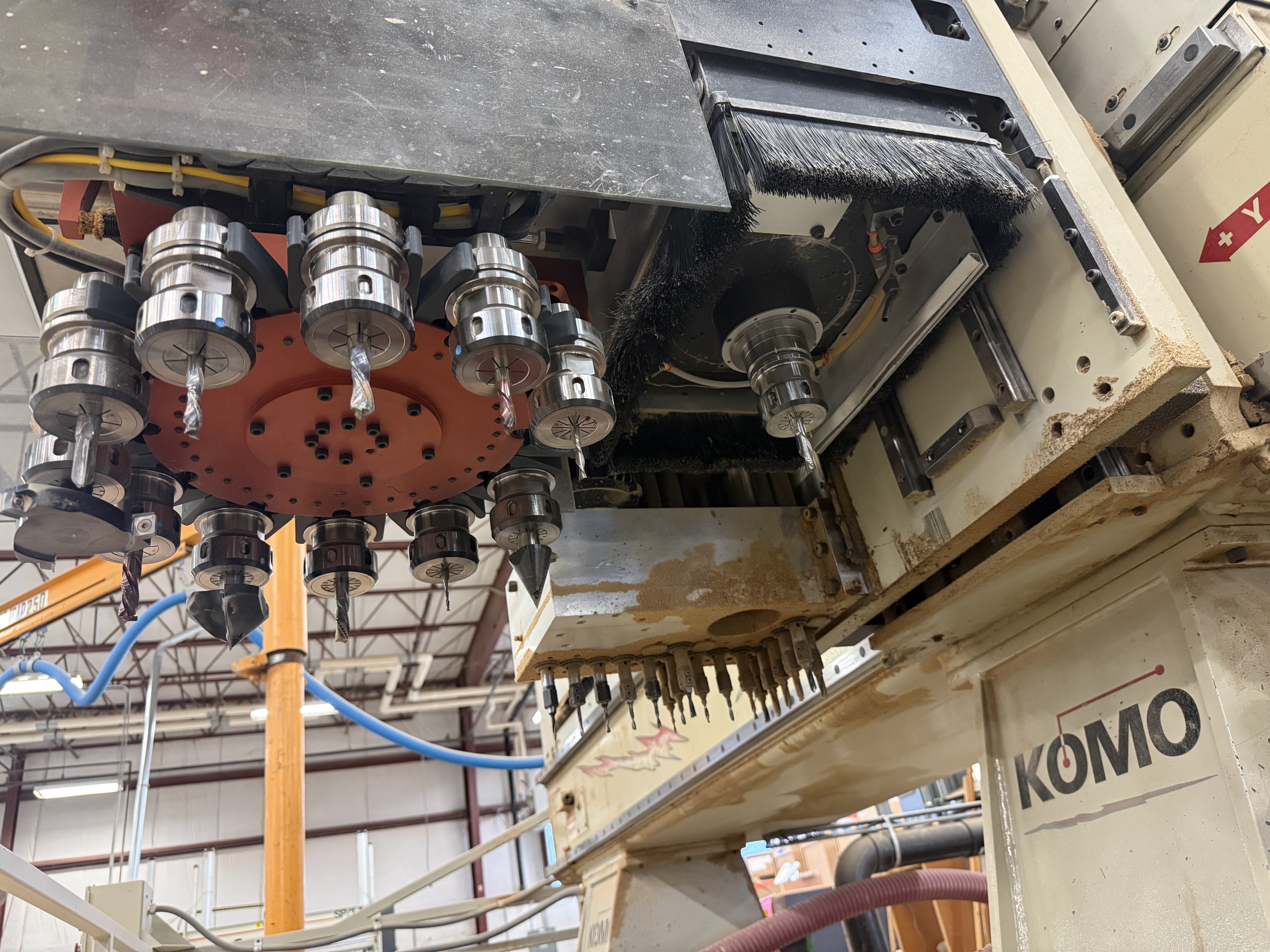

Aggregate-Capable Toolchanger
- Maximum Number of Tools: 12
- Maximum Diameter: 6.5” (165mm)
- Maximum Weight: 12 lbs / 96 lbs total (5.4 kg / 43.5 kg)
Part Programming Solution
- One seat of router-CIM CAM Companion software
Space (with guarding)
- Height: 110” (2794mm)
- Width: 142.75” (3626mm)
- Depth: 314” (7976mm)
Vacuum System
- Kaeser Compressor model CSV 150
- PSIa: 14.5 / 0.145 vac
- Power: 40 HP, 230/460V, 3 Ph
RT Stock Number: 57262
