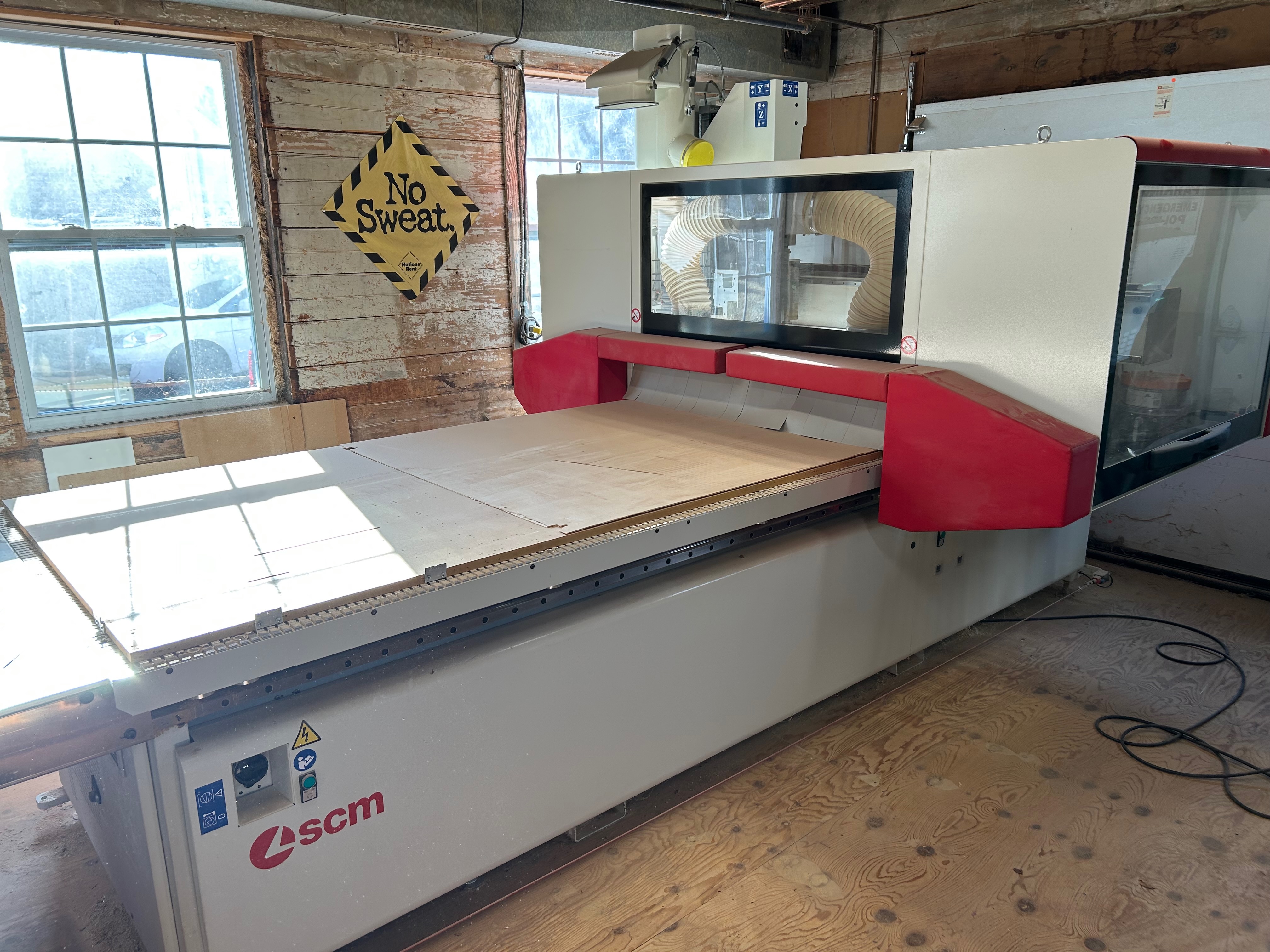

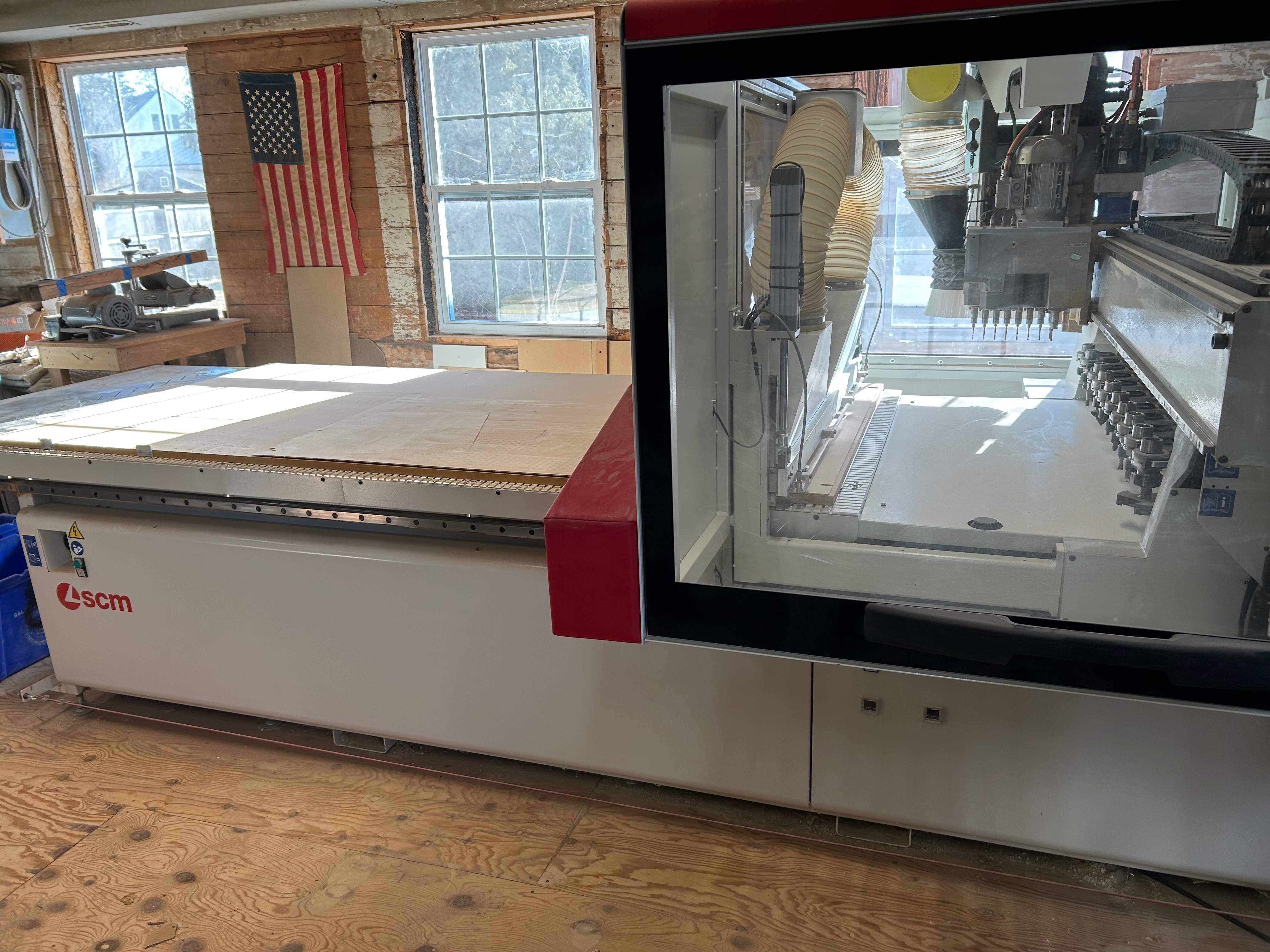

One owner, like new SCMI Pratix CNC router, with sweep. Can be demo'd by appointment. Located in Northern MA.
Table size: 4' x 8' aluminum dual vacuum table with: "MATRIX" square grid pattern
Grid pattern allows use of vacuum pods or closed cell rope gasketing material and use of spoil boards for "nested base machining".
Part location pop-up pins mounted on the table perimeter.
Working Field "X" Axis is 98" (2,486 mm); "Y" axis is 49.4" (1,255 mm); "Z" axis stroke is 9.8" (250 mm);
Max. material thickness 5.9" (150 mm).
Positioning Speed "X" & "Y" Axis 115 FPM (35 MPM); "Z" axis at 82 FPM (26 MPM)
Closed loop AC Servo drive system with High precision "Rack & Pinion" system in "X" & "Y" axis & ground ball screws "Z" axis; all axes ride on extra large precision profile linear guideways.

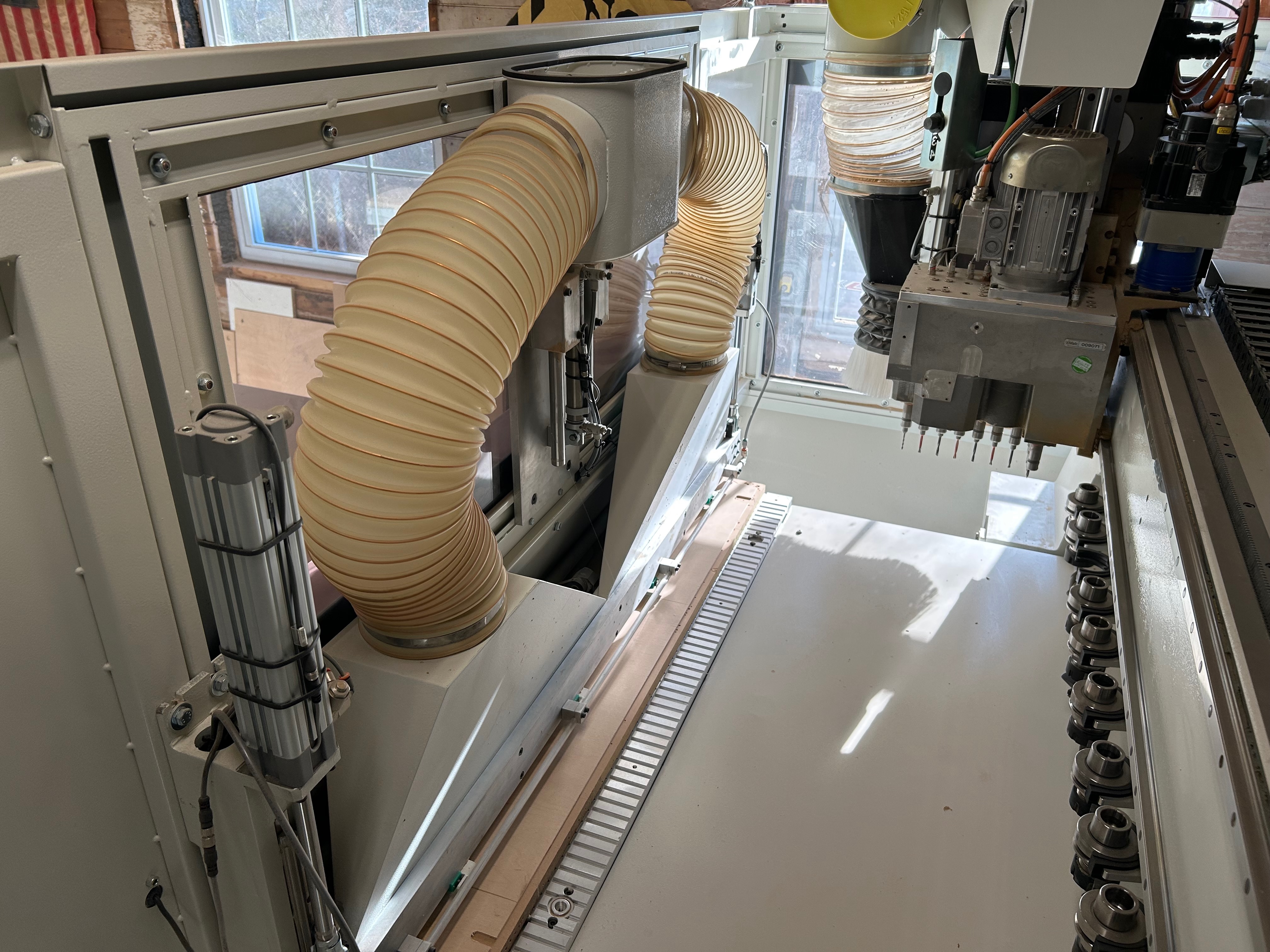

Boring Unit 3 HP (2.2 kW) - 6,000 RPM motor: (7) vertical spindles on 32 mm centers: (5) Spindles in "X" axis & (2) spindles in "Y" axis.
Spindle: 9 HP (6.7 kW) Air-cooled electrospindle with: HSK F63 Adaptor; variable spindle speeds from: 1,500 - 24,000 RPM.
(1) 12-Position ATC tool rack mounted to the machine base RH side.
Includes push off device (sweep) with pneumatic deployment

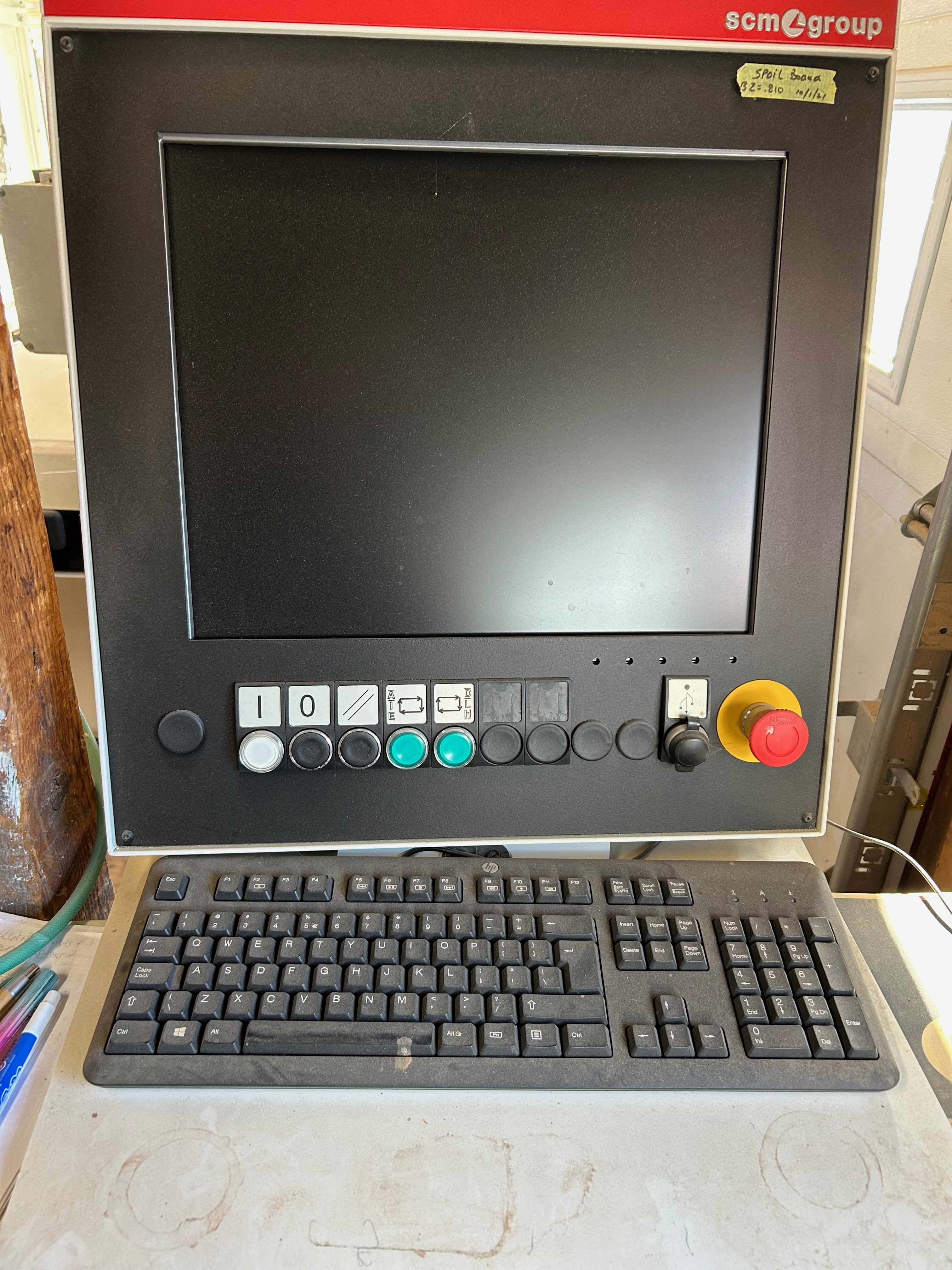

Operator & Machine Control PC Front End with: "XILOG Plus" + Windows "XP Pro" Operating System;
17" high resolution LCD; ergonomic keypad.USB Ports, serial ports RS-232 & RS-242 & Ethernet adaptor;
Programs can be transferred via disk or downloading by wire is possible.All computer components are mounted on a mobile stand.
Universal remote Pendant with 7" color display allows for the effective management of all machine functions.
Manual Jog Mode to loading & execution of a program. The pendant is fitted with: USB Port to allow quick load & setup of new programs
Safety "bump stop" bumpers
SCMI Pratix
