Description

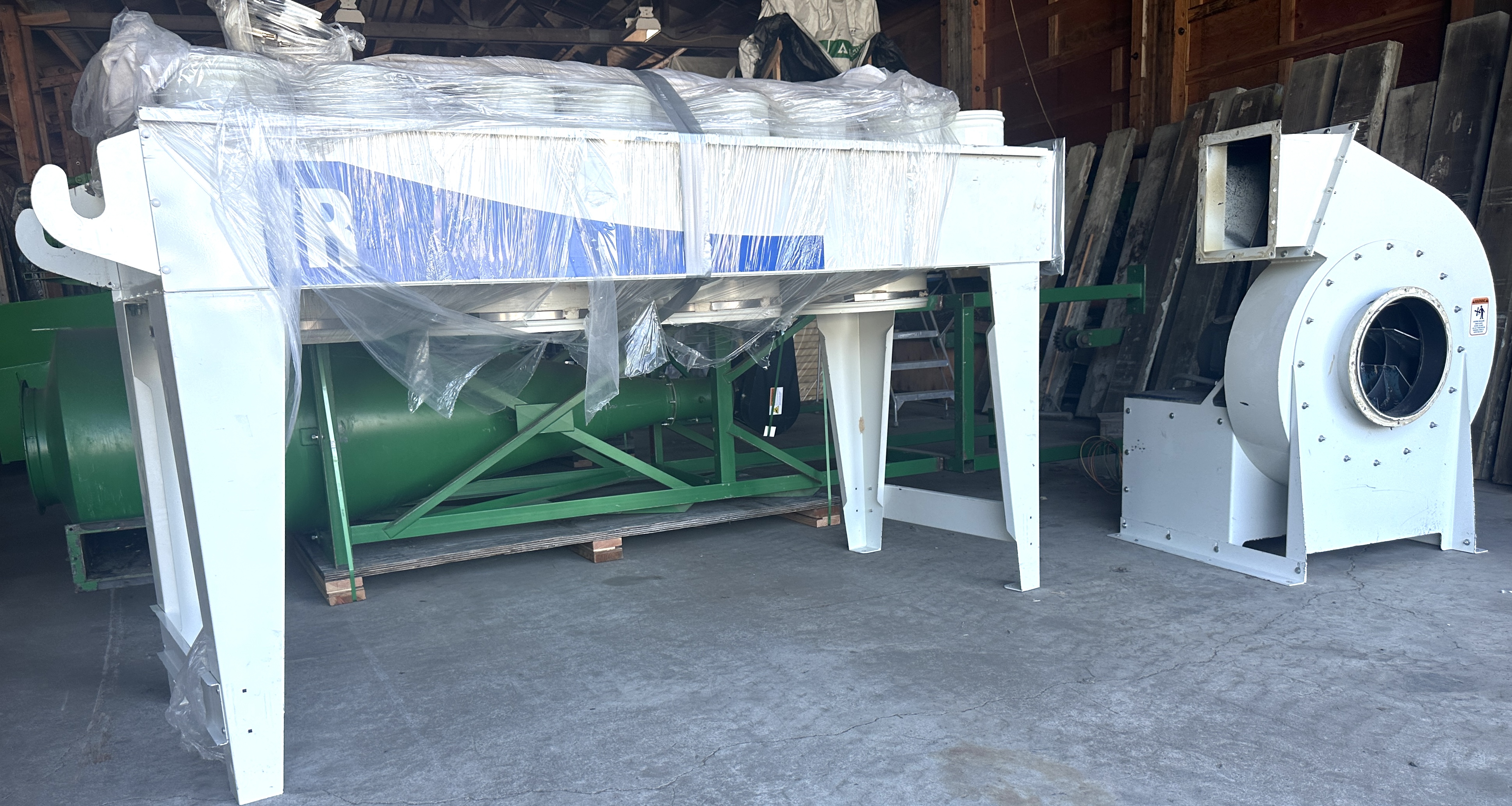

LMC DUST COLLECTOR, 7,000 CFM +-, 20HP DIRECT DRIVE FAN with VFD,

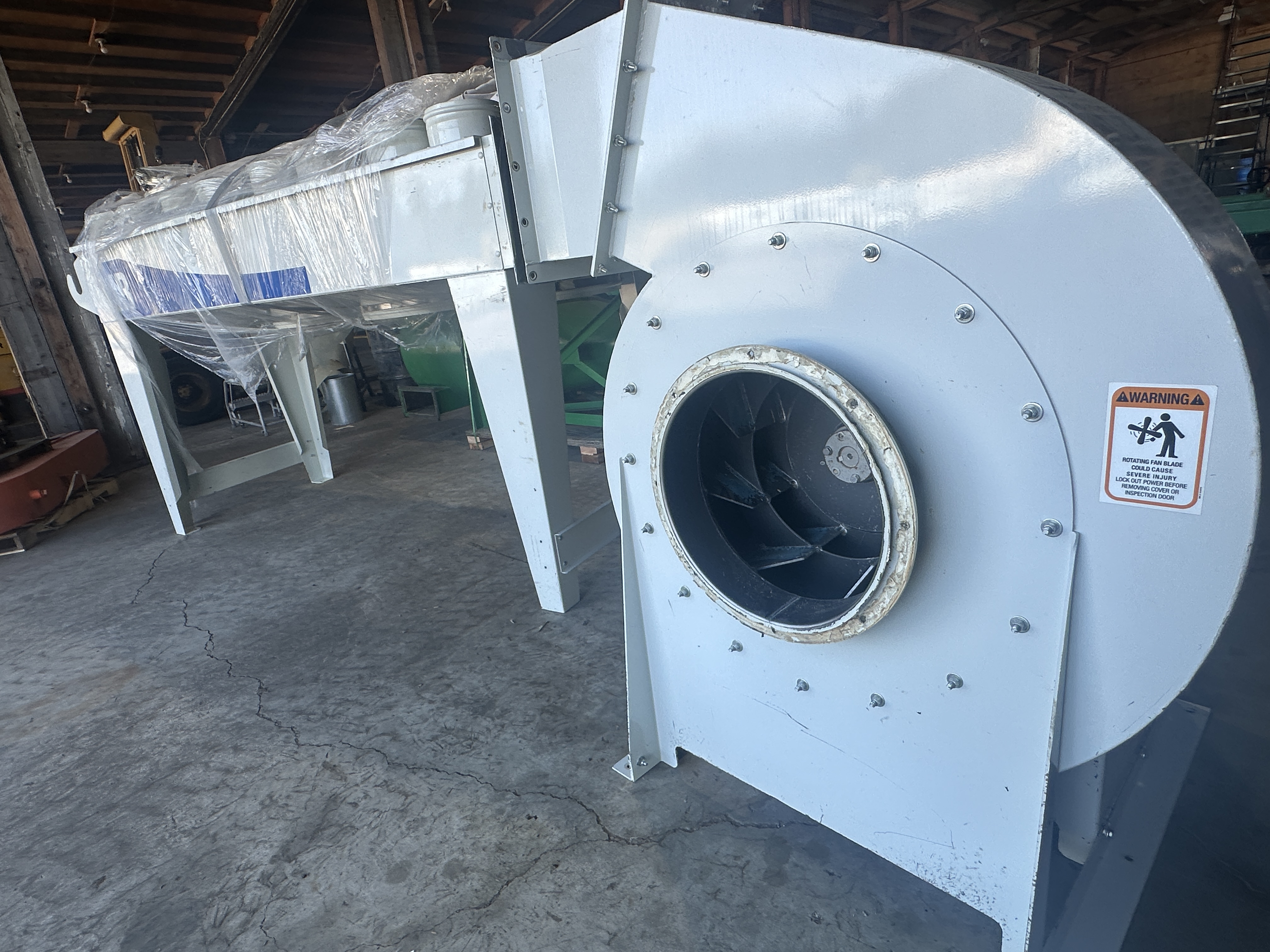

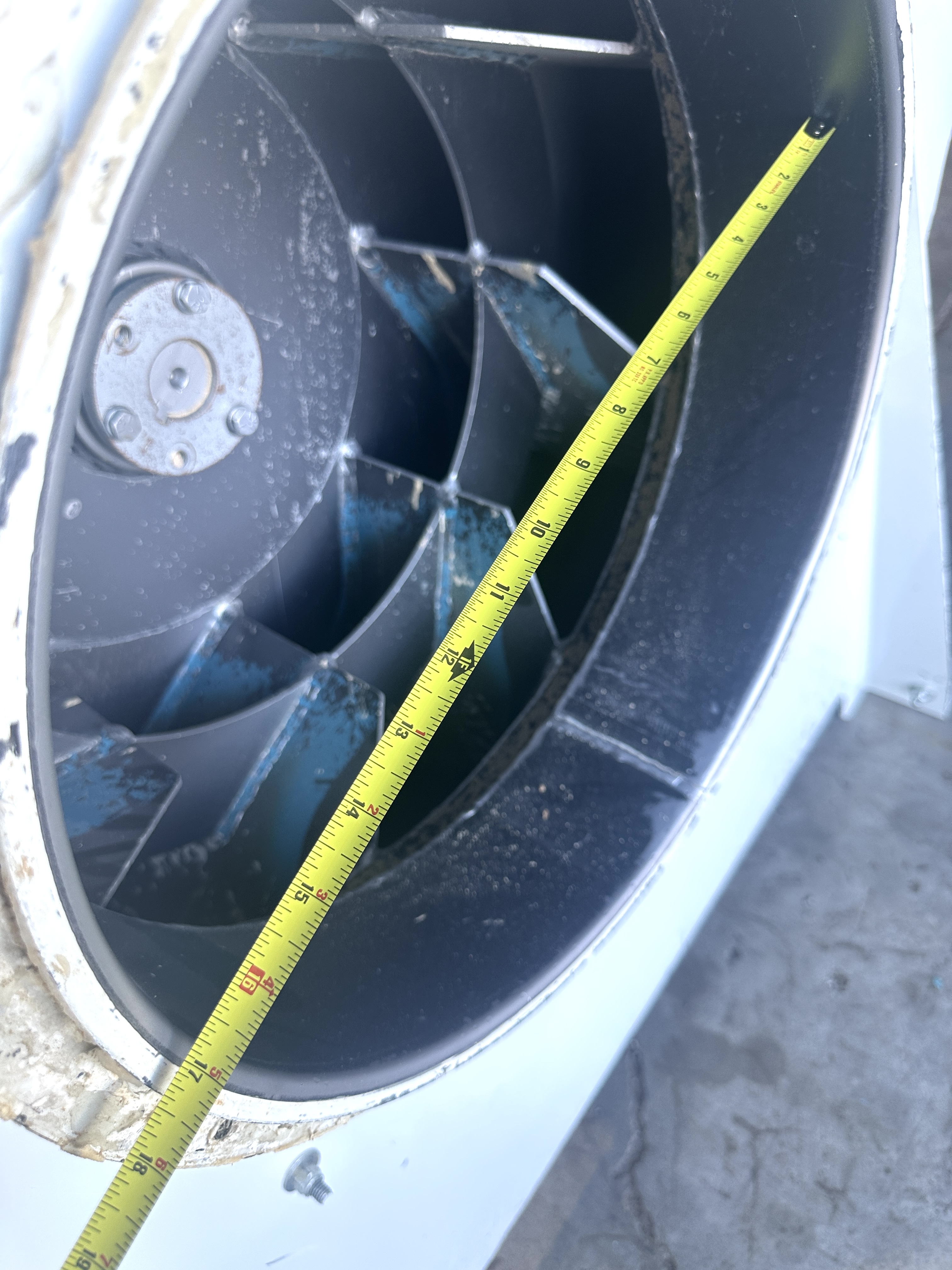

FAN: INLET DIAMETER: 17 inch +-, OUTLET 12 inch X 14 inch +, & a Inverter drive
MODEL # 472-IRWC-917RB-100/64
SERIAL # 05216
DATE 1/07
CFM: 7,000 +-, @ 12” Static Pressure,

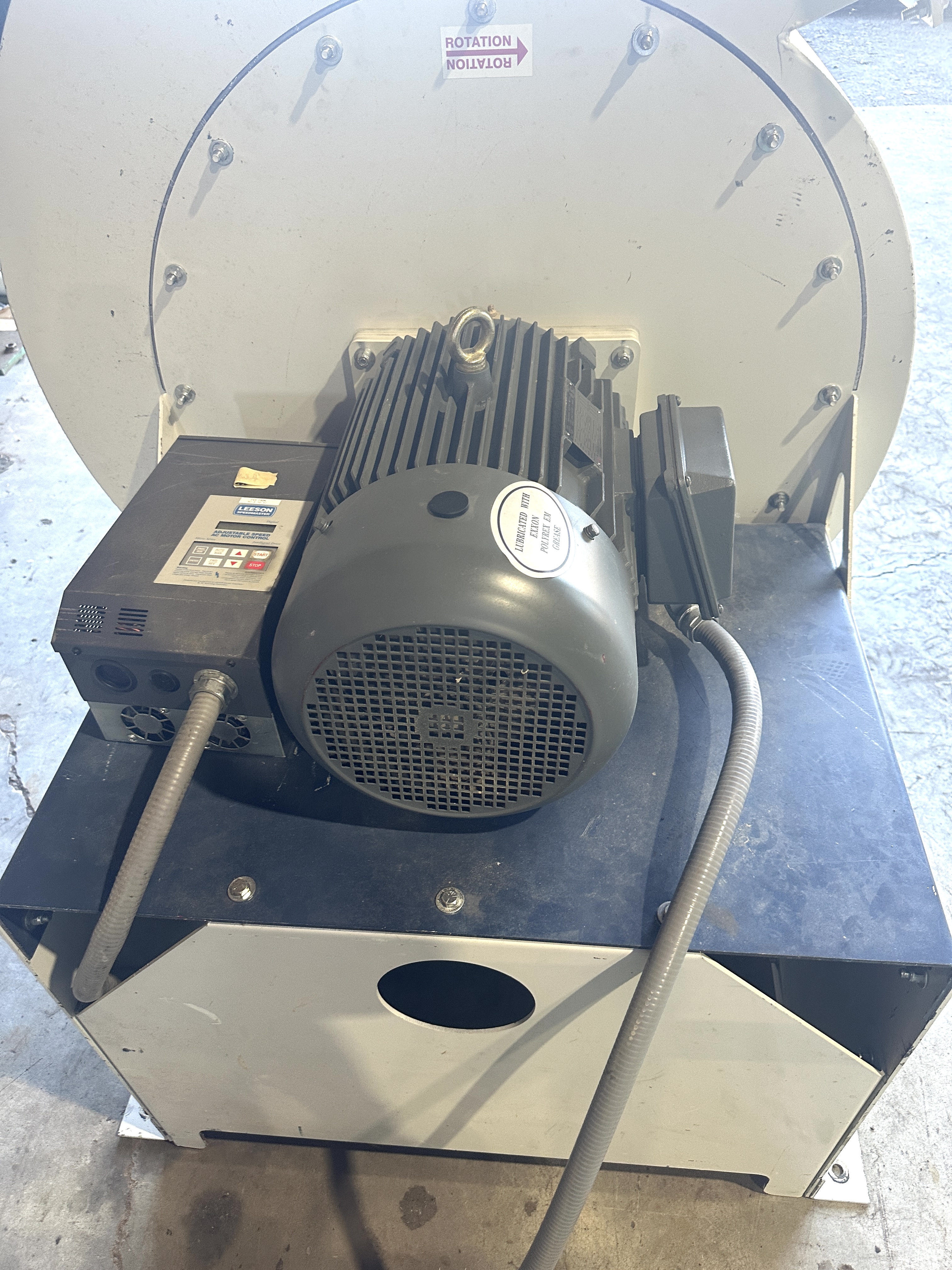

VFD: LEESON SPEED-MASTER -ADJUSTABLE SPEED AC MOTOR CONTROL
MOTOR: 20HP, 230/460VOLTS, 49/24.5 AMPS, 60HZ., Encl.TEFC,
4 BOTTOM FILTER BAGS: 2FT X 4FT LONG,
24 TOP FILTER BAGS 9-1/2” WIDE X 6+FT LONG,
BUYER WILL NEED TO VERIFY ALL SPECS. & INFORMATION WITH THE MANUFACTURER,
INCLUDES FILTER BAGS-
FREE STANDING FLOOR MOUNT FAN FOR QUICK & EASY INSTALL,
PRICE INCLUDES A WOODEN CRATE FOR BETTER CARE DURING THE SHIPPING PROCESS.
FREIGHT RATES ARE AVAILABLE UPON REQUEST
WAS REMOVED FROM A CABINET SHOP IN MAY 2026.
STORED IN OUR WAREHOUSE FOR PROMPT SHIPPING
WE HAVE A VIDEO FAN RUNNING AT THE CABINET SHOP.
89-26
