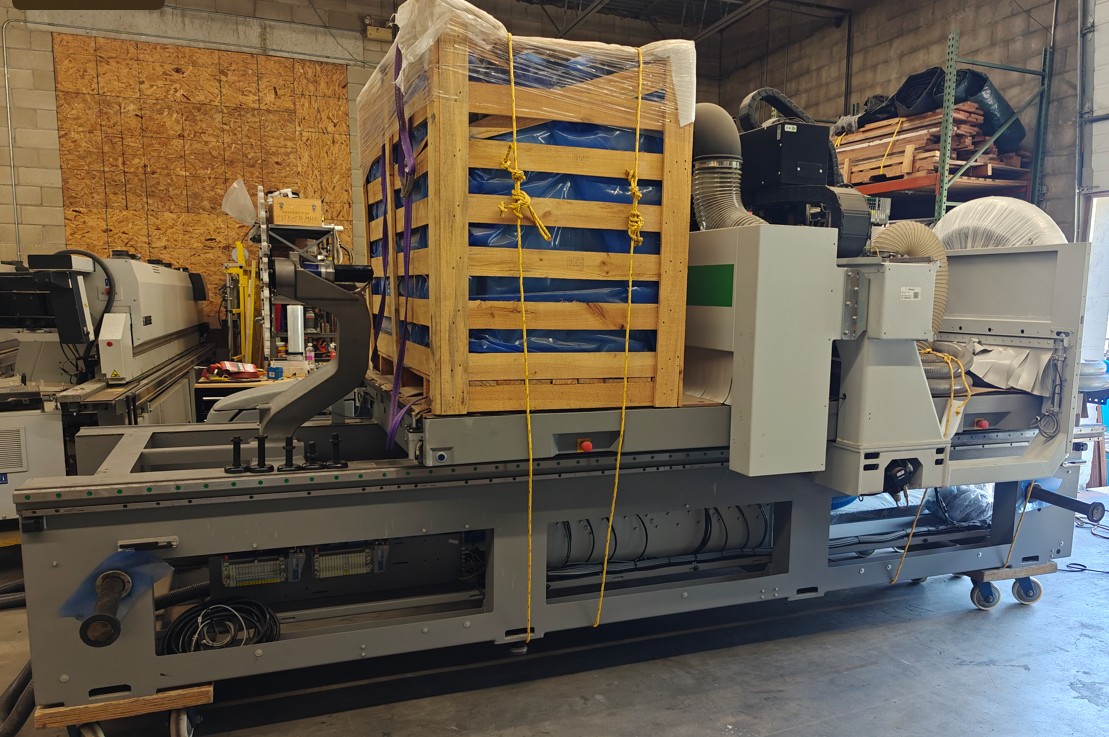

Complete Fully Functional Automated CNC Nested Based Cell.
Has Automatic Labeling and Label Placement on the part prior to machining.
Working Table
Travels:
X: 122″ (3100 mm)
Y: 61″ (1560 mm)
Z: 8″ (203 mm)
Spindle Speed: 1000 – 24,000 RPM
HSK F63
Automatic Tool Changer: 16
BH21 Boring Head
Vacuum: 8 Zone Multizone Vacuum System using 2- Becker Vacuum Pimps
Cell: Front Loading, Flow Left to Right Automatic Loading and Unloading System. (Sweeping Arm + Loading Vacuum Cups) Automatic table cleaning VIA sweep arm using dust collector
Max Single Panel Unloading: From 9 to 50 mm.
Equipped With:
Automatic tool change HSK F63
Biesse Control, 21.5” Touch Screen
Electrospindle with HSKF63 Adaptor and Air Cooling
Front and Rear Linear Stops
Prearranged for Interpolating Unit (C Axis) (IT IS READY FOR YOU TO ADD C-AXIS)
THIS MACHINE IS ON A TRUCK HEADED HERE. WE WILL HAVE ACTUAL PHOTOS AND BETTER DOCUMENTATION WHEN IT LANDS. THIS MACHINE HAS NEVER BEEN INSTALLED AND HAS 0 HRS OF RUN TIME
