Technical features and options
NEW 2024, never installed - 0 HOURS

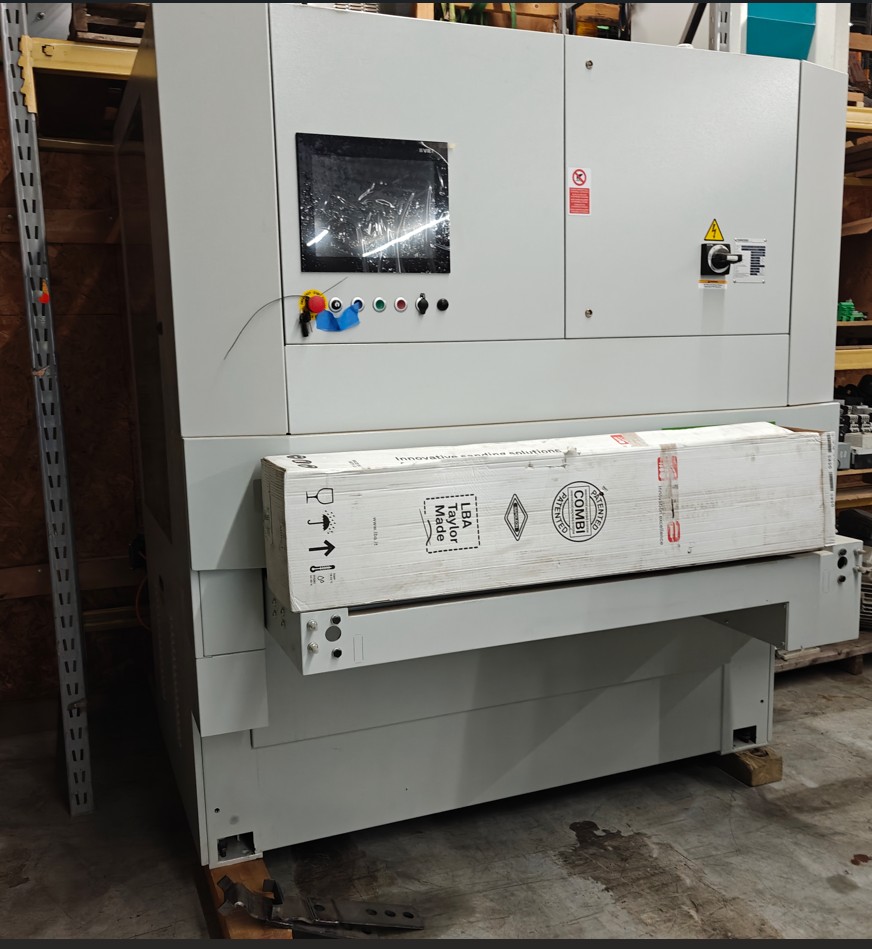

3 HEAD 53" 2 MOTOR WIDE BELT VENEER SEALER Sander
54" x 103" BELT SIZE
COLOR TOUCH SCREEN CONTROLLER - PROGRMMABLE

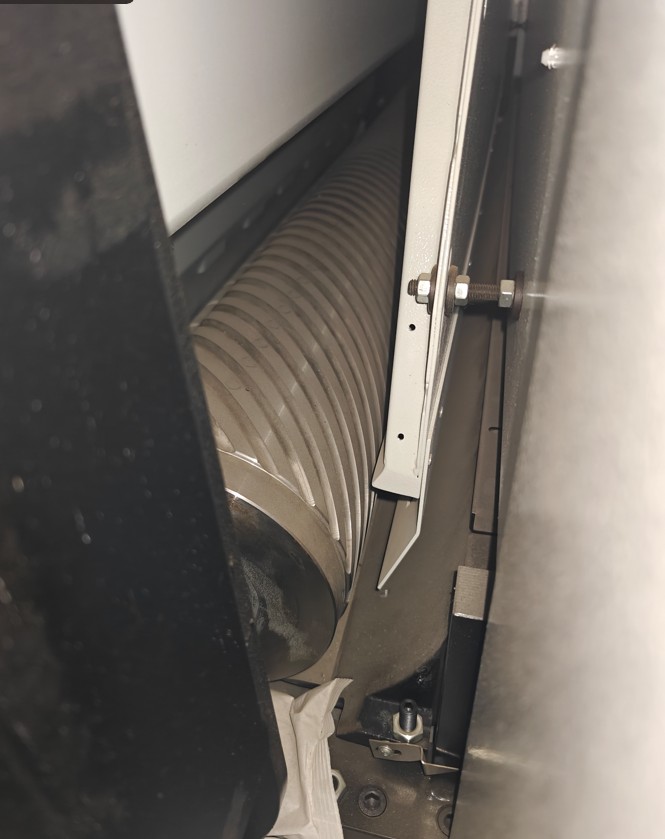

HEAD #1 DRUM 190MM - STEEL SPIRAL - 30HP
PRESSURE SHOE CHROME LIP - LEADING #1
HEAD #2 DRUM 240MM - RUBBER SPIRAL - 60SH
25HP MOTOR V/S CONTROL - SHARED WITH #3
BELT CLEANING BLOWER

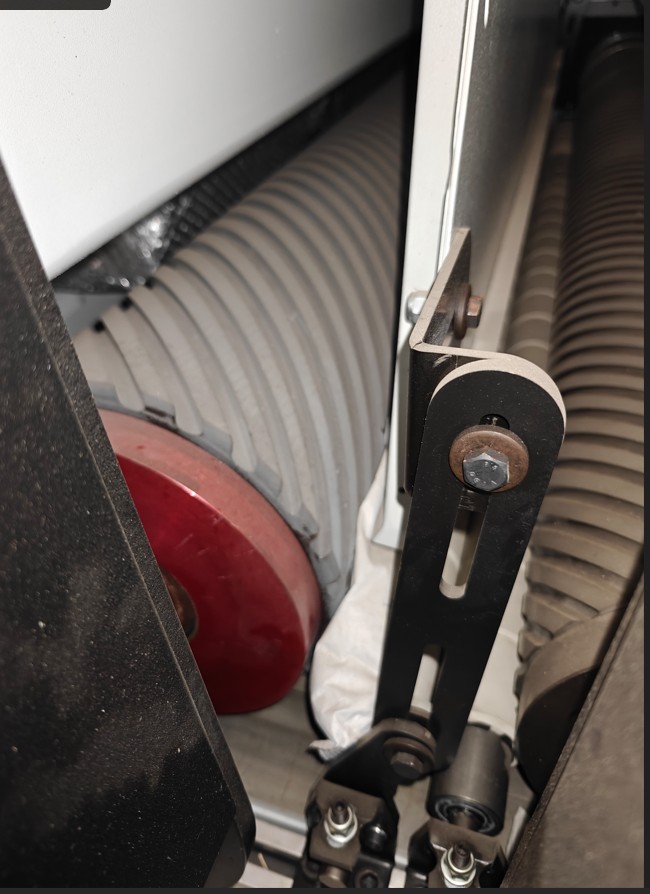

HEAD #3 KOMBI DRUM/PAD
DRUM - 190MM 40SH W/ANTI-DUB
PAD - 42 SEGMENT (32MM) ELECTRONIC W/ANTI-DUB
25HP MOTOR V/S CONTROL - SHARED WITH #2
BELT CLEANING BLOWER
PHOTO ELECTRIC SANDING BELT TRACKING - ALL UNITS
PNEUMATIC HEAD LIFT - ALL UNITS
CONVEYOR
- CONSTANT PASS LINE
- ROLLERS 2+2 FRONT AND BACK
- FEED 2HP VARIABLE SPEED
- PNEUMATIC BELT TRACKING
VACUUM TABLE W/3HP BLOWER
78.7A @ 460V
Extended working table:
42-section reading beam,
Feeding table with inverter: 2.2 kW,
Monitor: IPC COMPACT 8.5’’.
