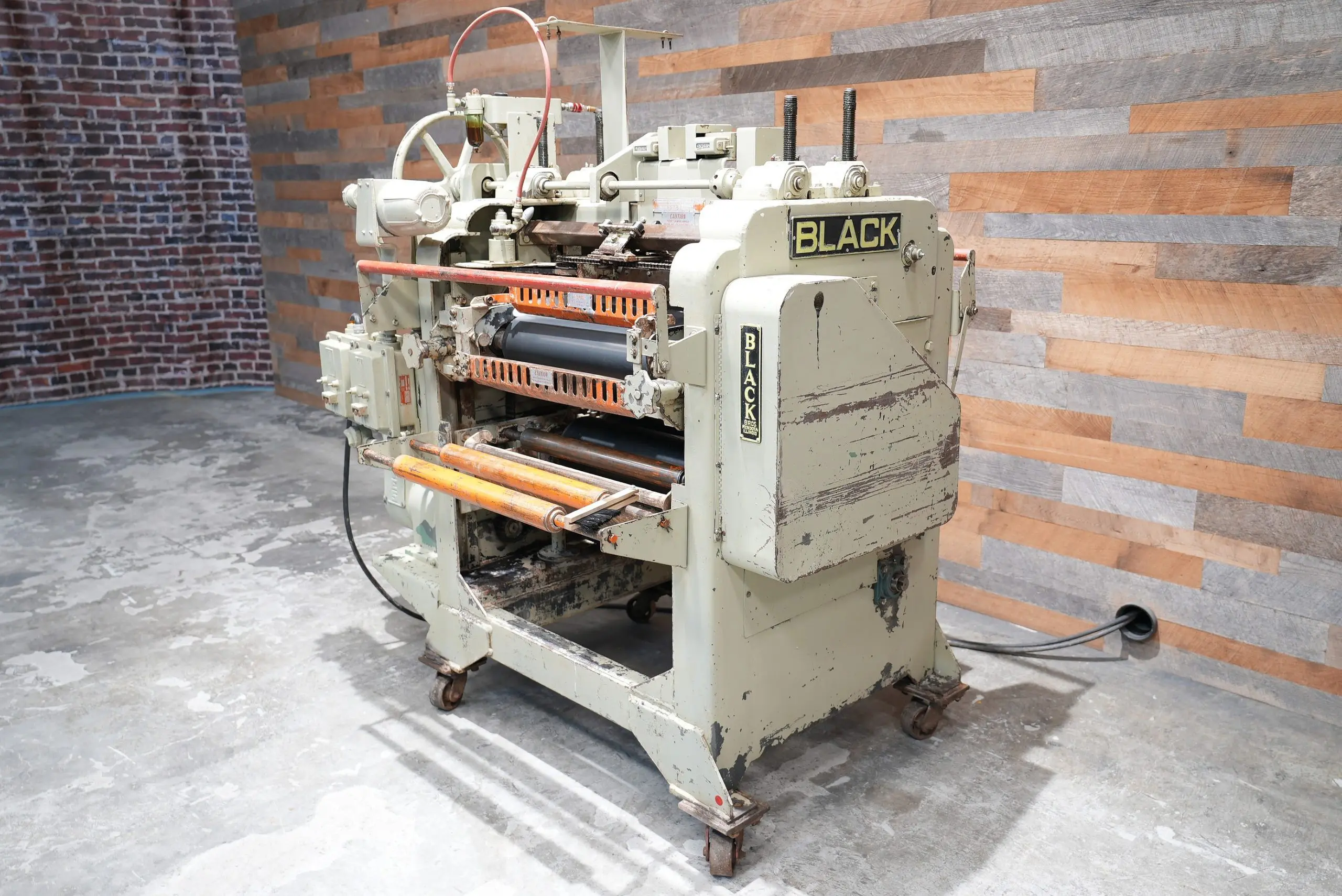

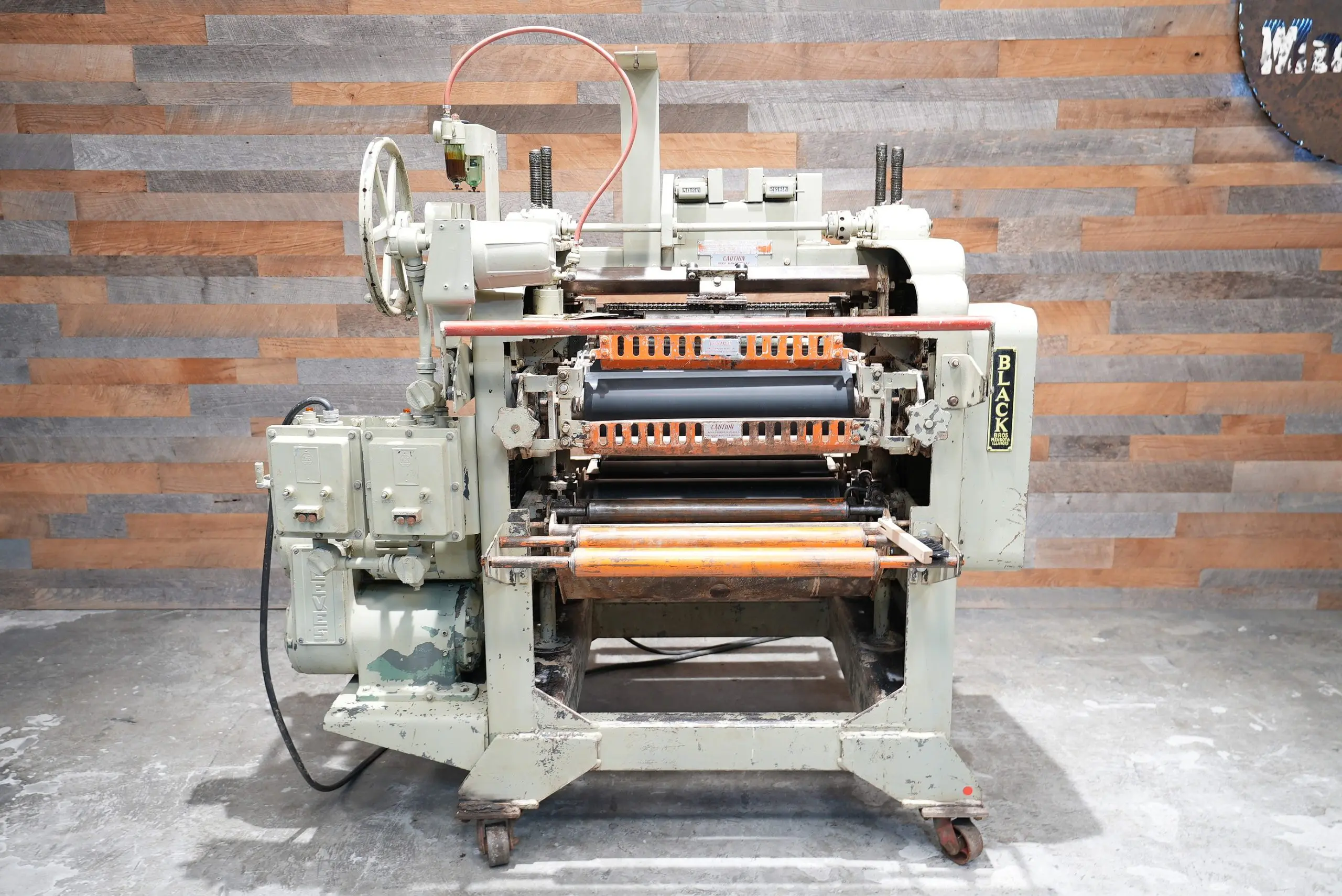

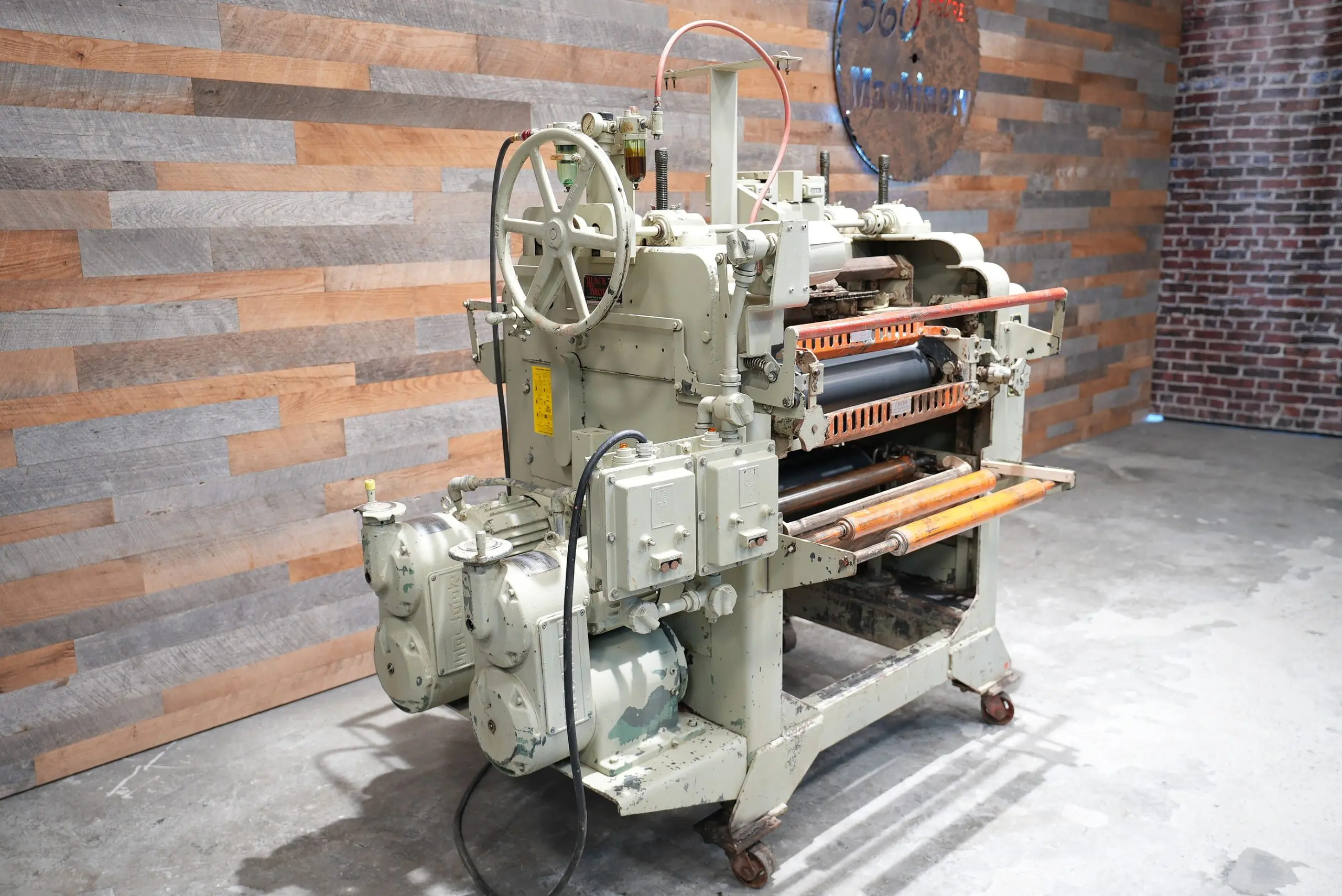

Black Bros Model 22D 26" Top Coater and or Glue Spreader

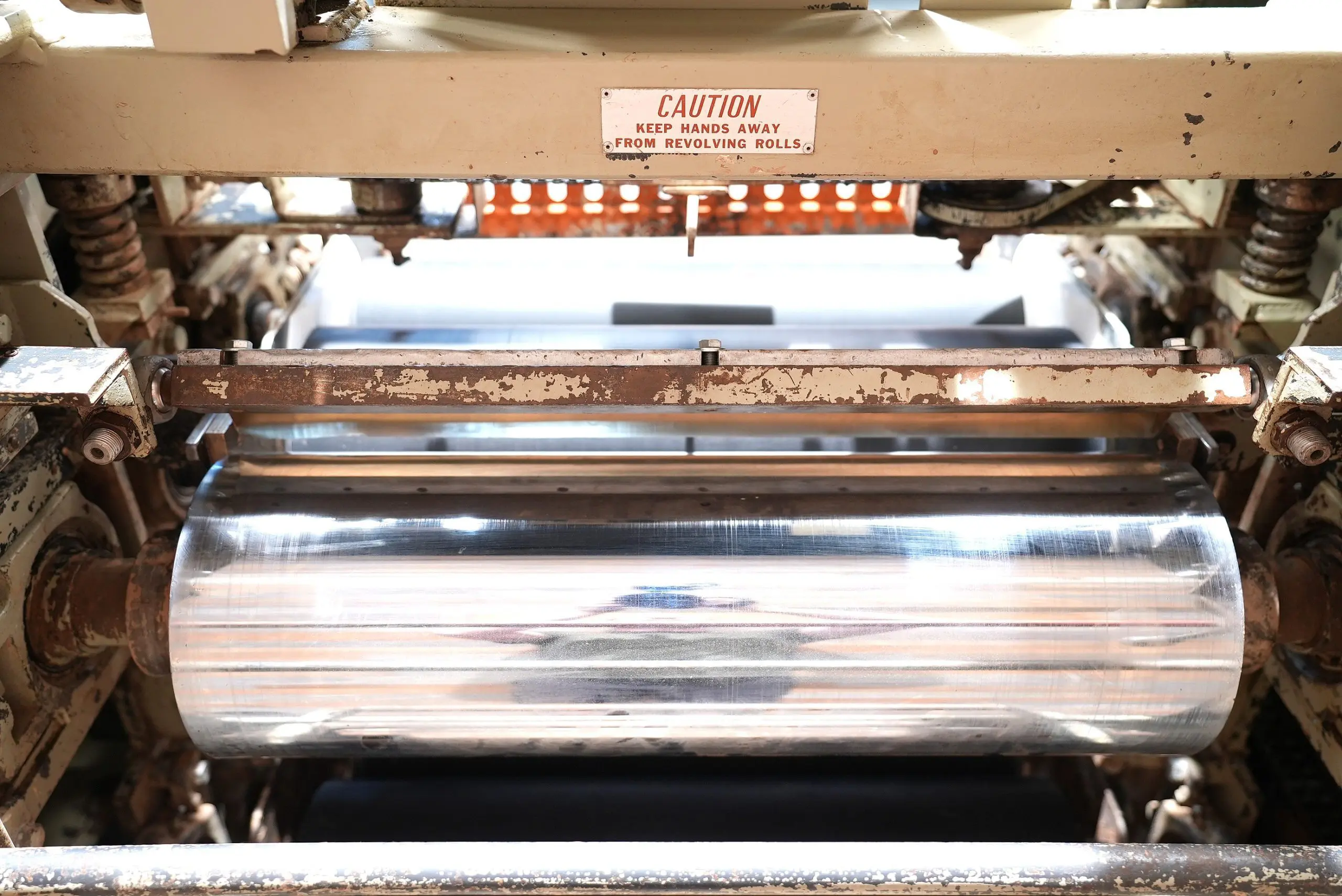

This Black Bros Model 22D is has (3) total top rolls. The first is a rubber 6-1/2″ doctor roll followed by a 8-1/2″ Applicator roll with dams bridging the two rolls together. Just like you find on most dual roll glue spreaders. HOWEVER there is an additional top rear 8-1/2″ chrome roller that can be either adjusted to touch the rubber applicator roll or your material or both. As it has a separate height control from the front (2) rolls. It also has a scraper AND a separate 1-1/2 hp Reeves variable speed drive from that of the front (2) rolls and feed system. The twin lower feed 8-1/2″ lower rubber feed rolls feature a scraper on the front roll and again share a 1-1/2 hp Reeves variable speed drive with the first and second upper rolls. Additionally there is a pneumatic brush cleaner up top. This machine was previously being used to apply filler but can obviously be used for various applications. Max. thickness capacity is right at 5-1/4″. All rolls are in Good to Very Good Condition.
