SPECS:
Cuts Per Minute: 20,000
Cutterhead Diameter: 3-3/16″
Cutterhead Speed: 5,000 RPM
Dust Collection Required (min.): 900 CFM
Dust Port Outside Diameter: 5″
Feed Rate: 24/31 FPM
Max. Depth of Cut: 3/32″
Max. Full Width Depth of Cut: 3/32″
Max. Planing Thickness: 8″
Max. Planing Width: 20″
Min. Planing Length: 6-3/4″
Motor Phase: 1
Motor Power: 5hp
Motor Voltage: 230V
Prewired Voltage: 230V
Recommended Circuit Size: 40 Amps
Style (Type): Floor
Table Size (L x W): 25-3/4″ x 20″
Table Support: 4 Column
Type of Cutterhead: Straight Knife

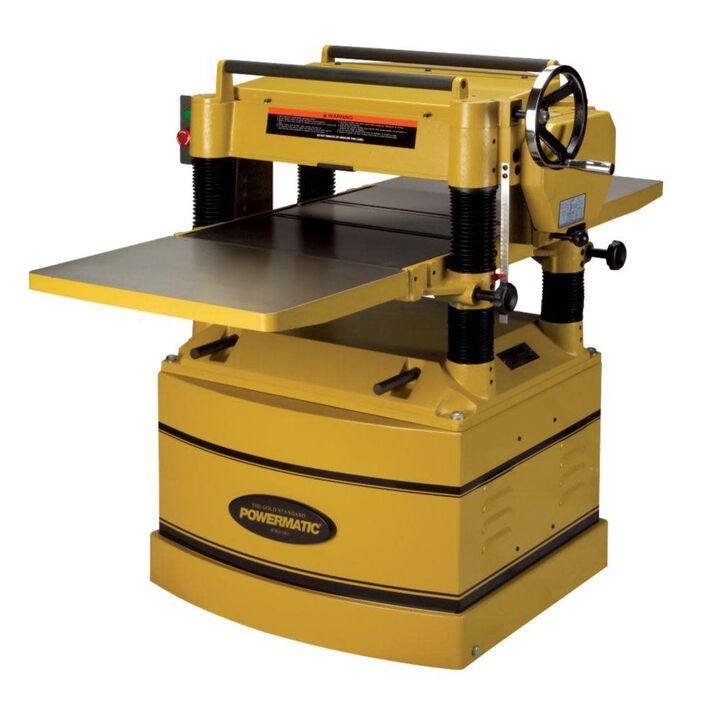

FEATURES:
Cast iron head
Cast iron table with extensions creates a big 55-1/2″ x 20″ working area
Chip breaker and pressure bar assists to reduce snipe
Chrome-plated, ergonomic handwheel makes adjustments smooth and easy
Cutterhead contains 4 high speed steel straight knives for a clean, smooth cut
Feed rollers and cutterhead supported by full cast iron head assembly
Feed rollers and cutterhead supported by full cast iron head assembly for rigidity
Fully enclosed base cabinet with integrated casters for shop mobility
Serrated steel infeed roller and smooth steel outfeed roller allows for 1/8″ maximum depth of cut and trouble-free operation
NOTES:
🔥 10 BLADE PRO MACHINERY
📞 1‑833‑410‑2523
📞 1‑833‑4‑10BLADE
📸 IG: @10bladepromachine
📘 FB: facebook.com/10BladeProMachinery
🚚 Immediate Pickup — NO TAX – NO FREIGHT – NO REGRETS
New-in-crate. Unused. Sold exactly as received
10 Blade Pro Machinery
