WEEKE BHP 100/VANTAGE 480 FLAT TABLE MACHINE, with ATC, Boring, Infeed Roller & Outfeed & 4,771 Hrs.

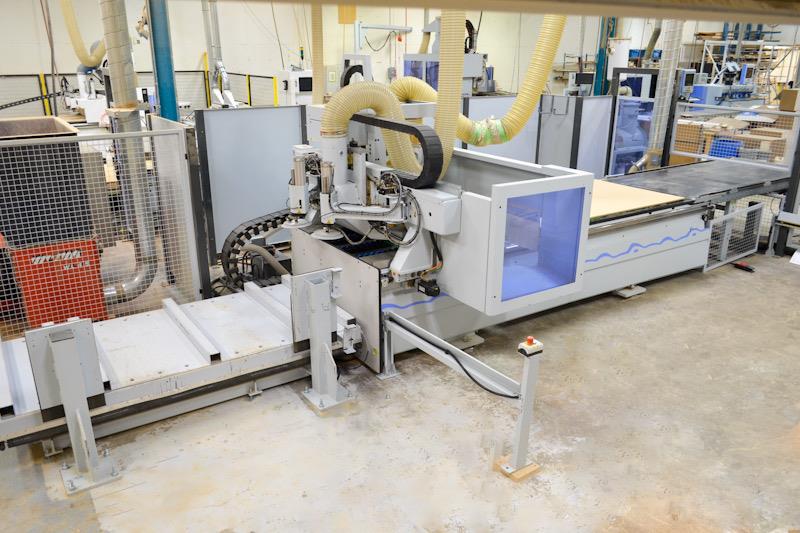

4' x 8' Bridge style gantry machine with User-Friendly "S/C Tech" "MATRIX" grooved phenolic vacuum table.
Working Area:
'X" axis 99.21" (2,520 mm), "Y" axis 49.21" (1,250 mm), Max. material thickness of 3.94" (100 mm).
Travels: “X” axis 146.06” (3,710 mm), “Y” axis 81.30” (2,065 mm), “Z” axis 13.70” (348 mm) Routing, 8.46” (215 mm) Boring.
Positioning Speed: "X" & "Y" axis Vector speed is 314 FPM (96 MPM), "Z" axis 65 FPM (20 MPM);
The head travels via AC brushless drives & THK linear motion guides on all axes.
Worktable: User-Friendly "S/C Tech "MATRIX" grooved phenolic vacuum table for easy vacuum pod placement.
(2) Fixed LH side & (2) Fixed RH side pneumatic pop-up positioning stops.

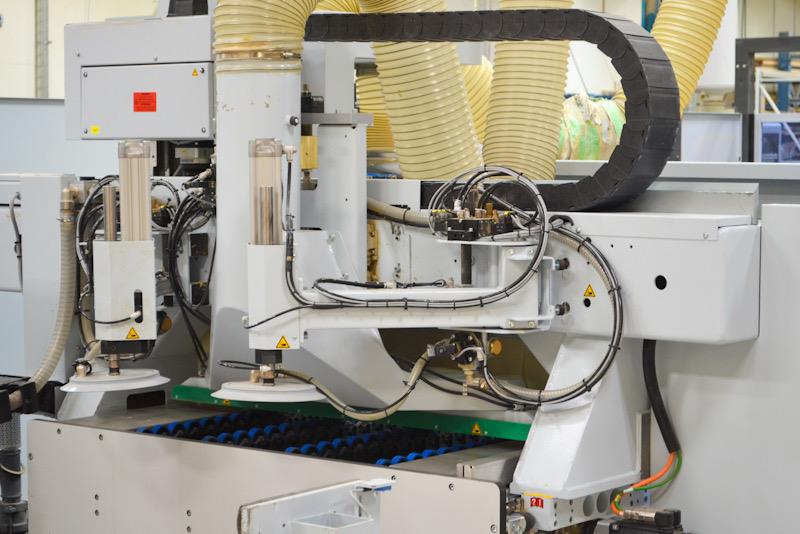

Boring Unit: (1) 3 HP (2.3 kW) Motor, variable speed for 1,500 - 7,500 RPM.
(21) Independent vertical spindles with (8) in "X" axis, (9) in "Y" axis (1st Row), & (4) in "Y" axis (2nd Row).
Machining: (1) 12 HP (9 kW) Air-Cooled High-speed constant duty Router with HSK F63 adaptor,
1,250 - 24,000 RPM, constant torque achieved at 9,000 RPM, RH or LH rotation

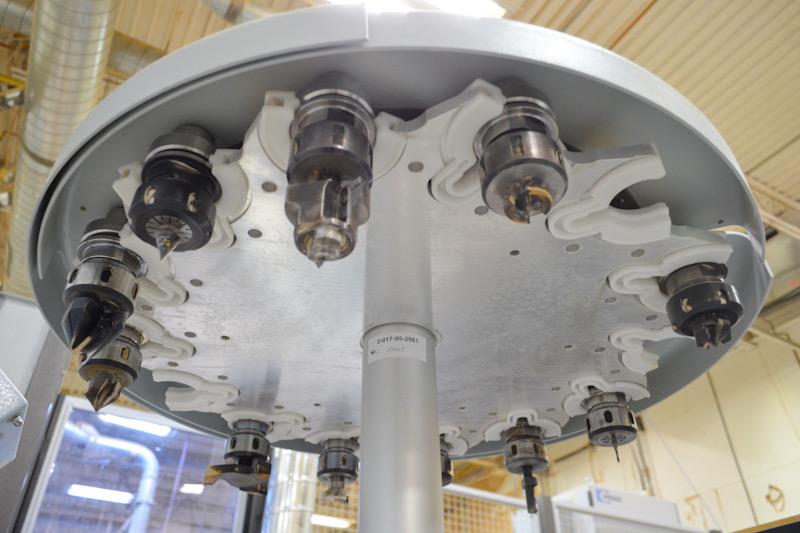

(1) 14-Position tool changer Carousel located at the back side of the spindle carriage.

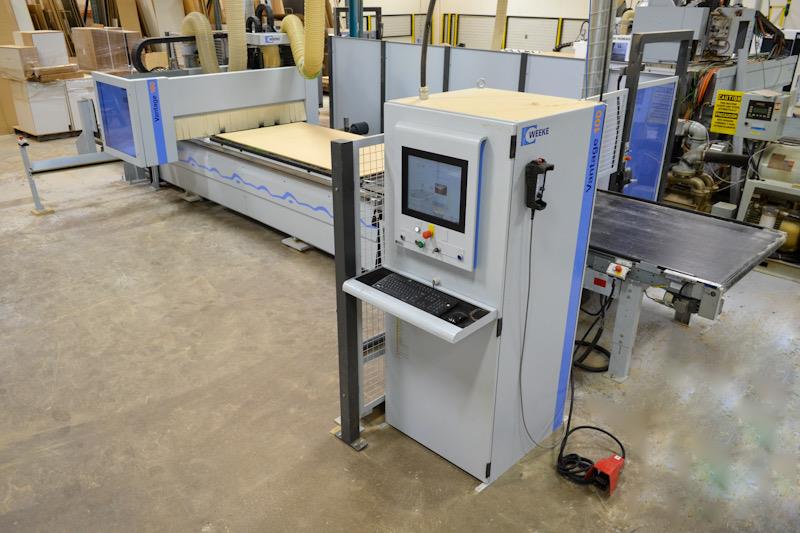

Machine & Operator Control: PC Front-End with WEEKE "Power Control + Windows + WoodWOP operating system.
