MAKE AN OFFER!

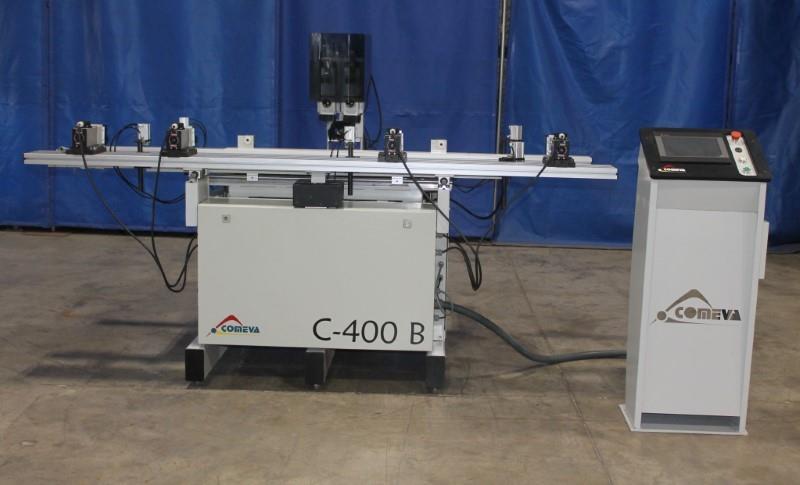

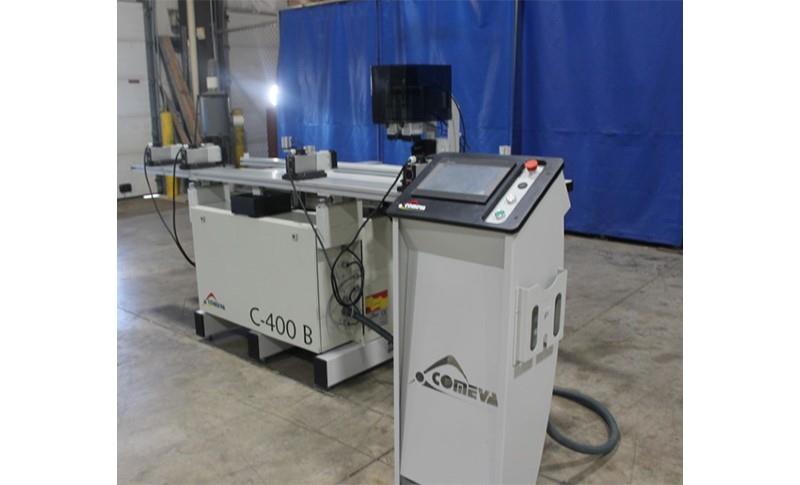

COMEVA C-400 B Programmable European Door Milling Machine:
Maximum door length, X-Axis 96" (2,440 mm). Maximum machining length from center to center of the farthest slots is 74.8" (1900 mm) based on a 120 mm hinge length.
Working field Y-Axis 23.6" - 39.3" (600- 1,000 mm) min/max door width.
Working field "Z" axis 1.18" - 2.36" (30 - 60 mm) min/max door thickness.
NC Controlled working table for X-, Y- & Z-axis part positioning & processing. X- Y- & Z- Axis movement via hardened round ways & ground ball screws.

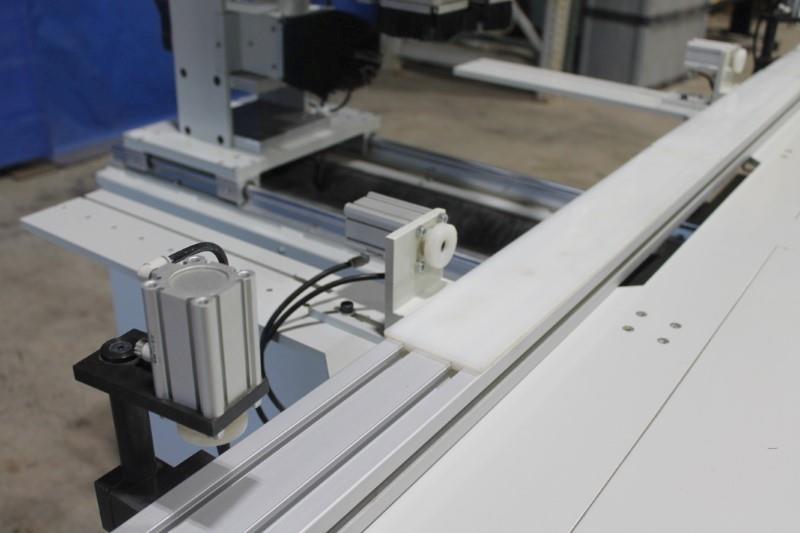

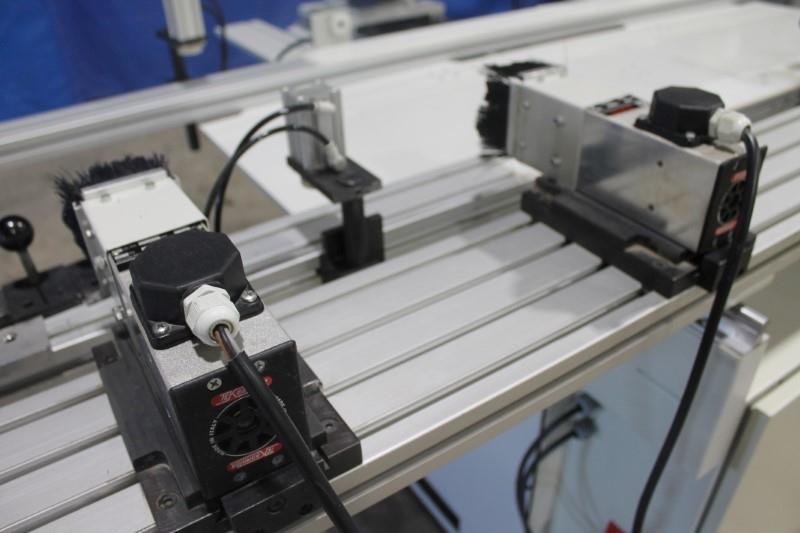

Work Table: (2) NC Controlled extruded aluminum support rails with (6) Non-Marking manually positioned pneumatic panel clamps.
***Please click the link for full description***
Comeva C 400 B Door Milling Machine
