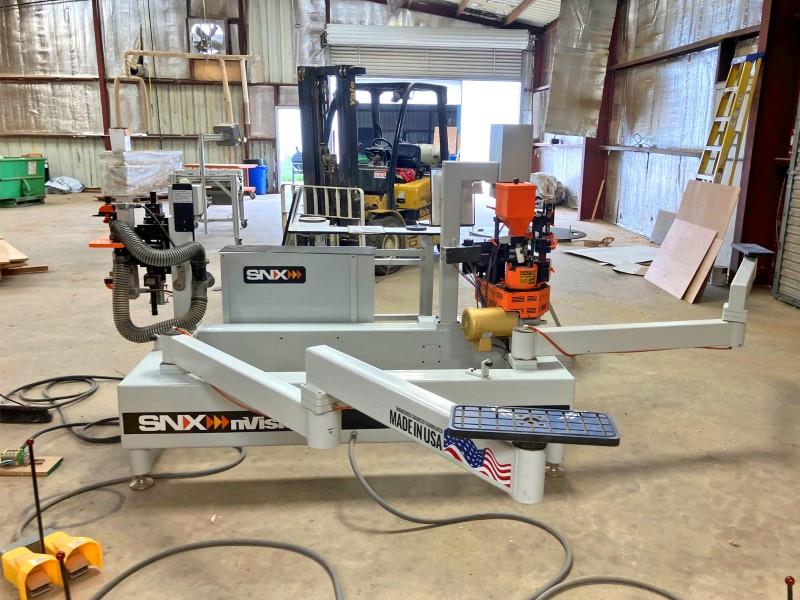

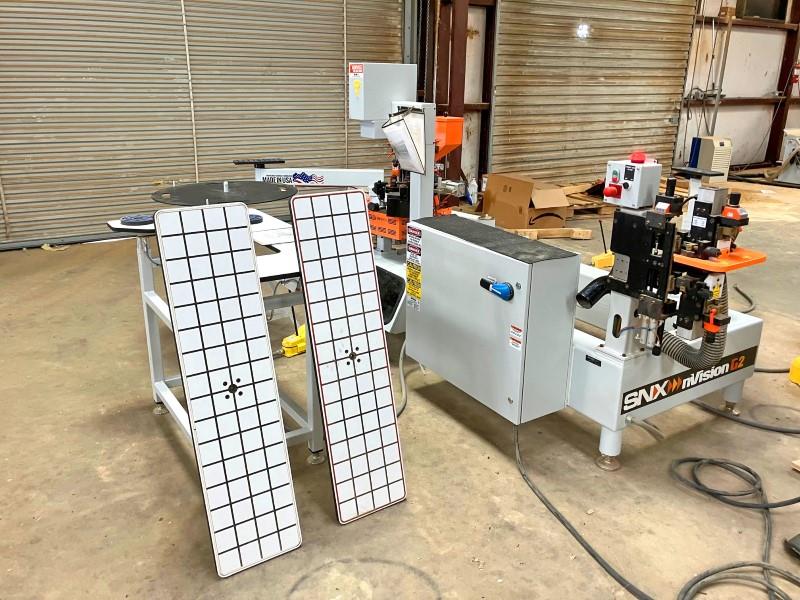

SNX nVISION SYSTEM1 G3 CONTOUR EDGEBANDER + Optional Dual Telescoping Arms for simultaneous Contour Banding & Trimming:
Curved (Contour) Edgebander to allow 360° edgebanding to contoured (shaped) panels.
Edgebanding is applied automatically as part is advanced past the edgebanding workstations via turntable.

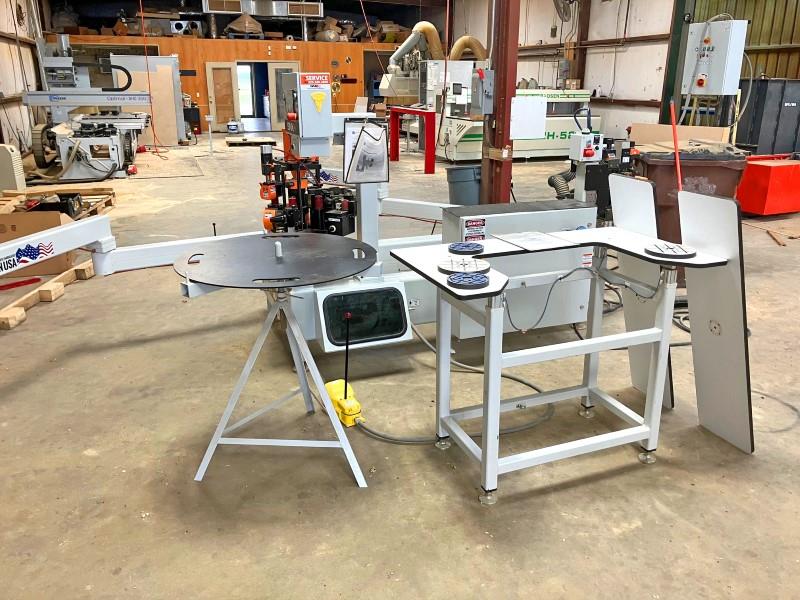

Reduced learning curve/expertise for operation as operator simply loads part to vacuum turntable, then activates the edgebanding cycle.
Working Capacity: The nVision Contour Bander can band a minimum material size of 150 mm (6") diameter.
Maximum material size 2,400 x 2,400 mm (94" x 94"); Maximum material weight up to 104.5 KG (230 LBS).
Material thickness from 10 - 60 mm (0.4" - 2.36"); Banding thickness from 0.5 mm thin tape w/low temp adhesive - 3mm tape.
Radii Capacity: Minimum Internal (inside) radius 80 mm (3.14"); minimum external (outside) radius 30 mm (1'18") based on 1 mm thick edge tape. ● Edgebanding thickness 1 mm, min = R 30 mm ● Edge thickness 2 mm, min = R 50 mm ● Edge thickness 3 mm, min = R 80 mm ● Panel thickness 10-60 mm with edge thickness 1 mm ● Panel thickness 10-60 mm with edge thickness 2 mm ● Panel thickness 10-45 mm with edge thickness 3 mm
IMPORTANT: ALL minimum & maximum radii are affected by tape thickness, quality of adhesive and edgebanding being applied. Radius size dramatically affected by adhesive temperature and quality of edge tape, semi or rigid. Equipped with: (1) Thermal-regulated glue pot heated via (2) 800-Watt heating elements with electronic temperature controls; holds up to 1 KG (2.2 LBS) of granules.

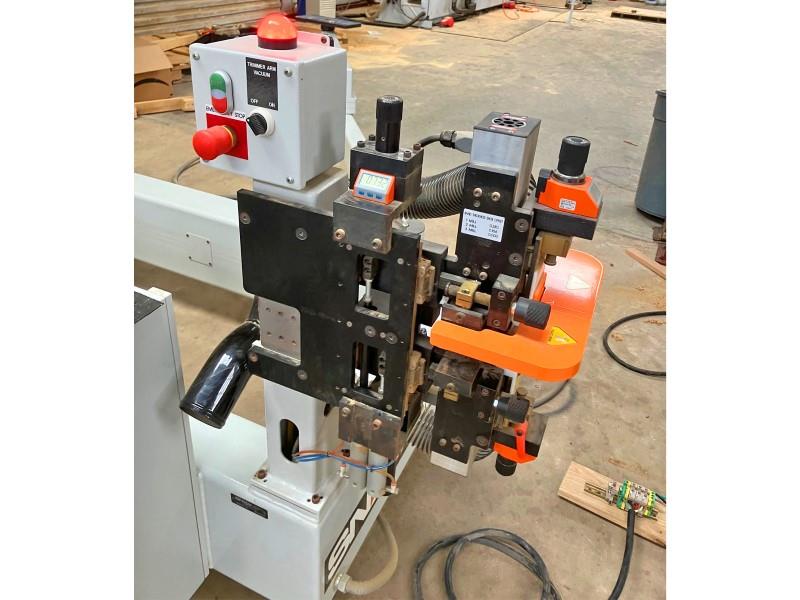

(2) Pressure rollers to copy the shape of the piece, automatic guillotine for coiled material up to 3 mm (0.11") thickness & 57 mm height (0.125" - 2.25").
TRIAX 3-AXIS Laser System (patented) for tighter butt joints & easy length identification with closed parts without the need for additional length measurement.
