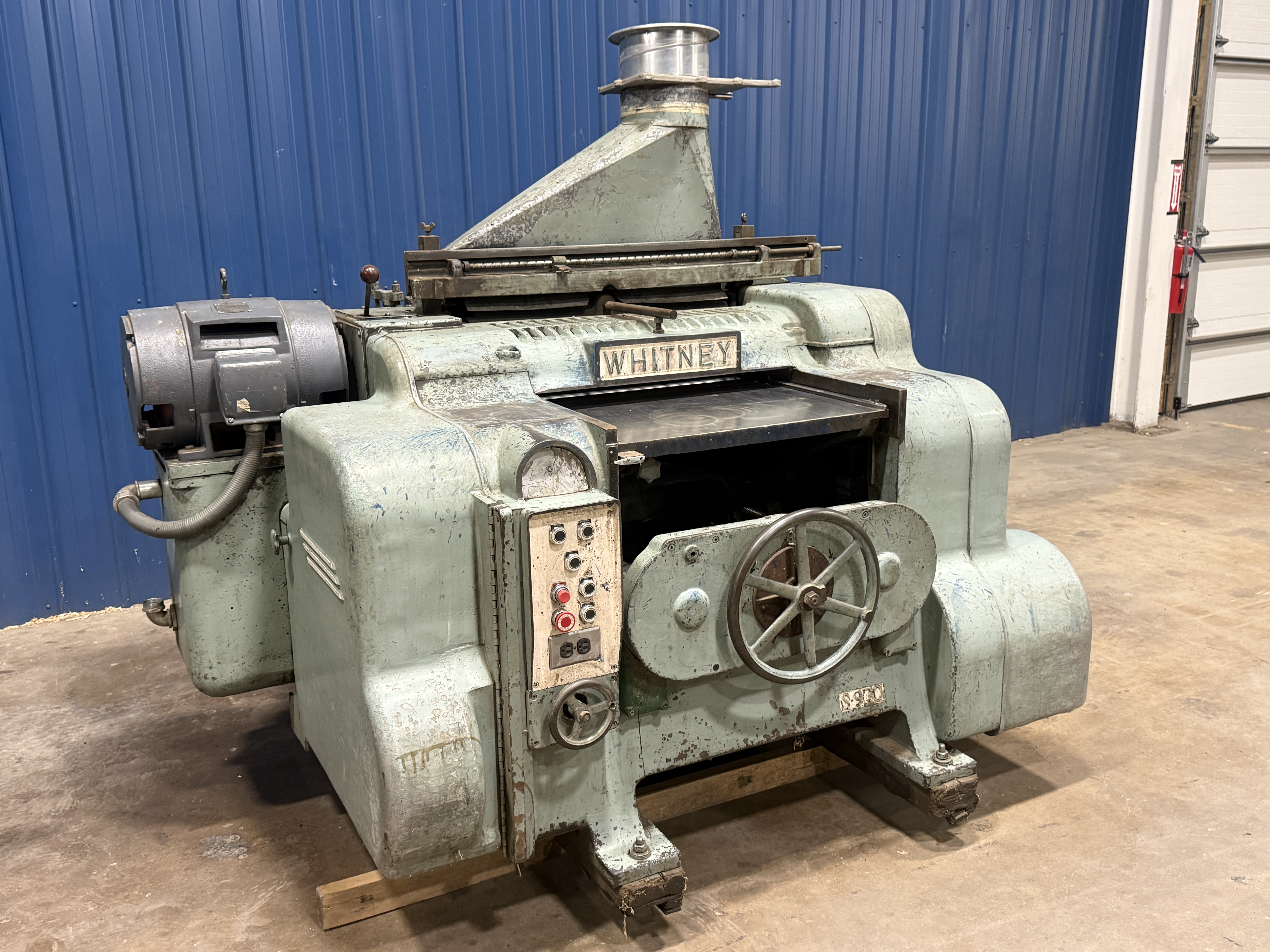

Whitney Model S-970 Double Sided Planer
Serial #:17572-R
Width Capacity: 30"
Maximum Material Thickness: 7"
Minimum Material Thickness: 1/8"
Minimum Material Length: 14" (6" Butted)
Top Cutterhead Motor: 40 HP, 208-220/440, 3ph
Bottom Cutterhead Motor: 20 HP, 208-220/440v, 3ph
Newman QUIETCUT Helical Carbide Cutterheads
Feed Motor: 5 HP, 230/460v, 3ph
Variable Speed Feed from 33 - 98 FPM
Hand-Crank for Feed Speed
Sectional Infeed Rollers and Chipbreakers
Powered and Manual Height Adjustment via Hand-Crank
Push-Button Controls
Machine is Supplied w/ Top Grinder Bars and Grinder
Includes Dust Hoods & Electrical Equipment
- RT Stock Number: 52171
