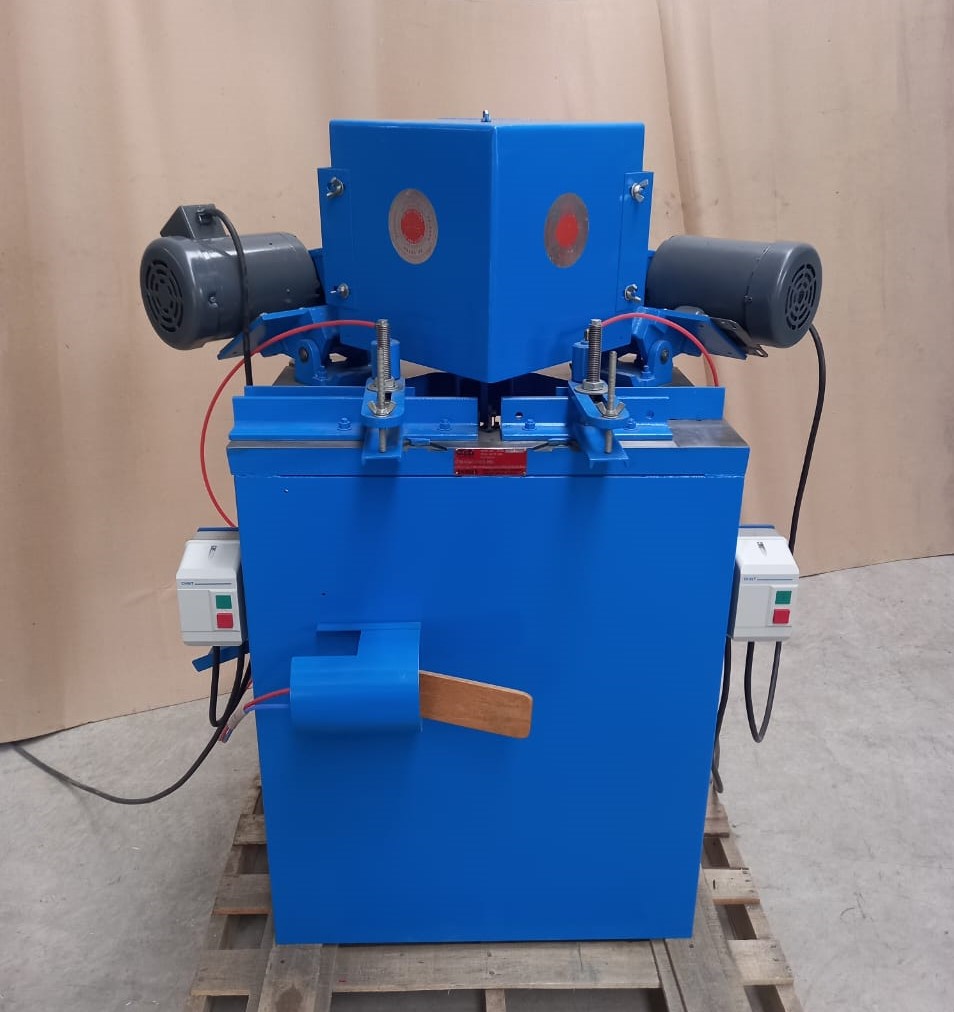

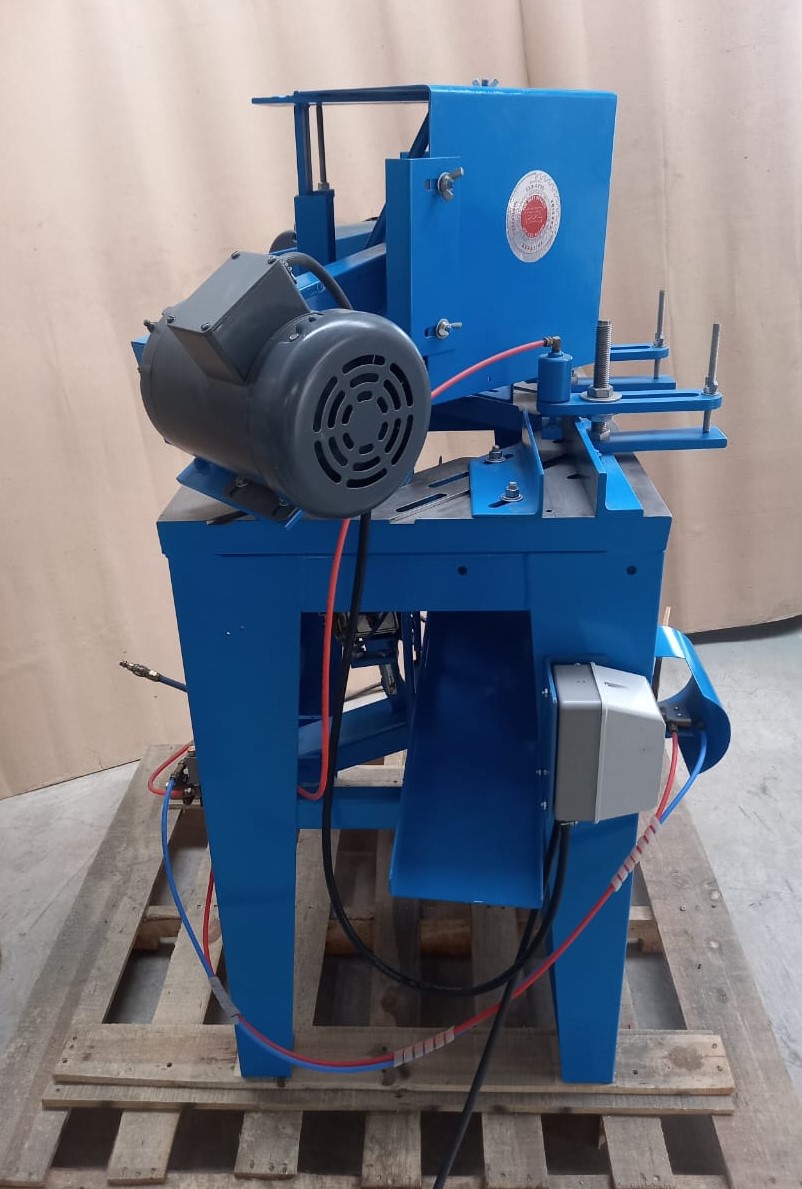

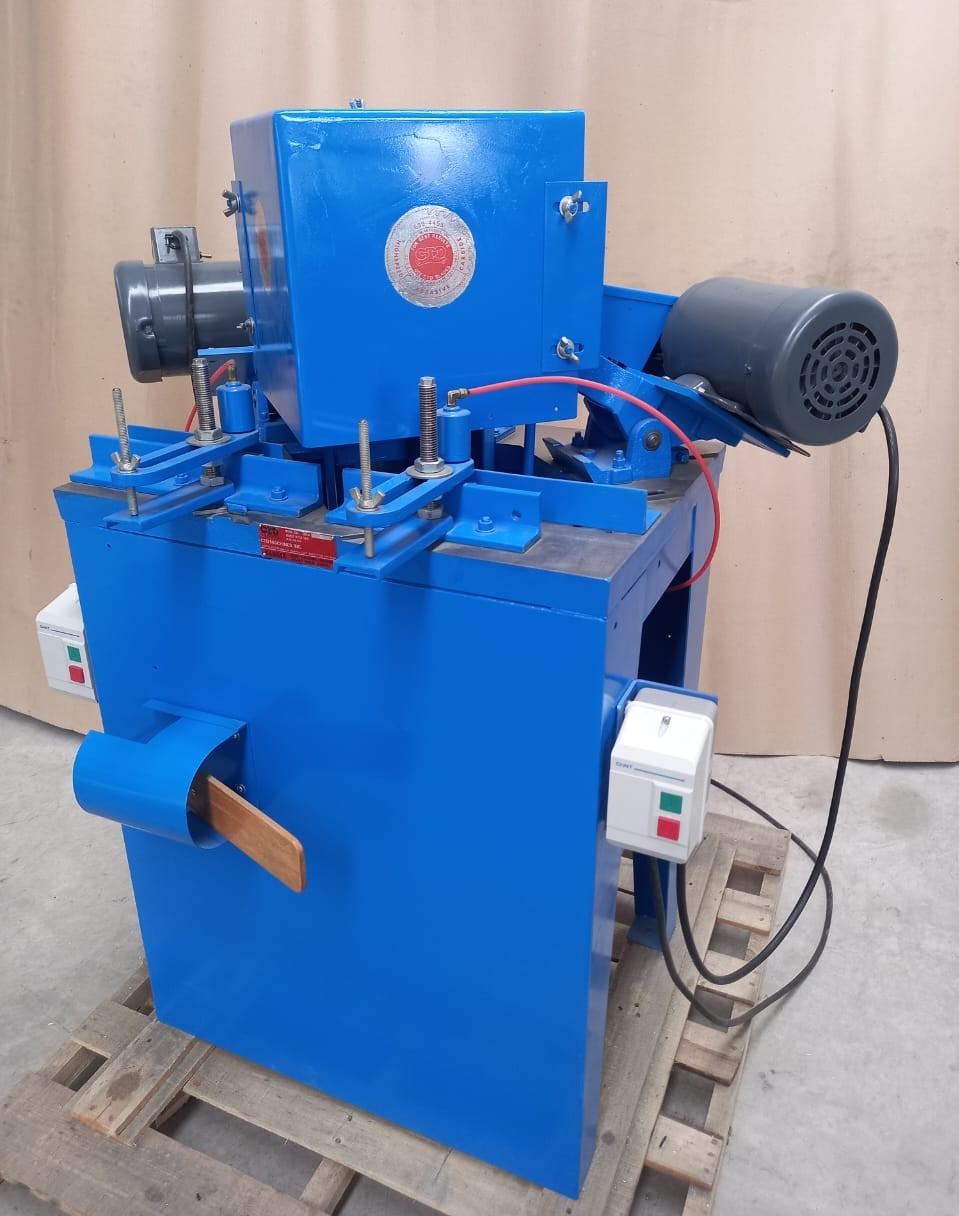

PART: AMX-10079 - DOUBLE MITER SAW - 45 DEGREES - 12” DIAMETER CAPACITY - CTD D45
Used - Good condition

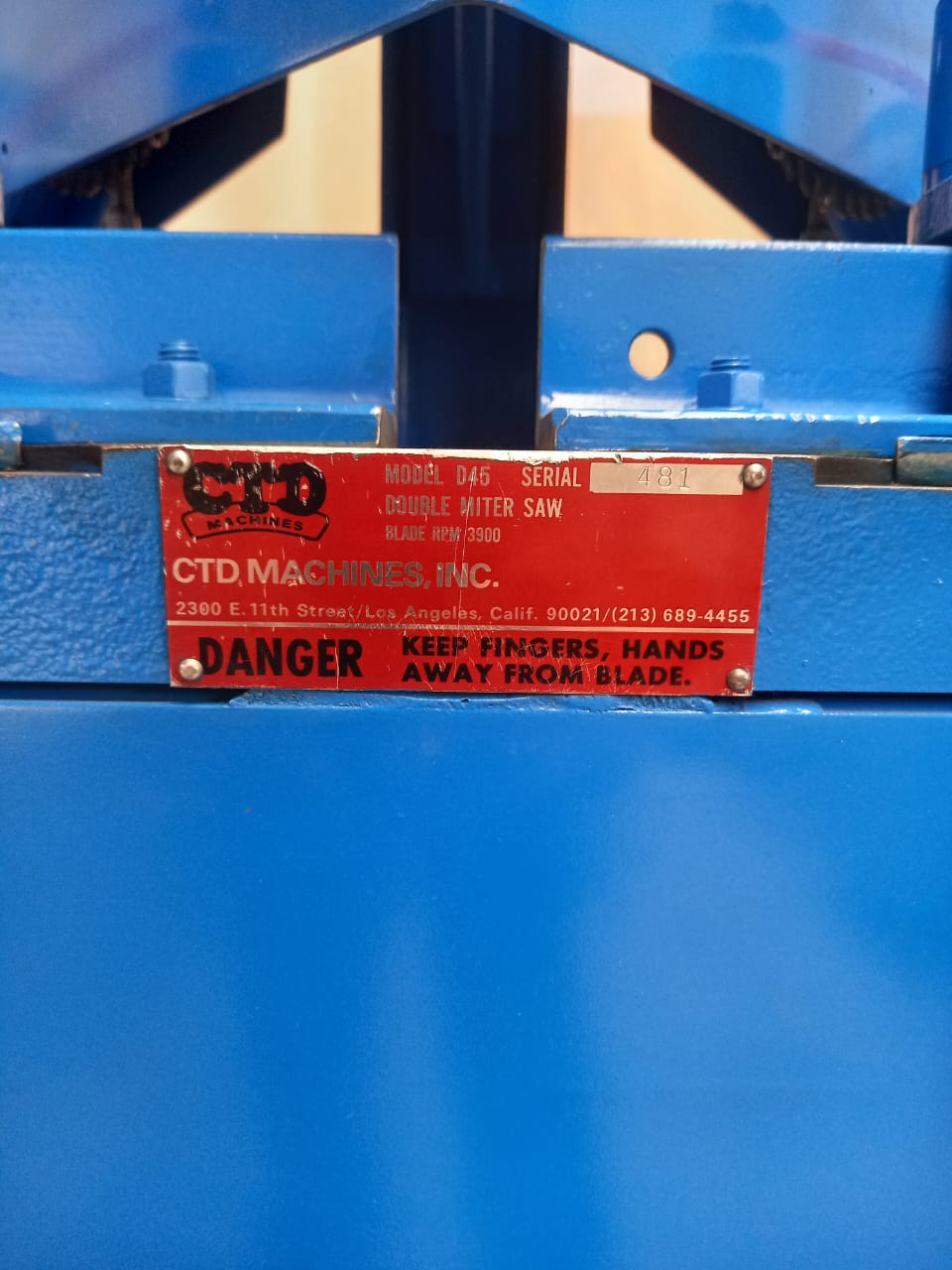

Brand: CTD
Model: D45
Two (2) 10” blades installed
Saws fixed at 45° angle (saw heads are adjustable up to 3°)
(2) motors, 1.5 HP, 208-230/460V, 3 phase, currently connected to 220V
3,900 blade RPM
Back fence
2 New On/Off Switches with magnetic starters
2 Saw blades installed 10” diameter,
Cutting capacity with 10" blades: 2-1/2" width x 3-1/4" height
Machine capacity up to 12” diameter saw blades can be installed
Table height 35-1/4"
1 Pneumatic pedal and 2 pistons to hold down the wood pieces in the table at the time of cutting
Each cut takes 4 to 6 seconds
Machine dimensions: 32” length x 48" width x 53” height - Weight: 560 lb.
Shipping dimensions: 48” length x 48" width x 58” height - Weight: 590 lb.
Machine palletized
