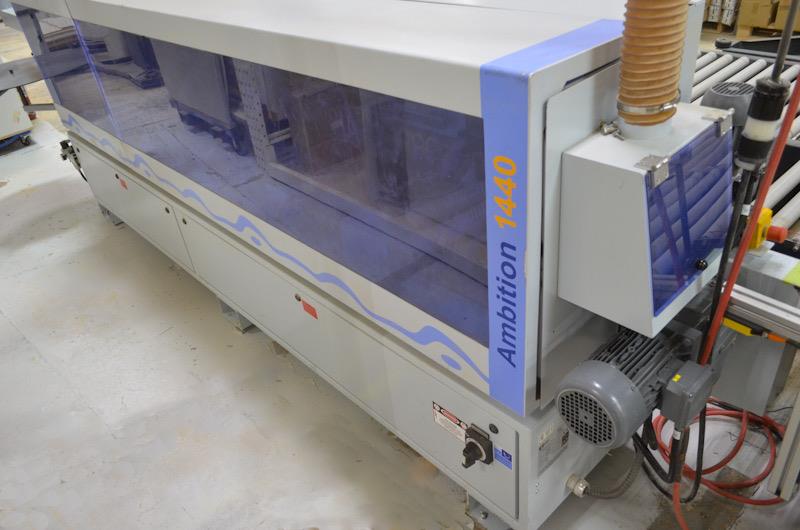

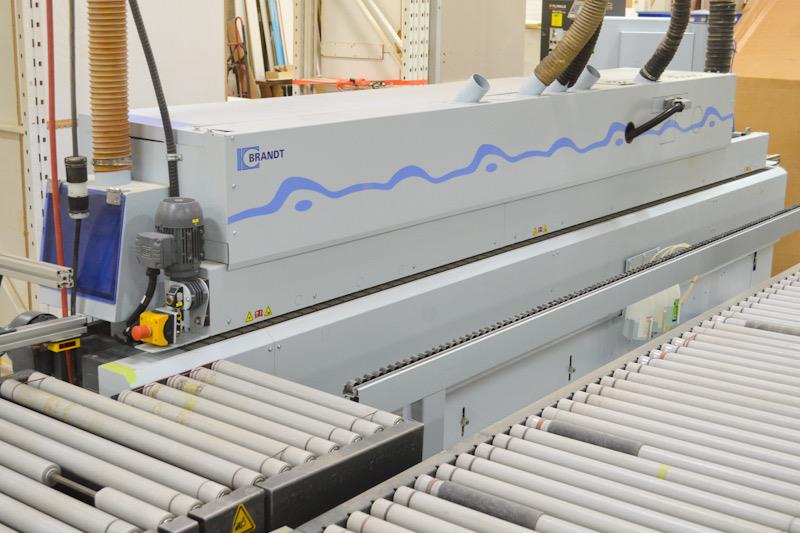

BRANDT AMBITION 1440 FC (KDF 440 C) Edgebander with Pre-Mill & Corner Rounding & 3,359 Hrs.
Edge & Workpiece Capacity: 0.4 - 8 mm (0.016" - 0.31") Edgebanding thickness, 8 - 60 mm (0.31" - 2.36") Panel thickness, 160 mm (6.30") Min. panel length, 70 mm (2.76") Min. panel width.
Adjustable Infeed Fence: Motorized adjustment with 0.049 kW (0.07 HP) Motor.
Joint Trimming/Pre-Milling Station: (2) 2.2 kW (3 HP) 12,000 RPM Motors, Left-Hand & Right-hand rotation with Pneumatic jump control for chip-free & clean panel edges.
Roller Separating Device: 3 mm x 45 mm (0.12" x 1.77") or 1 mm x 55 mm (0.04" x 2.17") Max. roll cutting, 0.4 - 8 mm (0.016" - 0.31") Strip thickness, 3 mm (0.12") PVC Max. coil thickness.
Hot Melt Glue Application Unit: 6 - 10 kg/Hr. (13 - 22 Lbs./Hr.) Melting capacity (Depending on glue type).
Workpiece Preheating Unit
Pressure Zone: (1) Driven & (2) Idle Rollers, Timed pneumatic pressure controlled, Servo motor positioning for programmable edge thickness changeover.
Feed Speeds: 8 - 14 MPM (27 - 45 FPM), 11 MPM (36 FPM) with Contour trimming.

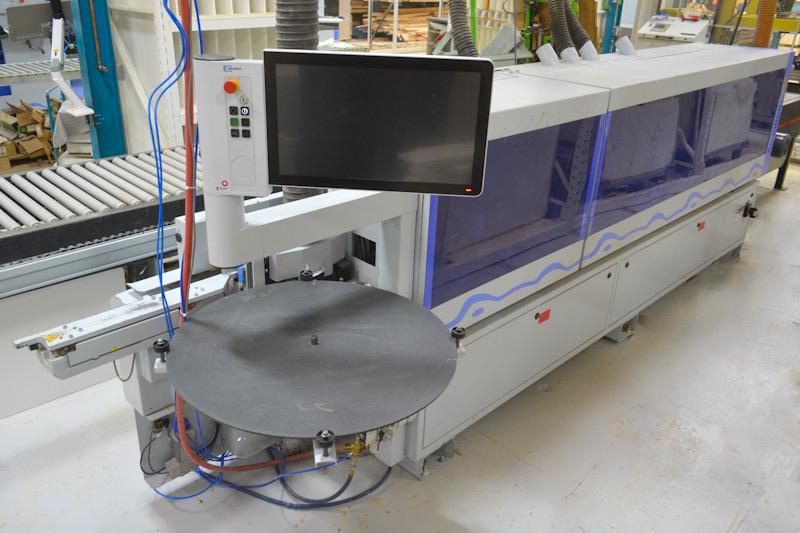

BRANDT "POWERTOUCH" Control: With 21" HD LCD Touchscreen monitor.

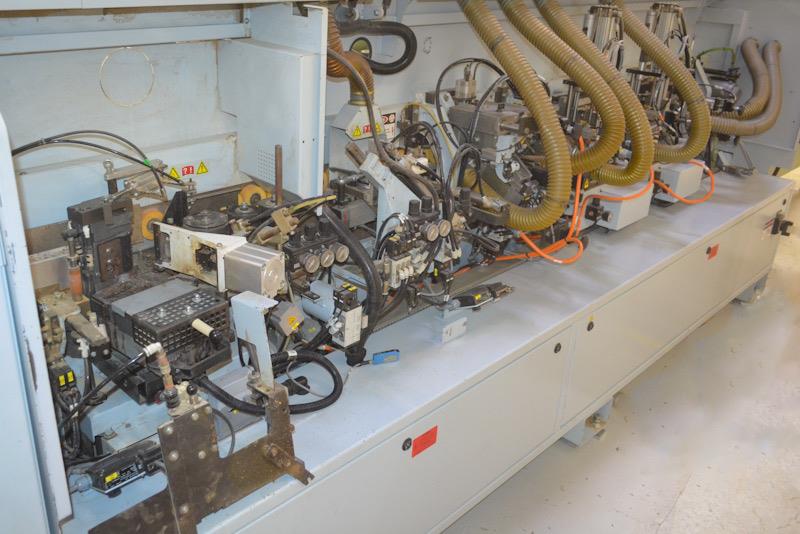

Workstations:
Front & Rear End Trimming Unit: (2) 0.18 kW (1/4 HP) 12,000 RPM Motors, with 0° - 15° Automatic chamfer, Pneumatic adjustment & Activation/deactivation of edging material overhang using "POWERTOUCH" control.
Top & Bottom Flush/Chamfer/Radius Trimming Unit: (2) 0.55 kW (3/4 HP) 12,000 RPM Motors, 0° - 25° Automatic tilt, with Horizontal & Vertical Tracing wheels, Brushless multi-axis servo motors for positioning of work-unit & horizontal copy wheels for quick changeover, with (3) Positioning options: Profile 1, Profile 2 & Flush trimming.
Multi-Functional Trimming Unit: (2) 0.4 kW (1/2 HP) 12,000 RPM Motors for leading & trailing edges vertical corner rounding of panels, Either radius or chamfer cutters can be mounted, 3 mm (0.12") Max. edge thickness.
Top & Bottom Multi-Profile (PVC) Scraping Unit: (2) Profiles: 1 mm (0.04") & 2 mm (0.08") or 3 mm (0.12") instead of 2 mm (0.08"), Servo control positioning of vertical & horizontal copy wheels, PVC Scrape collection box, Pneumatic adjustment using "POWERTOUCH" control, Pneumatic disengagement.
Top & Bottom Glue Scraping Unit: Flush on panel surface, with Floating insert knives.
Top & Bottom Buffing Unit: (2) 0.09 kW (0.12 HP) 2,750 RPM Motors.
*** Please click the link for full description***
Brandt Ambition 1440 FC Edgebander
