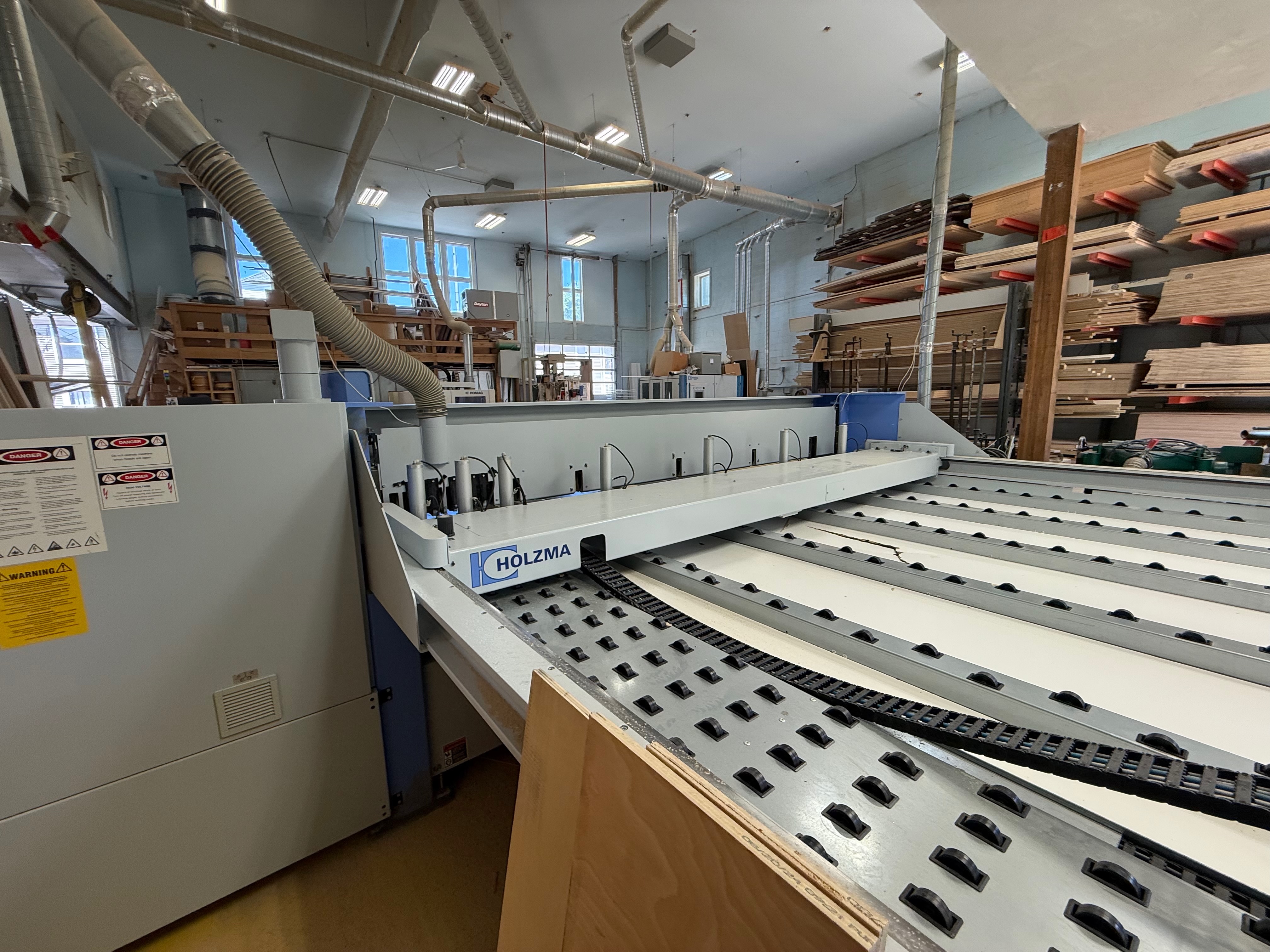

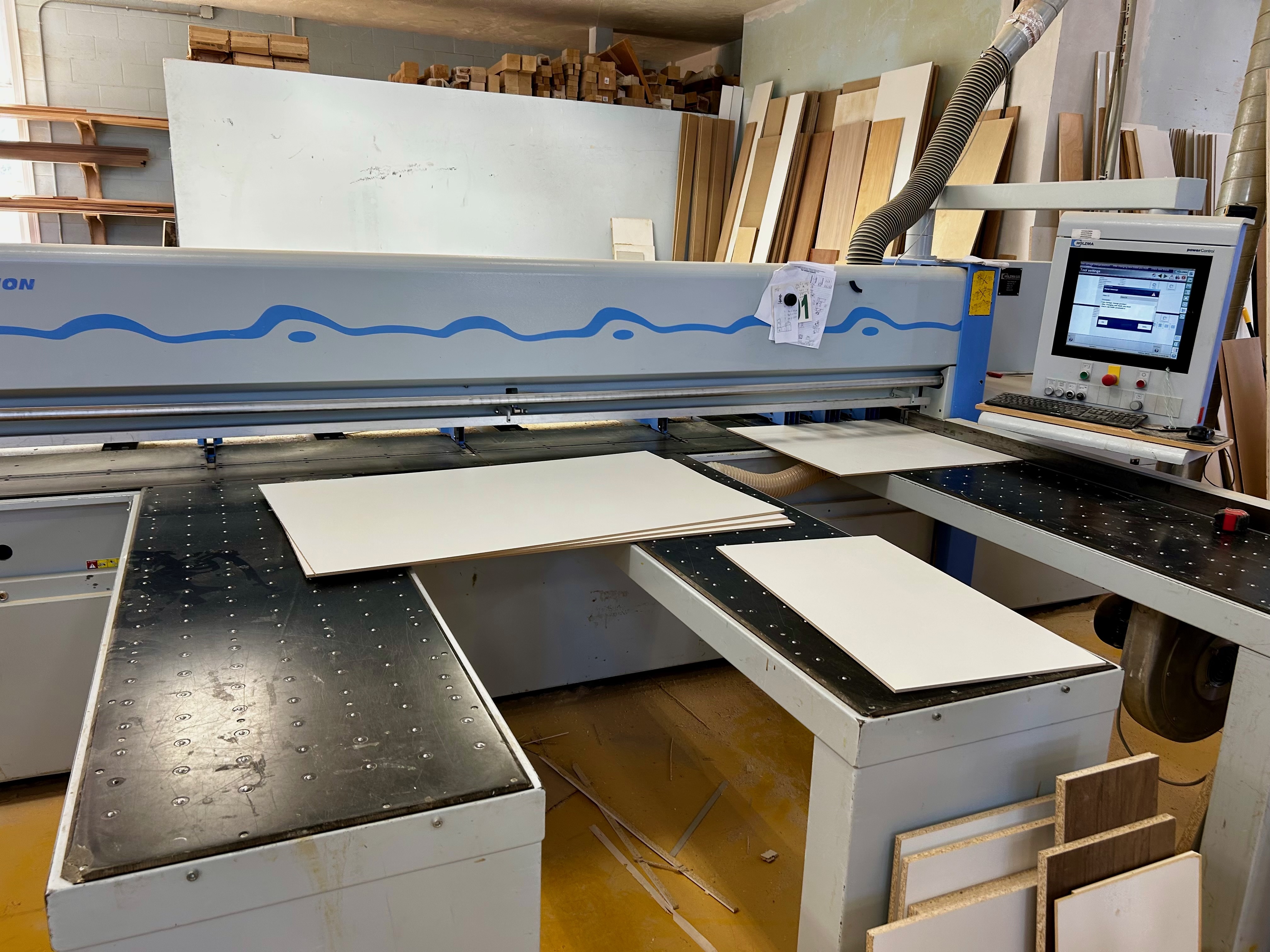

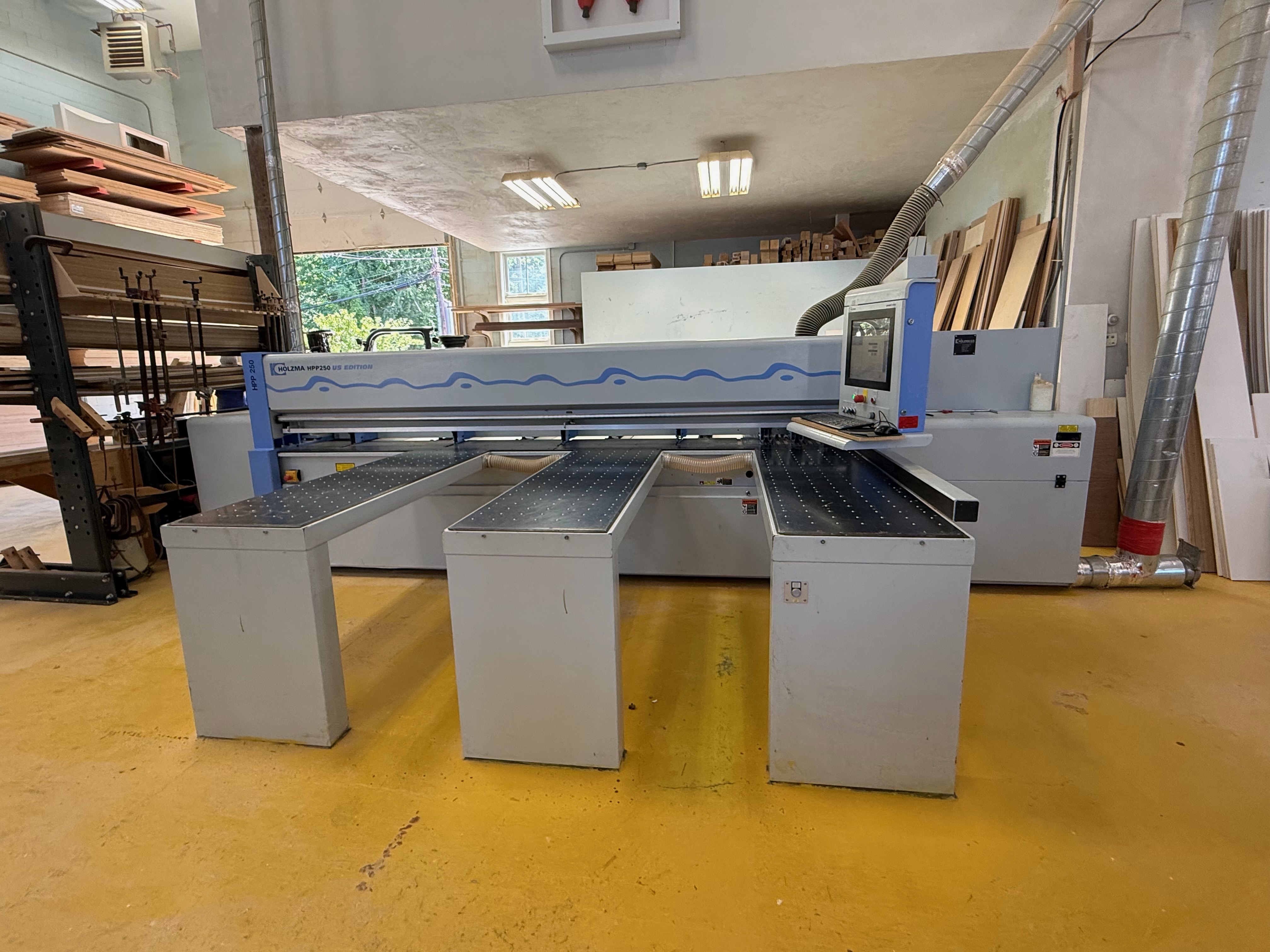

Very nice Holzma HPP250 12' CNC panel saw
3800mm/150” cutting length
80mm/3.15” cutting depth
0-390 FPM forward saw carriage speed
390 FPM return speed
Rack and pinion saw carriage drive for lower maintenance
Pusher speed up to 197 FPM
Scoring saw- 1.5HP @ 5100 rpm
Main saw- 12HP @ 4700 rpm
350mm =13.78 in 13.8” diameter saw blade
Six (6) pneumatic grippers, each with 3.2” opening
Rear roller table for transporting panels
Power lock tooling for fast blade changes
Holzmas patented central side pressure (side alignment) device moves with saw carriage
Three (3) air flotation tables; 26” x 71” each
Windows based PC controller with Cadmatic 2-D graphics software
Wired 460v electrics; 26amps
ser# 0341-07-8623
2012 machine
Holzma HPP250
