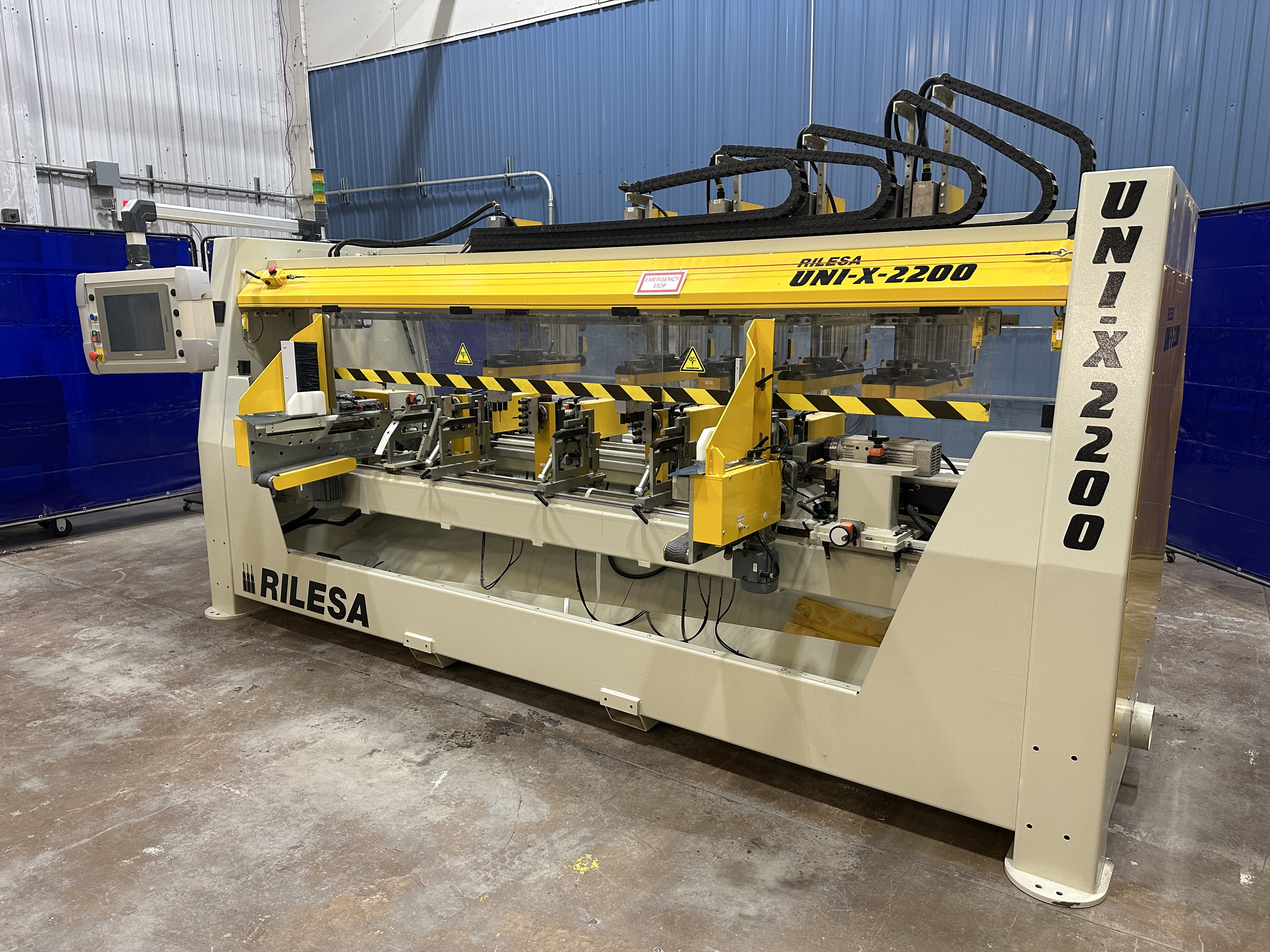

Rilesa Model UNI-X 2200mm Production Drilling Machine

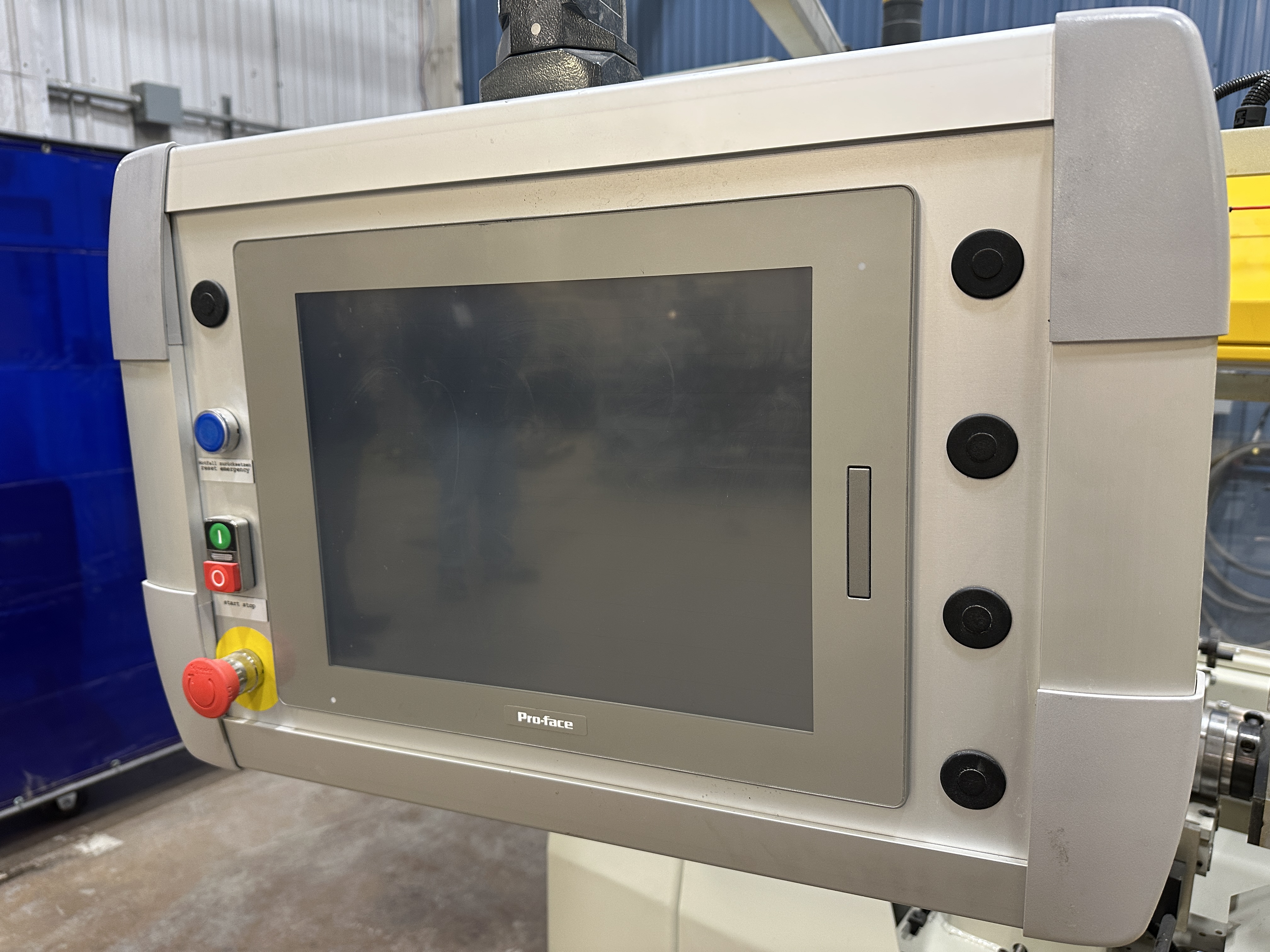

PLC Control System with 15" Color TFT Touch-screen Display
Pneumatic magazine with ergonomic and user-friendly access
End Mounted Horizontal Drilling Groups: 2 @ 1.1kW(1.5HP) 3-5000RPM
Rear Mounted Horizontal Drilling Groups: 4 @ 1.1kW(1.5HP) 4000RPM
Top Mounted Vertical Drilling Groups: 6 @ 1.1kW(1.5HP) 4000RPM
Pneumatic side movement of drill groups for copy function of holes
Backstop clamp cylinder

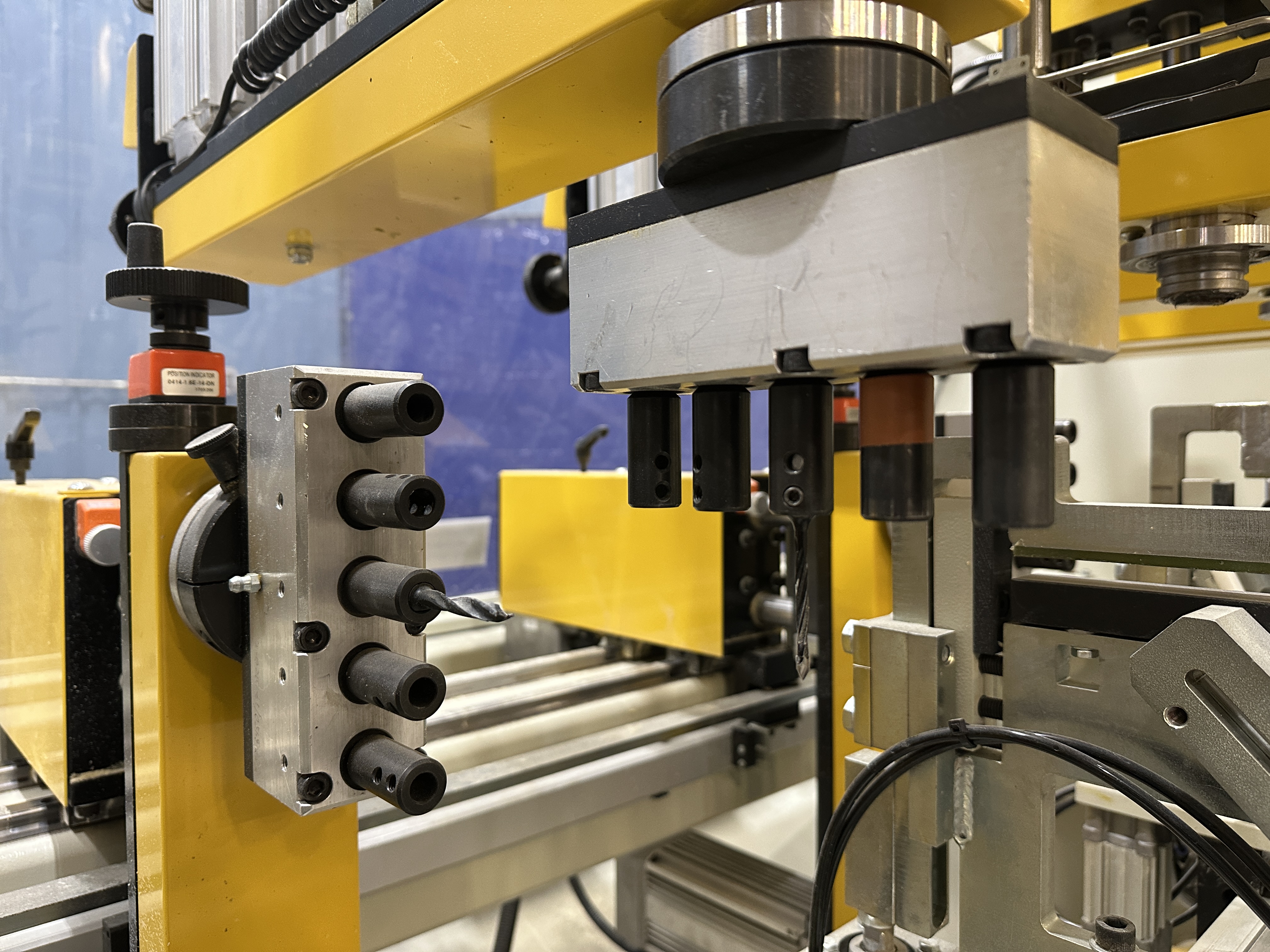

Five Drill Blocks: 5 Drills on 32mm Centers
Five Drill Blocks: 7 Drills on 32mm Centers
Two Drill Blocks: 9 Drills on 32mm Centers
Workpiece Dimensions:
Length:250-2200mm
Width:20-250mm
Thickness: 10-50mm
Air Supply: 108 Psi @ 56 CFM
400V 3ph
- RT Stock Number: 2126
