Description
Priced to sell! We can arrange freight

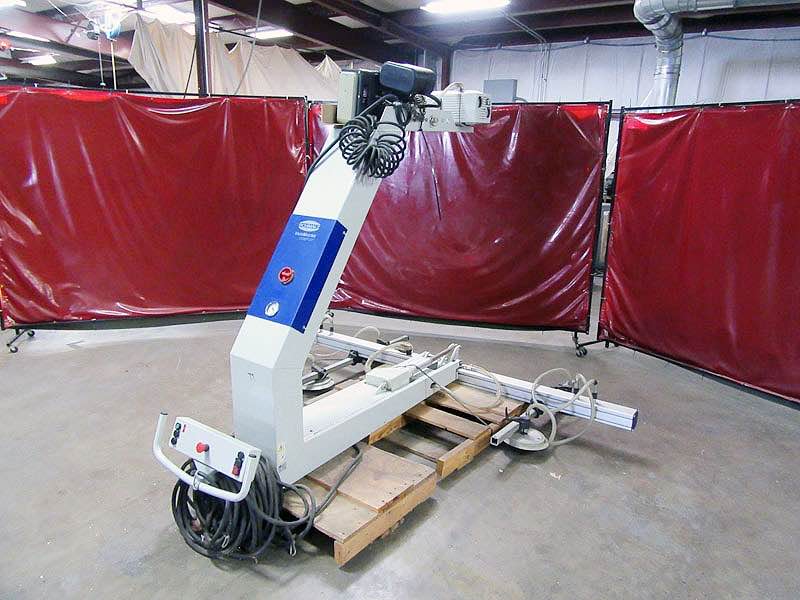

Main body (VMC-250-180)
250 kg (550 lb) capacity.
Robust, lightweight structure for turning loads of max. 2500 mm (98.4") width.
Large C-frame with overall height of 63.6" (1640 mm)
180° swivelling module: electric linear cylinder with brake (even motion, no movement when stopped), for stepless positioning, with limit switches
460V 3PH 60Hz 0.4 HP (0.30 kW) 100 % duty cycle
Control box with push buttons "turn up/turn down" mounted within easy reach on the handlebar,
Electronic warning device (horn),
Bolt Ø of the safety suspension: Ø 25 mm.
Vacuum filter F3/8 with replaceable cartridge.
Ø2.5 in vacuum gauge with red/green scale markings to indicate unsafe/safe operation.
Includes mounting of vacuum generator and motor switch box.
Spiral cable to connect to hoist power supply.
Suction-pad system (4SPU)
4 SPU 360 (14.2 in diameter) suction pads mounted on crossbeams which can be slid/clamped along the main beam.
Pads for smooth surfaces only.
Each pad mounted on Flexolink fitting.
Replaceable non-marking gray rubber seals.
4 pad shutoff valves, one per pad.
Main beam/Cross beams (2400/1200)
Main beam 2400mm, 90x90x2400mm (94.5 in) with mechanical end stops with integrated vacuum reservoir and distributor.
2 Cross beams 1200 mm (47.25 in), 40x40x1200mm

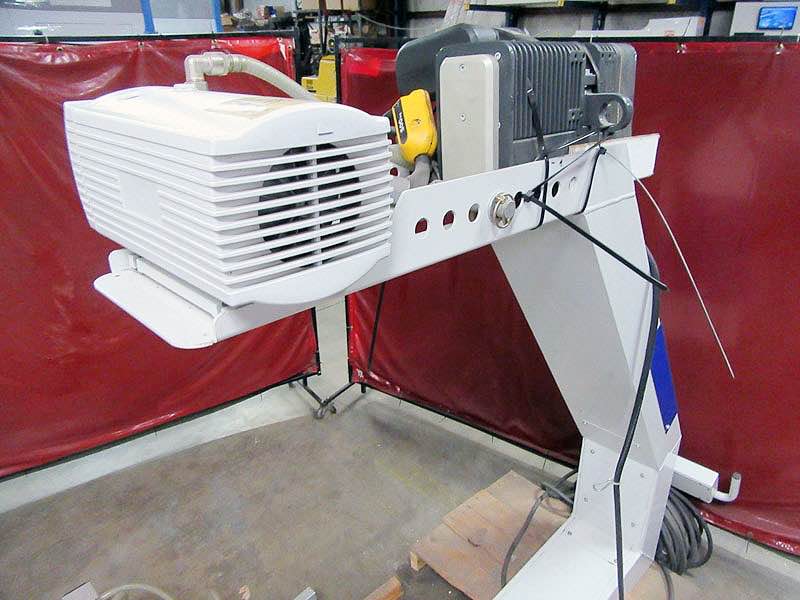

Vacuum pump (8-460V)
Model VE VM-EVE 8D-horiz-460V, 8 m³/h rotary vane pump.
460V/3PH/60 Hz, 0.5 HP (0.37 kW) motor, complete electrical
On/off motor switch
Electronic warning device to monitor vacuum pressure during normal operation.
Audible alarm alerts to a low vacuum pressure and also sounds in the event of a power failure.
Handlebar (300)
VacuMaster Comfort handle version
Length = 300 mm (11.8 in)
Ergonomically integrated control with pushbuttons for chain hoist up/down and vacuum on/off
Solenoid valve with two-hand operation for vacuum off
002 14.04.01.00144 /0 Electric chain hoist KZG-250-3000-4.8/1.2-460V-AC3/60
Maximum load: 250 kg
Stroke: 3000 mm
Lifting speed (max): 4.8 m/min
Lifting speed (min): 1.2 m/min
Voltage U1: 460V - 3-phase AC
Frequency: 60 Hz
with: VacuMaster Comfort
Type: SKb
#12857
Machine dims: 96" L x 94" W x 77" H
Machine weight: 160 lbs.
