BIESSE/VIET - OPERA R 1.0: 36" W Robotic Denibbing Sander with Automatic Sanding Head Changer & Laser Scanner.
Perfect for: 5-Part doors; end panels; inner side of profiles; rebates; window frames, etc.
Sands panel with: Grain in any orientation. Smooths multilevel surfaces, as well as small internal corners.
Sanding pad action similar to: Handheld Orbital Sander.
Max. operating width: 36". Max. machinable length: 96". Max. machinable thickness: 60 mm (2.36"). Advance speeds: 2 - 10 MPM (6.6 - 32 FPM). Robot loading cap.: 12 kG (26.46 Lbs.)

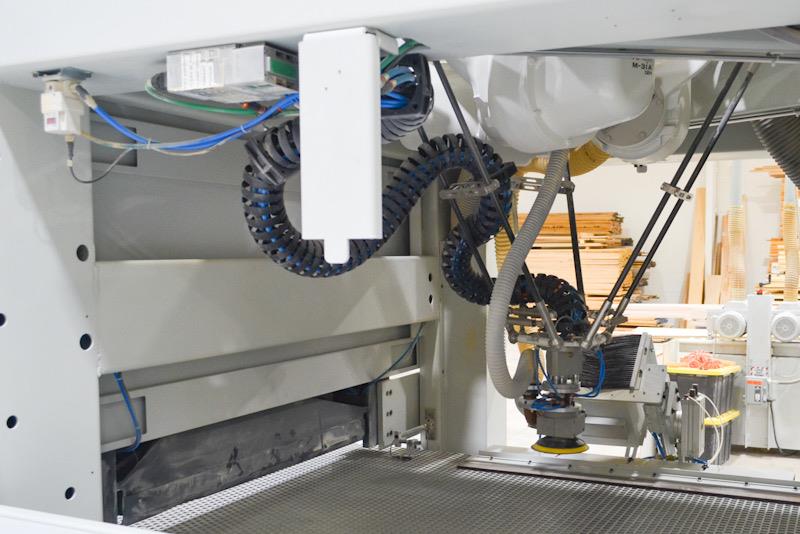

FANUC - M-3IA 12H, CNC Robot with: CONTROL FORCE System, which measures: Amount of abrasive pressure applied to panel & Dust Removal System. 8-Position automatic sanding head changer.
FANUC "SYSTEM R-30IB A05B-2615-B082" CNC Control.
FANUC "A05B-2255-C101#EGN" Remote teach pendant control.
Head cleaning/dressing station. Panel cleaning brush. Antistatic bar.
Rotating & linear blowers.
10' L x 900 mm (35.43") H Vacuum conveyor with: 4 kW (5.36 HP) Motor & (2) vacuum blowers. ≈≈ IPC Electronic control with 15”: Color touchscreen; manages all machine parameters.
2016 CVM "TN/400-135": 53” W x 12-1/2' L conveyorized Laser Scanner.

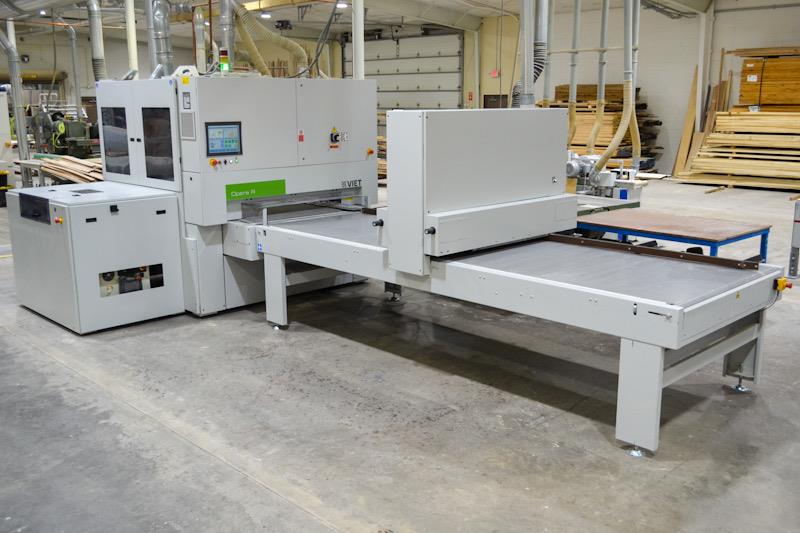

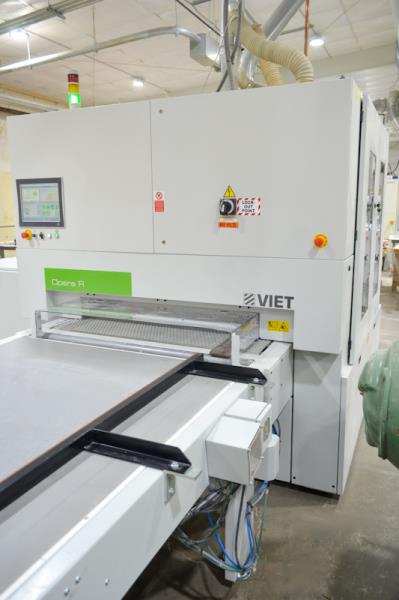

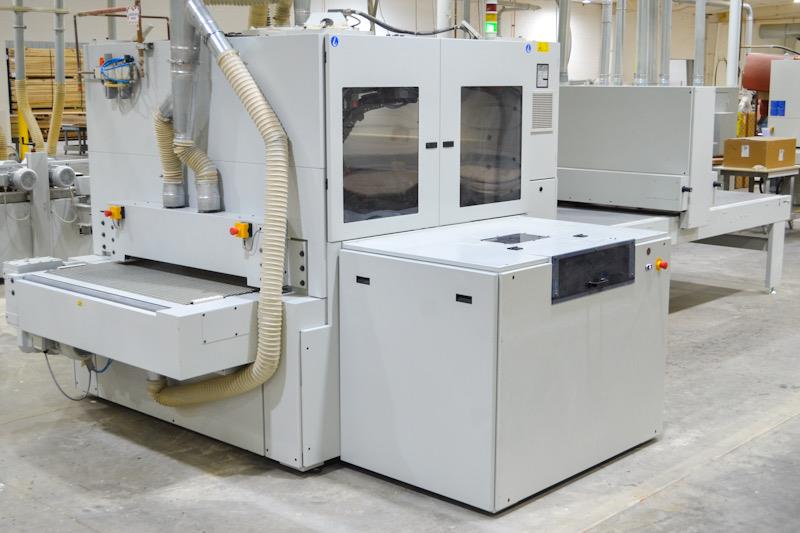

Biesse/Viet OPERA 1 R Denibbing Sander
