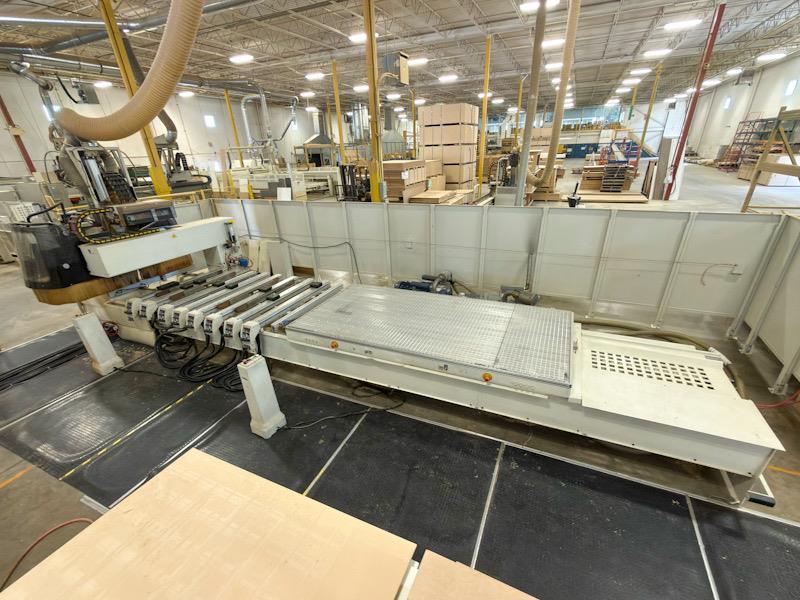

MORBIDELLI AUTHOR 667-HP-TOP CNC Flat Table/Pod & Rail Machining Center, with Vacuum Pumps
Working Cap.: X-Axis 240" (6,096 mm), Y-Axis 61" (1,552 mm), Z-Axis stroke 11" (280 mm), Max. material thickness 7" (180 mm).
Positioning speed: X & Y-Axis 180 FPM (54 MPM), Z-Axis 98 FPM (30 MPM), YASKAWA AC Servo motors in all (3) Axes.
Worktable:

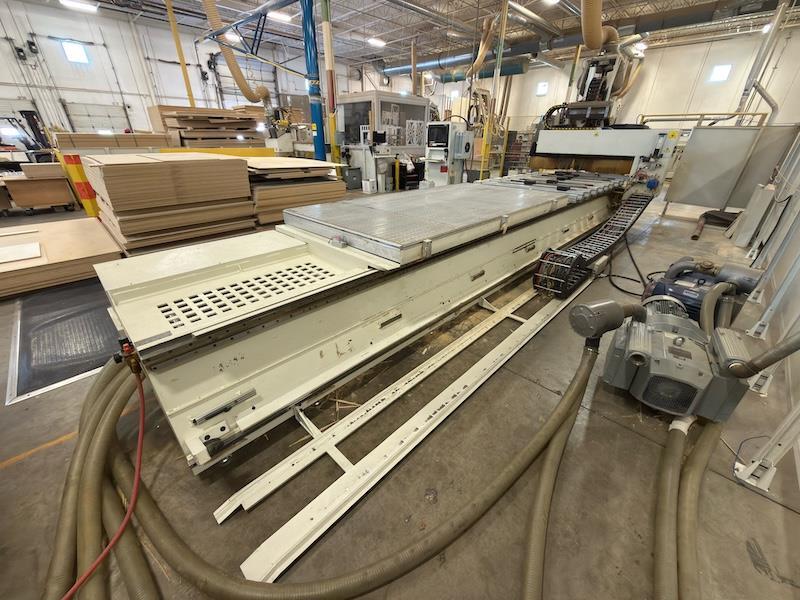

Aluminum grid "MATRIX" flat table designed for "Nested Base Manufacturing" with (2) Independent working areas, External pop-up reference pins located on sides & back of table.
(8) Rails.
Boring Unit: (12) Independent vertical spindles, (7) in X-Axis & (5) in Y-Axis.
(6) Horizontal spindles, (2+2) in X-Axis & (1+1) in Y-Axis.

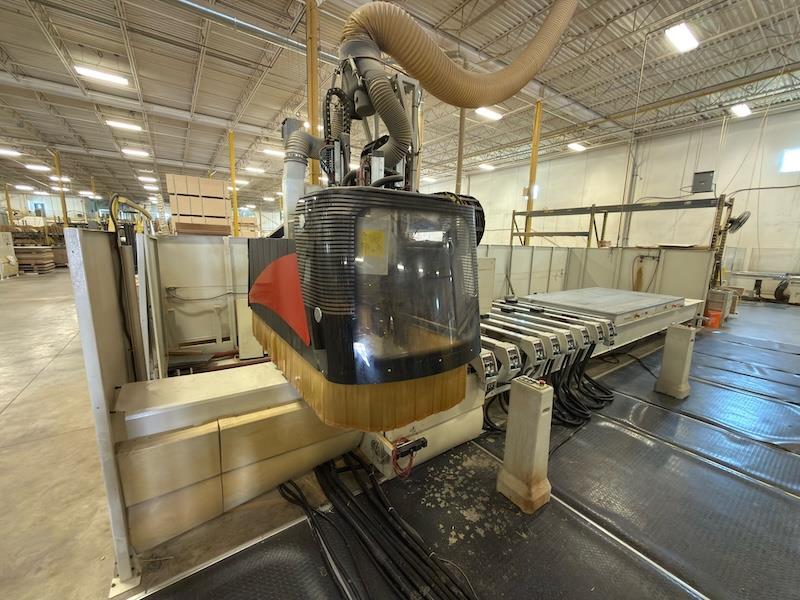

Machining: (1) 15 HP (11 kW) Electrospindle router with HSK F63 Adaptor, Inverter driven from 1,500 - 24,000 RPM, (1) 12-Position "RAPID" rotary tool magazine for "On-the-fly" ATC.
Control:PC Front end, with MORBIDELLI "XILOG Plus" + Windows XP Operating system, 15" VGA Color monitor.
***Please click the link for full description***
Morbidelli AUTHOR 667-HP-TOP CNC Flat Table/Pod & Rail Machining Center
