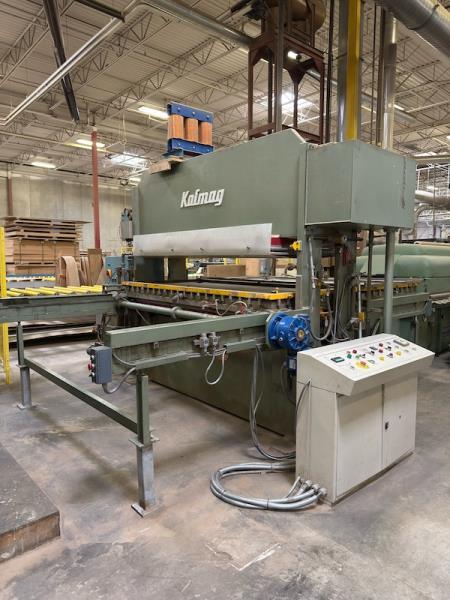

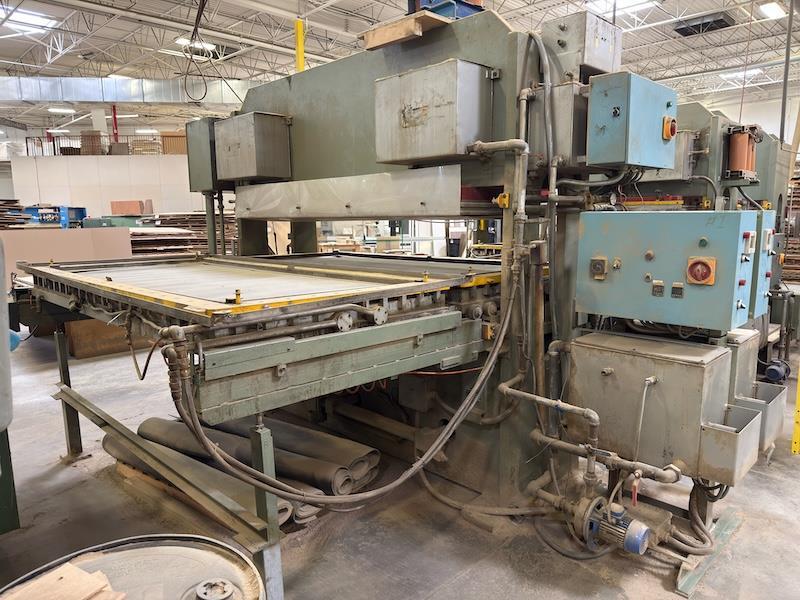

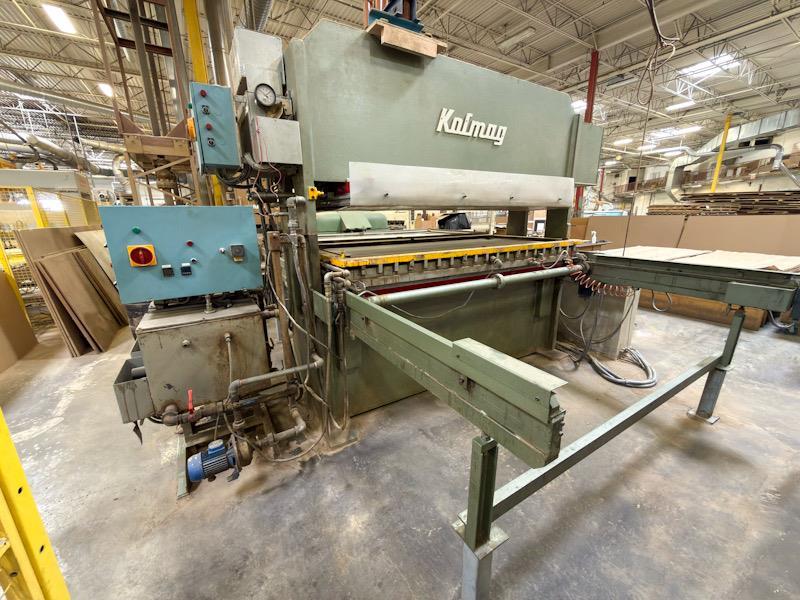

KOLMAG SPM 2E 230 X 100 3-1/2' x 7-1/2' Shuttle Platen Membrane Press
CURRENCY NOTE: Bidding conducted in Canadian Dollars.
Shuttle platen size 2,300 x 1,000 mm (90.55" x 39.37").
Max. material thickness 35 mm (1.38").
Opening 360 mm (14.17").
Total pressure 500 Metric tons.
Membrane, with Hot water circulation in upper platen.
(3) 270 mm (10.63") dia. Hydraulic pressure cylinders.
(2) 65 mm (2.56") Hydraulic opening/lift cylinders.
15 HP Hydraulic pump.
24/18 kW Electric hot water boiler.
Control console.
*** Please click the link for full description ***
Kolmag SPM 2E Membrane Press
