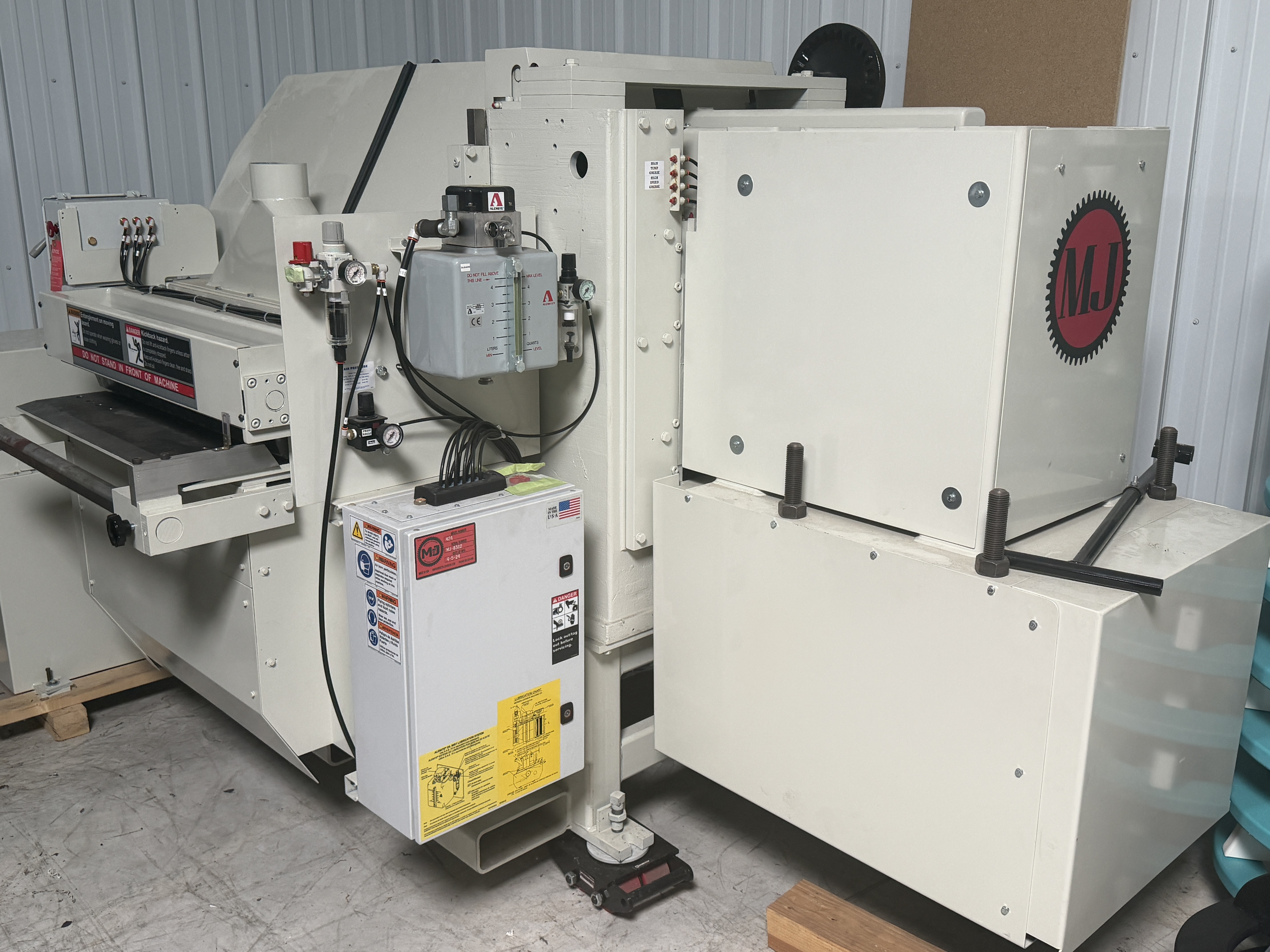

Mereen-Johnson Unused Model 424-DC Gang Rip Saw - Line Shaft Ready
Serial #:8362
Capacity: Arbor space 24"
thickness to 3-1/2" using 14" diameter tooling
30" Minimum length glue joint accuracy
6" Throat
Feed Bed: Mereen-Johnson exclusive POSI-FEED dip bed carried on precision machined and hardened 5" pitch DOUBLE-VEE chain, Contoured hardened dip cams

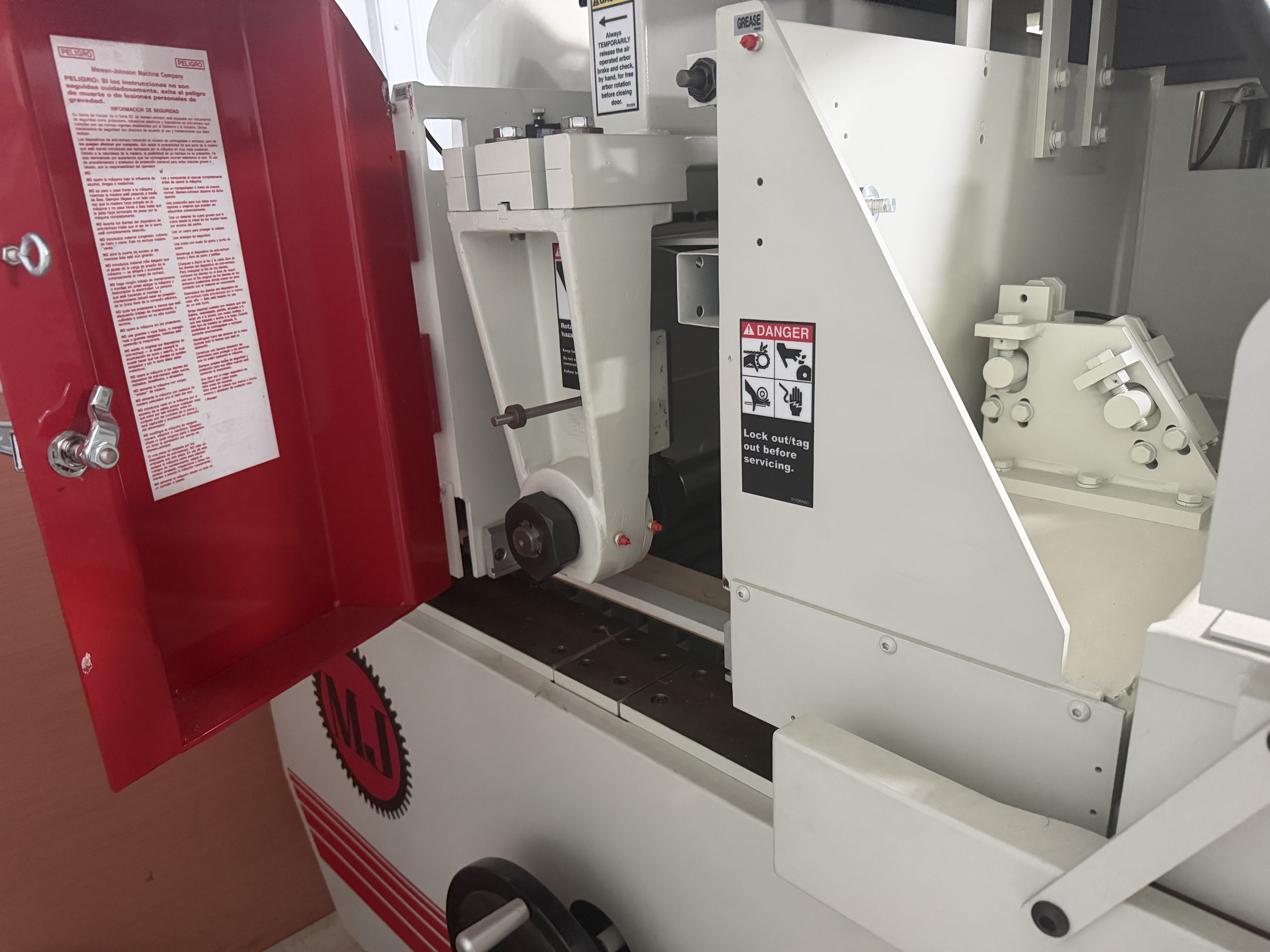

Hold Downs and Bed Plate: Four 3" diameter air loaded overhead idle press rolls
Full width segmented maple overhead spring loaded bed plate
Powered vertical adjust of press rolls and bed plate for unit vertical adjust through up/down push button controls, manual handwheel adjust with scale and pointer thickness reference
Saw Sleeve: Three 24" capacity sleeve, arranged for 3-1/8" bore, 14" maximum dia. tooling
Saw Spacers: Three sets of saw spacers included, 24" total length
Dust Collection: Two upper dust hoods: One 10" dia, One 5" dia, One Lower 5" dia.dust hood (Requires total 4,060 CFM at 5,000 FPM velocity with 4" water gauge at hood opening)
Anti-Kickback Assemblies: Single bottom and double upper infeed, and single upper outfeed
Sound Enclosure: Machine mounted fiberglass sound enclosure
Press roll and motor enclosure hinged for machine access
Press roll enclosure with gas cylinder lift assist
- RT Stock Number: 201650
