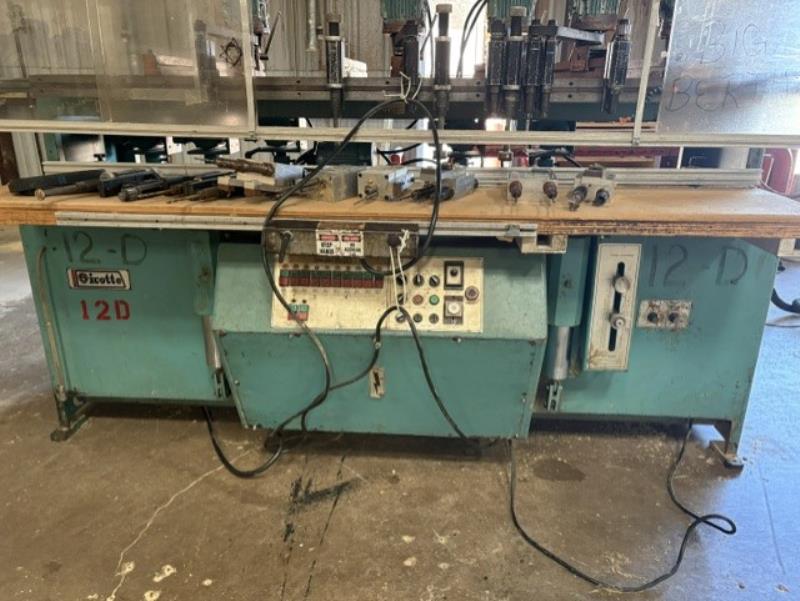

SICOTTE - J-35-8: Combination Vertical and Horizontal Boring Machine
24" x 96" Table size (with hardwood top); (4) vertical & (6) horizontal spindles.
On the Vertical

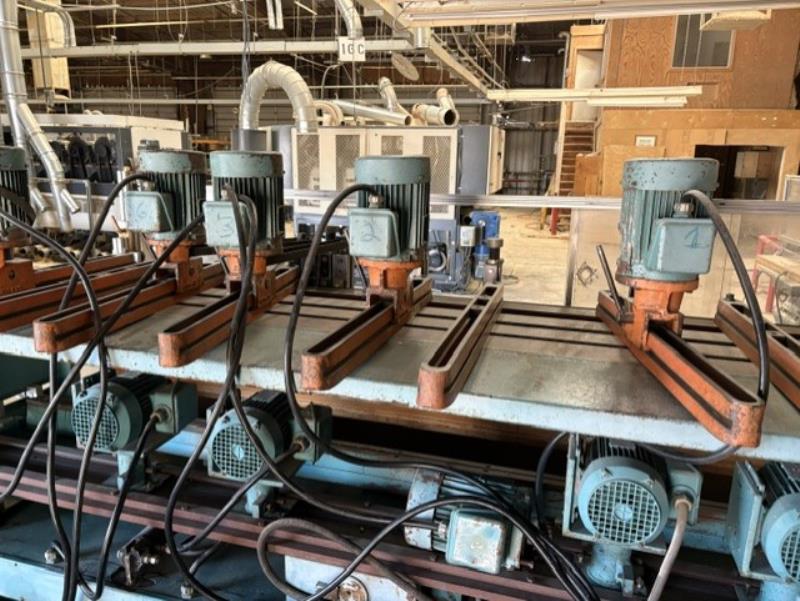

(4) Vertical drive motors: Each 1-1/2 HP - 1,750 RPM; mounted on a cast iron arm with: 24" Adjustment.
(4) Vertical spindles: 1-1/2" Dia. with: 1/2" cap. spring collet.
(2) Spring-loaded holddowns for: Vertical drilling.
(1) Dovetail beam: 2-7/8" x 96" Straight line boring.

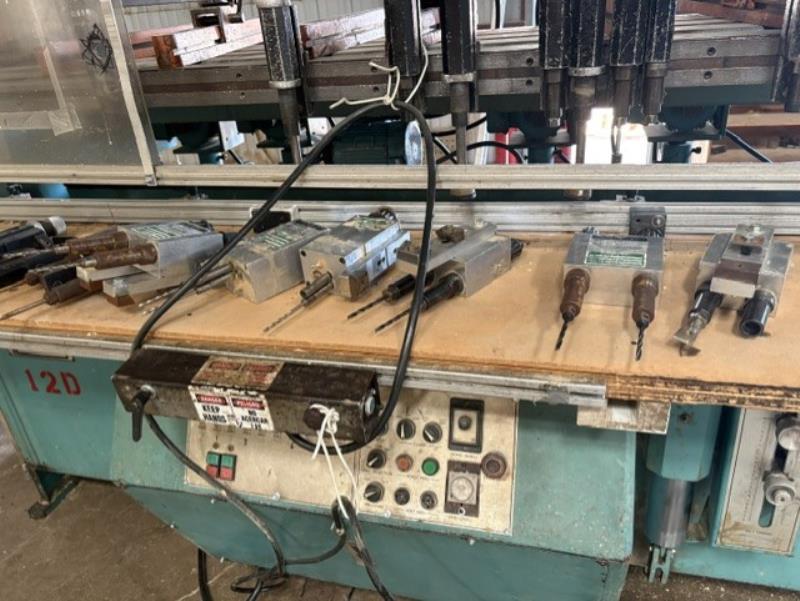

On the Horizontal
(4) Horizontal drive motors; 1-1/2 HP - 1,800 RPM each.
(1) Double spindle at: 3-3/4" Center with spring collet.
(1) Double spindle at: 2-1/2" Center with spring collet.
(1) Double spindle at: 5/8" Center with set screw locking on the spindle nose.
All mounted on: Dovetail slide for side-to-side adjustment.
(3) Pneumatic holddowns for horizontal drilling.
*** Please click the link for full description***
Sicotte J 35-8 Vertical & Horizontal Boring Machine
