Flexible "vertical/horizontal" Boring & Grooving Machining Center reaches movement speeds of: 82 FPM (25 MPM) in "X" & "Y" Axis & 49 FPM (15 MPM) in "Z" axis with total safety.
Working Field: Max. part size for "X" axis: Virtually infinite; "Y" axis 31-1/2" (800 mm); max. part thickness 2" (50 mm). Min. part size for "X" axis: 9.84" (250 mm); "Y" Axis: 3.93" (100 mm); min. part thickness: 0.39" (10 mm).
Panel End/Edge Reader: Perfect panel positioning/placement.

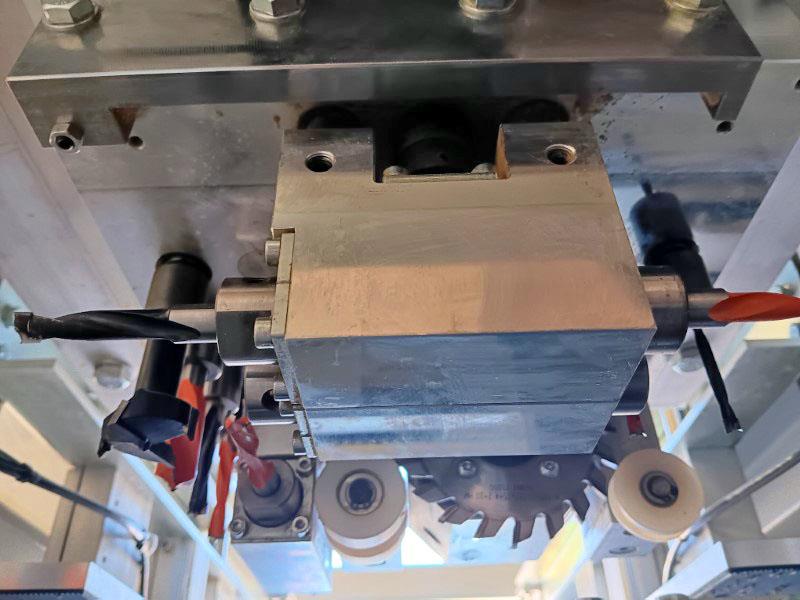

Boring Unit: Suitable for drilling on face & sides of panels including: Holes for dowels, hinges, KD fittings, and shelf holes. (1) Boring block with: 3 HP (2.2 kW) - 3,400 RPM Motor; (7) vertical spindles with: (4) Spindles in "X" axis & (3) spindles in "Y" axis. (1) Horizontal spindles with: (1 + 1) In "X" axis for top & bottom edge boring.
Boring Capacity: 0 - 800 mm (31-1/2") With any spindle.

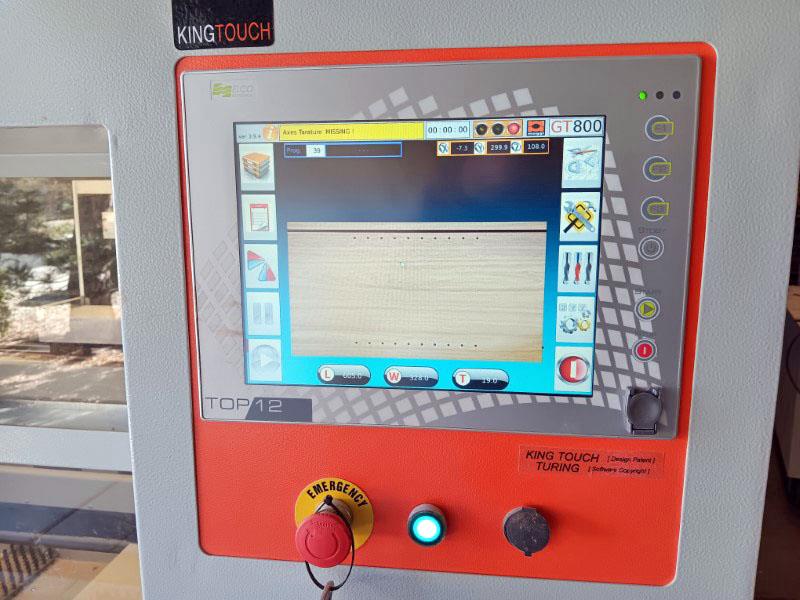

Operator Interface: PC Front end with: Extremely intuitive user interface; up to (1,000) program storage space; real-time multitask processing.
*** Please click the link for full description***

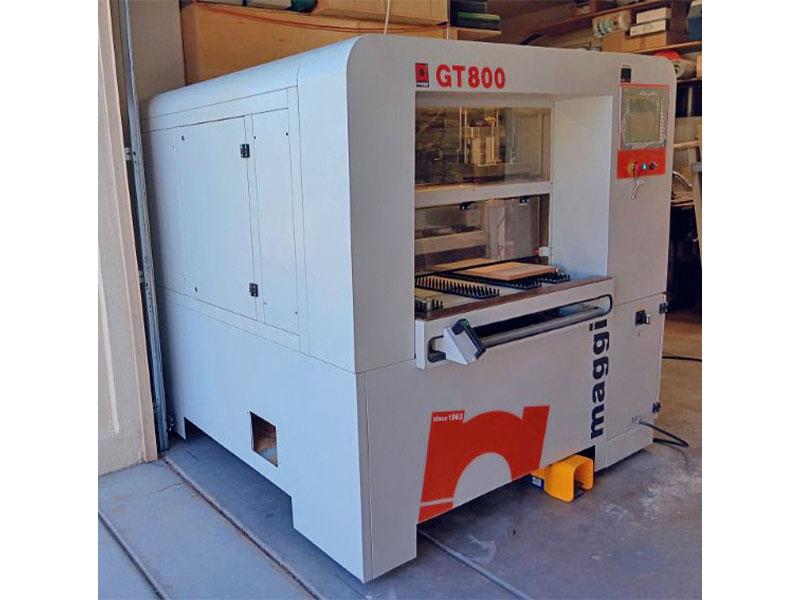

Maggi GT 800 Cnc Machining Center
