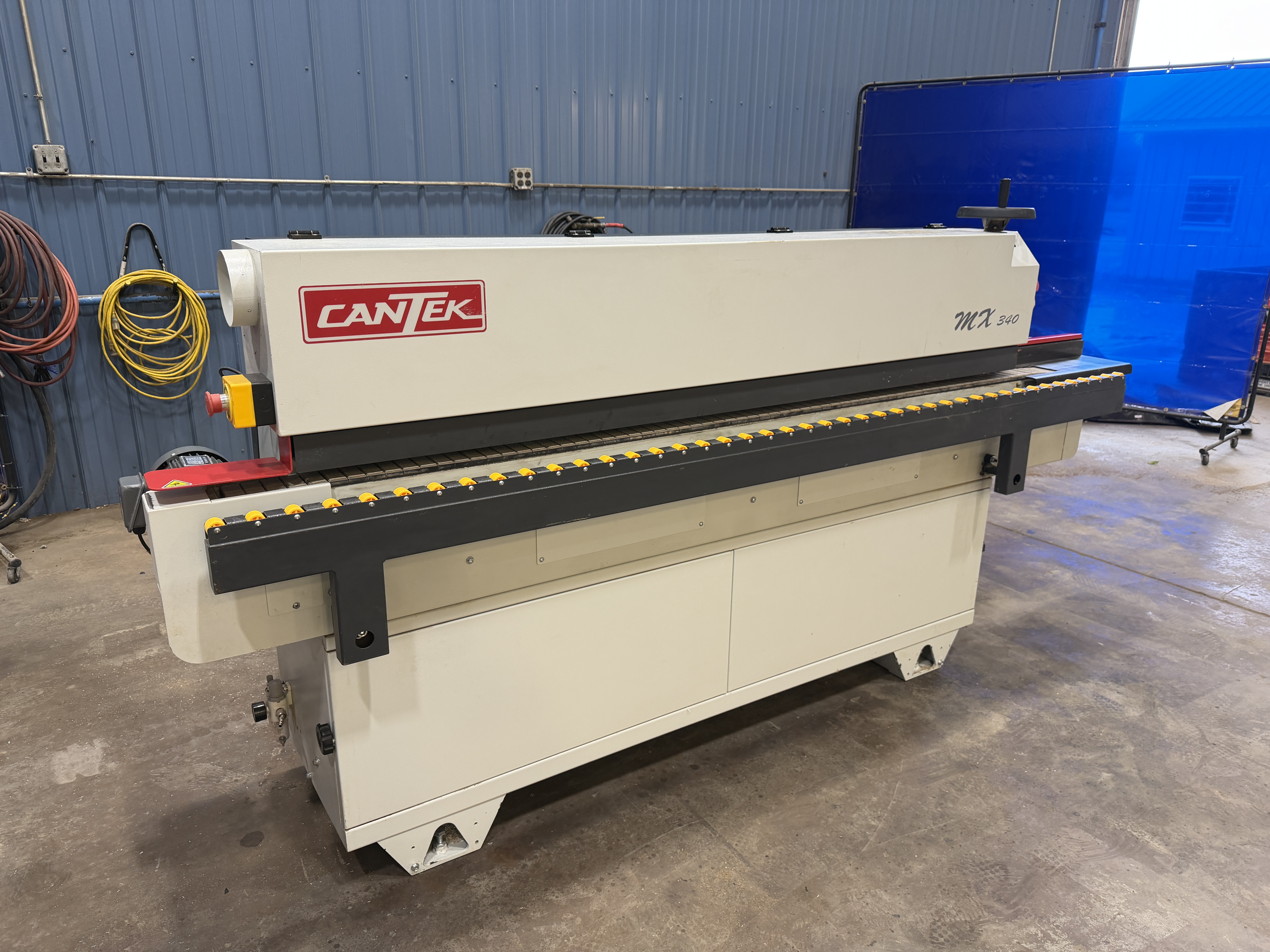

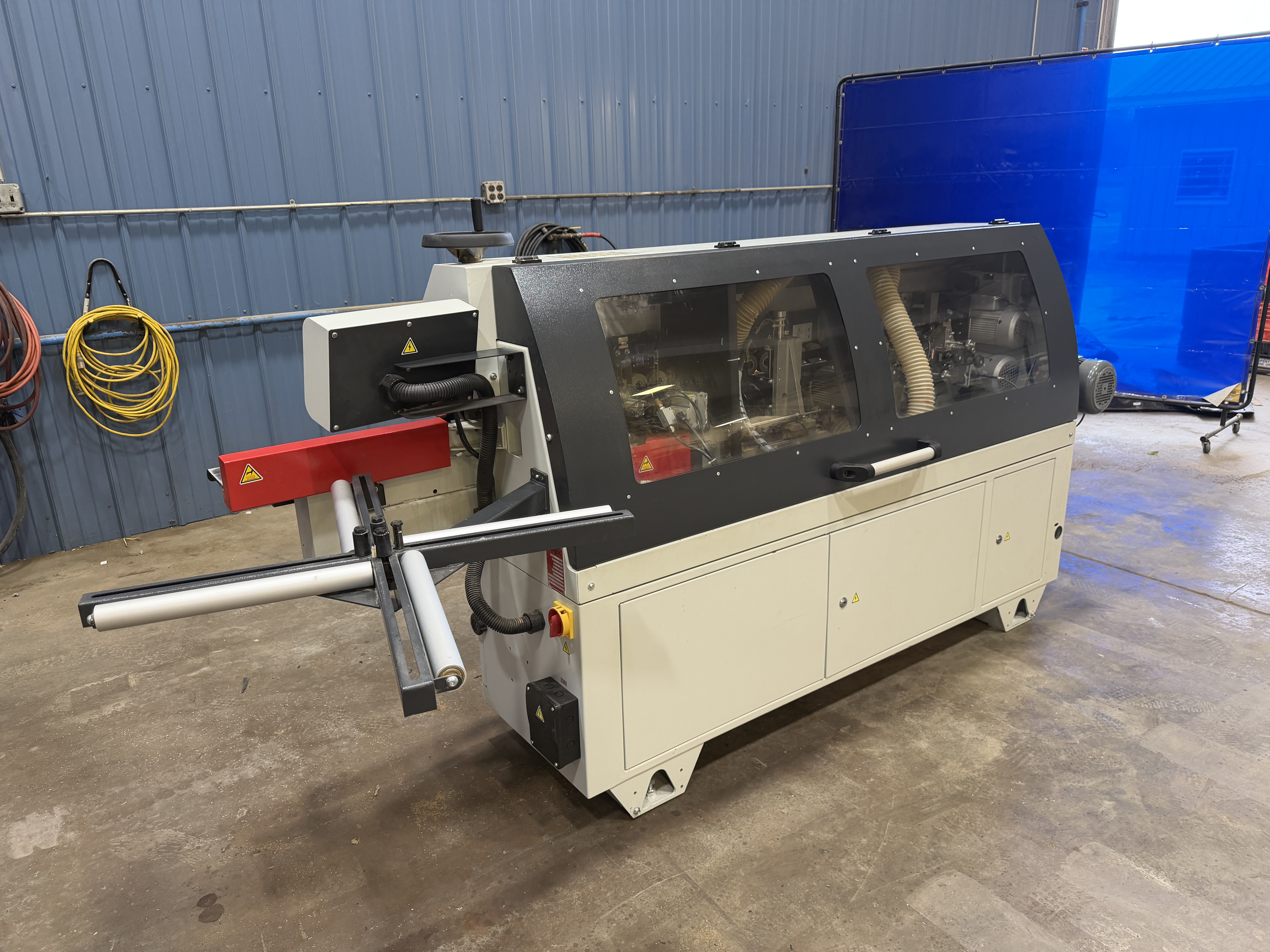

Cantek Model CANMX340 Edgebander
Serial #:17110017EB43
Two-Roll Pressure Section

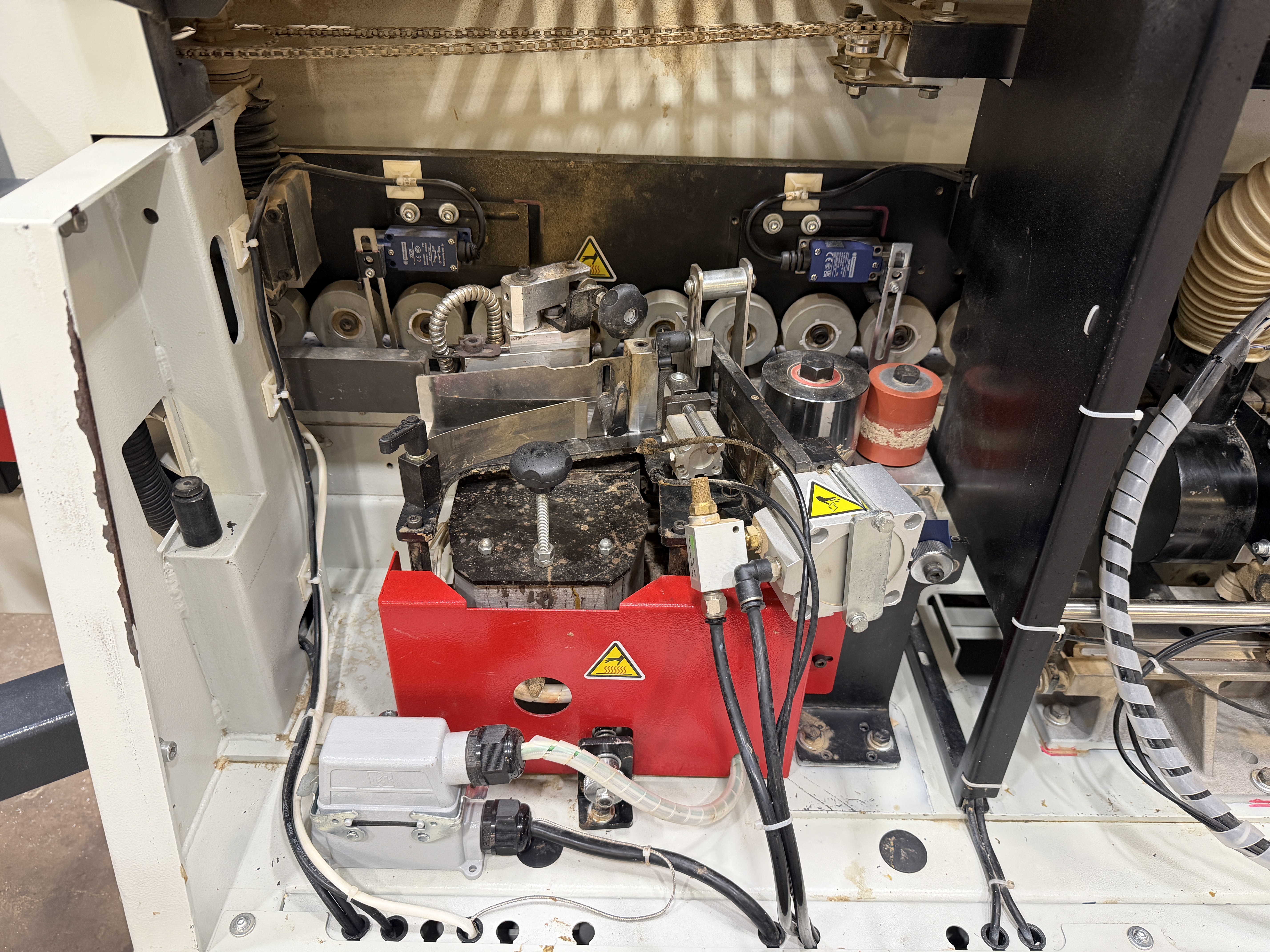

High Frequency 12,000 RPM End-Trimming Station
High Frequency 12,000RPM Top & Bottom with insert knife cutters for radius trimming & bevel trimming
Top & Bottom Scraping
Top & Bottom Buffing
Panel Thickness: 0.315" - 1.77"
Edgeband Thickness: 0.4 - 3mm
Conveyor Speed: 29 FPM
Feed Motor: 1HP
Minimum Panel Width: 3.54"
Minimum Panel Length: 6.7"
Rubber-Padded Feed Chain
Fixed Outrigger
230v, 3ph, 60HZ

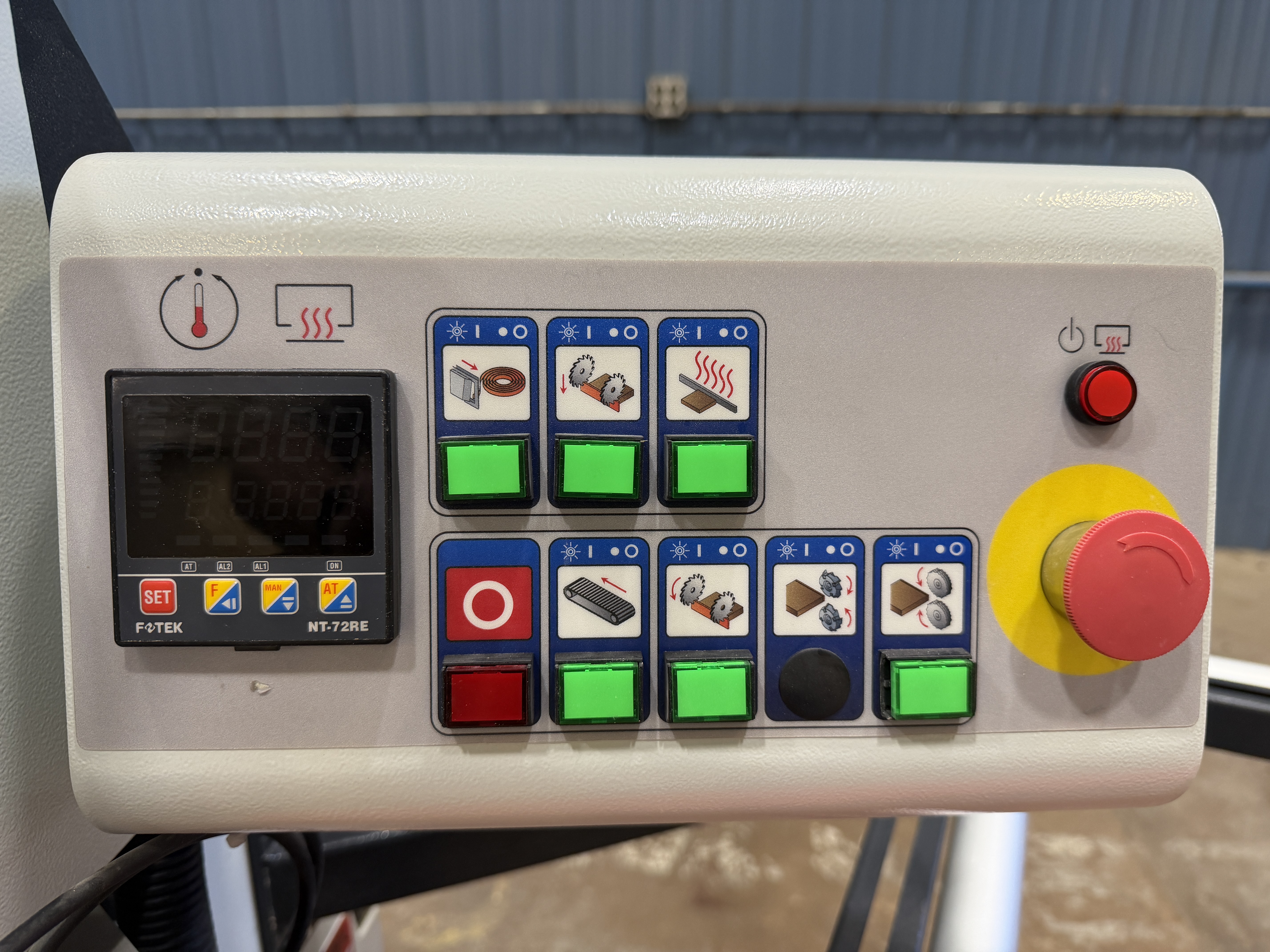

Push-Button Controls
Fotek NT-72RE Controller
- RT Stock Number: 25993
Cantek Model CANMX340 Edgebander
