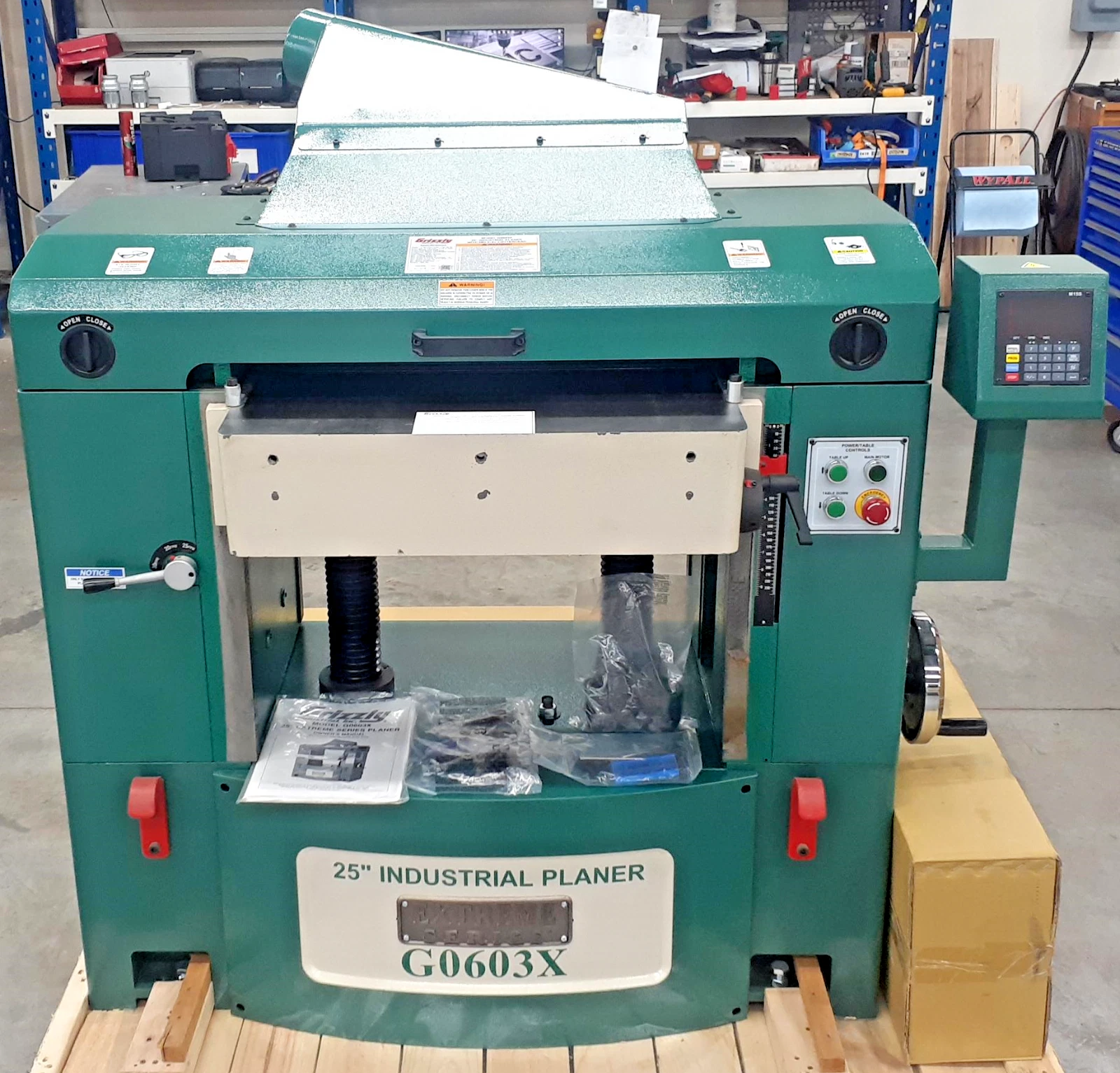

Condition: Demo unit with cosmetic cabinet dent only.

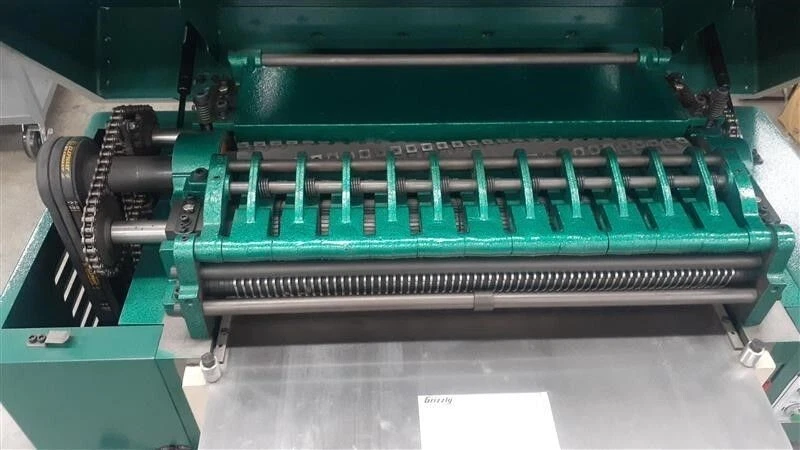

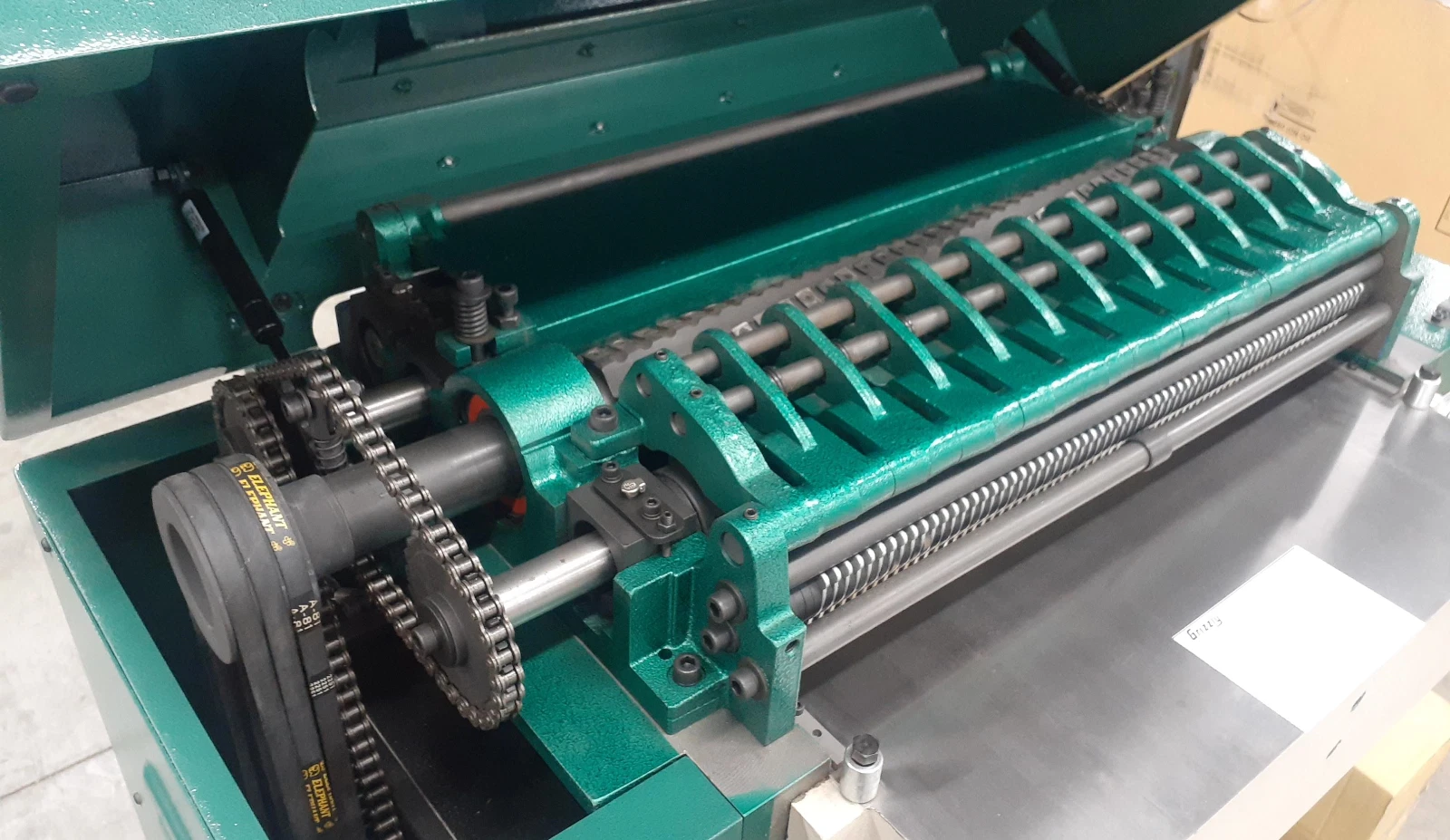

Internals are showroom grade: cutterhead, inserts, feed rollers, gearbox, motor, elevation system, and tables are all mechanically flawless.
Machine was used only for functional testing, then professionally detailed.
Electrical:
Dual‑voltage 220V/440V motor.
Currently wired for 440V with the I‑24 conversion kit installed.
Can be rewired back to 220V in minutes.
Included:
• Infeed & outfeed tables (boxed)
• All original hardware
• I‑24 / 440V conversion kit
• Cosmetic cabinet damage only
• Missing dust cover (P0603X001)
Price: $10,995 (tax included)
Customer pickup in Fontana, CA. Forklift loading provided.
Specifications
• Main motor: 15 HP, 440V (prewired), 3‑phase
• Table elevation motor: 1/2 HP, 3‑phase
• Minimum circuit size: 30A @ 440V
• Maximum stock width: 25”
• Maximum stock thickness: 9”
• Minimum stock thickness: 1/4”
• Minimum stock length: 10”
• Maximum depth of cut (full width): 1/8”
• Max depth of cut (≤6” width): 1/4”
• Cutterhead diameter: 3‑1/2”
• Cutterhead: 6‑row helical with 174 indexable carbide inserts
• Insert size: 15 × 15 × 2.5 mm
• Feed rates: 20, 25, 30 FPM
• Table size w/extensions: 25‑1/8” W × 69‑5/8” L
• Table movement: 9”
• Overall dimensions: 54‑1/2” W × 57” D × 54‑1/2” H
• Approx. shipping weight: 2057 lbs
Notes
Demo unit.
Cosmetic cabinet dent only.
Mechanically flawless.
Sold exactly as received.
Available for pickup at our Fontana, CA facility (11179 Banana Ave).
Contact 10 Blade Pro Machinery at 1‑833‑410‑2523 or 1‑833‑4‑10BLAD for details.
REAL MACHINES. REAL SAVINGS. REALLY SIMPLE.
10 Blade Pro Machinery
