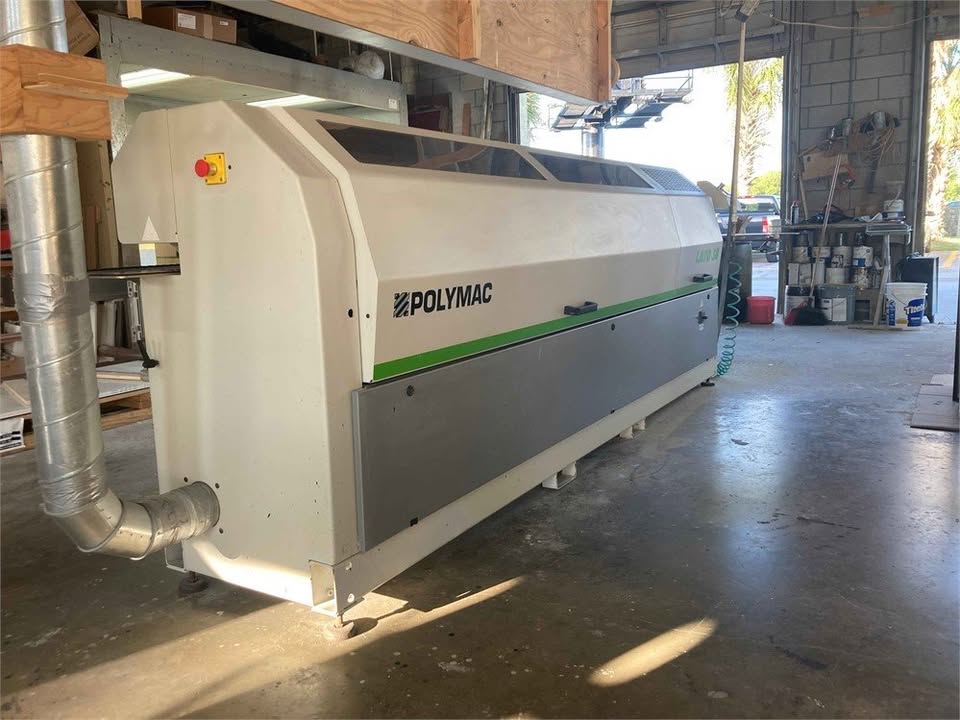

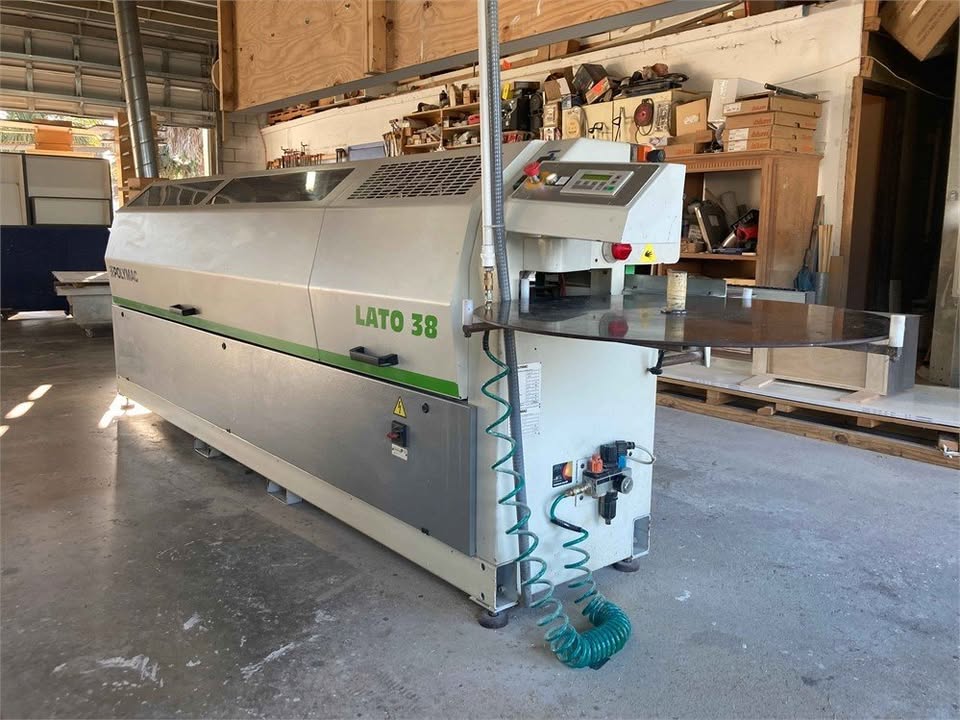

Polymac Biesse Edgebander

Min. panel width: 85 mm or 50 mm w/ 250 mm panel length
min. panel length: 140 mm
max. panel thickness: 45 mm
8 mm capacity for strip edgebanding
Siemens controller with soft keys
Edgebanding infeed table
Auto strip and coil feed magazine with 3 mm PVC guillotine
Teflon coated hot melt glue pot
Dual digital thermostats
1 in. diameter glue applicator roller
Pressure section w/ (1) large diameter non-stick coated drive roller
Two (2) pneumatic pressure controlled idle rollers

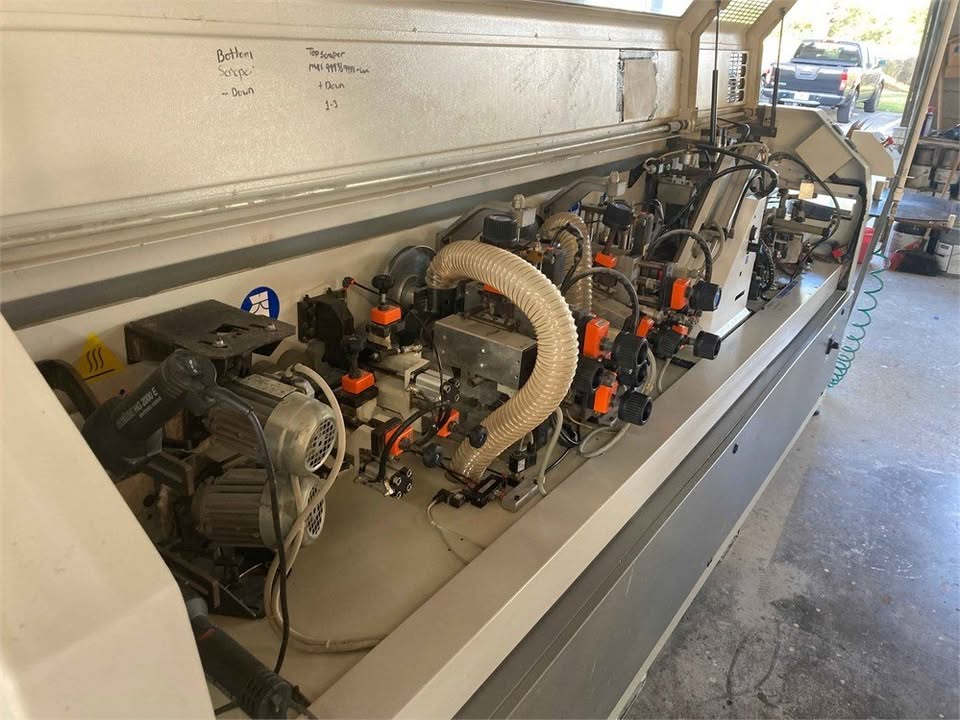

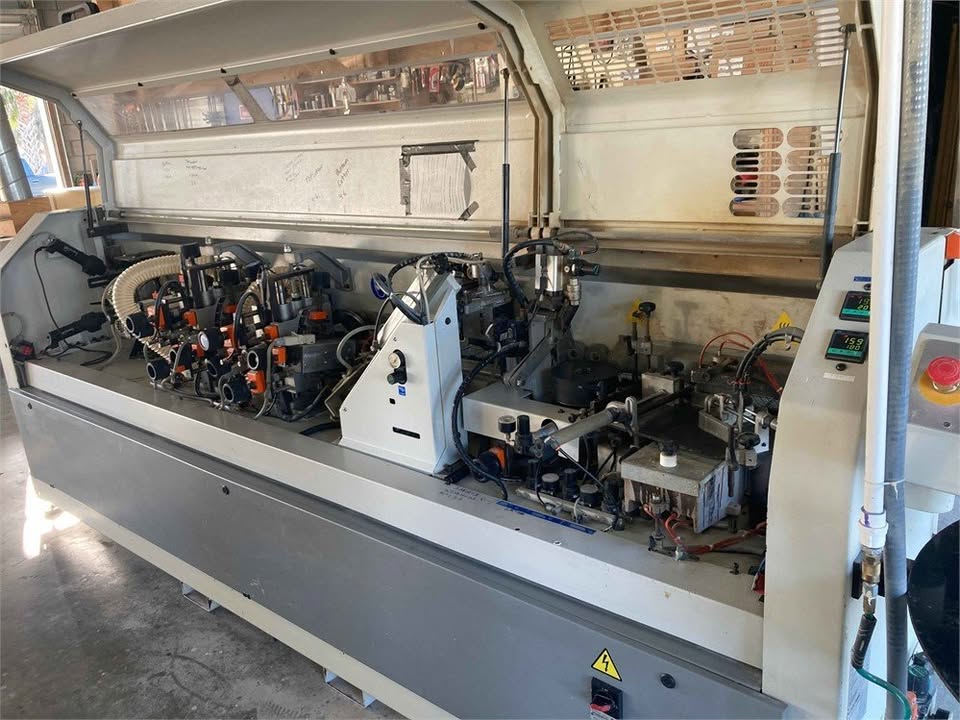

Two (2) motor end trimming station
.5 HP motors
Motors travel on 45 degree slides and tilt 0-12 degrees on a horizontal plane
Top and bottom rough trimming station
.7 HP motors
Motors tilt 0 -30 degrees
Top and bottom fine trimming station trimming station
.73 HP motors
Motors tilt 0-30 degrees​​​​​​
Digital readouts for setup (t and b w/ quick change motors for tool change)
Top and bottom scraping station
Pneumatic pressure control for scraping knives
Digital readout for horizontal adjustments
Top and bottom buffing station
.5 HP motors
Units tilt 0-30 degrees
Top and bottom hot air station
Feed chain with "anti-slip" 80 mm wide rubber pads
Feed Speed: 33 FPM w/ 2 HP drive
Sound enclosure
Outboard roller support
