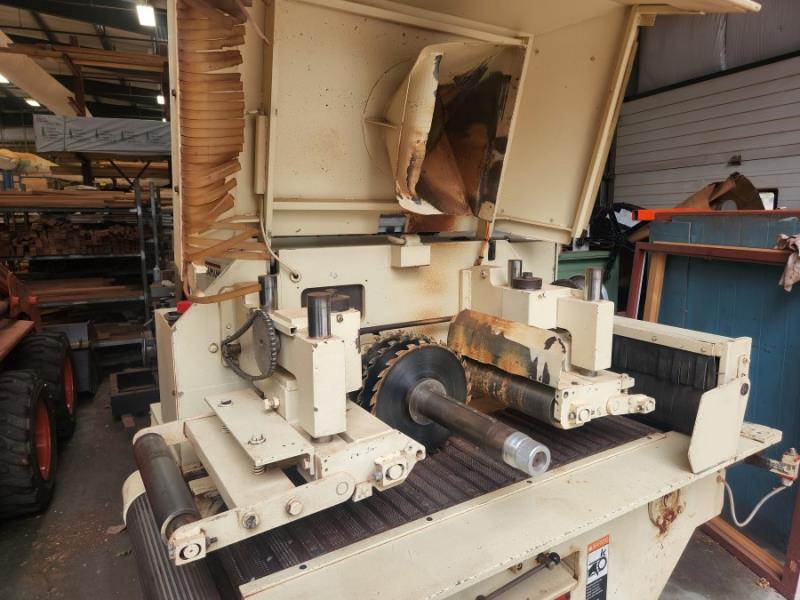

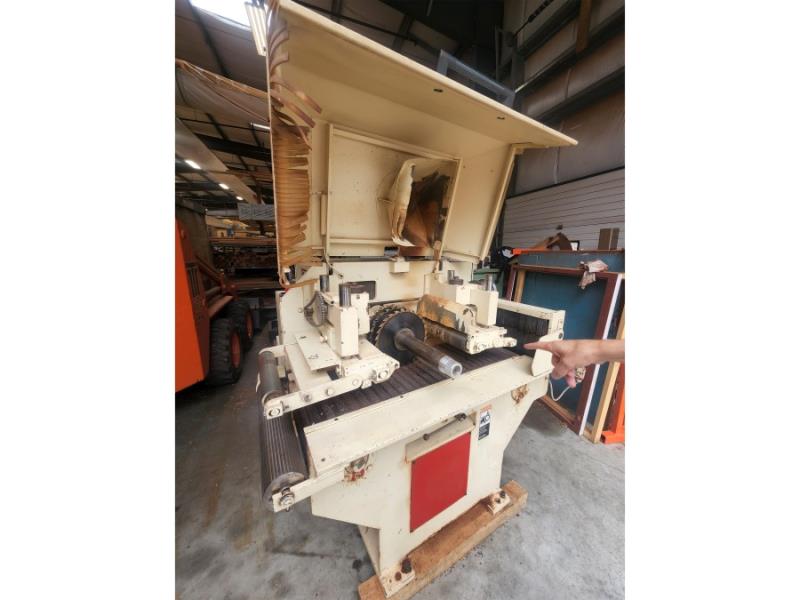

RAIMANN - KM-310, ...Gang (Multi-Blade) Rip Saw
12-1/4" Max. width cap., 13-1/2" chain width, 50 HP - 4,200 RPM V-belt driven arbor.

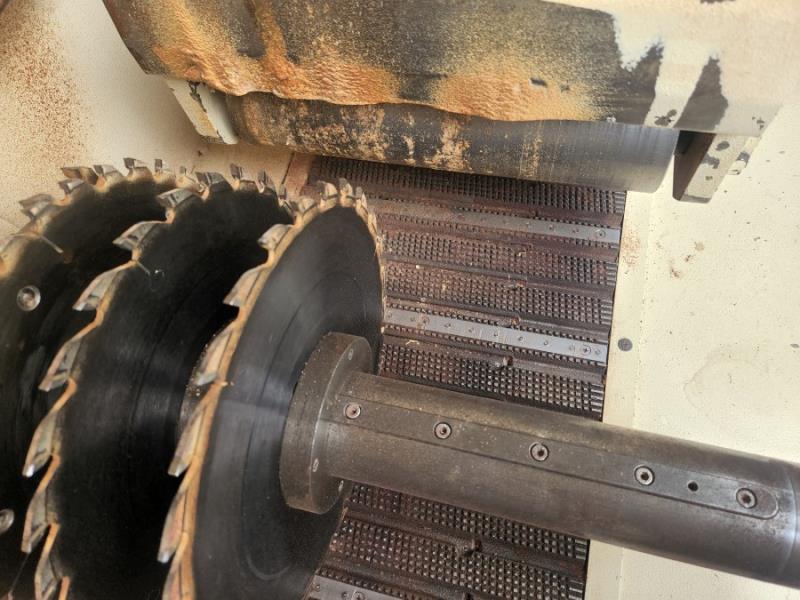

"Quickfix Hydro-Quick" Arbor: Multiple Saw blades are mounted on the arbor, they slide up-and-down the arbor into position and lock into place by tightening the end of the arbor; no tools & no spacers required.
Frequency controlled feed speed of 13 - 110 FPM, 2.2 HP feed drive, chain spikes every 3rd chain link, automatic chain lubrication.
300 mm (11.8") Max. saw blade dia. with 80 mm (3.15") bore, 65 mm (2.55") dia. arbor.
Provides 3" max. depth of cut with pressure shoe, 3-1/2" depth of cut without.

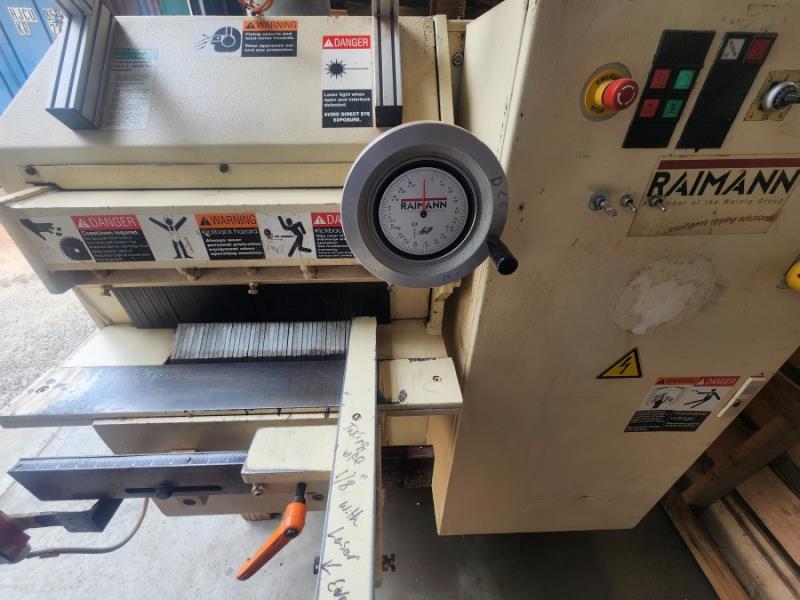

Manual thickness adjustment of upper holddown rolls with indicator scale.
6" Throat depth to the right of blade; 7/8" min. strip width, 17-3/4" min. stock length.
*** Pleease click the link for full description***
Raimann KM-310 Rip Saw
