General Specifications:

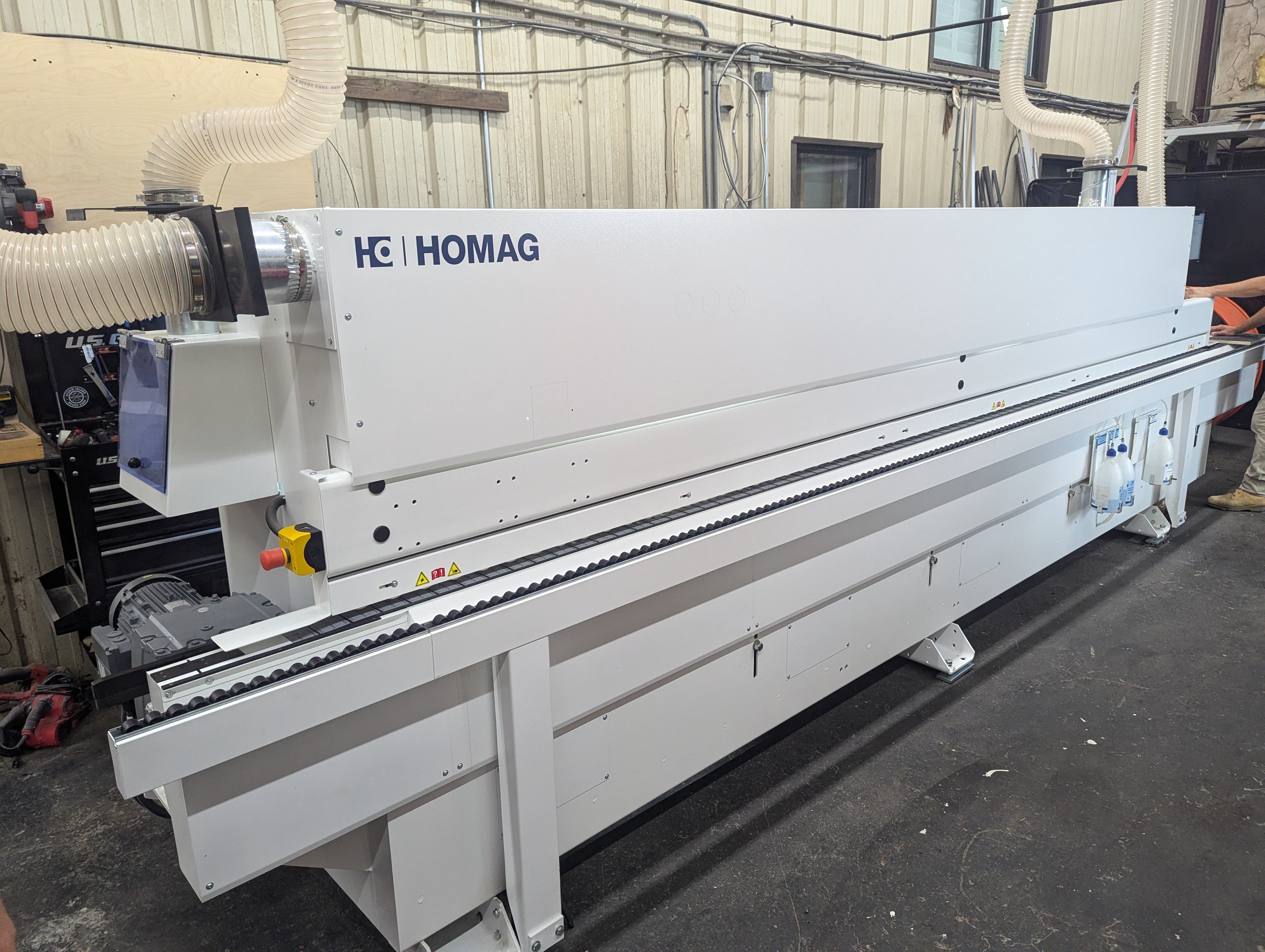

The S-380 Universal is designed for shops that have need for a feature rich machine, for multi-purpose applications.
The S-380 Features;
24" HD Color Touch-screen Controller
Release Agent Spray Unit
2 Motor Pre-Milling Unit

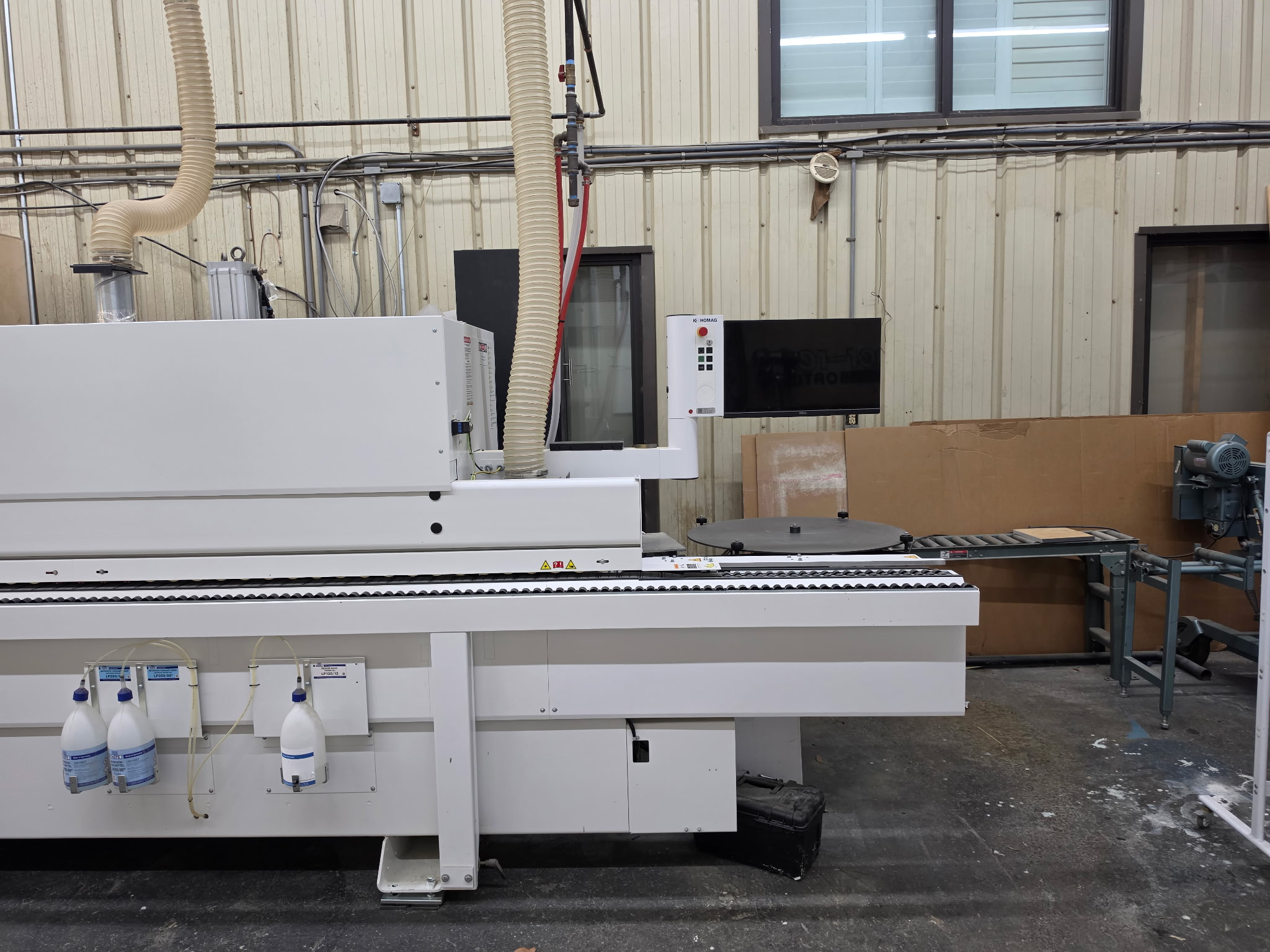

Large Coil Table (800mm)
Automatic Strip-feed Infeed Device
Panel Pre-Heating Unit
QA-65N Glue Unit for PUR and EVA Adhesives
Universal Melting Kit
2 Motor End Trimming Unit
Anti-Static Spray Unit
MS 40 Top and Bottom Fine Trimming Unit
MF 50 Multi-Function Corner Rounding Unit
MZ 40 Top and Bottom Profile Scrapers
Top and Bottom Finish Scrapers
Cleaning Agent Spray Unit
Top & Bottom Buffing Unit
(LOOPTEQ 0-300 (TFU 140) Return Conveyor Connection Kit)
Feed Speed: 8 - 20 m/min (14 m/min when corner rounding)
Panel Thickness: 8 - 60 mm
Panel Width:(Min) 70 mm
Panel Length: (Min) 160 mm
Material Thickness (Coils): 0.0 - 3 mm
Material Thickness (Strips): 0.4 - 15 mm
Edgebanding Height: 12-65 mm
Electrics: Multi-Tap Transformer
Electrical Connection: 200/208/440/480/600V 3-Phase / 60 Hz
Total Power: 27 kW
At 230V = 7.30 amps
At 480V = 33.7 amps
Air: 26 CFM, 6 bar (87 PSI) 1/4" ID Airline
