Description

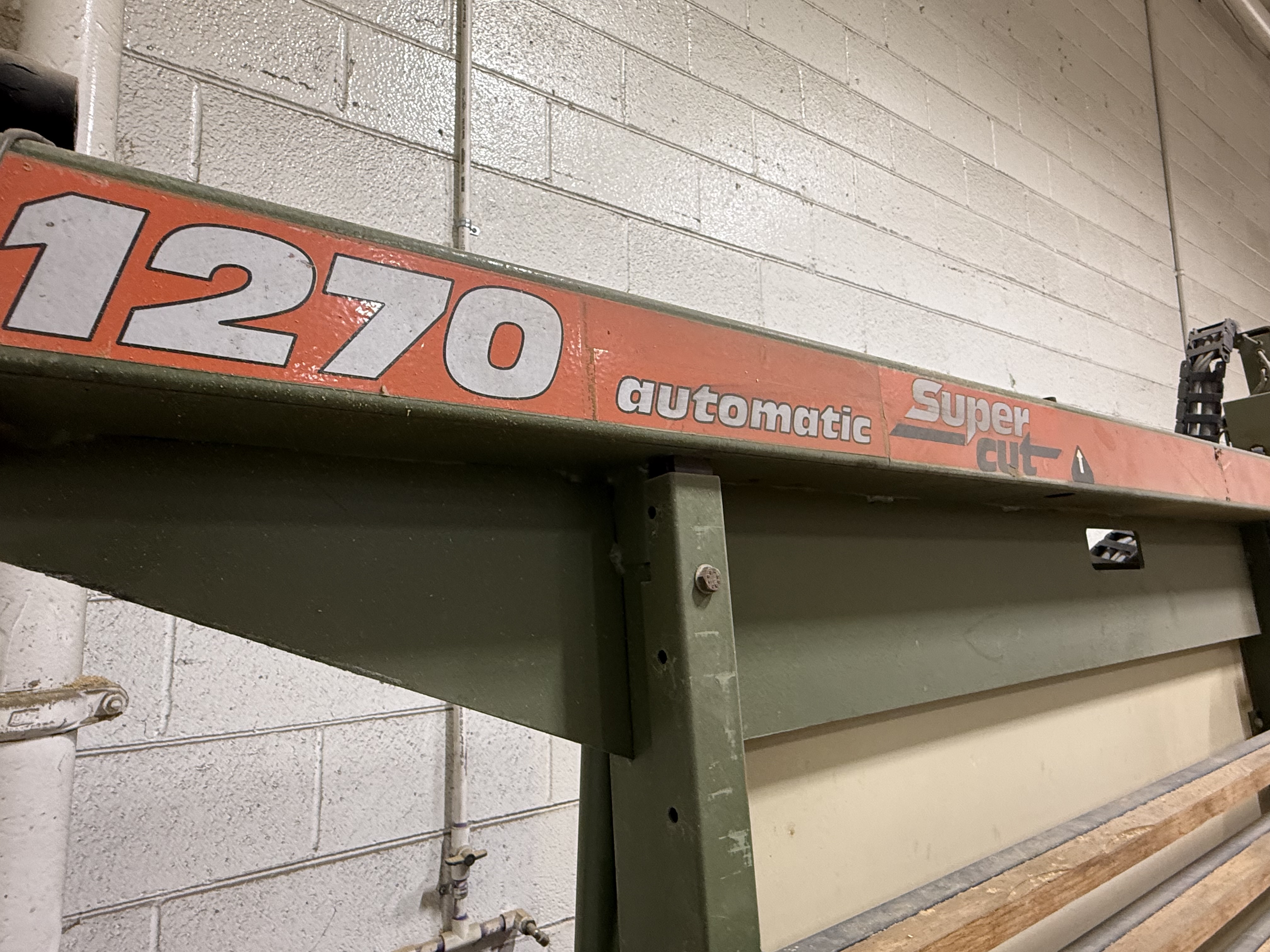

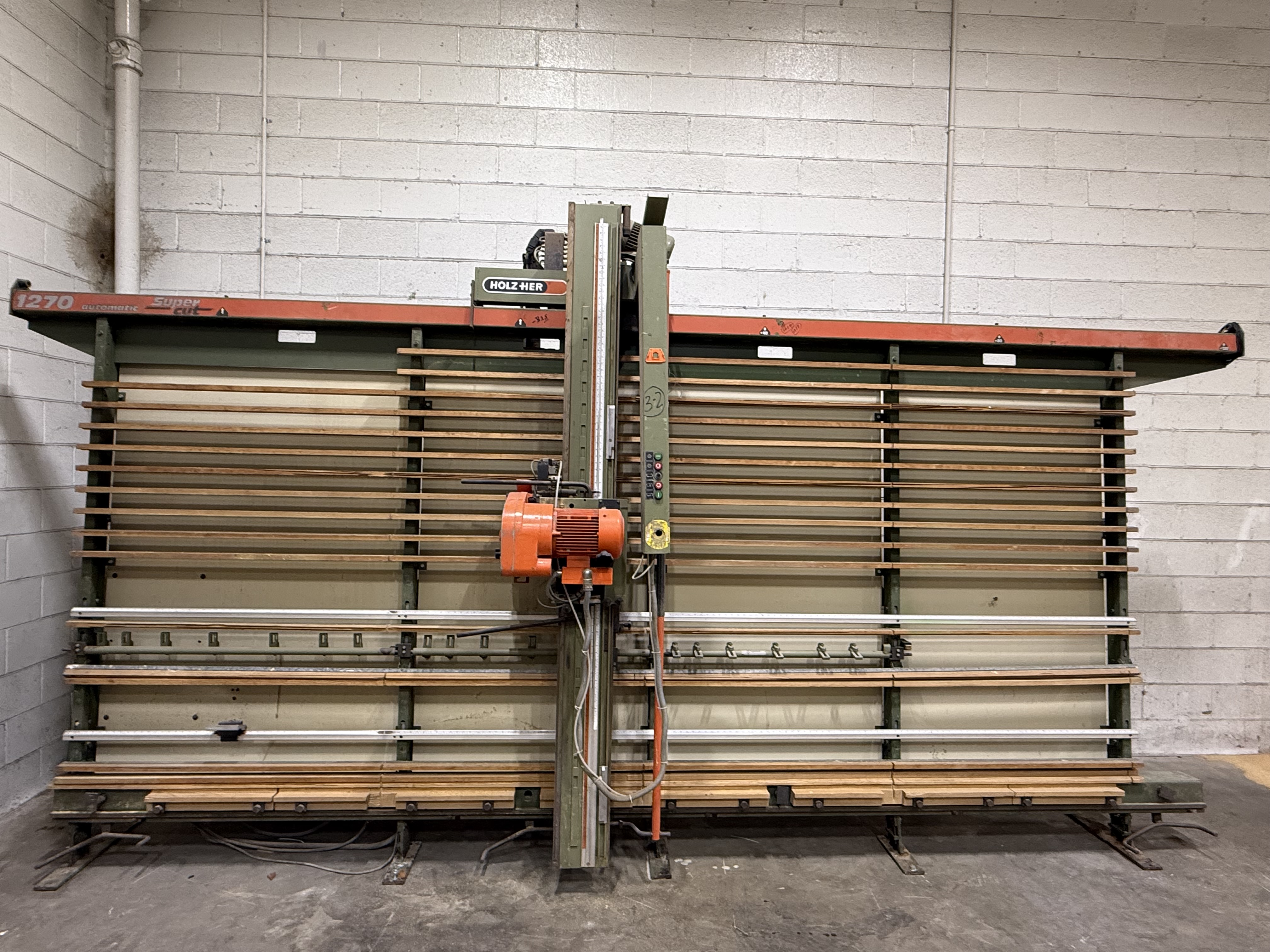

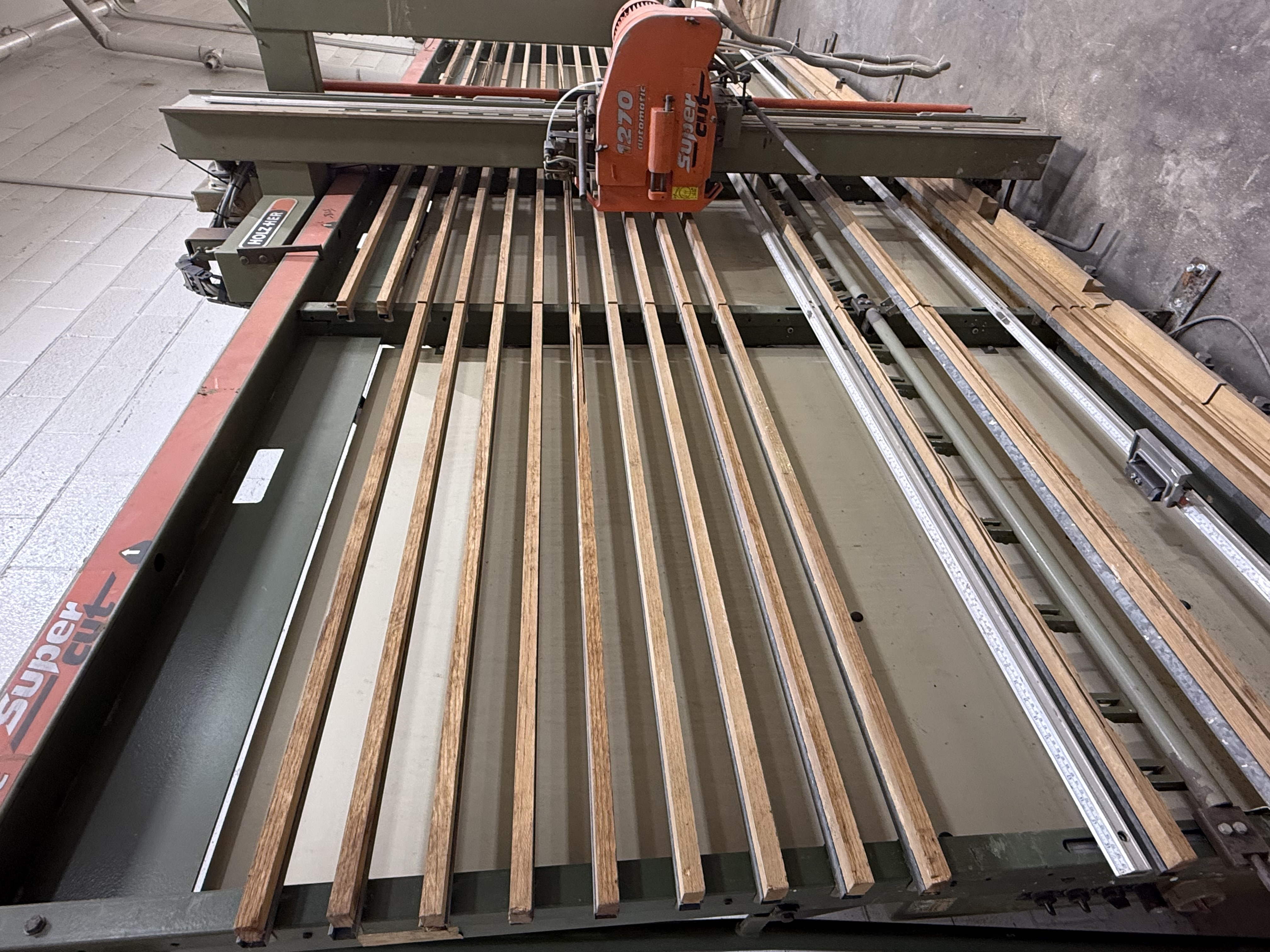

For sale is a 1989 Holz-Her 1270 Semi-Automatic Vertical Panel Saw. This industrial-grade panel saw is built for accurate vertical and horizontal cutting of plywood, MDF, melamine, particle board, and other sheet goods. Featuring the patented Supercut scoring system, it produces clean, chip-free cuts that are ready for finishing.
Specifications
Manufacturer: Holz-Her
Model: 1270 Semi-Automatic
Year: 1989
Machine ID: PSV-11775
Condition: Fair – Running
Motor: 4 HP
Electrical: 220 Volt, 60 Hz, 3 Phase
Blade Diameter: 8.6" (220 mm)
Blade Speed: 6,540 RPM
Feed Speeds: 11 / 22 m/min
Cutting Capacity
Maximum Cutting Length: 169"
Maximum Cutting Height: 75"
Edging Height: 73"
Maximum Cutting Depth: 2"
Features
Semi-automatic vertical and horizontal cutting
Rip and crosscut capability
Patented Supercut scoring system for chip-free cuts
Heavy-duty welded steel frame for accurate cutting
Integrated dust extraction connection
Hinged support for safely cutting smaller panels and offcuts
Dust Collection
Air Requirement: 825 CFM
Dust Port: 65 mm (2-1/2")
Static Pressure: 900 Pa
Condition
This machine runs and operates. It is in fair overall condition for its age and is ready to go to work.
Please Note:
The dust collection pipe/duct that carries sawdust to the collection container is missing and will need to be replaced by the buyer.
Sold as shown in the photos.
This is a great machine for cabinet shops, woodworking businesses, sign shops, or anyone looking for a dependable industrial vertical panel saw at a fraction of the cost of a new machine.
$5700 OBO
PICKUP ONLY We are happy to answer questions or provide additional photos upon request.
