Machine Features:
Working Fields:
X = 4140 mm (162.9")
Y = 1260 mm (49.6")
Z = 200 mm (7.87") with 74 mm Pods
Z = 245 mm (9.6" ) with 29 mm Pods
8 ATS Style Panel Support Rails
3 Vacuum Pods Per Rail (24 Total)

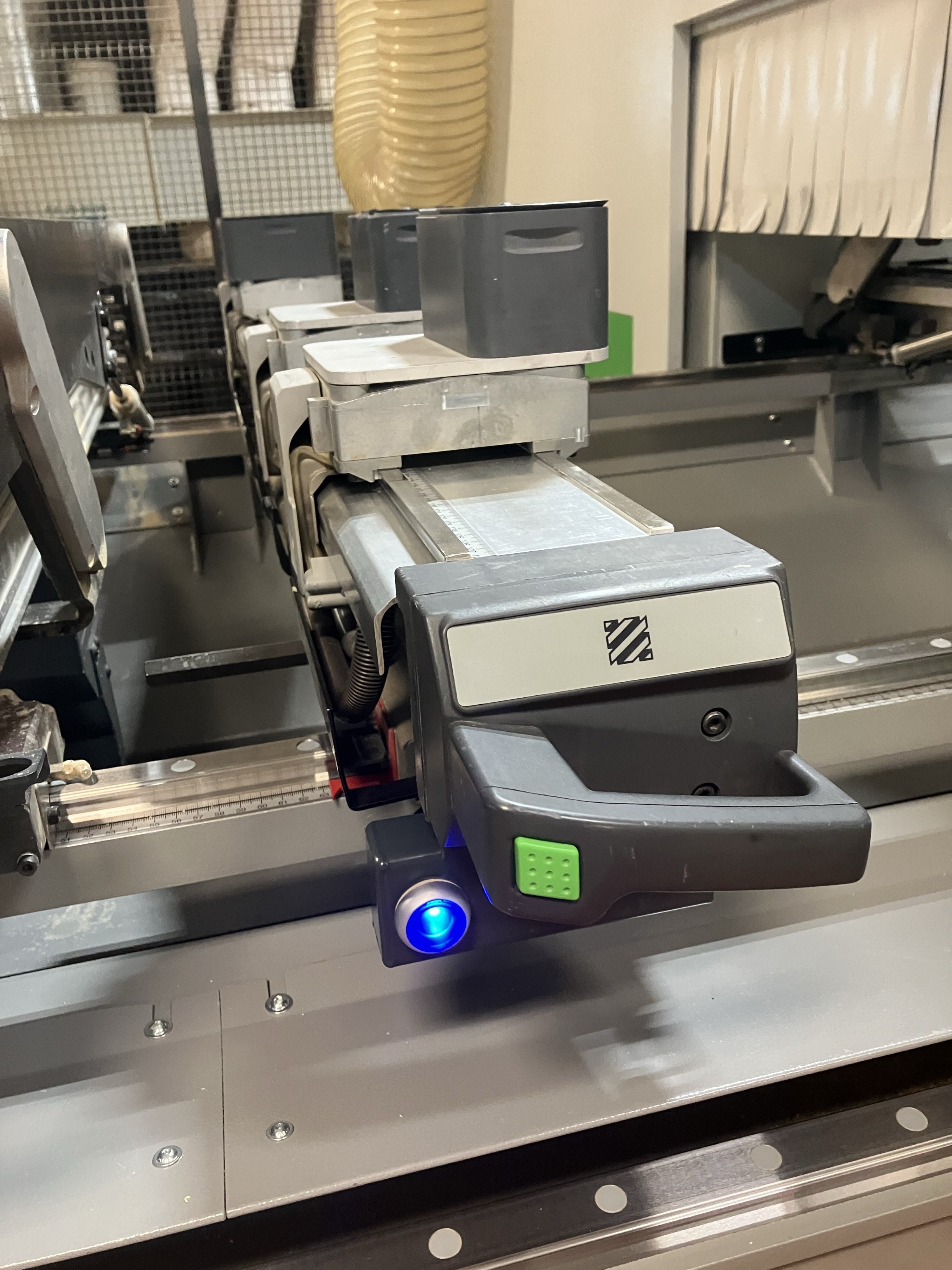

Automatic Panel Rail Supports

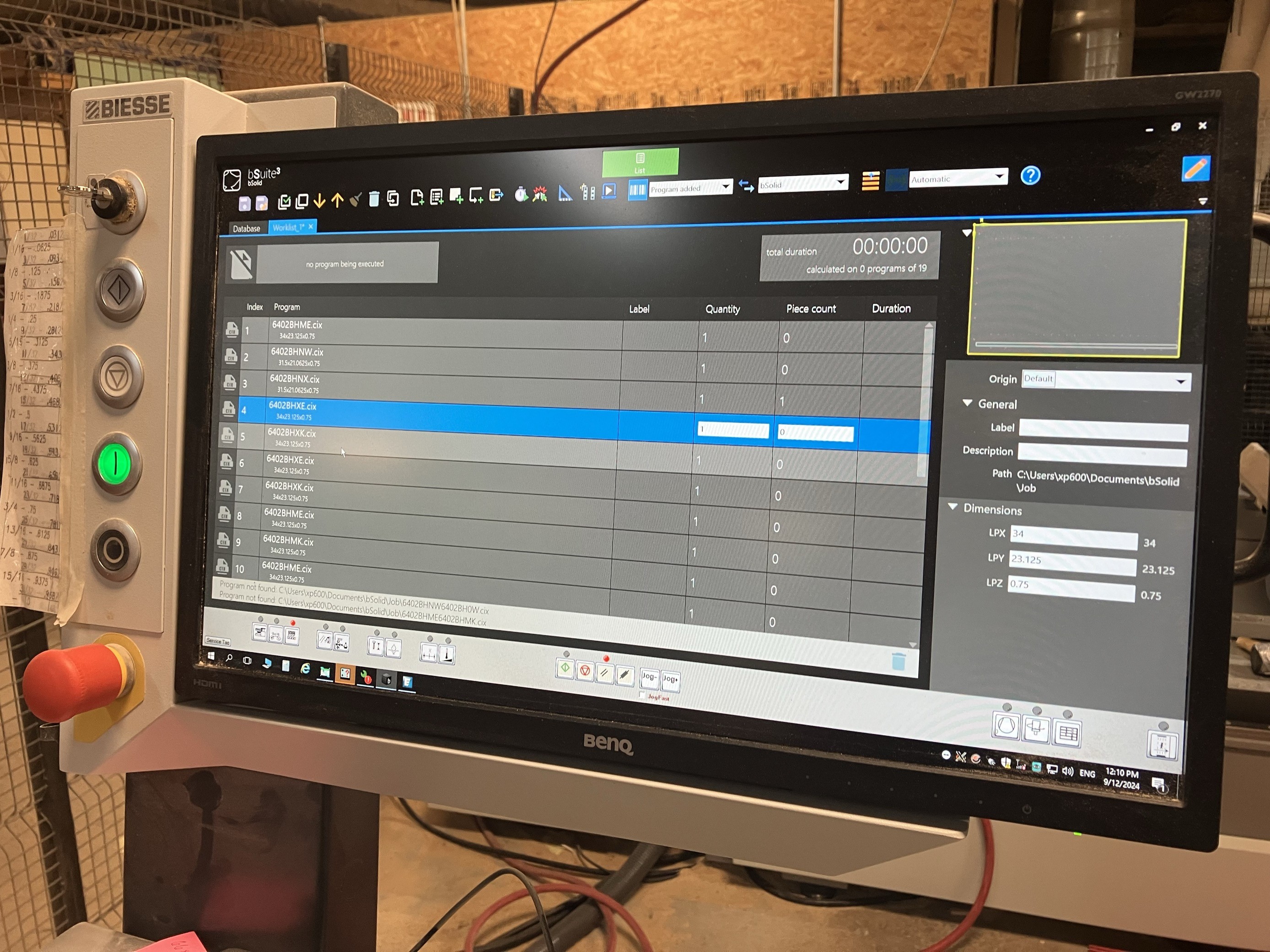

PC Based Control System with Window Software
PC Computer with 21" LCD Color Screen
Hand Held Controller for ease of Set-up
17.7 HP Electrospindle with HSK-F63 Adapter
Flange on Spindle for the use of Aggregates
Pre-wired for "C" Axis
8 Position Rotary Toolchanger on Y-Axis
Tool Pre-setting Device

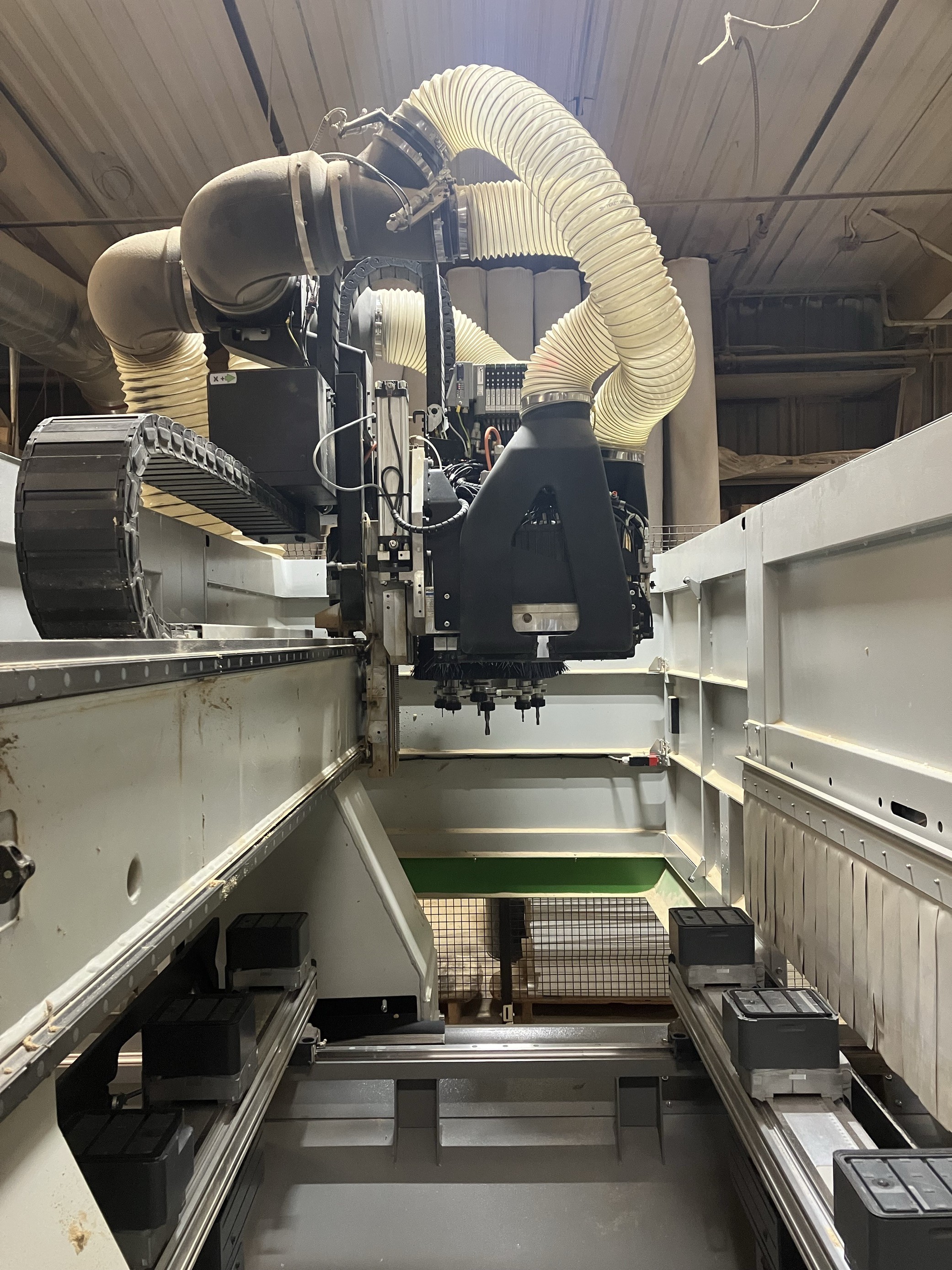

Large BH29 2L Boring Head with Auto Lubrication
17 Vertical Spindles (11 in X-Axis & 6 in Y-Axis)
5 Double Horizonal Spindles (3 in Y & 2 in X)
2 Saw Blades ( 1in X & 1 in Y)
Automatic Best Chip Conveyor
(1) 300 m3/h Rotary Vein Vacuum Pump
Automatic Lubrication System
Multitap Transformer Included
bSolid Software Included
