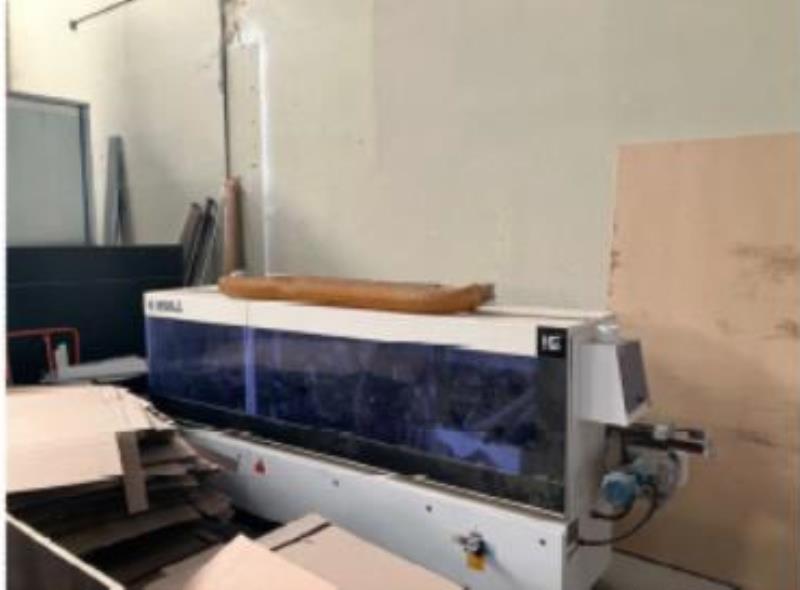

HOMAG S-200 (OPTIMAT KDF 130C): Edgebander (w/Premill & Corner Rounding) +"AIR TEC" EVA/PUR. ≈≈
0.3 - 3 mm (0.016 - 0.11") Edge; 8 -60 mm (0.312 - 2.375") panel thickness; 160 mm (6.375") min. panel length; 70 mm (2-3/4") min. panel width.
Separating/cleaning agent spraying units.
Premilling Station: (2) Motors @ 2.25 kW (3.0 HP) - 12.000 RPM; LH & RH rotation w/pneumatic jump control for chip-free and clean panel edges.
100 mm Dia. diamond cutterheads.
Integrated heated glue roller.
AirTec Reactivation unit for Zero edge finish....
Workstations
End Trimming: (2) Motors each @ 0.35 kW (1/2 HP) 12,000 RPM; automatic chamfer from control panel 0° - 15°. Flush/Bevel-Fine/Radius Trimming Unit. (2) Motors: Top/Bottom; 0.55 kW (3/4 HP) - 12,000 RPM; 0° - 25° auto-tilt positioning from control panel with combination flush/radius/chamfer cutterheads.
Includes (3) positioning options: Profile 1, Profile 2, & Profile 3: Flush trimming.
Corner Rounding Unit. (1) Motor 0.35 kW (1/2 HP) - 12,000 RPM with: Automatic adjustment from control panel for: 1-Mil, 2-mil & 3-mil thickness.
For leading & trailing edges, vertical corner rounding of panels: Ether radius or chamfer cutters can be mounted; 3 mm max. edge thickness.
Scraping, multi-profile (PVC) Top/Bottom with (2) profiles: (1) 1 mm, 2 mm, or 3 mm in place of (2) 2 mm positioning of vertical & horizontal copy wheels. PVC scrape collection box.
Buffing Unit: Top/bottom (2) motors; 0.10 kW (0.125 HP) - 2,800 RPM.
*** Please click the link for full description***
Homag EDGETEQ S-200 Edgebander
