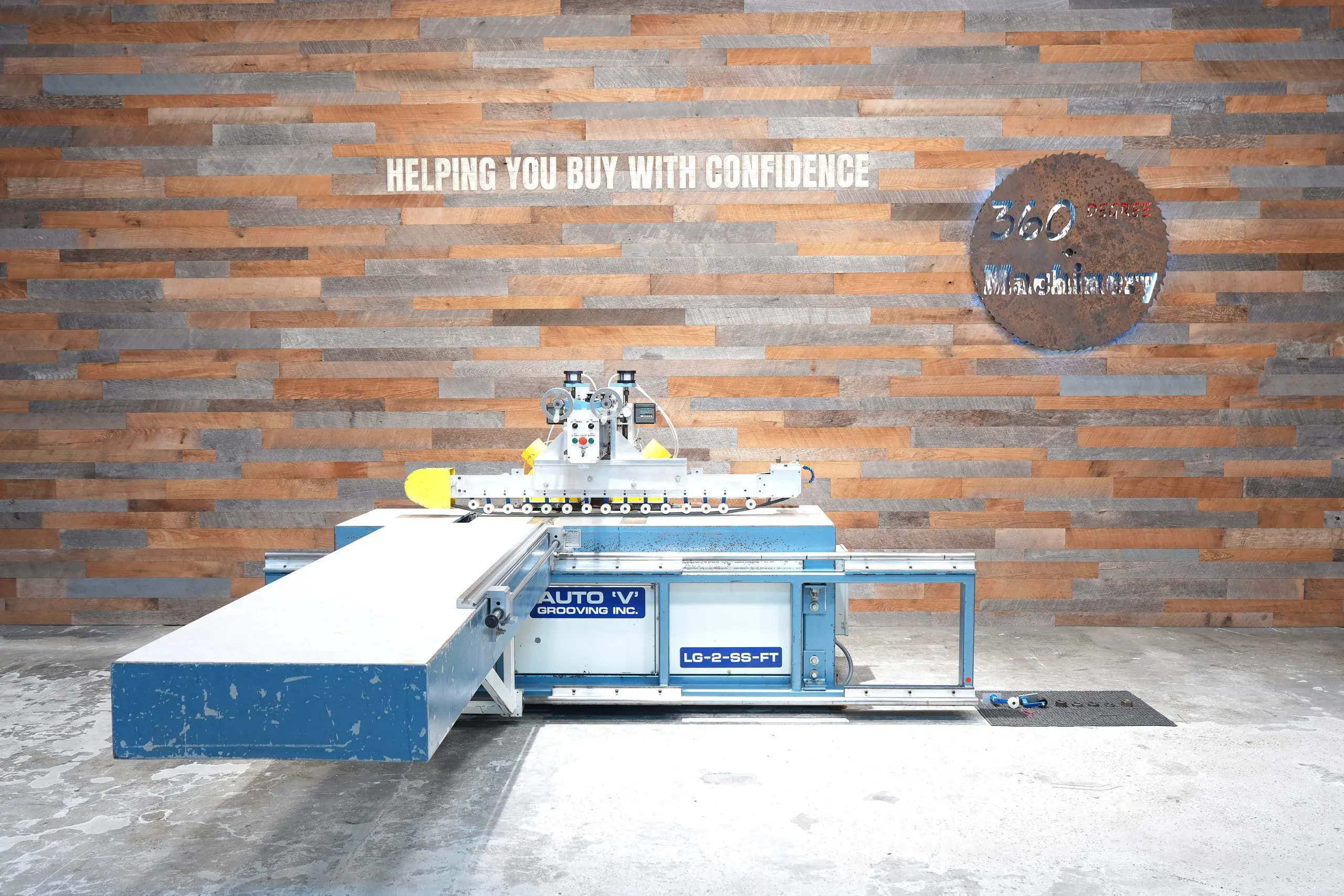

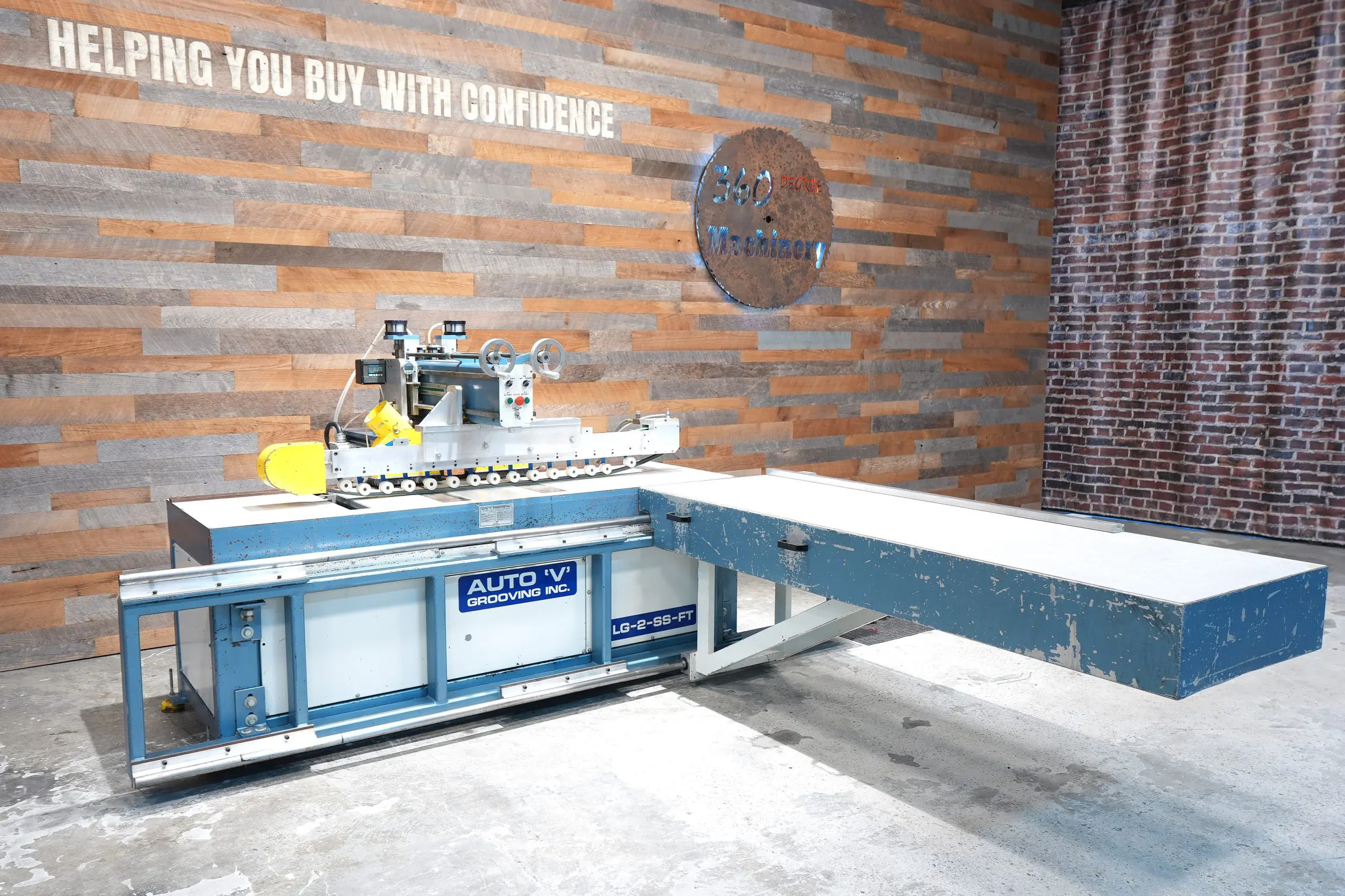

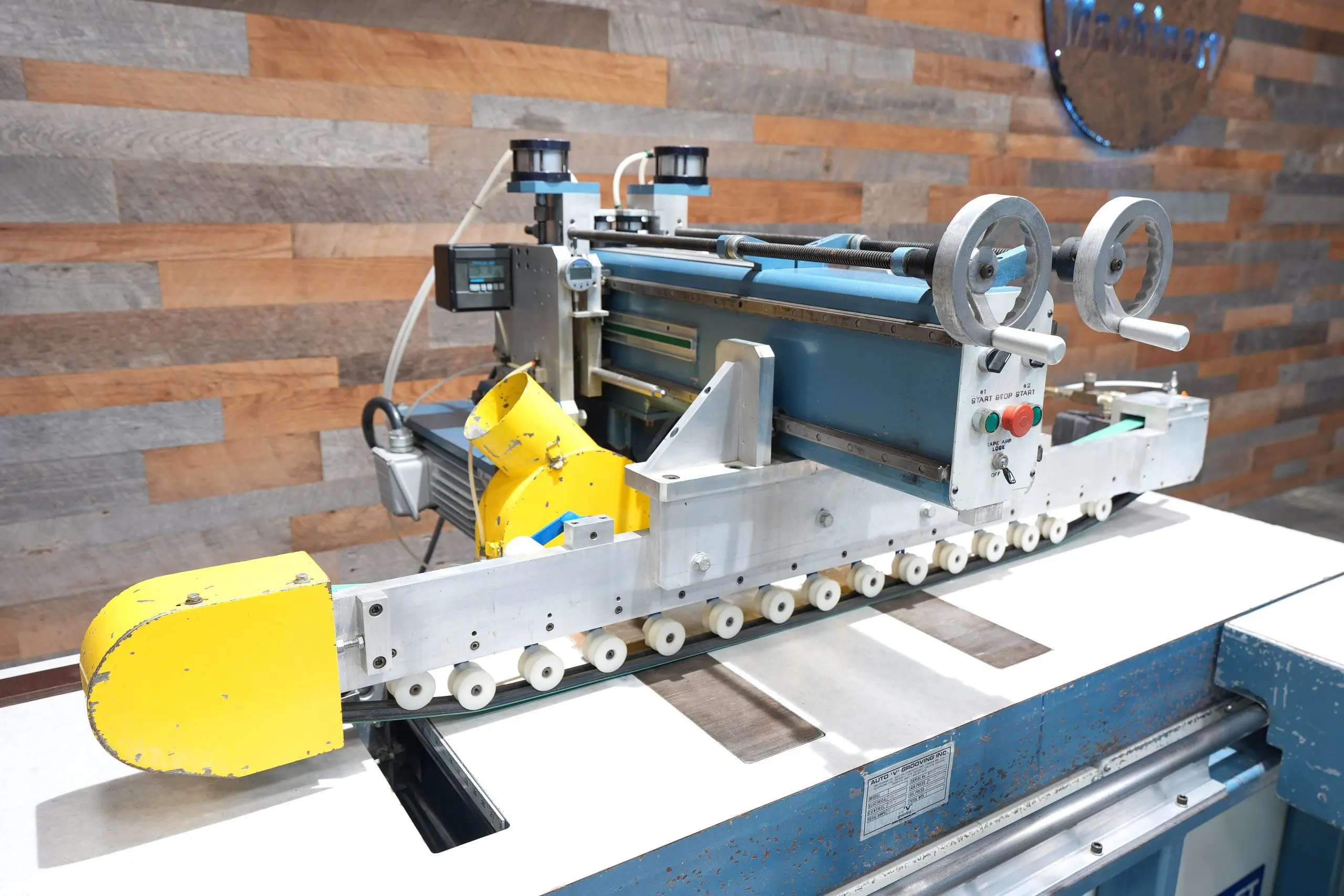

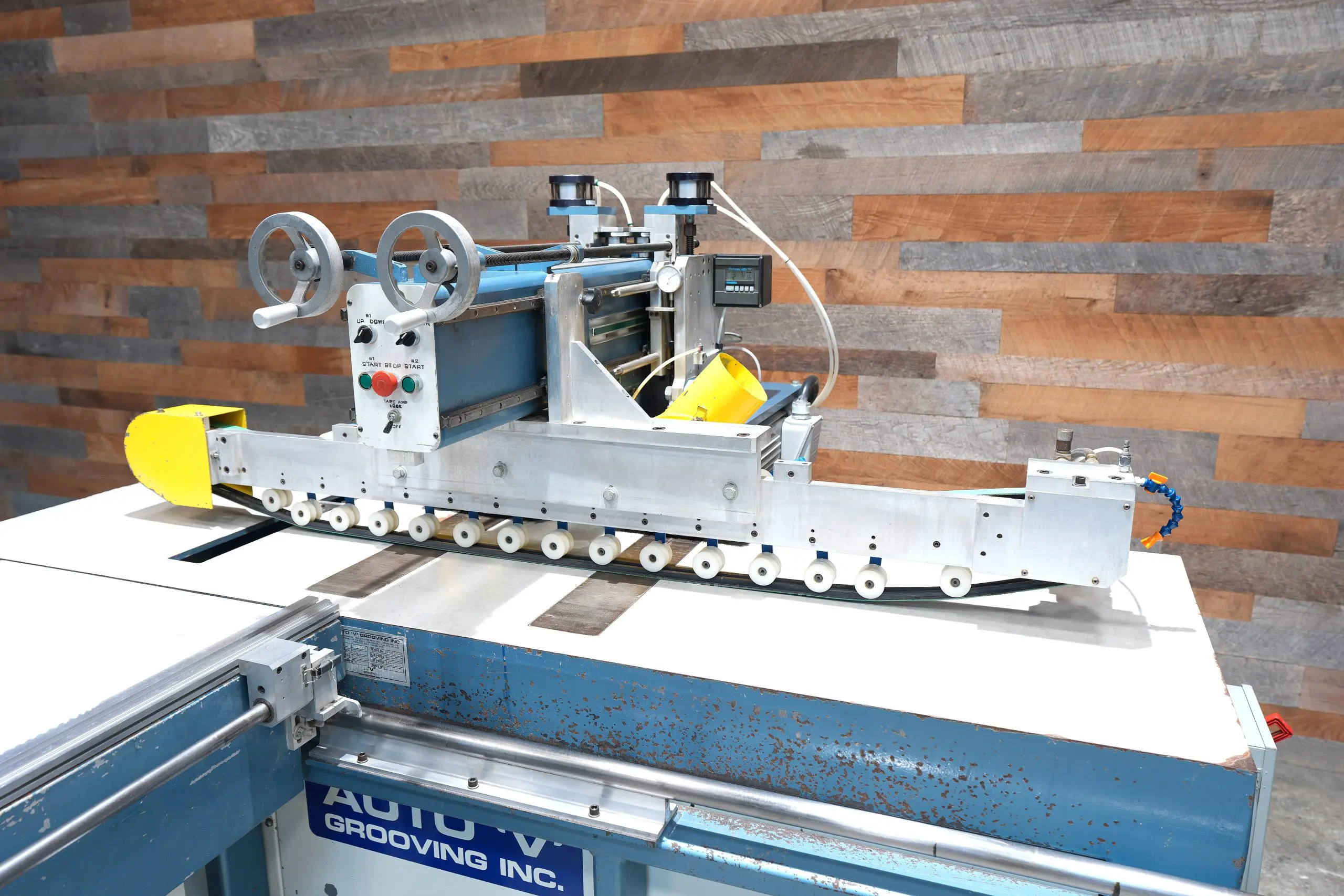

Brand: Auto ‘V’ Grooving
Model: LG-2-SS-FT
Approx. Shipping Weight: 5,000
Approx. Shipping Dimensions: 108″ L x 84″ W x 60″ H
Specifications:
V-Grooving Head: 10HP
V-Grooving Head Speed: 3,600RPM
Coving Head: 10HP
Coving Head Speed: 3,600RPM
Material Thickness: 1″ Max
Material Width: 4″ Min – No Max
Material Length: 12″ Min- No Max
Cross Grooving: 15″ Max from fixed fence
Cross Grooving Length: No Max
Feed Power: Hydraulic-2HP
Feed Rate: 0-60 FPM
Table: 96″L
Cross Grooving Table: 96″L X 32″W
Voltage: 220/480/3PH
(2) Accurate Technologies Pro-Scale Digit Read Outs,
Tape Applicator and Pneumatic Head Positioning
