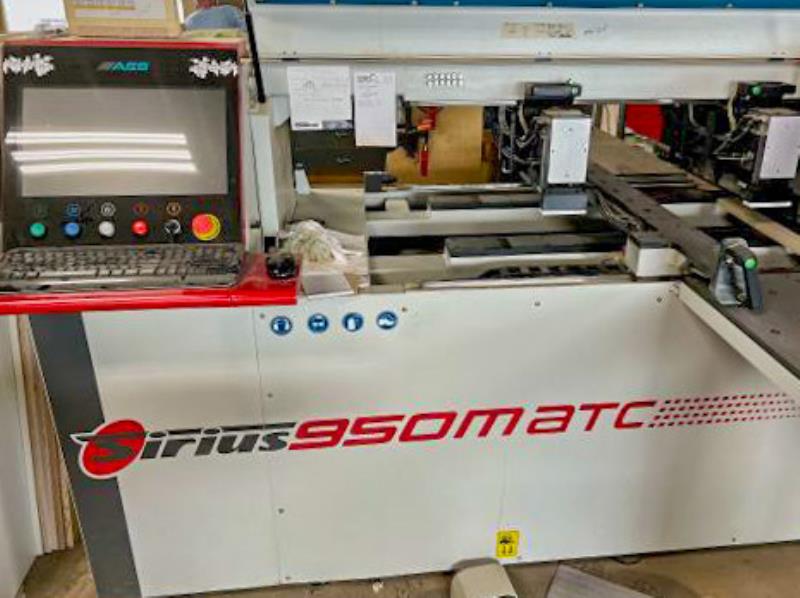

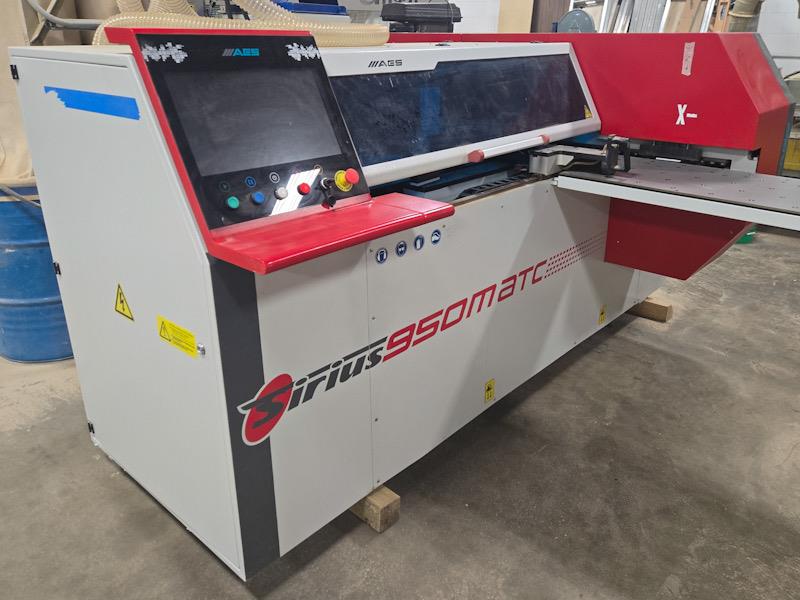

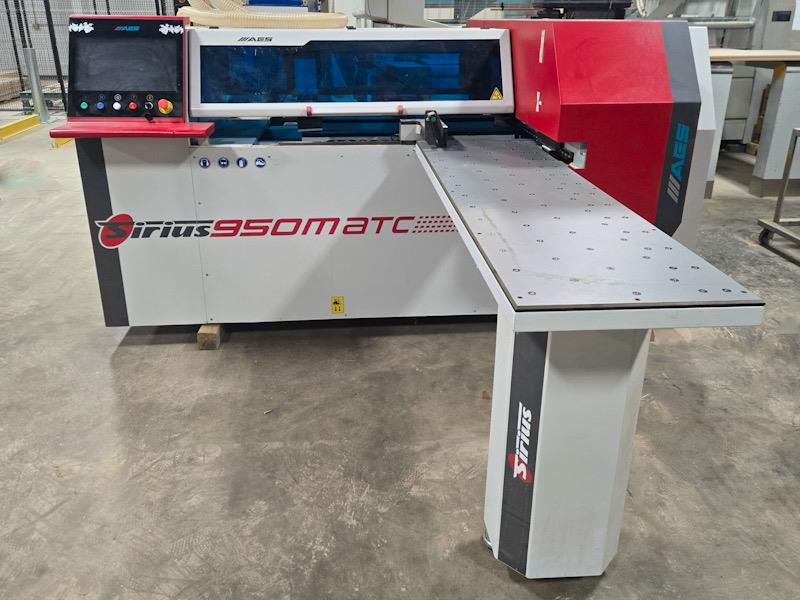

Automatic CNC feed through Point to Point Boring Machine that combines flexibility and high productivity.
A perfectly suited solution for small to midsize companies & artisans in need of an automatic solution for precision drilling with a low-cost investment.
Parts can be discharged at the opposite end of the machine for automated material handling or returned to the Operator for manual unloading.
Working Capacity:
Max. panel size on X-Axis is unlimited; Y-axis is 37.4" (950 mm); Z-axis is 2-3/4" (70 mm).
Min. panel on size X-axis is 9.84" (250 mm); Y-axis is 3.14" (80 mm); Z-axis is 0.31" (8 mm). ≈≈ Positioning Speed:
Panel feeding speed of 229 FPM (70 MPM); Y-axis at 229 FPM (70 MPM); Z-axis at 65 FPM (20 MPM).
Axes positioning by AC drives & brushless Servo motors; the Panel moves in X-axis & the boring head moves in Y & Z-axes.
Work Area:
NC Controlled "Optical Material Sensor" creates a zero-panel reference point by reading the panel ends; this ensures that RH & LH (mirror image) panels will always be symmetrical.
High precision clamping automatically positions the workpiece. Automatic presser moves independently and adjusts to workpiece thickness. Pneumatic side pusher makes locating workpiece accurate and efficient. LH Side pressure clamp with automatic adjustment & pneumatic locking according to the panel width.

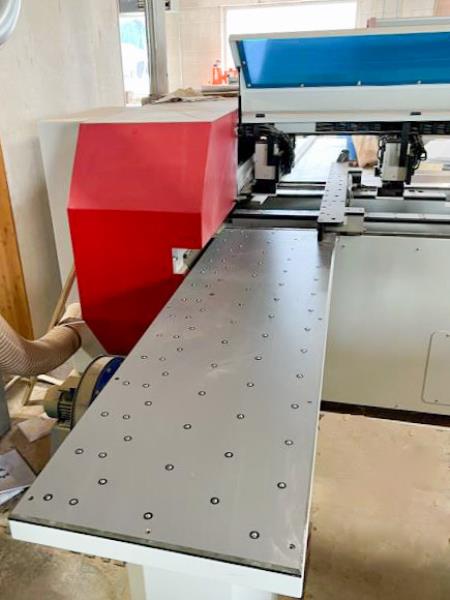

Scratch resistant air floatation tables make for ease of loading and unloading from either side of the machine.
Boring Unit:
HSD Drilling head; 3 HP (2.2 kW), variable speed from 4,500 - 8,000 RPM motor.
(10) Independent vertical spindles on 32 mm centers; (5) spindles in X-axis & (5) spindles in Y-axis.
(6) Horizontal spindles with (2 + 2) in X-axis & (1 + 1) in Y-axis.
(1) X-Axis grooving saw for max. 120 mm dia. blade; variable speed from 5,500 - 10,000 RPM.
Machining: HSD 7 HP (5.5 kW) spindle; variable speed from 1,000 - 18,000 RPM with manual tool change system.
(1) 6-Position ATC Automatic Tool Change system with ATC rotary magazine.
PC Based user-friendly, icon-driven control housed on the main machine base; displays programming graphics, functions, and machine data ...
*** Please click the link for full description***
