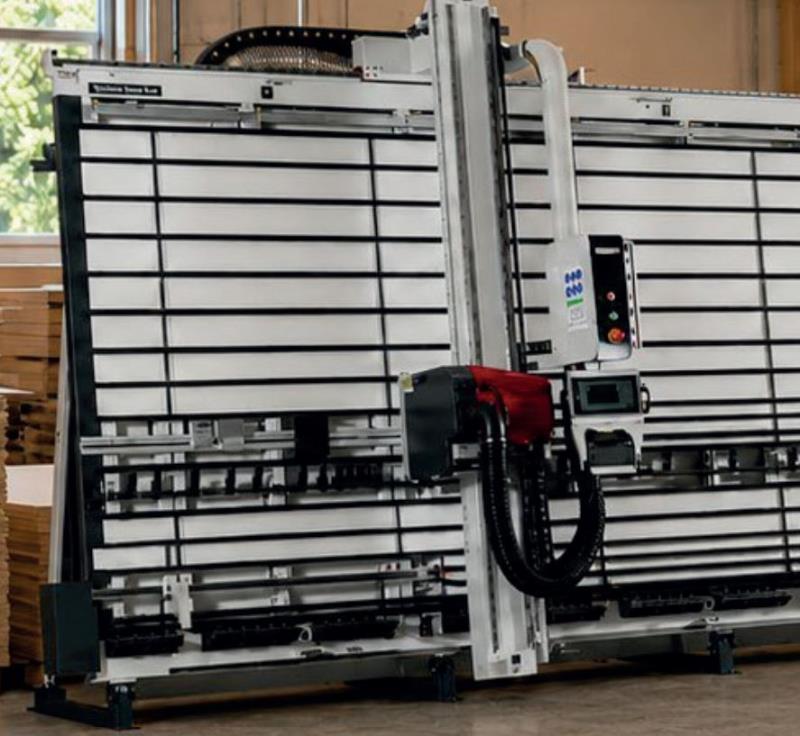

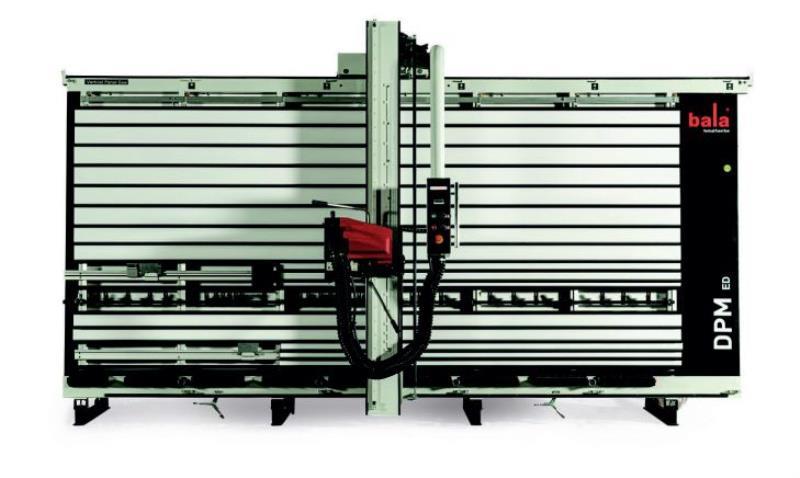

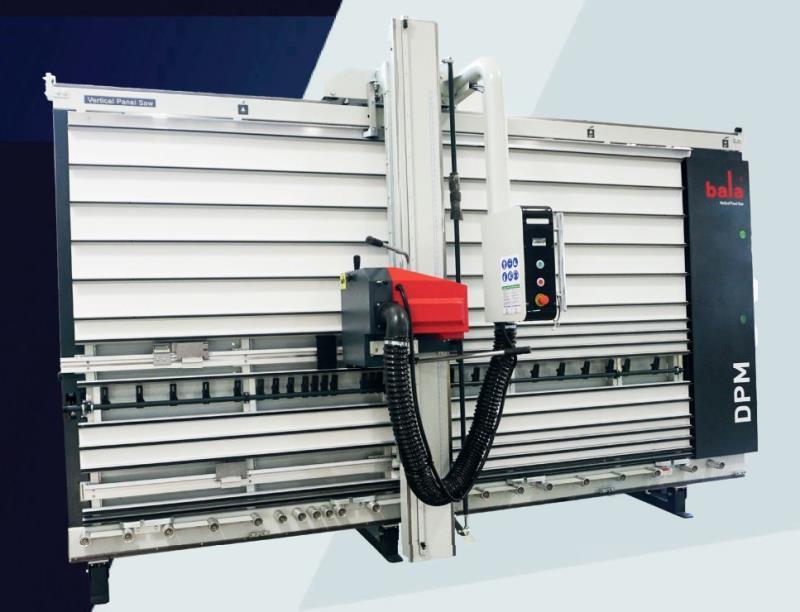

BALA DPM ED 1955 Vertical Panel Saw (216" x 74"), Vertical-Horizontal Digital Readouts
Top to Bottom cutting height is 74", 70" horizontal cutting height; saw head w/motor rotates 90° for rip or crosscutting; cutting length 216"; cuts single or stacked panels up to 60 mm (2.36") in thickness.
Standard features: 5.0 HP Motor; 250 mm (10") dia. 80-tooth main saw blade.
Auto-shifting material back support grid; shifting away from the saw blade cut line, prevents cutting into the grid support strips while rip cutting horizontally.
Equipped with:
Precision ground bottom edge steel support rollers to facilitate easy loading and positioning of the larger or heavy panels; both standard inch and metric preset "beam lock" stations.
Vertical cutting stations are spaced at 40" or 1,000 mm increments to lock in the saw beam for vertical crosscuts. (2) Adjustable flip-stops on inch (metric available) measuring scales, one located on the lower rail and the other on the foldout shelf at the middle of the frame.
Repeat Rip Gauge for duplicating multiple horizontal cuts.
Retractable Material Support Shelves throughout the entire length of the machine frame allows for ergonomic cutting of smaller parts, at any cutting station without the need for the operator to bend down.
Includes: Vertical-Horizontal Digital Readouts; (1) 250 mm (10") dia. 80-teeth, 30 mm bore main blade.
*** Please click the link for full description***
Bala DPM ED 1955 Vertical Panel Saw
